Description

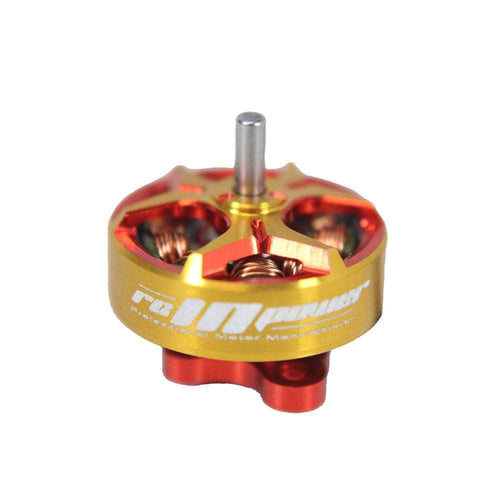

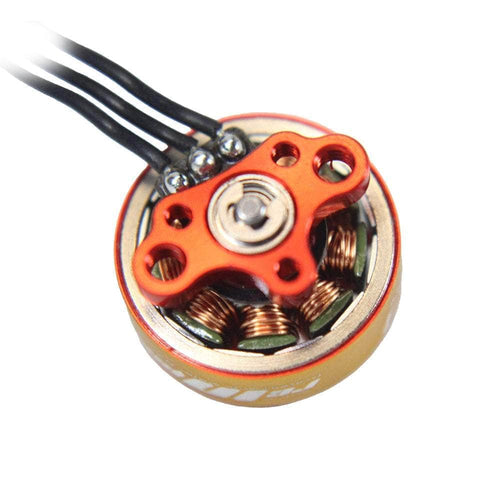

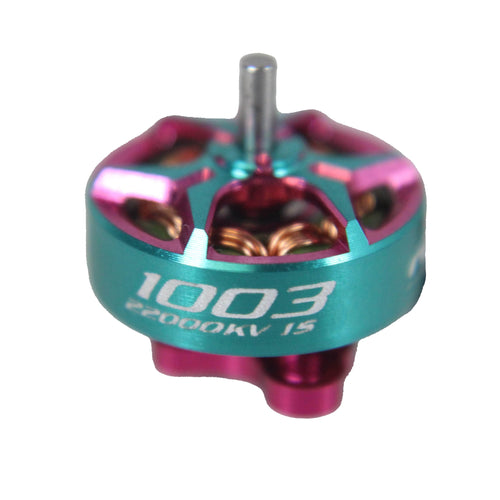

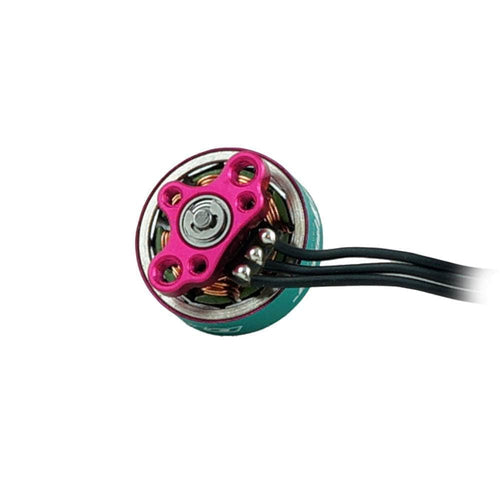

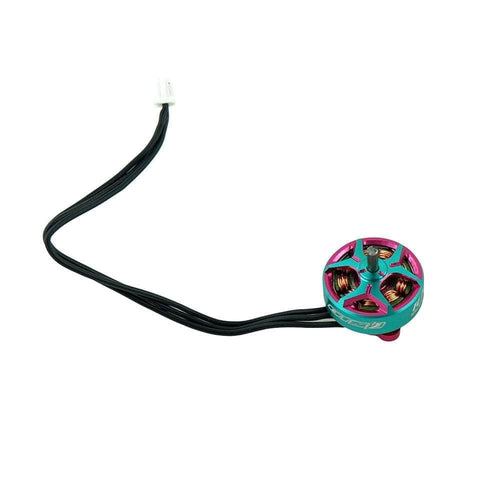

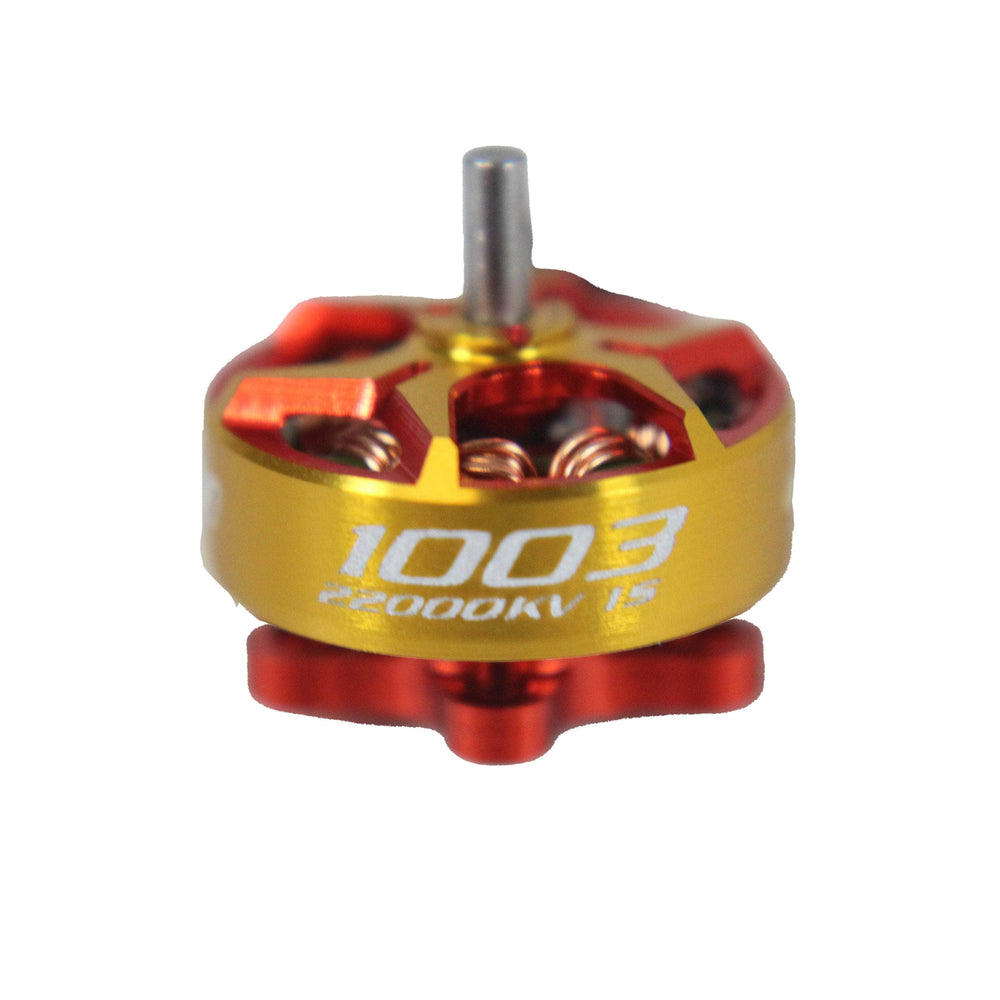

Transform your FPV experience with the RCINPOWER GTS V3 1003 22,000Kv Brushless Motor. This motor boasts impressive power, speed, and torque and will leave you stunned. Dare to go faster, farther, and higher than you ever have! Choose between orange with gold accents or blue with pink accents. This motor comes with a a solderless motor connector.

This motor is also available 10,000Kv and 18,000Kv

Check out our micro motors and all our Rcinpower products!

Features

• Enables agile and efficient flight maneuvers
• Designed specifically for FPV enthusiasts
• Compact and powerful microdesign

Specifications

• KV: 22000

• Configuration: 9N12P

• Stator Diameter: 10mm

• Stator Length: 3mm

• Shaft Diameter: 1.5mm

• Motor Dimension: 13.5x9.2mm

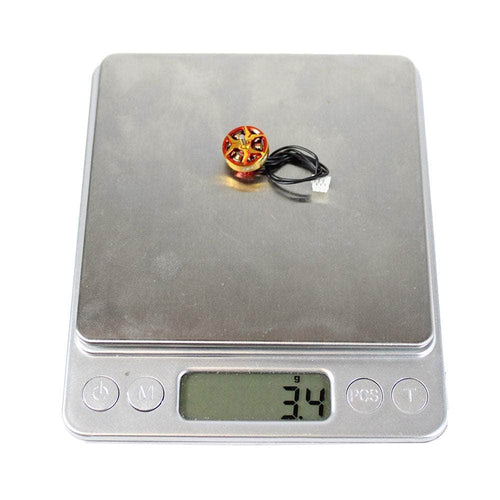

• Weight: 3.45 Grams (5cm Wires)

• Idle Current (5 Seconds)@4V: 1.5A

• No. Of Cells (Lipo): 1S

• Max Continuous Power (W) 3S: 67

• Internal Resistance: 46mΩ

• Max Current (3S): 18.1A

• Max. Efficiency Current: (1-3A)>84%

Includes

• 1x RCinPOWER GTS V3 1003 22,000Kv Micro Motor - Choose Color
