RDQ Mach 3 Video Transmitter 25-1000mW 5.8GHz VTX - Choose Version

Original price $14.99 - Original price $26.99
Original price
$14.99 - $26.99
Current price $26.99
In Stock
Pre Order
Coming Soon
Connector: MMCX (includes SMA pigtail)
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

The Most Popular Product in RDQ's History... JUST. GOT. BETTER.

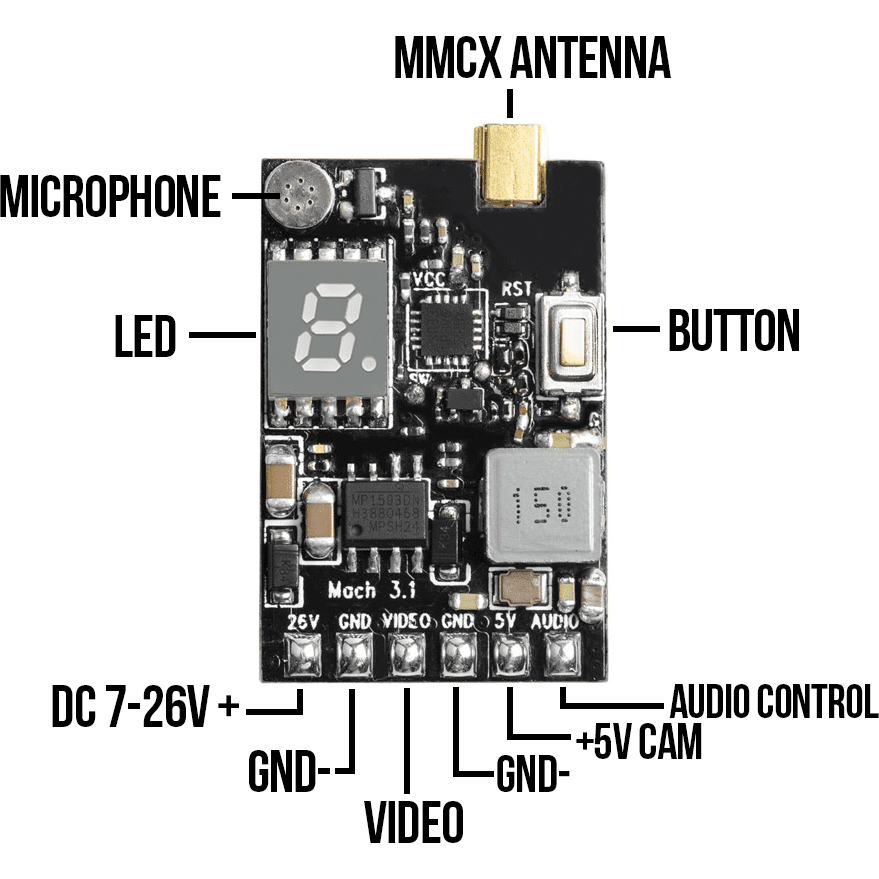

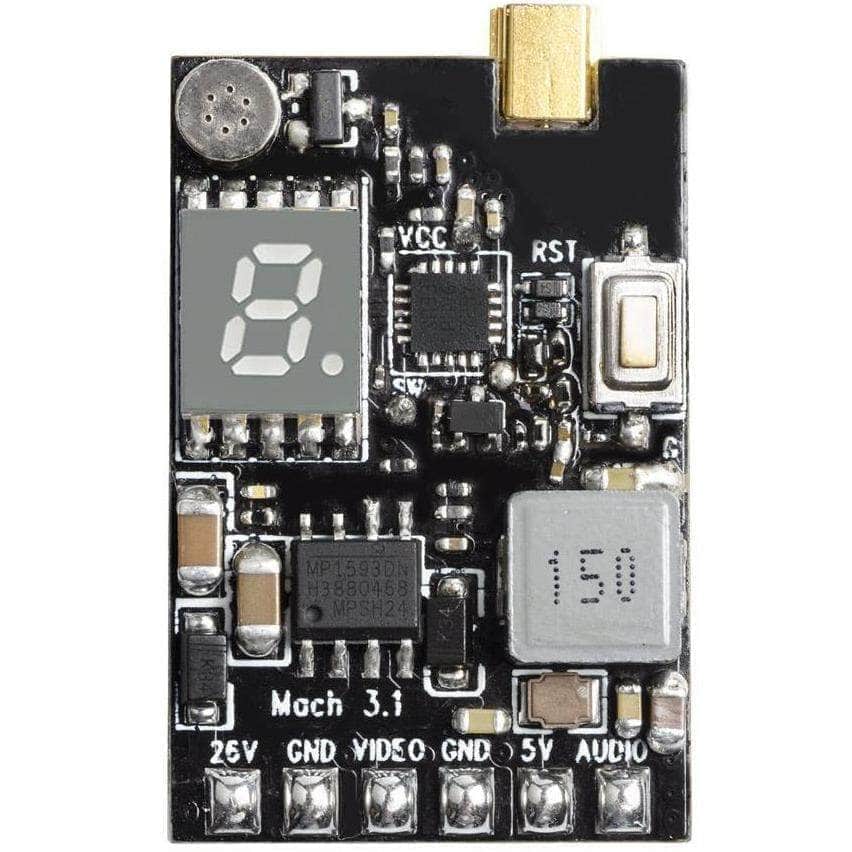

The Mach 3 pushes it up a notch and represents the latest and greatest the hobby has to offer in terms of Video Transmitters. Packed with features, the Mach 3 improves upon the Mach 2 by increasing max input power to 6S direct battery voltage and increasing the max output to 1 Watt. The Mach 3 is the same size as its predecessor and maintains the same expansive feature set that made it so insanely popular. Let's dive into the features of this innovative and affordable VTX below:


  • 0/25/200/600/1000mw power options - race with your buddies or go LONG range!
  • 2S-6S direct input (powering off of VBAT/direct from your battery leads is recommended)
  • Audio Control - Control the channel and power setting of the VTX using your radio and OSD (on-screen display)
  • MMCX Connector for extreme durability, or UFL to work with antennas you have
  • On board microphone
  • 100% USA Legal Channels - Keep the Feds off your back! Note, that to be compliant the VTX does not transmit on 5645, 5925 or 5945 (not regularly used channels anyways).
  • 5v Output to power your camera - officially rated at 600ma, but typically can power more (like a Runcam Split)
  • No plug - direct solder pads for exceptional durability and repair ease!
  • LED display shows channel, band, and power
  • Button allows easy change of channel, band, and power
  • SMA Pigtail included
  • Only 6.5 grams

Mach 3 VTX for Sale

Mach 3 Video Transmitter for

Audio Control

Control your VTX, and it's settings, easily and quickly through your OSD and the Audio pad on the Mach 3. Select "Smart Audio" in the Betaflight configurator to enable.

Betaflight OSD will show the standard 25mw, 200mw, 500mw, and 800mw, while the Mach 3 will in fact be putting out 25mw, 200mw, 600mw, and 1000mw.

VTX Tables

For Betaflight 4.1 onward, paste the text in this txt file into the CLI in Betaflight Configurator and type "save"

Audio Control not your thing? Don't worry - there's still an easy to read LED and button to control the VTX!


Many are moving to MMCX because it is more durable than U.FL, as well as being easier to maintain and change out antennas. With U.FL, you have to be sure to secure the pigtail - either glue it, tape it, or find some other way. Otherwise, U.FL could easily pop off mid flight or during a crash. With MMCX, you simply snap in your antenna, and you are off to the races - literally! The downside to MMCX is it is more bulky than U.FL. For some builds this may be a problem - but for most it will not be.

Variable Power

With 0/25/200/600/1000mw power options, the Mach 3 Video Transmitter is perfect for any application. Whether it's race day at MultiGP or ripping through a mountain range at long distance, the Mach 3 has the power option you require.

Direct Solder Pads

They are easy to setup, and easy to keep in the air! With pre-tinned solder pads, your VTX can be setup in mere seconds.Fixing them after a sweet crash, is just as easy. No more trashing VTXs just because a little connector is broken!


A microphone AND Audio Control?! Yeah, we did it. And yeah, it works great! Enjoy!

Clean Video &  5V Out

The Mach3 comes with an onboard 5v regulator to power your camera. It also comes with strong onboard filtering to give you some seriously clean video! If your video is not perfect, please contact us and we will work with you on a case-by-case basis to see what is causing issues on your build!


Note: The U.FL pigtail is held with a small dab of solder. Best practice is to remove before removing the pigtail. To do this, heat your soldering iron, and gently press against the solder until it can be removed. Easy peasy!

Manual Download Link

VTX Table for Betaflight 4.1+

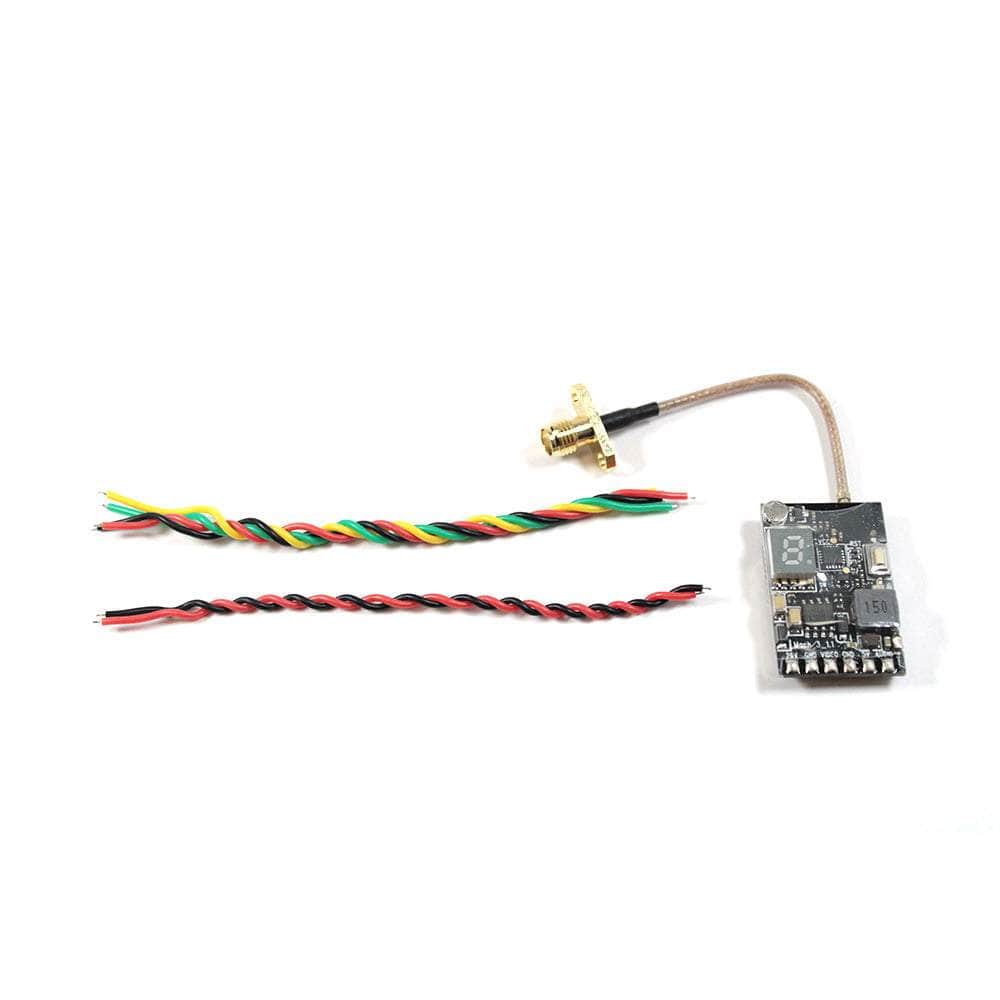

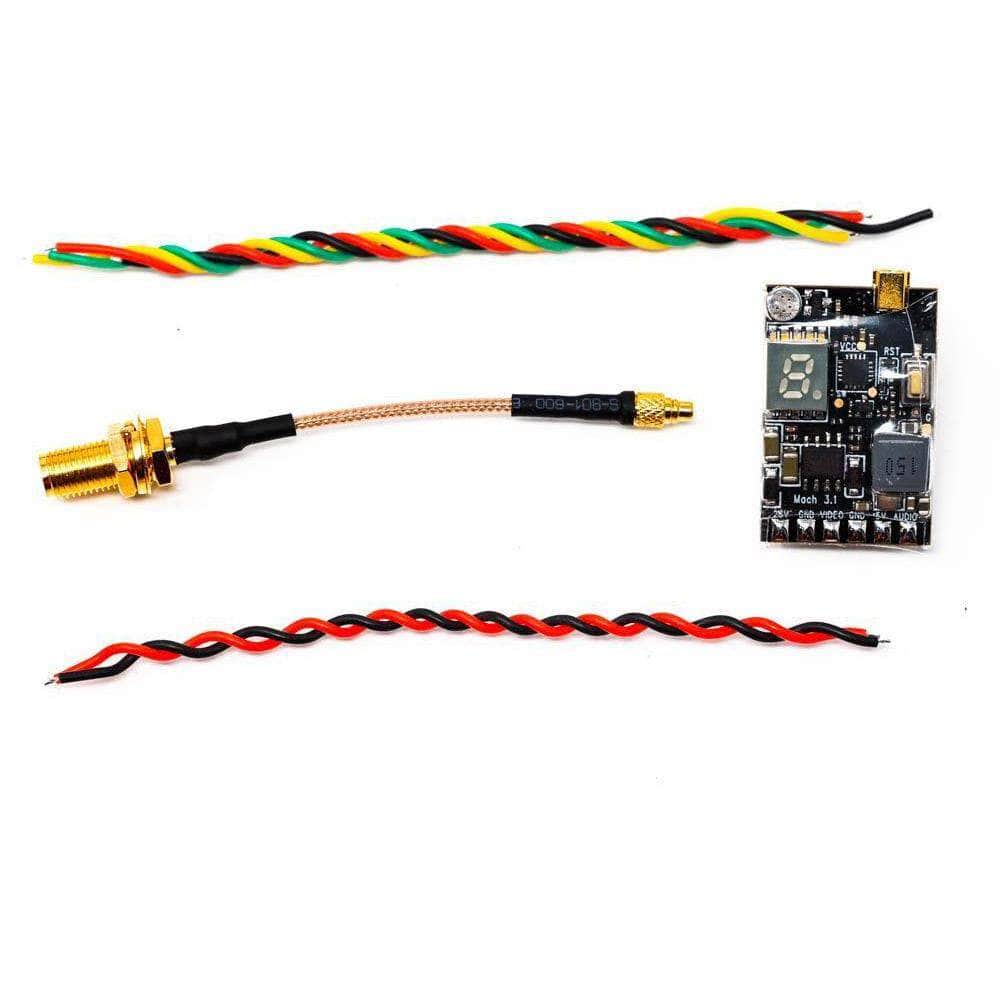

  • 1x Mach 3 VTX
  • 1x SMA MMCX Pigtail
  • 1x Instruction Manual
  • 1x Set of silicon wires
  • Measurements: MMCX: 30.5(H) x 20(D) x 8 (W) mm


7 Mile Long Range Flight With Mach3 VTX

Trusting Your Gear


The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your areaIt is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. RDQ cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
