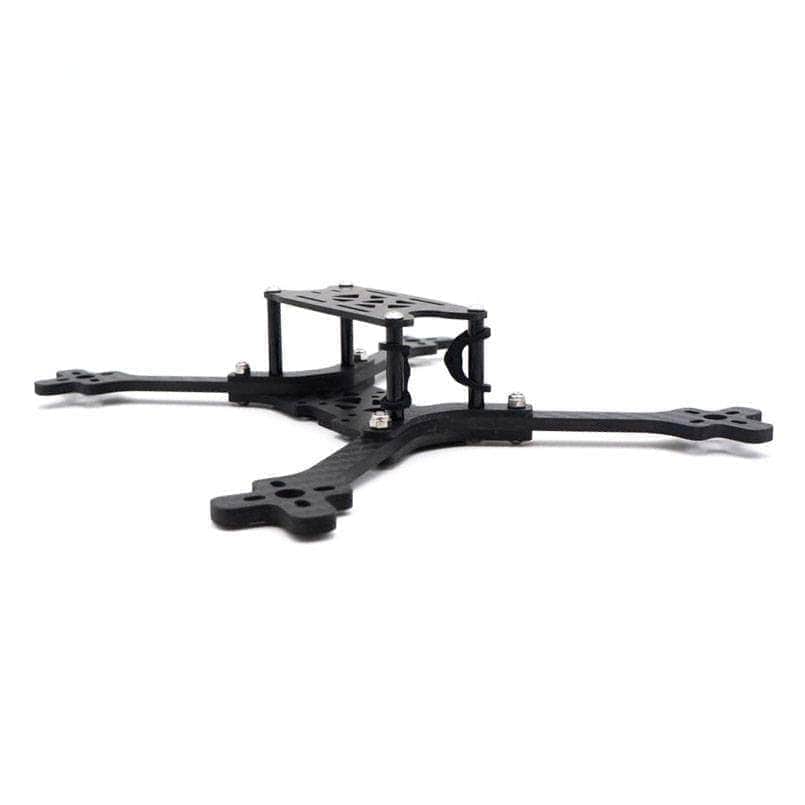

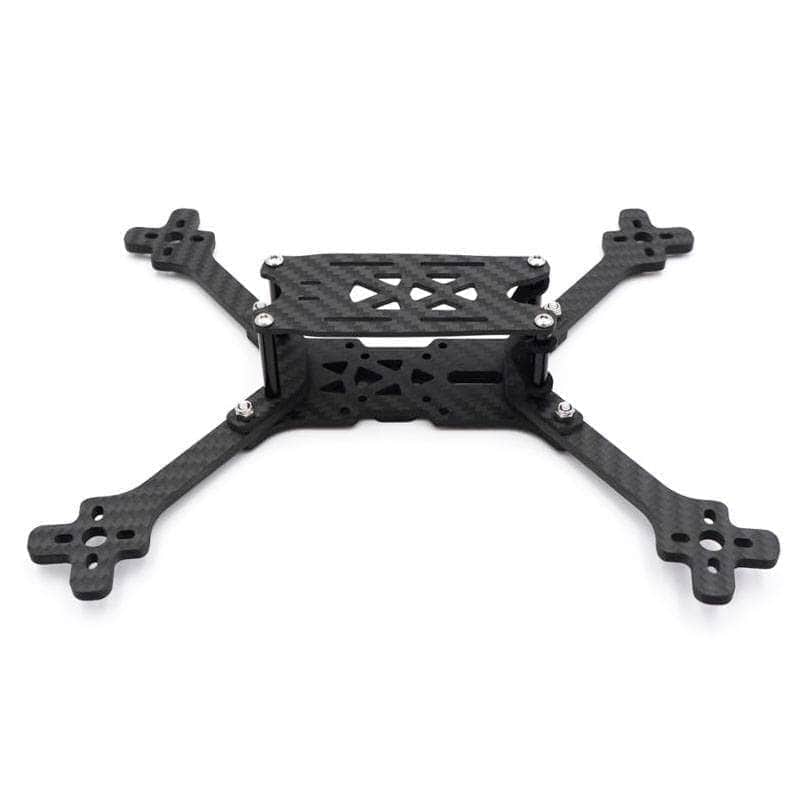

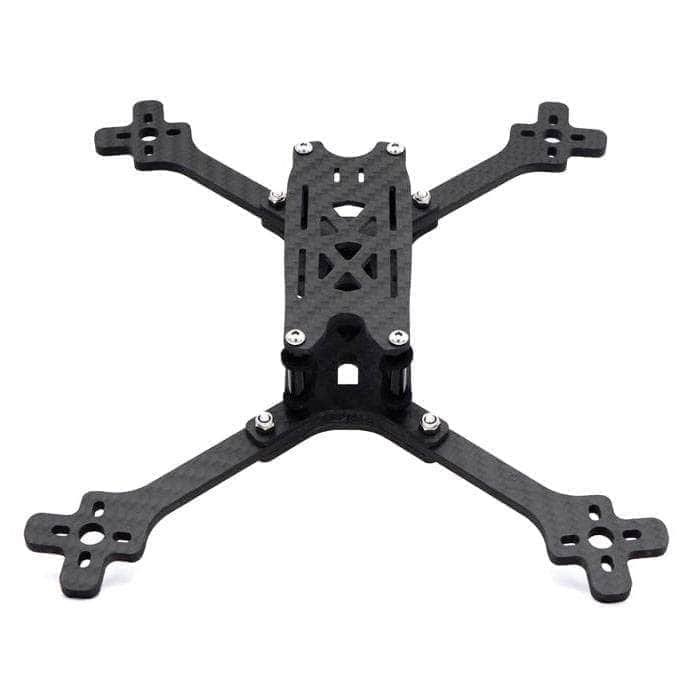

RDQ Source Two V.01 5" Frame

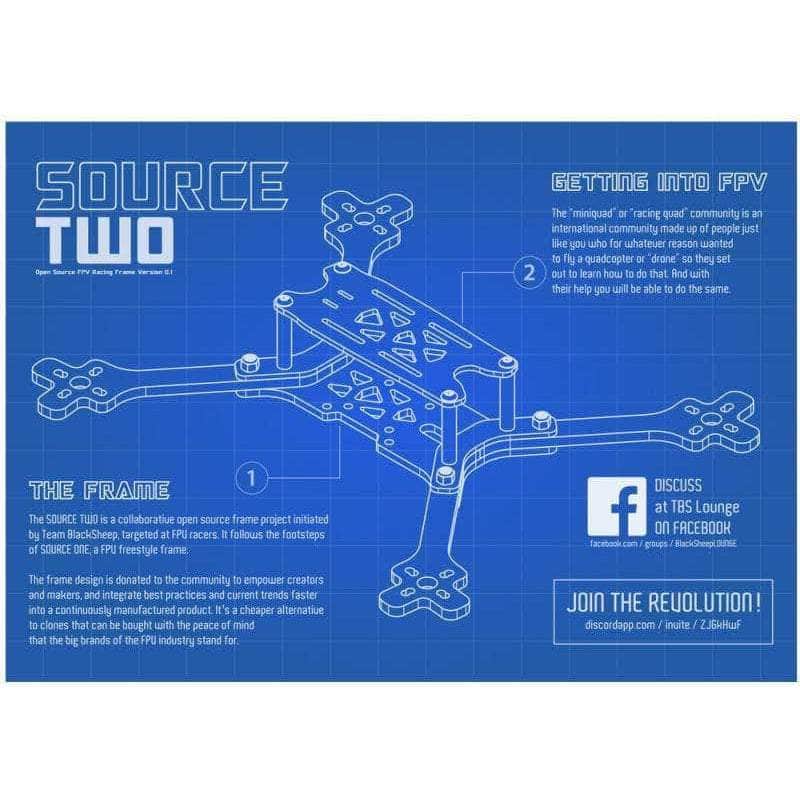

The Source Two project is a collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them to compete in an increasingly predatory marketplace.
The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.
Be sure to check out our 5" frame selection and our RDQ Source Two Frame and Spare Parts!
Specifications
- Wheelbase 5": 220m
- Top Plate: 2mm
- Bottom Plate: 3mm
- Standoff height: 25mm
- Arm thickness: 4mm
- Stack Mounting: 30.5 × 30.5mm & 20mm x 20mm
- Weight 5": 72g

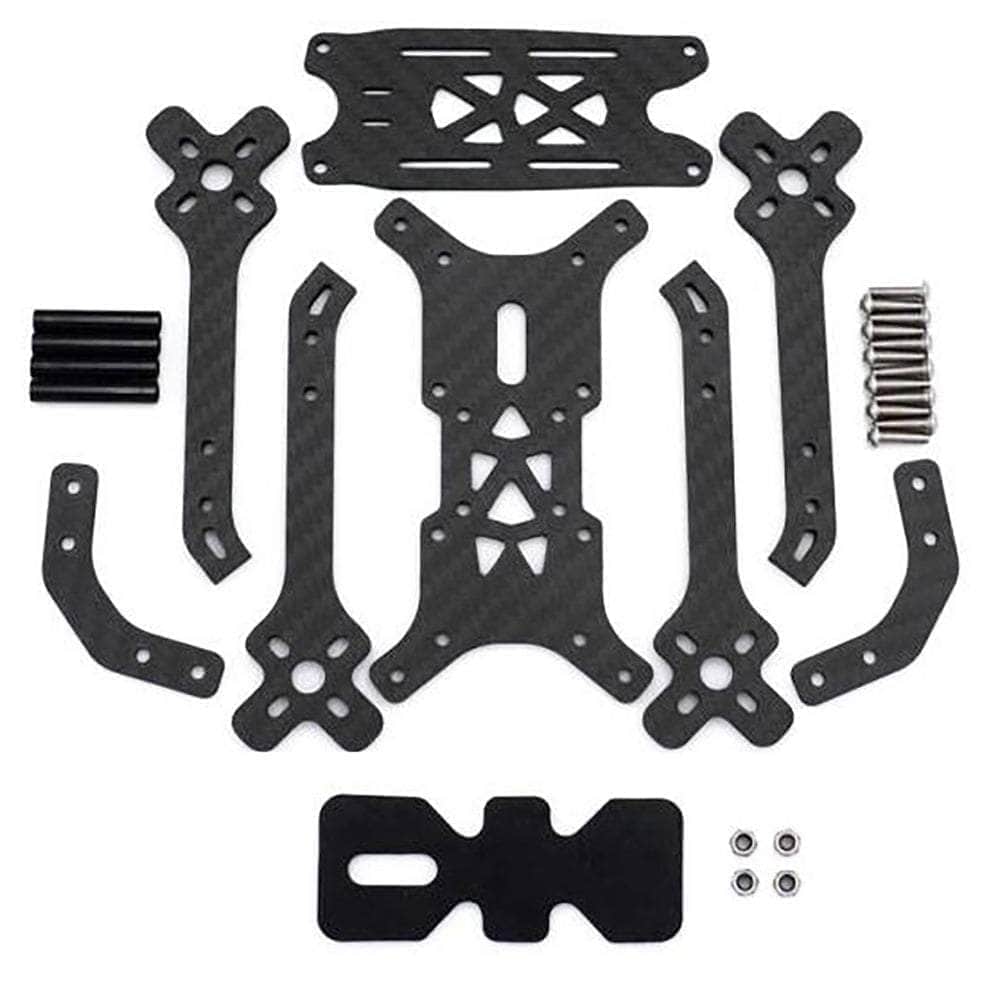

Includes
- 1x Frame (Top, Bottom plate, 4x Arms)
- 1x TPU camera mount for micro cameras
- 1x Screw & Standoff set
- 1x Battery pad
Get Involved
Project discussion
Project files
3D Printed files on Thingiverse
