Details
Description

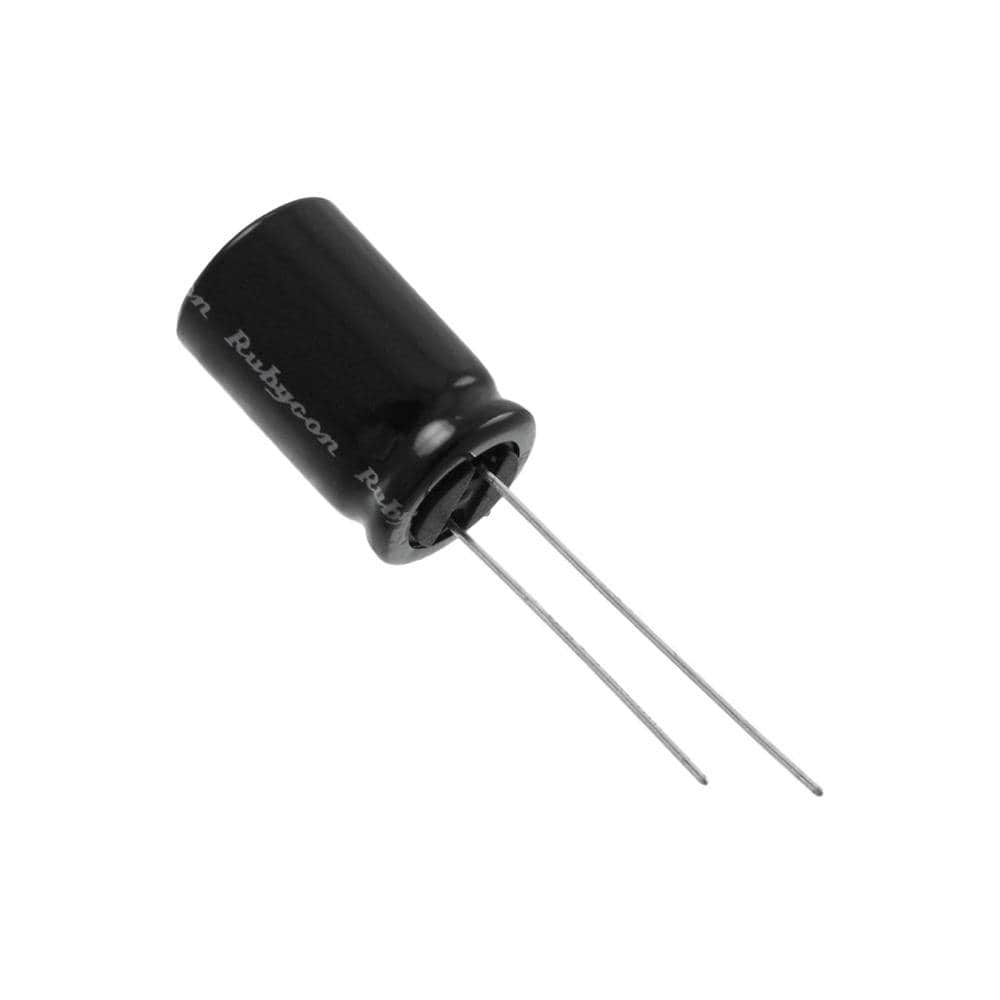

Rubycon's YXA Series 1000uF 50V Capacitors offer high capacitance per unit volume and stable performance in a variety of environments. Their efficient energy storage makes them ideal for compact designs.
Check out our tools and building supplies as well as our capacitors & accessories.
Features
- High Capacitance Density
- Wide Temperature Range Resilience
- Low ESR, Low Impedance
- Versatile Applications
Specifications
- Series: YXA
- Capacitance: 1000µF
- Tolerance: ±20%
- Voltage: Rated 50V
- Lifetime @ Temp.: 3000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Polarization: Polar
- Ripple Current @ Low Frequency: 1.06A @ 120Hz
- Ripple Current @ High Frequency: 1.272A @ 10kHz
- Lead Spacing: 0.197" (5.00mm)
- Mounting Type: Through Hole
- Package/Case: Radial, Can
- Size/Dimension: 0.492" Dia (12.50mm)
- Height - Seated (Max): 1.043" (26.50mm)
- Weight: 5.05g
Links
Includes
- 1x Rubycon 1000uf 50V Capacitor - YXA Series
More Info
- SKU: G25096CN2Z
- Barcode: 723326383045
