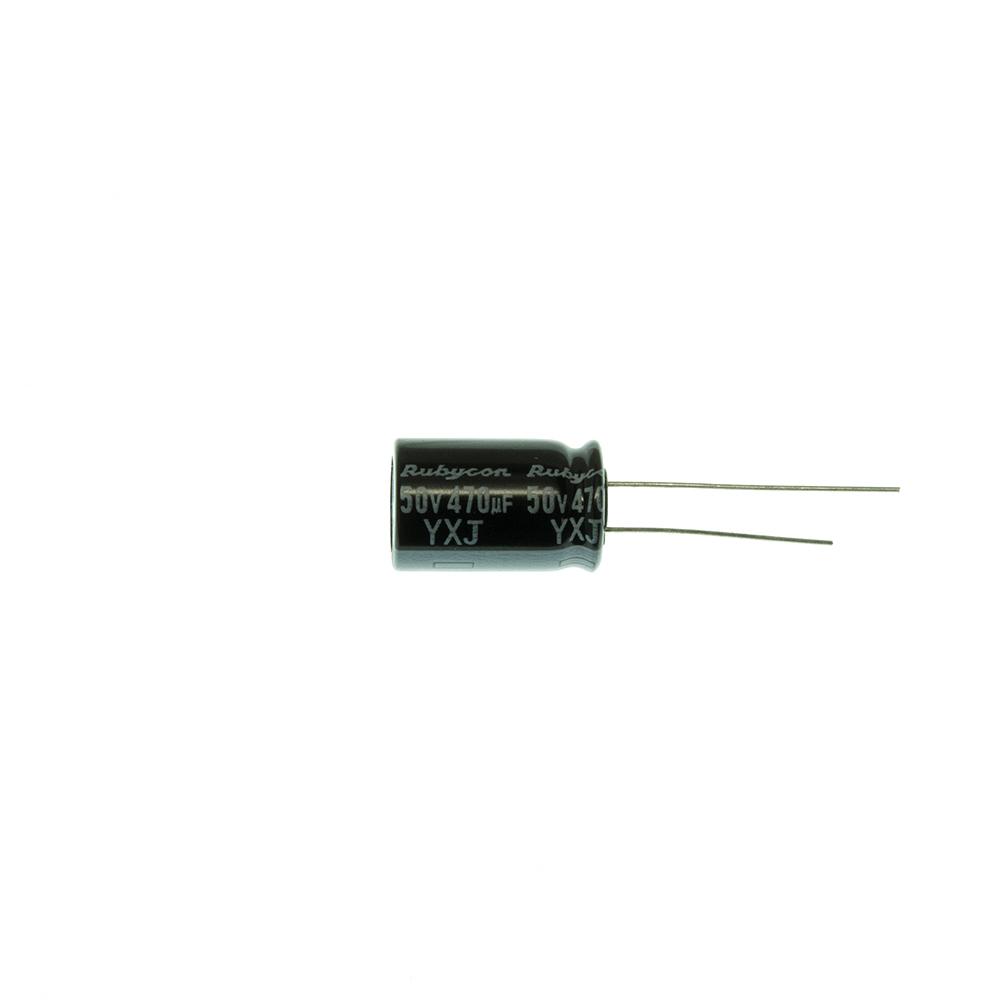

Rubycon 470uF 50V Capacitor for ESC Noise Reduction
Clean up your video during those high throttle punch outs with this high quality Rubycon Capacitor from Japan.
Check out all of our tools and building supplies as well.
Specifications
- Appearance: Radial Lead
- Series: YXJ
- Rated Voltage: 50V,DC
- Rated Capacitance: 470µF
- Tolerance: +/- 20%
- Category Temperature Range: -55 to 105 C
- Life Time: 3000 hours
- Size(Diameter): 12.5mm
- Size(Length): 20mm
- Impedance1: 0.045(20degC,100kHz)mΩ
- Impedance2: 0.15(-10degC,100kHz)mΩ
- Rated Ripple Current: 1660(Ctgy Temp(Max),100kHz) mA r.m.s.
- Leakage Current: Rated Voltage, 2min µA
- Dissipation Factor: 20degC,120Hz
- Lead Pitch: 5mm
- Weight: 3.7g
Includes
- 1x Rubycon 470uF 50V Capacitor for ESC Noise Reduction
