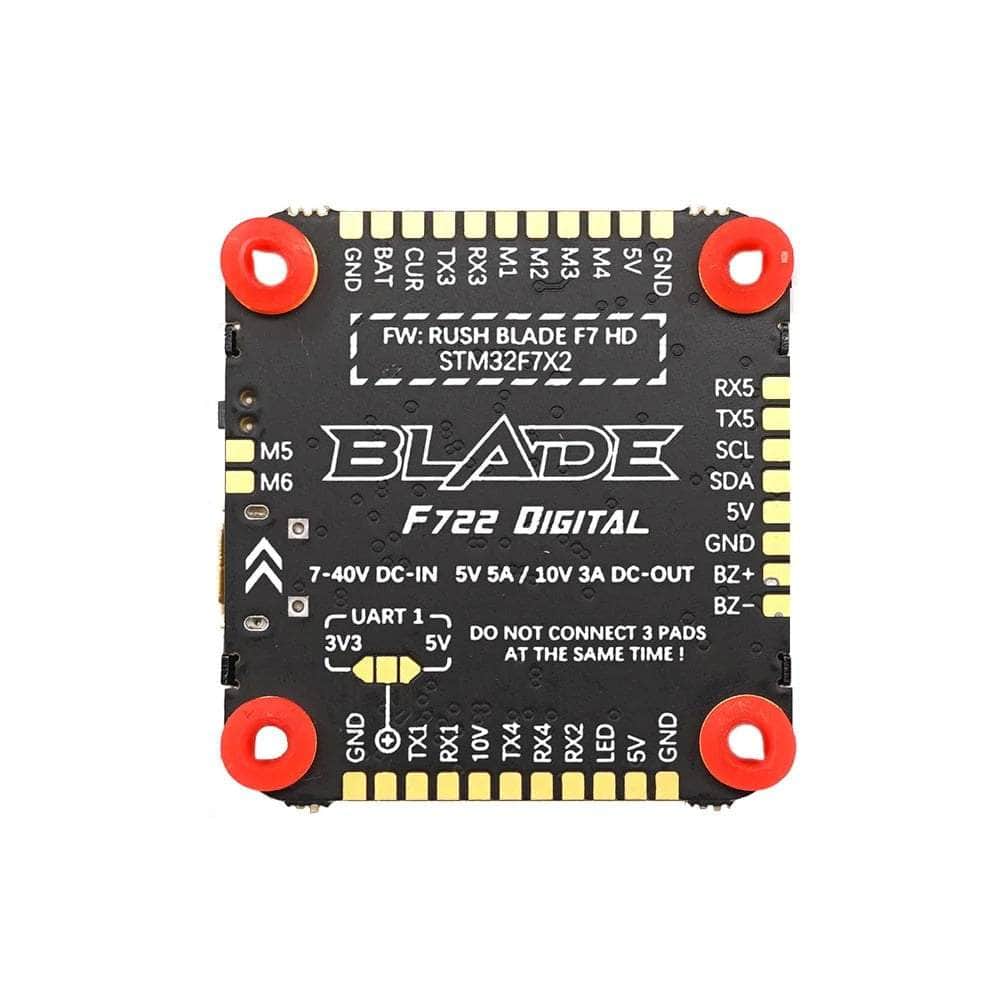

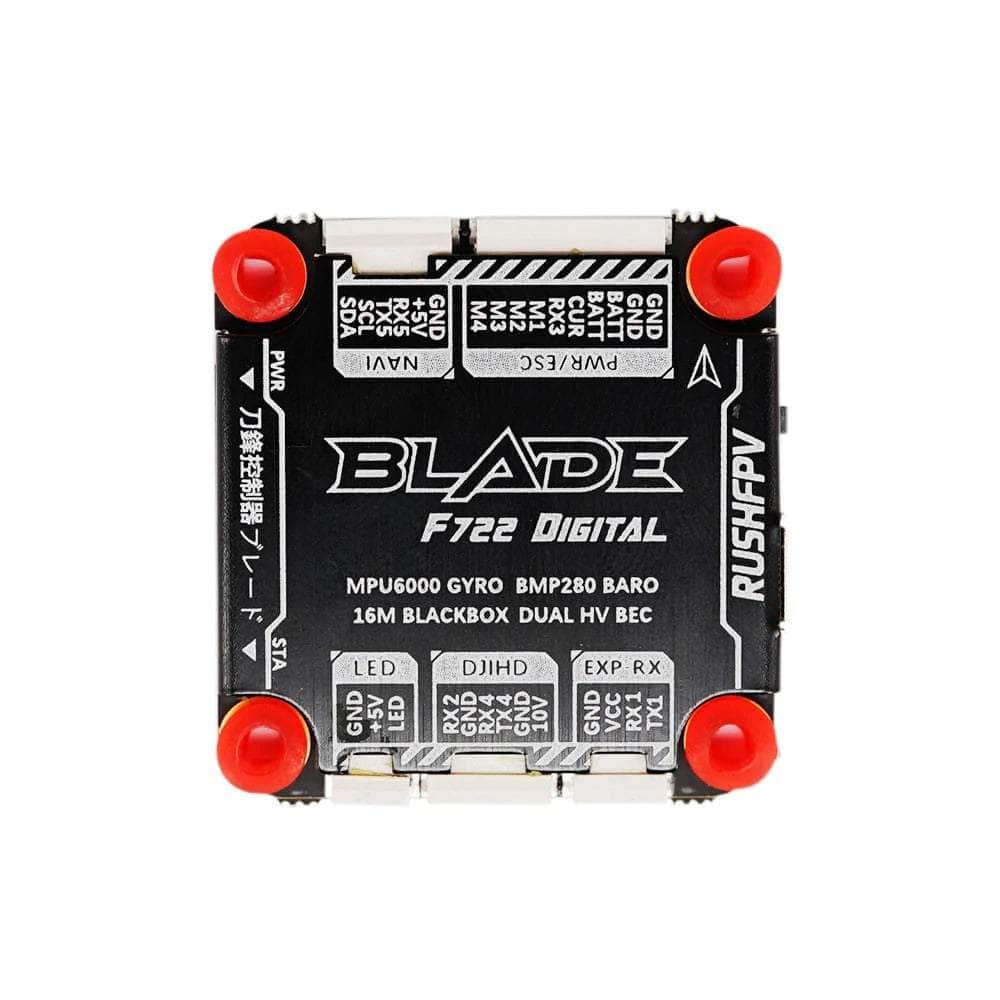

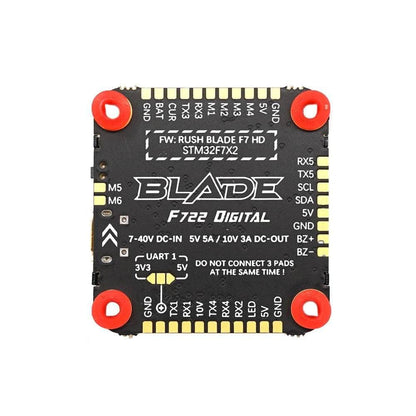

RUSHFPV Blade F722 HD 3-8S 30x30 Flight Controller - MPU6000

RUSHFPV Blade F722 HD 3-8S 30x30 Flight Controller - MPU6000

$63.99
$63.99
Add To Wishlist
View full details

Details

Description

The Rush Blade F722 is a versatile 30x30 for use in various types of builds. DJI compatibility and plugs all around make this FC an incredibly easy platform to build off of!

Make sure to check out our other 30x30 Flight Controllers and the rest of our Rush FPV products!

Specifications

  • MCU: 216MHz
  • GYRO: MPU6000
  • OSD: Onboard
  • UARTS: 5
  • PWM Outputs: 6
  • Input Voltage: 3-8S
  • BEC: 5V/5A 10V/3A
  • Mounting Pattern: 30.5mm x 30.5mm

Includes

  • 1 x Rush FPV Rush Blade F722 30x30 Flight Controller for DJI
  • 2 x 60MM LED/RX Cable
  • 1 x 60MM ESC Cable
  • 1 x 110MM NAVI Cable
  • 1 x 110MM Air Unit Cable
  • 5 x 8MM Grommet
  • 5 x 5MM Grommet

Wiring Diagram

Rush FPV Rush Blade F722 30x30 Flight Controller for DJI for Sale

More Info

  • SKU: 14307
  • Barcode: 691023521599


Overall rating: 3.2857144 / 5 from 7 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["board","plate"].

Review highlights

Reviews

Rush HD F7

"Great board well build, comes with JST plugs for your camera, VTX reciever and more. It has a permanent bottom plate to protect the electronics and a removable plastic top plate. Well build board I have it on 5 out of my 6 quads."

— Howard H. (5/5)

fc was doa on arrival

"will not power up"

— thales (1/5)

Beast Mode

"Pure Awesomeness 👌 👏 👍"

— Joseph L. (5/5)

Mpu6000 gyro!

"This is pretty nice. Just enough users for what I need and plug and play makes it nice for maintenance."

— Jayson G. (5/5)

Disappointed

"The ESP RX jst connection is doa. Yes I connected the 5v connection on the back as directed. Ended up having to solder to the board and it worked. Defeated the “pluggable” feature of this board. Also no matter what I do I get a lot of wobble. It’s the the accelerometer sucks. I just don’t get it. Will not buy Rush ever again."

— Jason (1/5)

4 stacks 6 different issues

"I have had nothing but problems with the rush stacks"

— dodge d. (1/5)

Like the plugin style

"So I have a nightmare of a time usually with jst plugs but have to say the clip style they give is great they stay snug even in crashes have had a great experience all around not needing to solder anything and the enclosed electronics protection top notch performance as well"

— Anthony D. (5/5)
