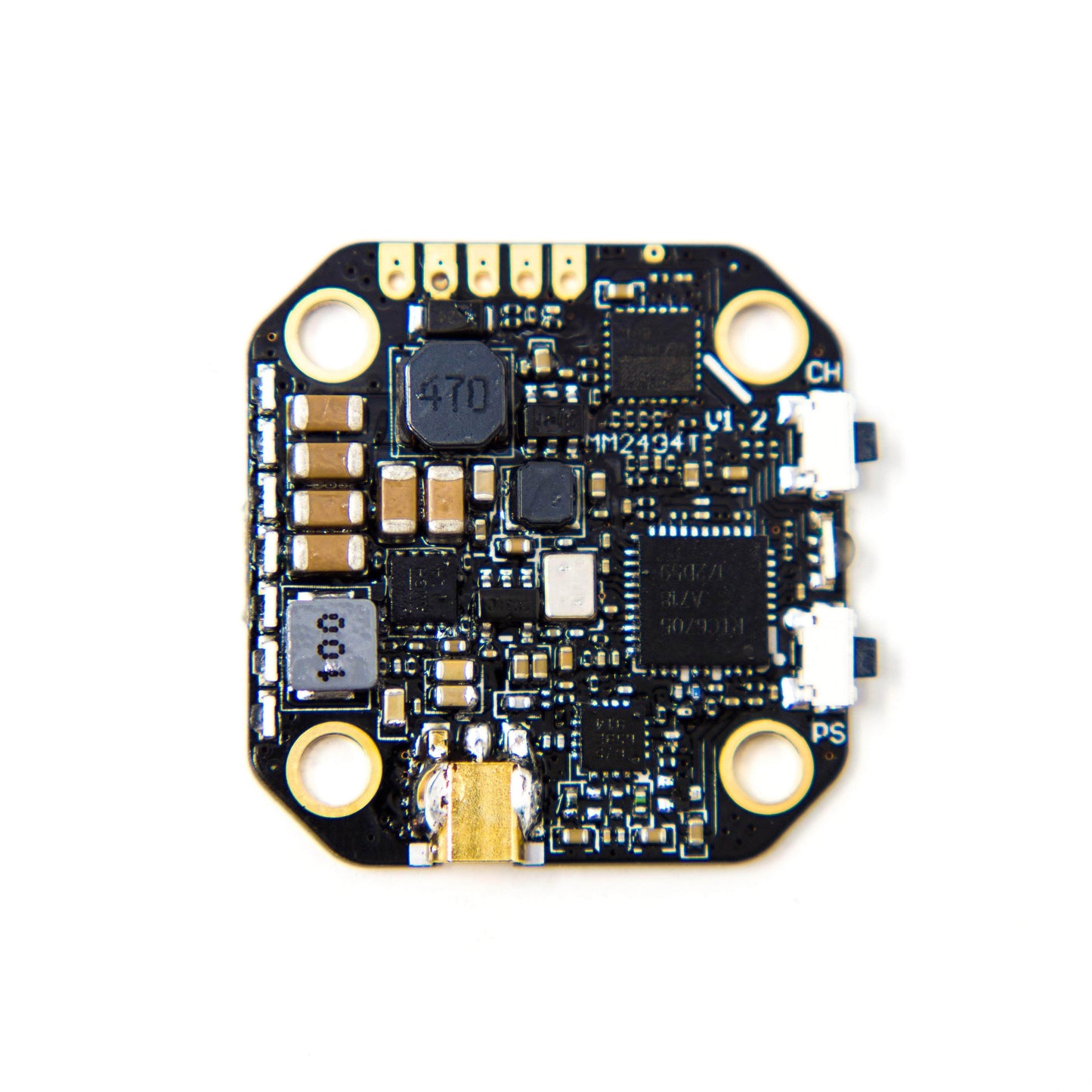

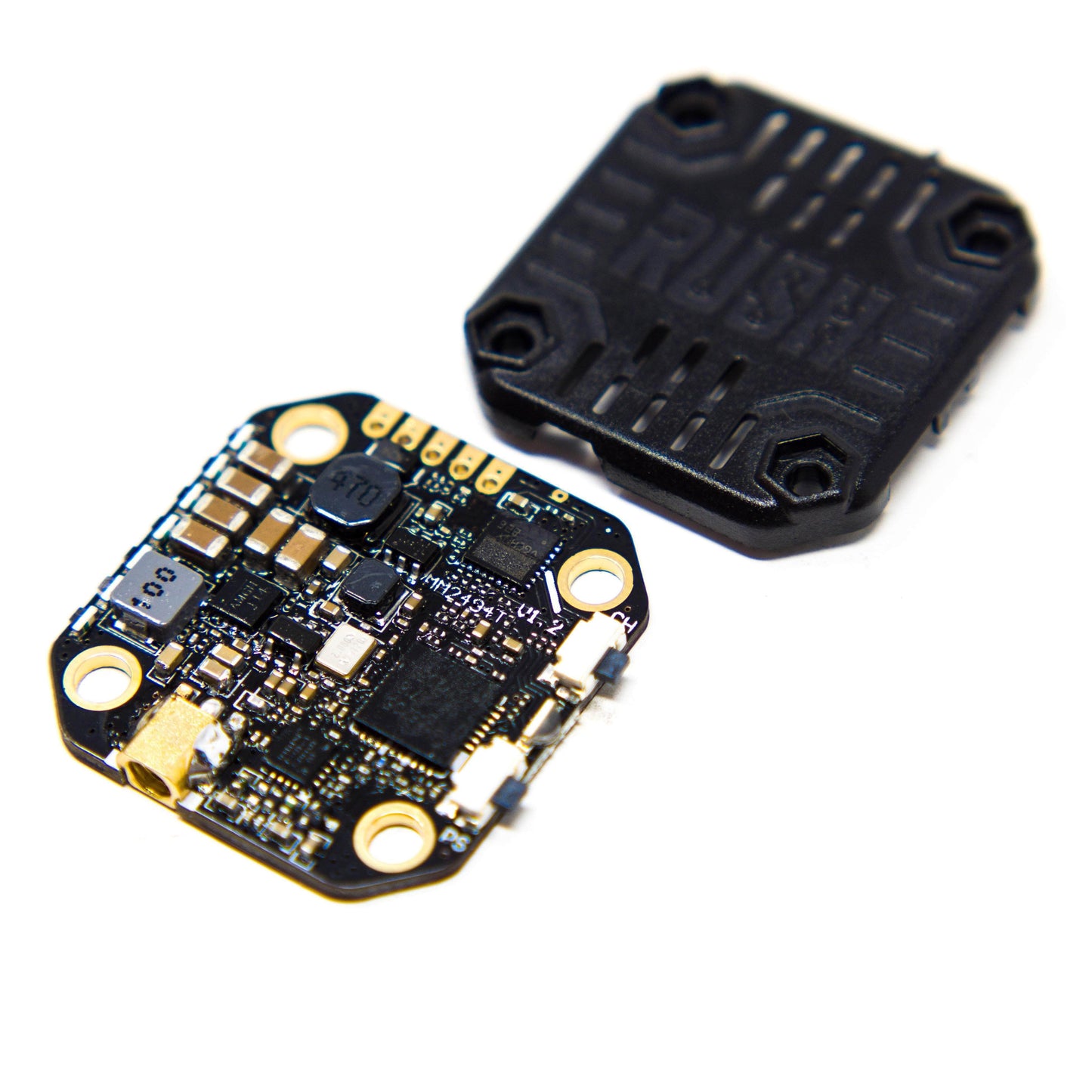

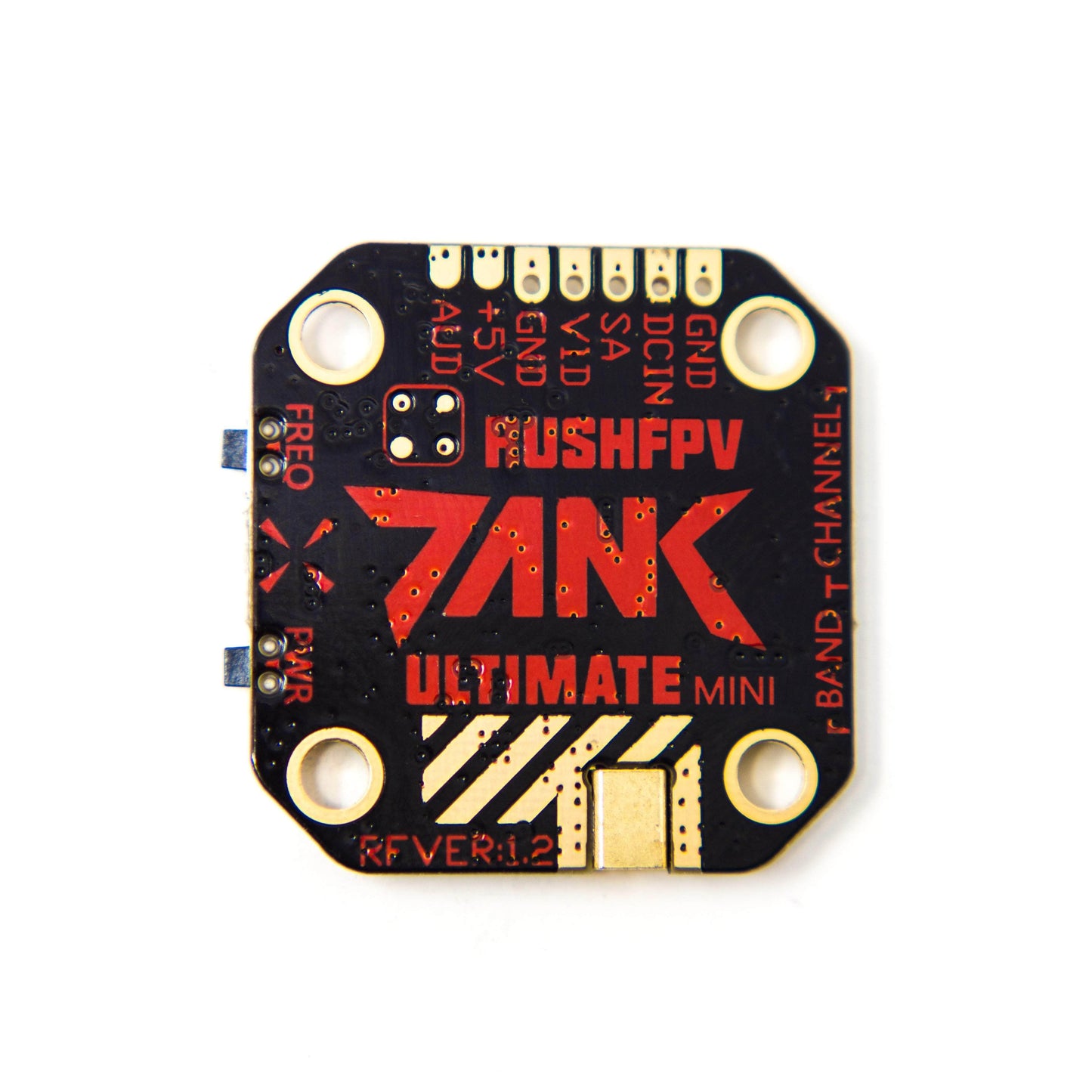

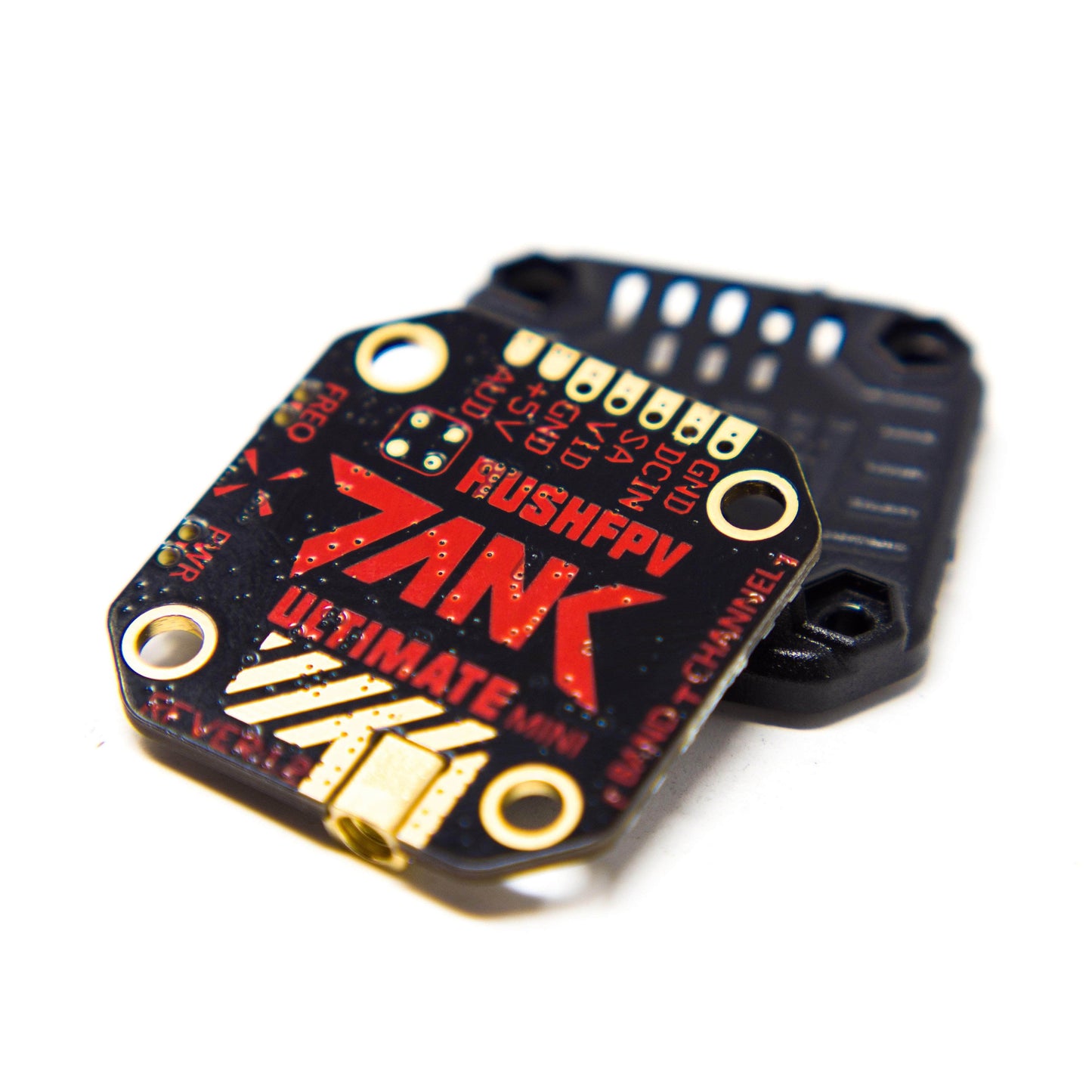

RUSHFPV Tank Mini 20x20 25-800mW 5.8GHz VTX - MMCX

RUSHFPV Tank Mini 20x20 25-800mW 5.8GHz VTX - MMCX

$47.99
$47.99
Add To Wishlist
View full details

Details

Description

RUSHFPV brings their signature quality and style to the 20x20 form factor. Nothing but size was reduced from the 30x30 Tank Ultimate! This little beast still cranks out 800mW of clean, stable video signal for crusing far or handling heavy obstructions.

Check out out ever expanding VTX section (or just the 20x20s) as well as our RUSHFPV gear!

Features

  • Compact Robust Design
  • Variable Output from 25 to 800mW
  • Pit Mode
  • Officially Licensed Smart Audio from TBS

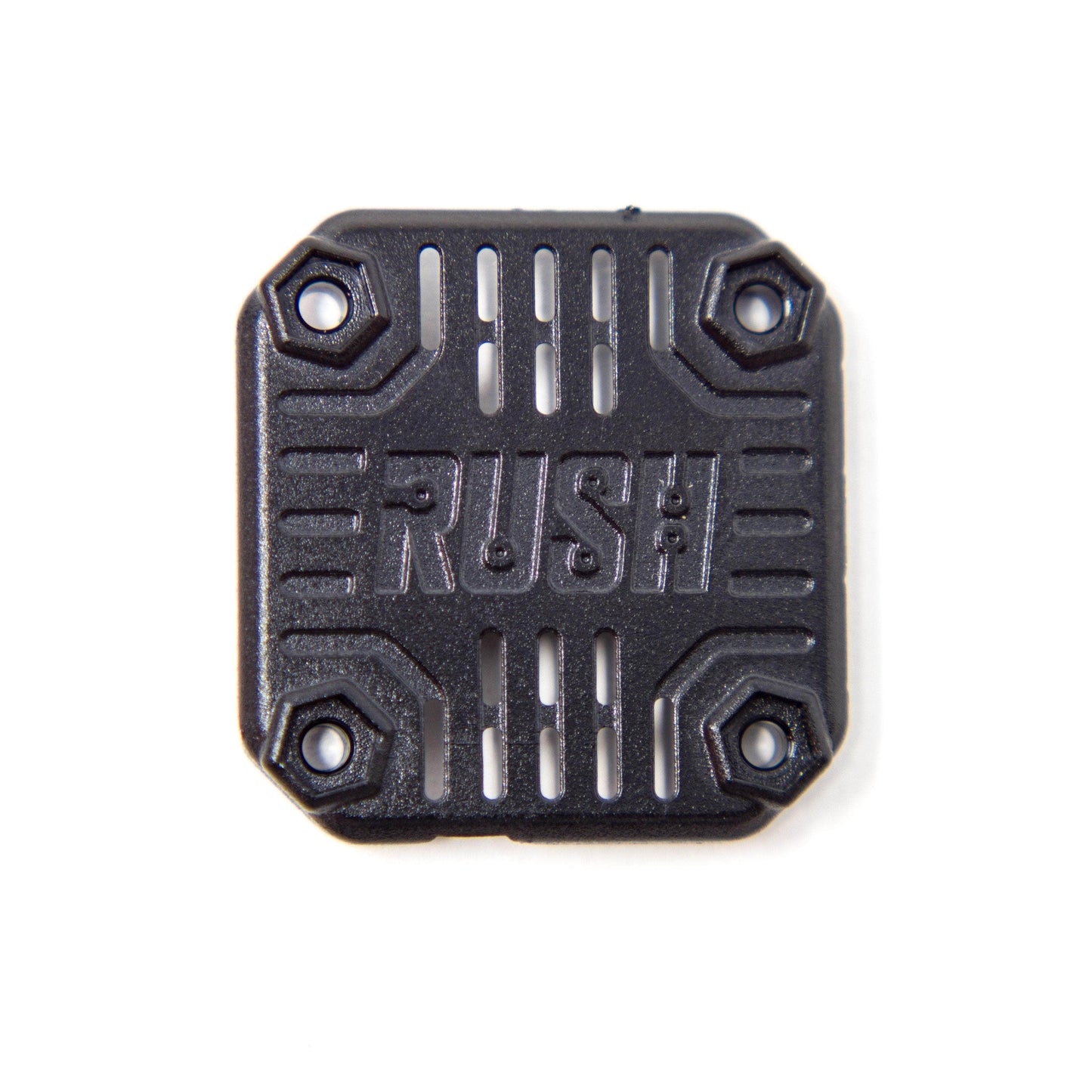

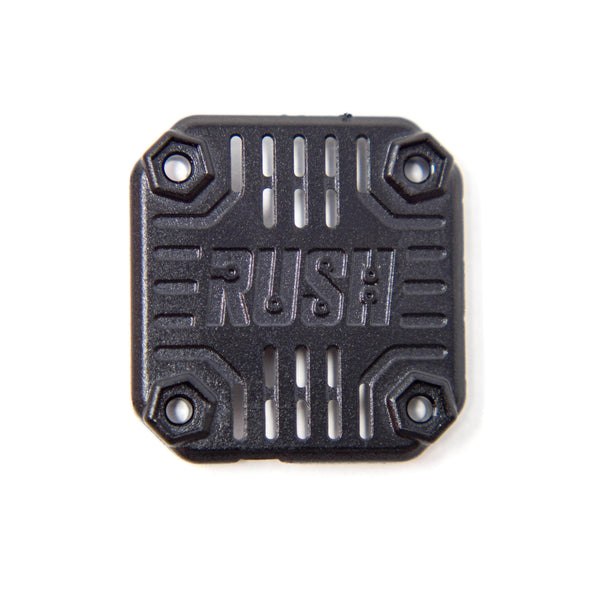

  • Optional Protective Shield Included

Specifications

  • Input Voltage: 7-36V(2-8S)
  • Transmittion Power: PIT/25/200/500/800mW
  • On Board DC Output: 5V 1A Max
  • 12V Input Current:
  • 40mA@PITMODE 95mA@25mW,
  • 185mA@200mW 250mA@500mW,
  • 380mA@800mW
  • Channels: 48 RaceBand/LowRace
  • Feature: Available with External Mic
  • Mounting Dimensions: 20x20mm (VTX Holes M3, Shield Holes M2)
  • Dimension: 28x28x3.3mm
  • Weight: 4.46g (w/o Cover), 5.40g (w/ Cover)

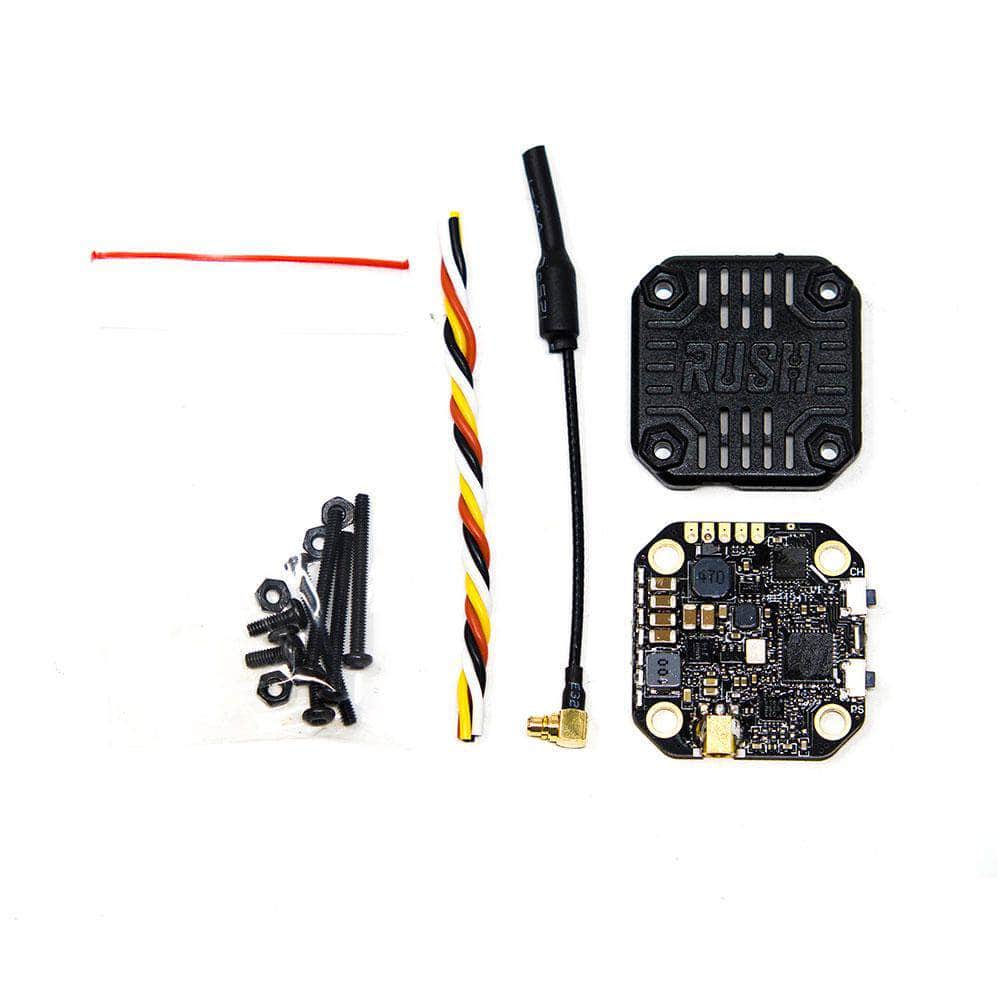

    Includes

    • 1x Rush Tank Mini 25-800mW 20x20 VTX - MMCX
    • 1x Protective Cover
    • 1x MMCX Dipole Antenna
    • 1x Wire Set
    • 1x Hardware Set

    Manufacturer Warranty Policy: Note that RushFPV has stated to us that they will not warranty items more than 30 days after purchase. However, RDQ will still warranty items which are dead on arrival or do not last a reasonable amount of time under reasonable flight conditions

    More Info

    • SKU: RUSH-DA11-RUSHTANK0009
    • Barcode: 691023477926


    Overall rating: 4.847619 / 5 from 105 reviews.

    AI Generated Review Summary

    The RUSHFPV Tank Mini 20x20 VTX offers a compact and robust design with a clean and reliable signal, providing a clean and clear video picture. Customers appreciate its amazing range and fit in various models, along with its great power and clean signal.

    Summary topics

    • Product Quality: 12%
    • Signal Quality: 10%
    • Video Quality: 18%
    • Product Range: 14%
    • Product Fit: 9%

    Review topics: ["shipping","fit","quality","issues","size","power","wires","cover","performance","works","price","vtx","video","range","signal","picture","transmitter","pads","profile","audio","amd","breakup","mini","form factor","vtxs","feed","unit","powerhouse"].

    Review highlights

    • "Works flawlessly, awesome video feed and quality" — Firoz D.
    • "Nice VTX, light weight and clear video." — Philip A.
    • "Clean picture, clean install, great power, what more do you want?" — joey w.

    Reviews

    Great price for a great VTX!

    "Great price for a great VTX! Durable and reliable. Perfect size."

    — Chris L. (5/5)

    Tank mini 20x20

    "The Tank mini is great! 800mw in a 20x20 form factor is amazing. I can fly through the trees and brush at the park with less breakup. Rush FPV includes 2mm hardware and an ample amout of wires. There is also a dipole antenna with a 90 degree mmcx connector."

    — Thomas C. (5/5)

    The vtx brand on the up n up

    "Sweet 20x20 vtx that has a nice cover over the top it is solder only on wiring"

    — Brandon R. (5/5)

    What a rush

    "Very nice vtx works well"

    — Daniel B. (5/5)

    Solid

    "Tough solid built powerful vtx"

    — Michael K. (5/5)

    Awesome, Awesome, Awesome,

    "Ive been using TBS Unify’s which we supposed to be the best but this thing is awesome. The video quality is great and the Dvr playback is clear"

    — Richard J. (5/5)

    Excellent 800mw 20x20 clean VTX.

    "I have used this VTX in many builds. It has a very clean TV out for clear FPV feed. Size is 20x20mm, and is perfect for pretty much any analog build where you have 20x20 mounting. 800mw is plenty to get you pretty darn far. You can also add a rush AGC microphone. I have on some, great for hearing talking on the flight line, but once armed, it's just a loud hot mess. I personally don't find it that useful."

    — Brandon W. (5/5)

    "The rush tank mini is a powerful, compact and well designed product. This is my favorite vtx and i will be using it in my future builds."

    — Steve (5/5)

    Great output power and clean

    "Great output power and clean signal"

    — Michael B. (5/5)

    Analog at its best!

    "I’ve only used cheaper VTXs in the past, but I wanted to see what all the hype was about with RushFPV and was not disappointed. The picture in the goggles is the best I’ve ever seen on analog, and even though the 20x20 unit only goes up to 800mw I’ve seen much better range and less breakup than with the old 1w vtxs I used to use. I’ll be buying rushfpv vtxs for all my analog builds moving forward."

    — Sam S. (5/5)

    Q&A

    What version of smart audio? I'm under the impression that it matters when configuring betaflight.
    Smart Audio 2.0
    No manual is online or included in package. Where can it be found?

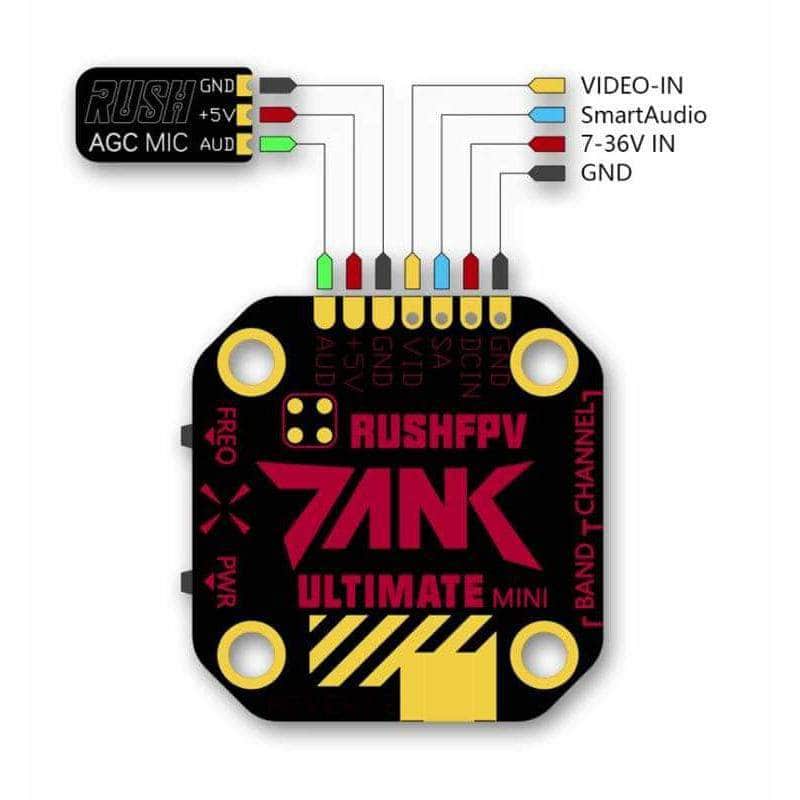

    We've asked RushFPV for it and will update the listing when we have it. In the meantime we just received a wiring diagram which we're adding to the listing now.
    Is there a manual ?
    There is not one available online, but there should be one included with the VTX. If your package doesn't have one just let us know and we can get it from RushFPV.
