Description

Toward the Sky! With an even smaller GPS module from RUSHFPV! Small enough to fit on almost any drone, but with updated engines & more power!

Check out our other GPS modules or our other RUSHFPV products!

Features

• Compact design for small FPV drones
• New uBlox M10 engine supports many different navigation systems
• Link up to 3x navigation systems with 10Hz refresh rate
• Built-in Backup battery & memory support fast hot start
• Antenna has anti-fouling coating & the circuit is sealed for a more durable reliable GPS system

Specifications

• Recieve Frequency Band: GPSL1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Receiving channel: 72CH
• Receiving sensitivity: -162dBm
• Output protocol: UBLOX
• Output refresh rate: 1HZ-10Hz
• Baud rate: 115200dps
• Power input: 5V 30mA
• Speed accuracy: 0.05m/s
• Positioning accuracy: 2D ACC 1.5m
• Maximum working height: 50000m
• Maximum moving speed: 500m/s

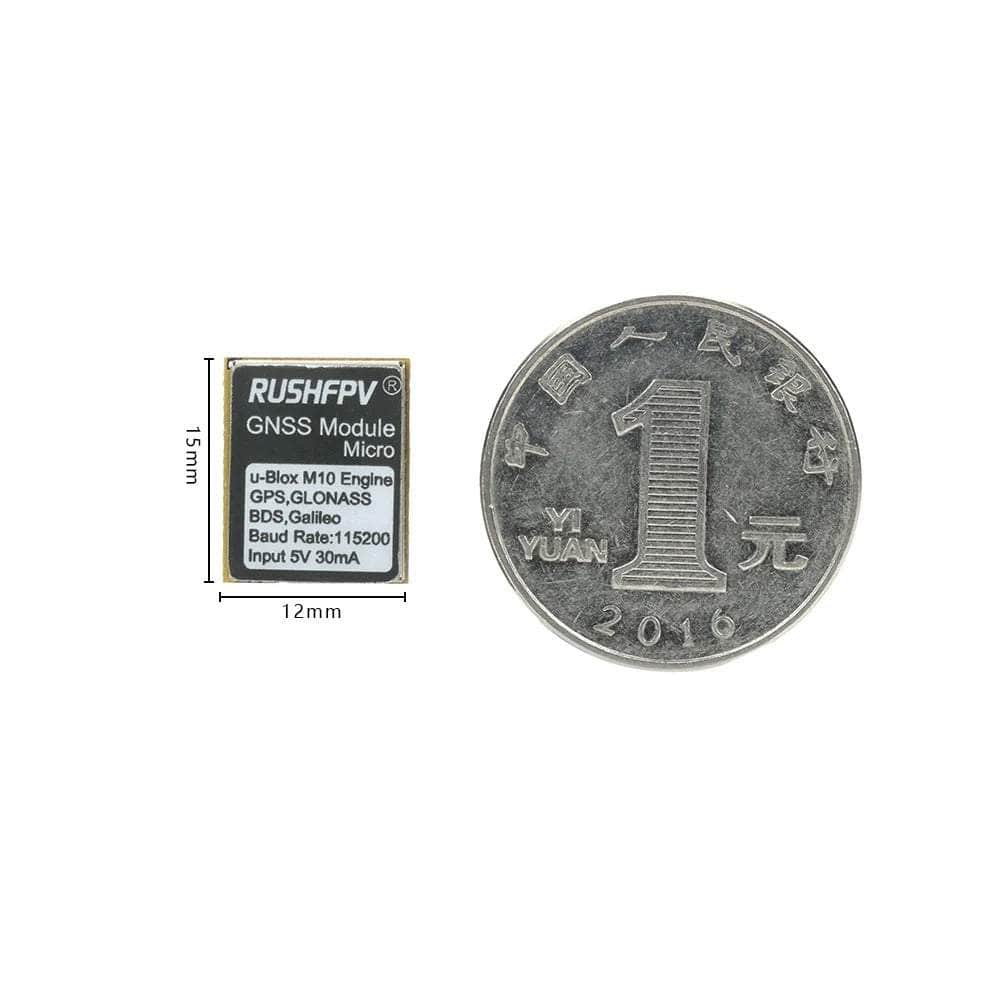

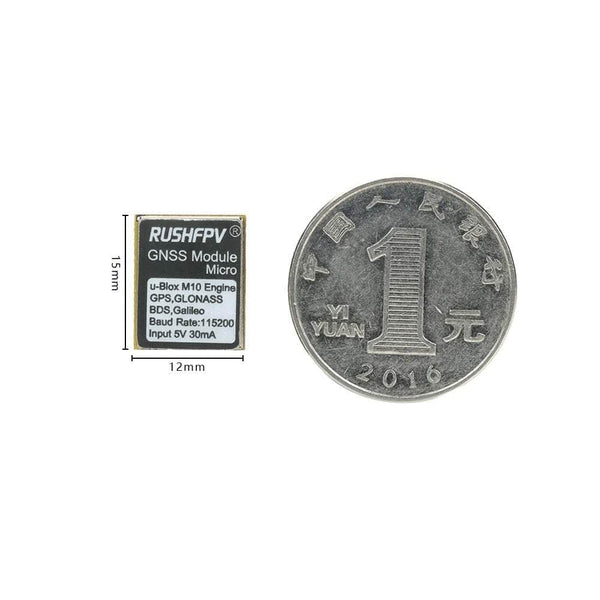

• Size: 12 x 15 x 4.8mm
• Weight: 2.4g

Includes

• 1x RUSHFPV GNSS Micro GPS
