Description

Toward the Sky! With this full feature GPS module and compass from RUSHFPV! Designed for medium to large drones, but with updated engines & more power! Also has a built in compass for extended iNav or Aurdupilot functionality.

Check out our other GPS modules or our other RUSHFPV products!

Features

• Full feature navigation module for medium or large FPV drones
• New uBlox M10 engine supports many different navigation systems
• Link up to 3x navigation systems with 10Hz refresh rate
• Built-in Backup battery & memory support fast hot start
• Integrated HMc5883 electronic compass

Specifications

• Receiving Frequency Band: GPSL1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Receiving channel: 72CH
• Receiving sensitivity: -162dBm
• Output protocol: UBLOX/NMEA
• Output refresh rate: 1HZ-10Hz
• Baud rate: 115200dps
• Power input: 5V 30mA
• Speed accuracy: 0.05m/s
• Positioning accuracy: 2D ACC 1.5m
• Maximum working height: 50000m
• Maximum moving speed: 500m/s

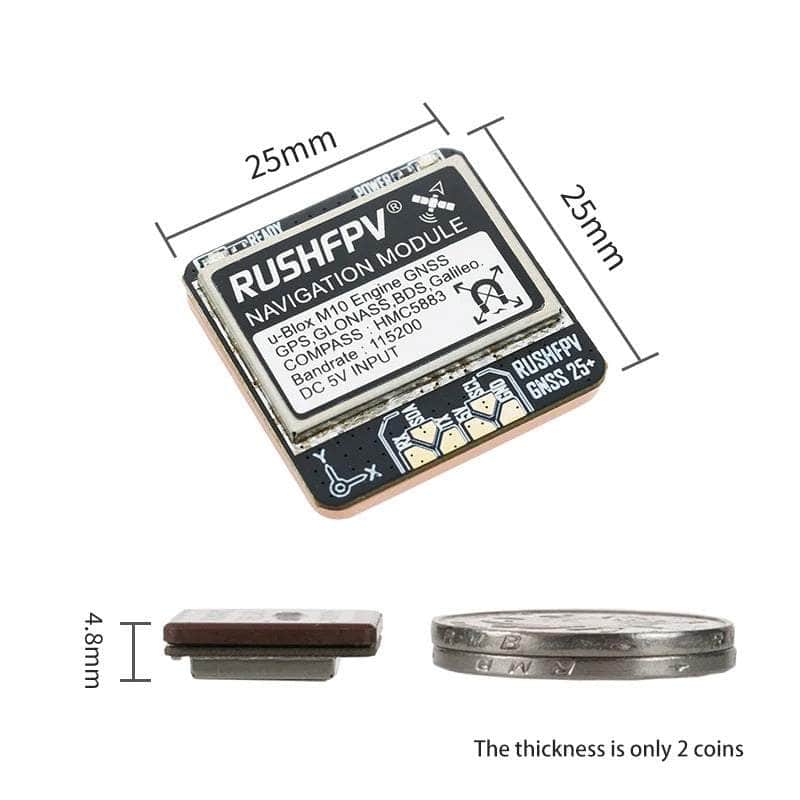

• Size: 25 x 25 x 4.8mm
• Weight: 6.9g

Includes

•  1x RUSHFPV GNSS Pro GPS w/ Compass
