One of our favorite electronics producers is now making Flight Controllers & ESCs!

Check out our other flight controllers and the rest of our Sequre Gear!



  • Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.
  • Adopts MPU6000 gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.
  • SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.
  • Reserve 6 UARTS to meet the needs of most devices.
    It can control up to 8 motors, easily constructing X8.
  • Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage, allowing the DJI O3 and analog VTX to plug in for use directly.
  • Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.

Sequre H743 4-8S 20x20 / 30x30 Flight Controller - MPU6000



  • Processor: STM32H743
  • Gyroscope: MPU6000
  • Barometer: BMP280
  • OSD Chip: AT7456E
  • Black Box: 16MB
  • Firmware: SEQUREH7
  • Input Voltage: 4-8S Lipo
  • BEC Output: 5V/2.5A,10V/2A
  • UARTS: 6
  • Control Motor: M1-M8
  • LED: WS2812 LED Strip
  • Buzzer: Support
  • ESC Telemetry: RX8
  • USB: Type-C

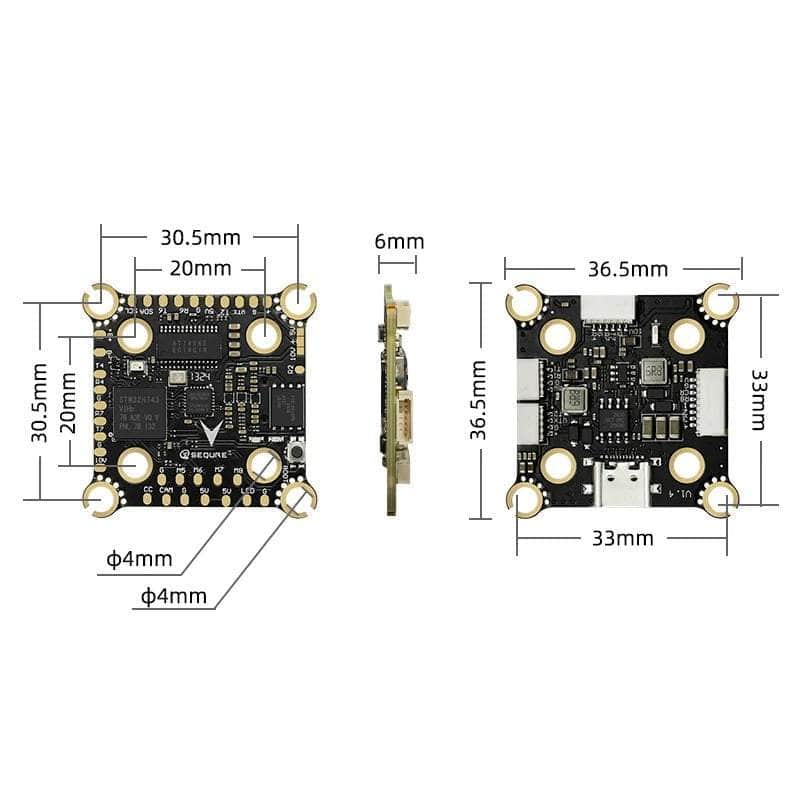

  • Installation Hole Distance: 20x20mm,  Φ4mm / 30.5x30.5mm,  Φ4mm
  • Product Size: 36.5x36.5x6mm
  • Product Weight: 7.5g

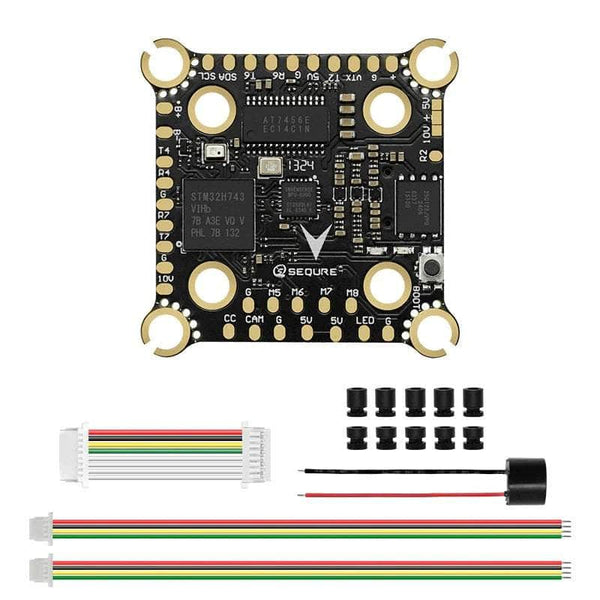

  • 1x Sequre H743 4-8S 20x20 / 30x30 Flight Controller - MPU6000
  • 1x 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable
  • 1x 30AWG 100mm Single-head SH1.0-4P Flat Cable
  • 1x 60mm Length 12095 5V Buzzer
  • 5x M3x8mm Shock-absorbing Ball(Black)
  • 5x M3x6.6mm Shock-absorbing Ball(Black)
