Description

One of our favorite electronics producers is now making Flight Controllers & ESCs!

Browse our Stacks & Combos and the rest of our Sequre Gear!

Features

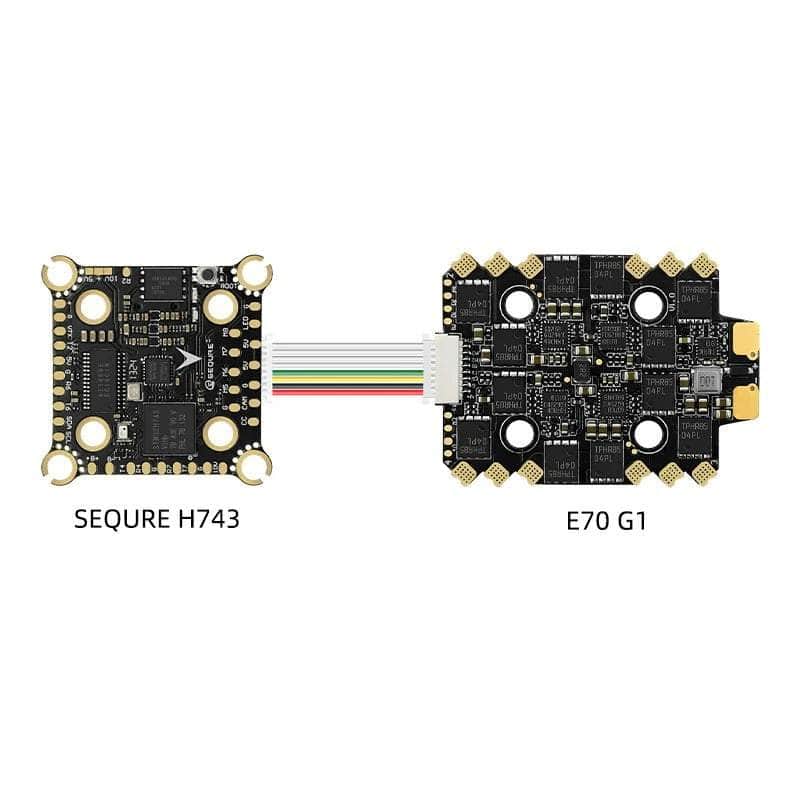

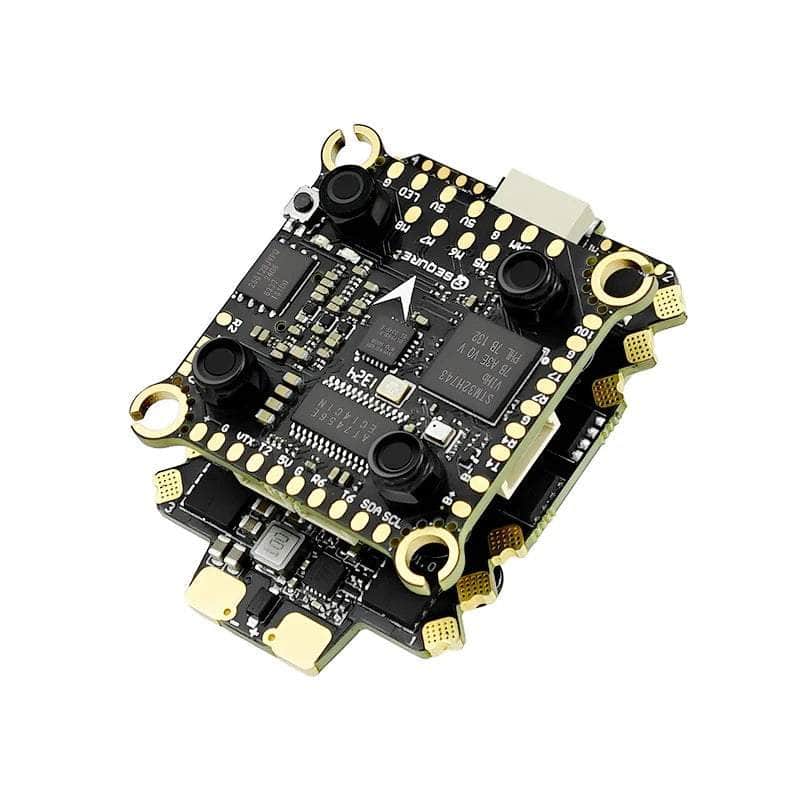

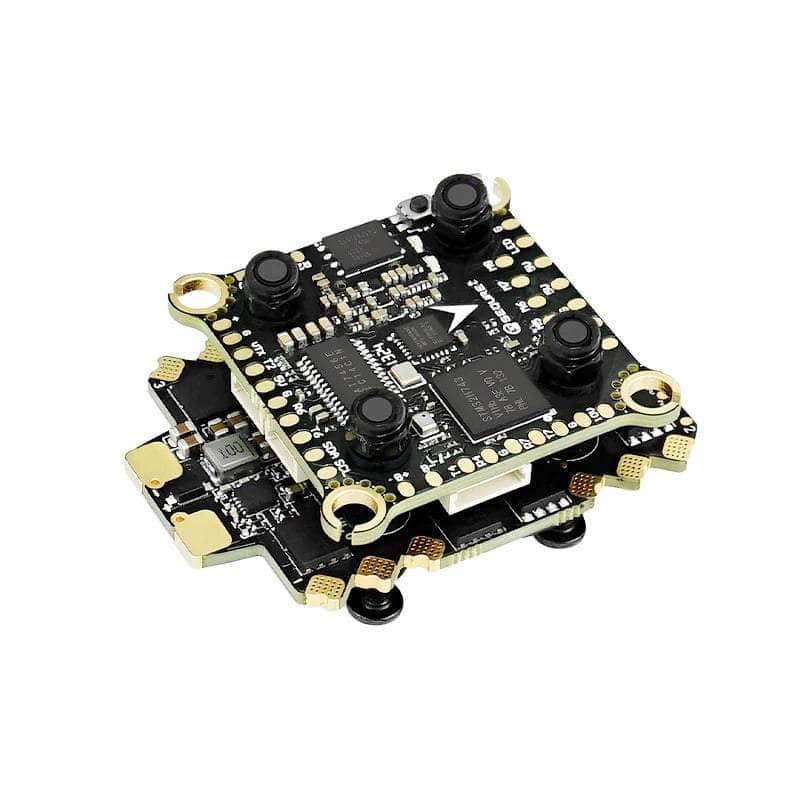

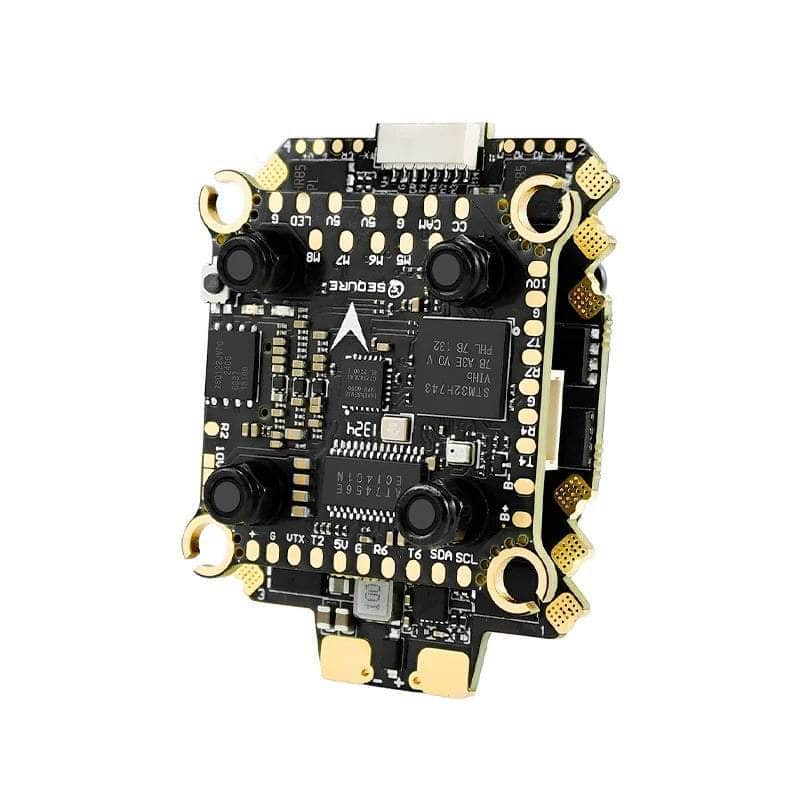

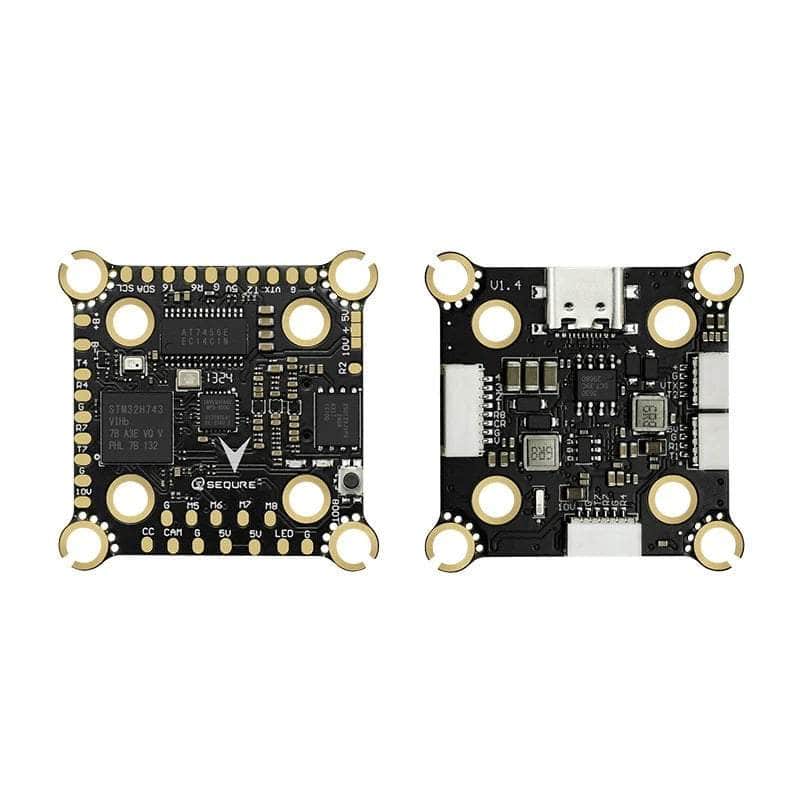

SEQURE H743 FC

• Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.

• Adopts MPU6000 gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.

• SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.

• Reserve 6 UARTS to meet the needs of most devices.
  It can control up to 8 motors, easily constructing X8.

• Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage, allowing the DJI O3 and analog VTX to plug in for use directly.

• Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.

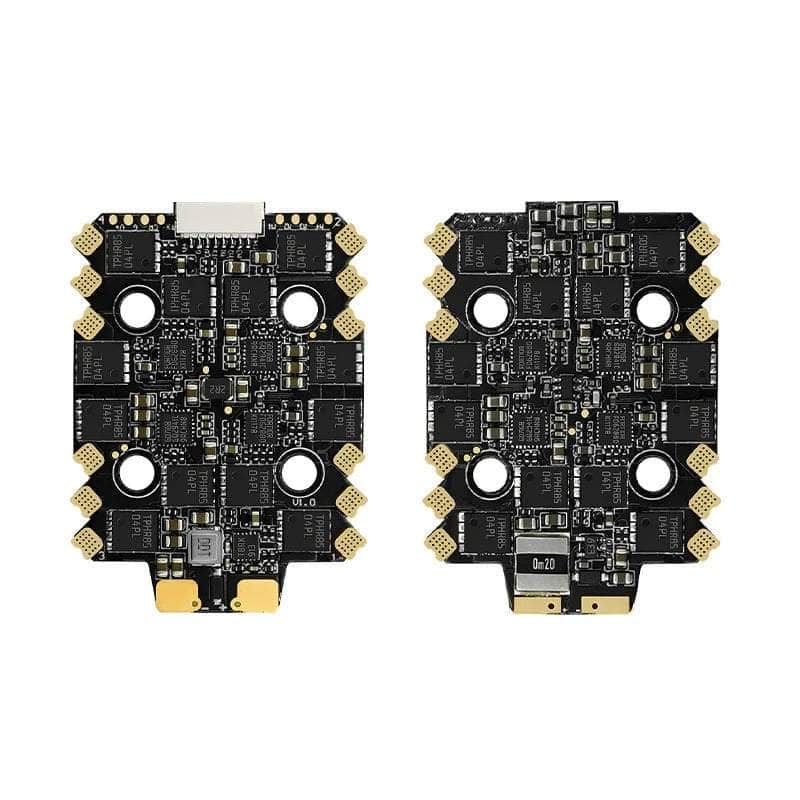

E70 G1 4IN1 ESC

• STM32G071 high-performance processor, using BLHeli_32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.

• Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.

• High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.

• High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.

• Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.

• PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.

• Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.

• 20x20mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.

Specifications

SEQURE H743 FC

• Processor: STM32H743

• Gyroscope: MPU6000

• Barometer: BMP280

• OSD Chip: AT7456E

• Black Box: 16MB

• Firmware: SEQUREH7

• Input Voltage: 4-8S Lipo

• BEC Output: 5V/2.5A，10V/2A

• UARTS: 6

• Control Motor: M1-M8

• LED: WS2812 LED Strip

• Buzzer: Support

• ESC Telemetry: RX8

• USB: Type-C

• Installation Hole Distance: 20x20mm,  Φ4mm / 30.5x30.5mm,  Φ4mm

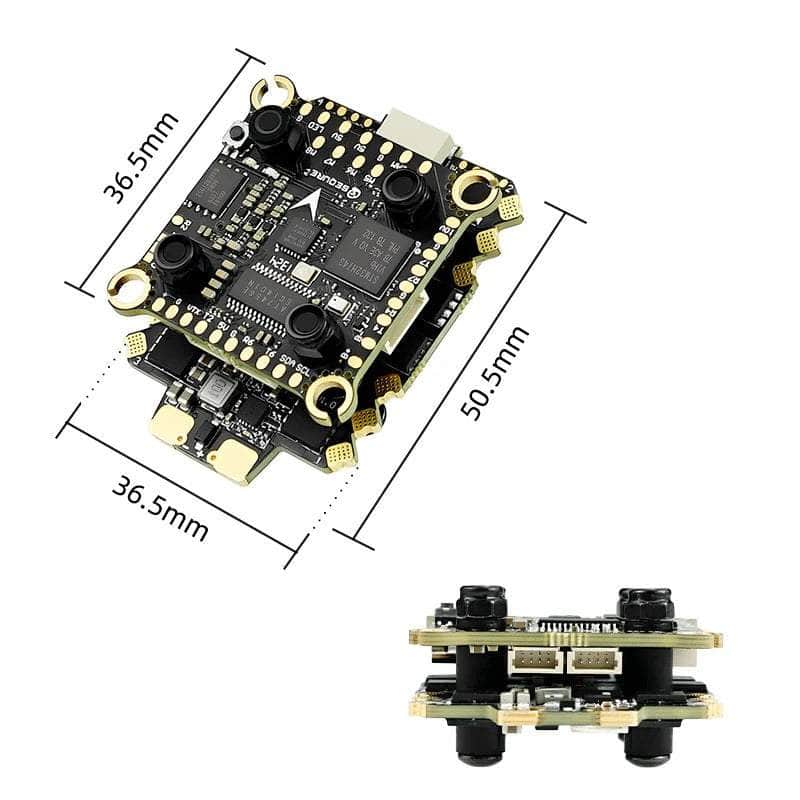

• Product Size: 36.5x36.5x6mm

• Product Weight: 7.5g

E70 G1 4IN1 ESC

• Processor: STM32G071

• PWM Frequency: 16KHz-128KHz

• Working Voltage: 2-8S Lipo

• Continuous Current: 70A

• Peak Current: 150A

• Support Protocol: Dshot600/300/150,Oneshot,Multishot,PWM

• Firmware Version: SEQURE_G071_01_Pro_4in1_Multi_32_100

• Telemetry Return: Support

• Galvanometer: YES

• BEC: NO

• Mounting Hole Spacing: 20x20mm, Φ4mm/M3

• Product Size: 50.5x36x6mm

• Product Weight: 15.8g

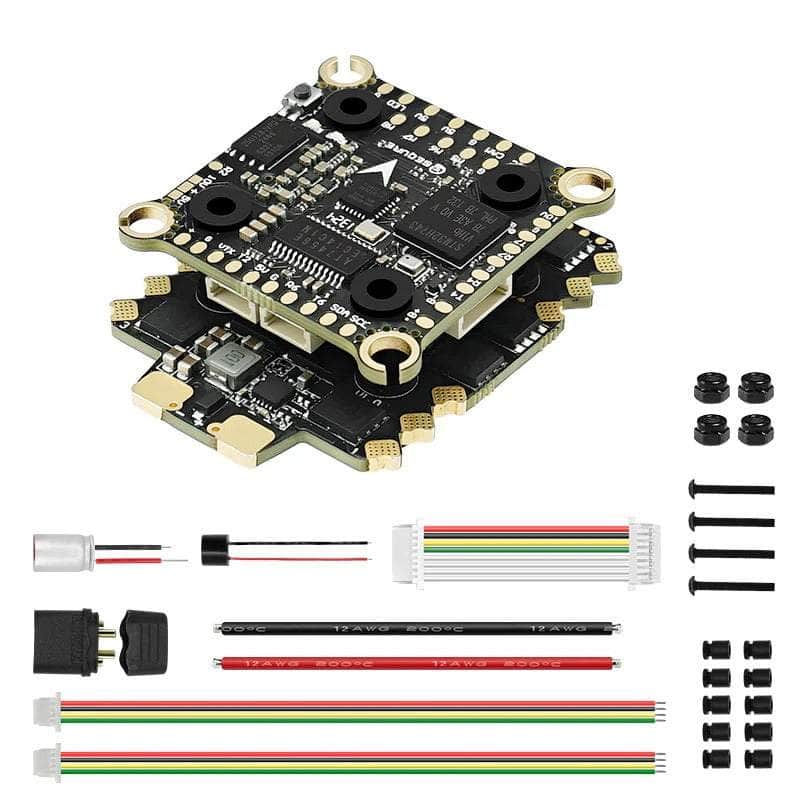

Includes

• 1x SEQURE H743 FC
• 1x E70 G1 4IN1 ESC
• 1x 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable

• 1x 30AWG 100mm Single-head SH1.0-4P Flat Cable

• 1x 60mm Length 12095 5V Buzzer

• 10x M3x8mm Silicone Shock-absorbing Washer(Black)

• 2x 12AWG 100mm Power Cable (black/red)

• 1x XT60H-M Black Male Connector

• 1x 35V 680UF Solid Capacitor

• 4x M3x25mm Screw

• 4x M3 Sleeve Nut
