Description

SkyStarsRC's flagship H743 Flight Controller with X8 support, OSD, BMI270 gyro, BMP280 barometer, 16M BlackBox, 8 UARTS, and more. The powerful MCU running at 480MHz should future-proof any new firmware updates coming in the next few years.

Check out all our 30x30 FCs! and our SkystarsRC collection!

Specifications

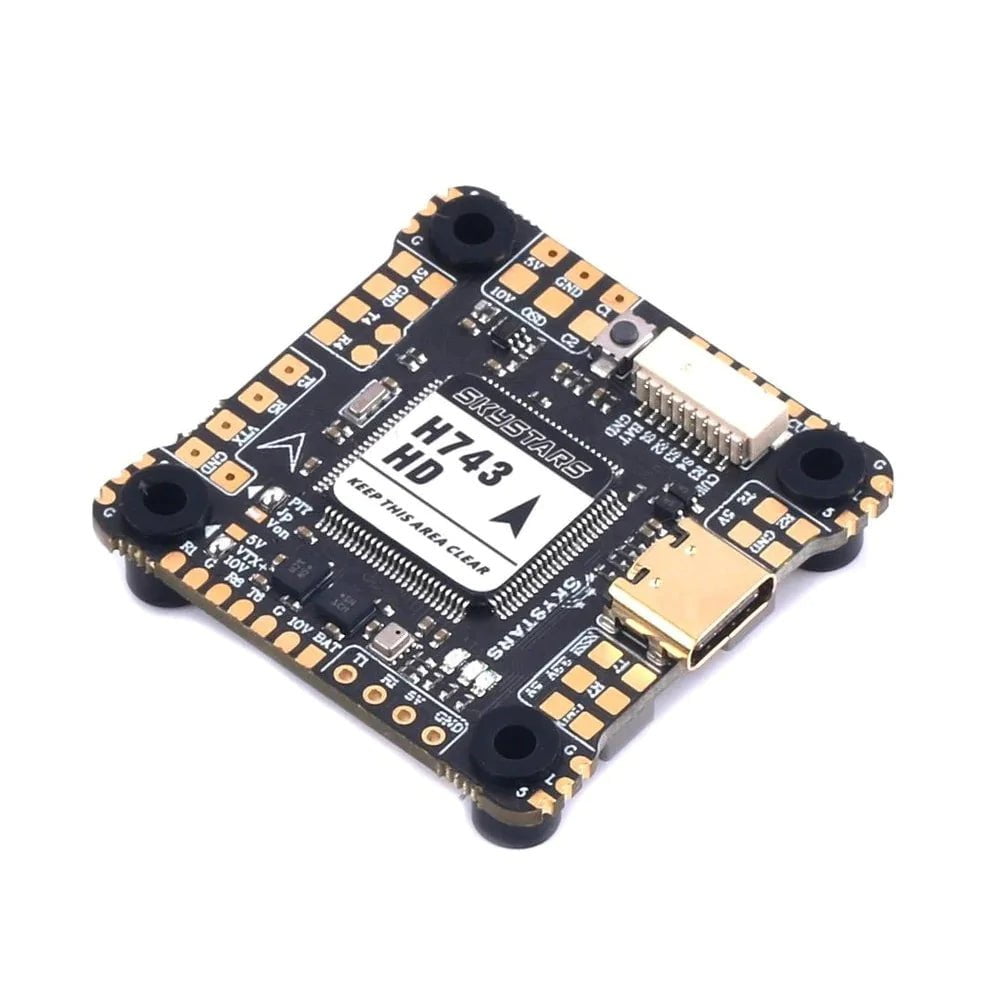

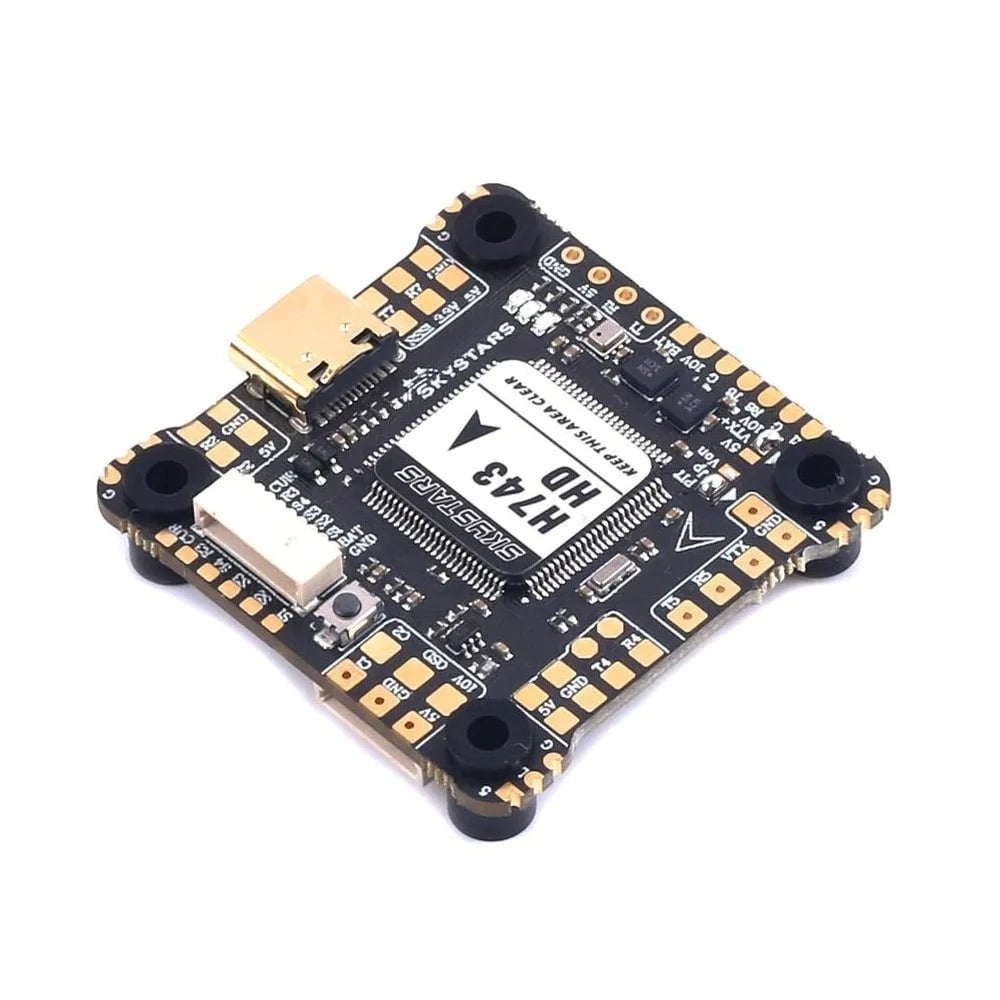

SkyStarsRC H7 Single Gyro 2-6S 30x30 Flight Controller

• MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
• IMU(Gyro): BMI270
• USB Port: Type-C
• Barometer: BMP280
• OSD Chip: AT7456E chip
• DJI Air Unit Connection: 6-pin connector and solder pads

• Blackbox 16Mb
• Current Sensor: Supported
• Power Input: 2S-6S LiPo
• Power Output: VTX 10V/Vbat filtered power ON/OFF switch
• ESC Signal: M1-M8 available
• UART: 8 Sets
• I2C: Supported
• LED: Supported
• Buzzer: Supported
• Firmware Target: Betaflight - SKYSTARSH7HD

• Mounting: 30.5 x 30.5mm ( 4mm hole diameter )
• Dimensions: 39.5 x 39.5 x 7.8mm
• Weight: 10.1g

INCLUDES:

• 1 x SkyStarsRC H7 Single Gyro 2-6S 30x30 Flight Controller
