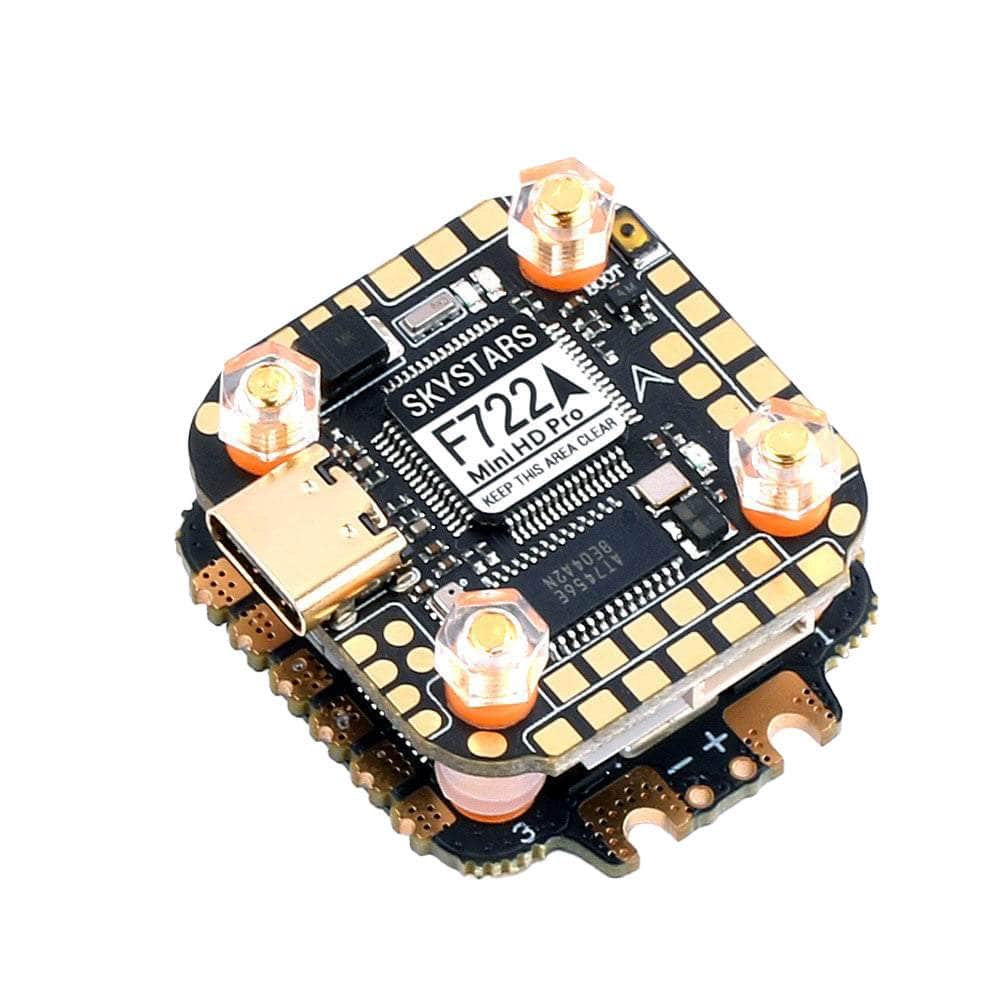

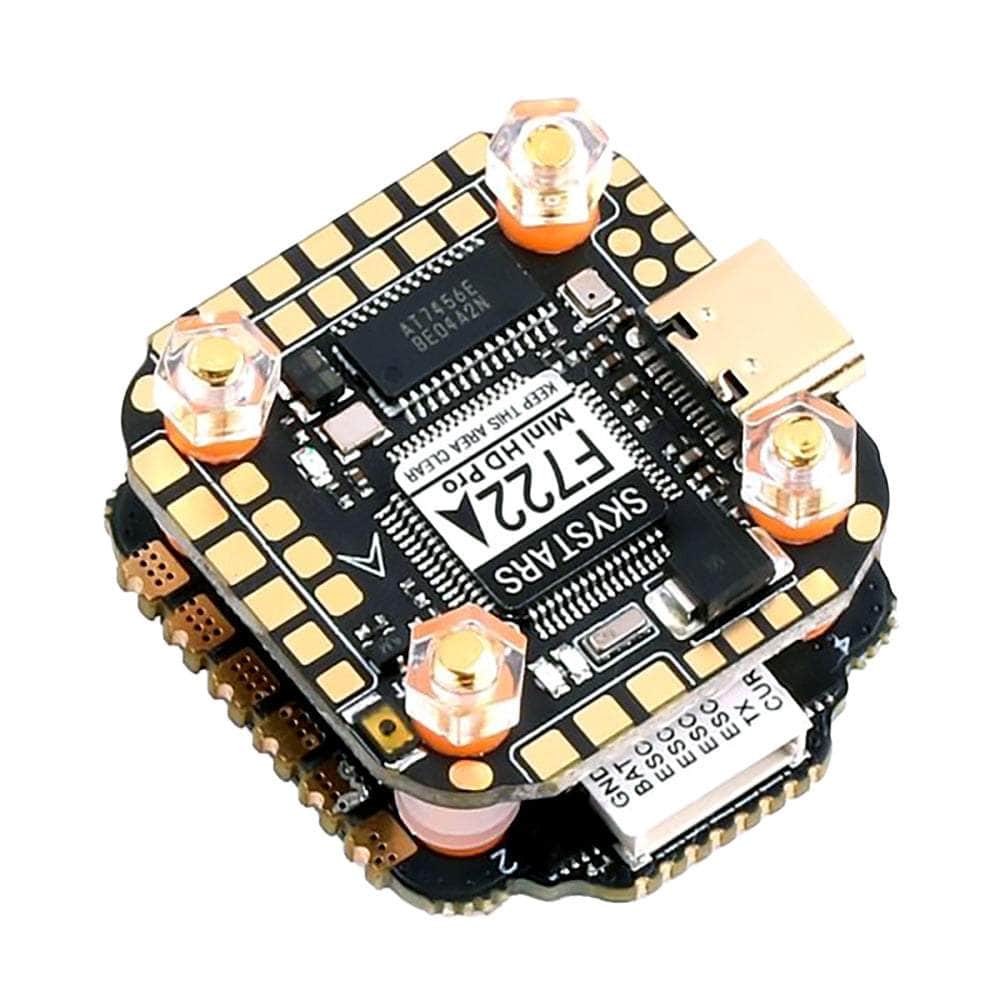

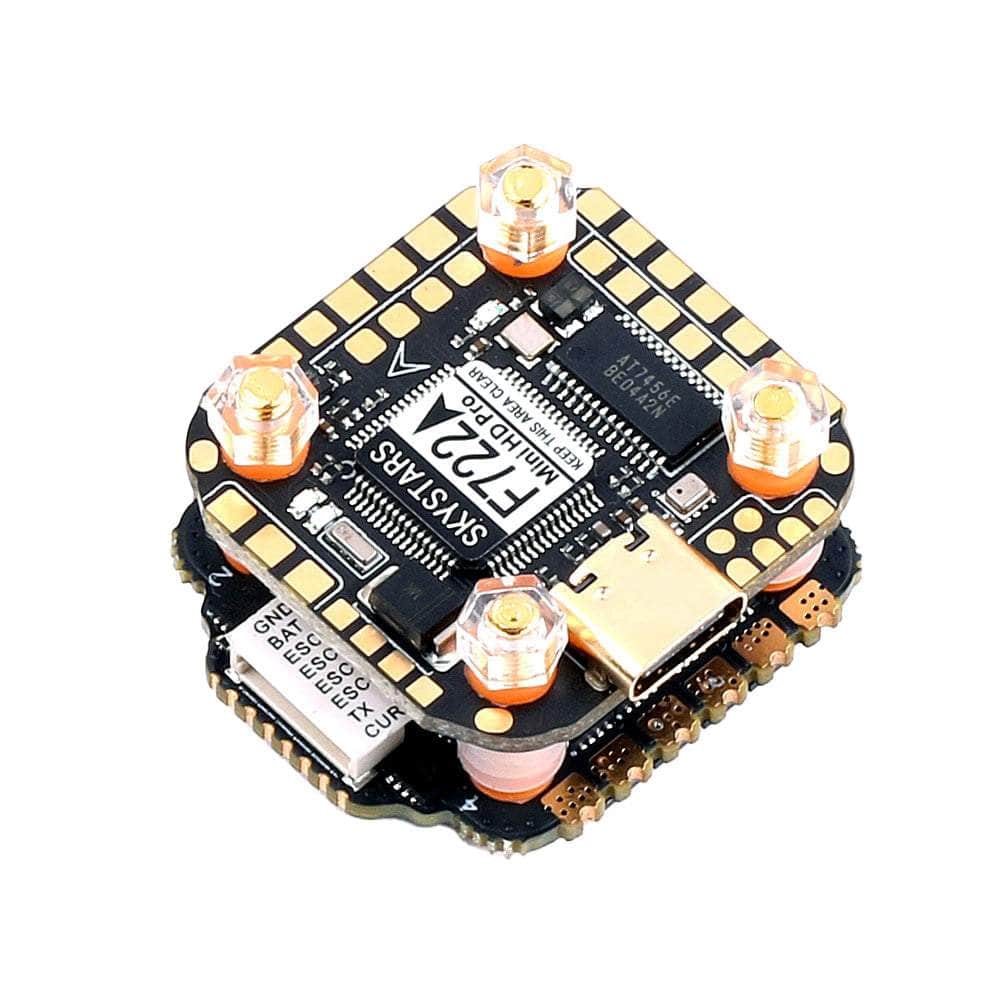

This SkyStars Fly Stack - F722 HD Pro FC and KM40 Pro 40A ESC is a powerful 3-6S 20x20 stack with superior electronics. This stack features an BMI270 for smooth, efficient performance. Enjoy reliable control and smooth operation for a great flying experience!
Check out all our 20x20 stacks, and our SkyStarsRC collection!
Features
- LED position in the four corners, support WS2812 Programmable LED
- Supports serial receivers: CRSF, SBUS, iBus, and Spektrum
- Support 3.3V Satellite Receiver
- High-performance / low-noise / high-sensitivity IMU. BMI270
- Supports DJI HD air module
- Input voltage 10V-26V (3-6S)
- Automatic voltage monitoring
Specifications
F722HD PRO FLIGHT CONTROLLER
- MCU: STM32F722RGT6 216MHz
- IMU: BMI270 (SPI)
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Barometer: YES
- Buzzer Pad: YES
- Output Voltage Pads: 5V 2A & 10V 2A
- Input Voltage: 3-6S Lipo
- Blackbox: 16MB
- Firmware: SKYSTARS F7HDPRO
- Dimensions: 31 x 30 x 7.8mm
- Mounting Holes: Standard 20mm/M3 or M2 square to the center of holes
- Weight: 6g

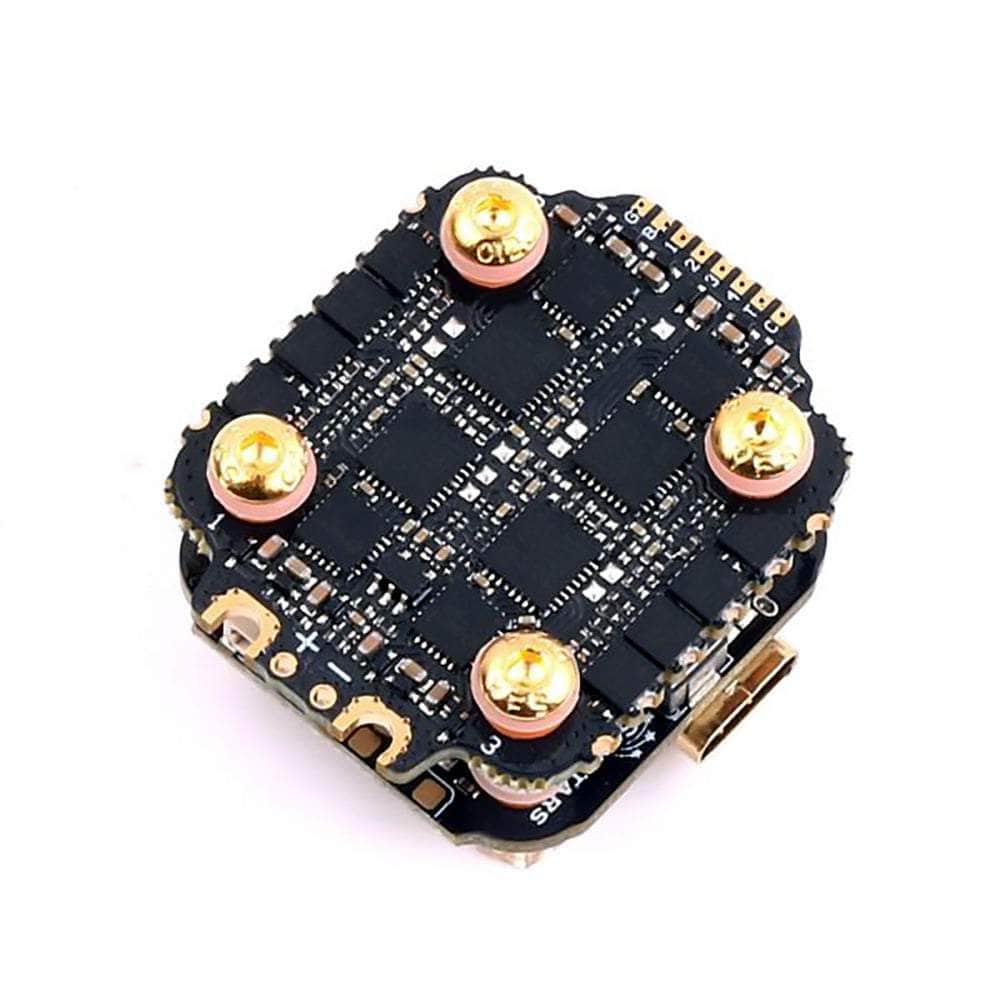

KM40 ESC
- Input voltage: 3-6S LiPo
- Continuous Current: 40A
- Peak Current: 50A≥ 10S
- Firmware: BLHeli_32
- Support: Dshot 600/1200
- Mounting hole: 20 x 20mm /M3
- BEC: No
- Product size: 31 x 36 x 3.9mm
- Weight: 7.8g
Includes
- 1x SkyStars Fly Stack - F722 HD Pro FC + KM40 Pro 40A BLHeli_32 ESC - Mini 20x20
