Description

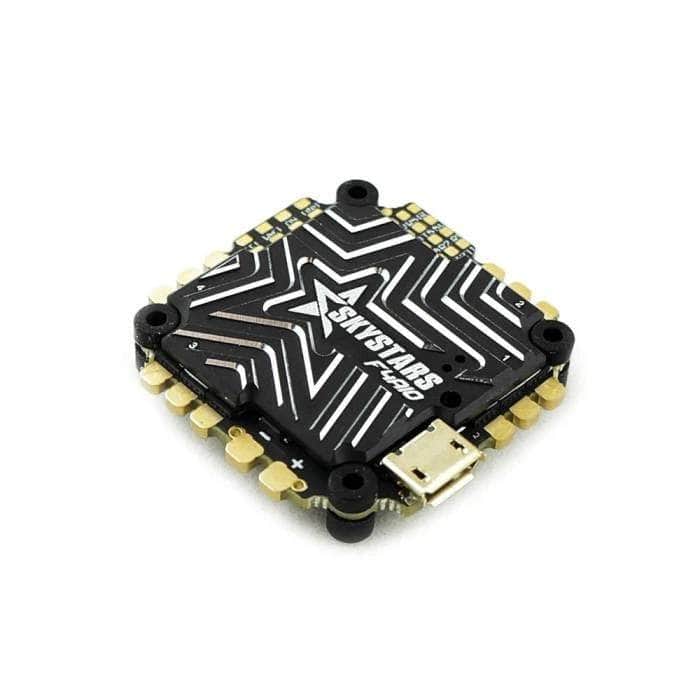

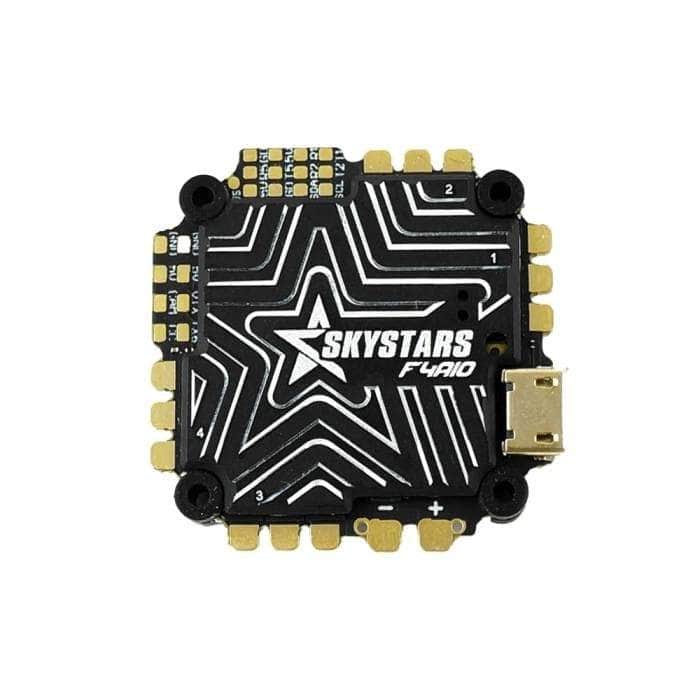

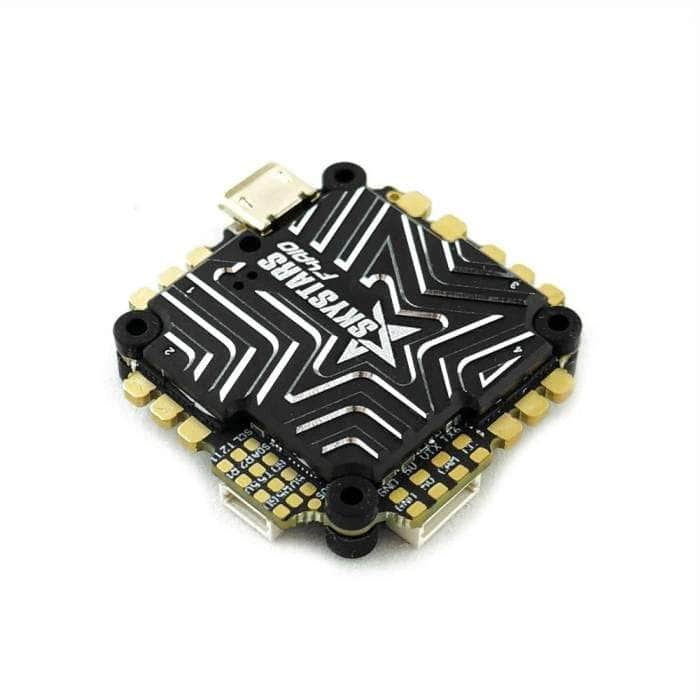

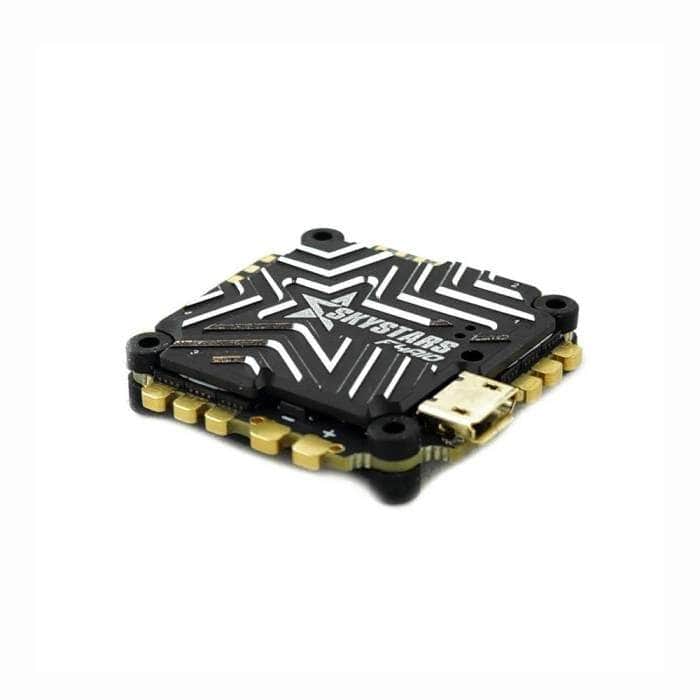

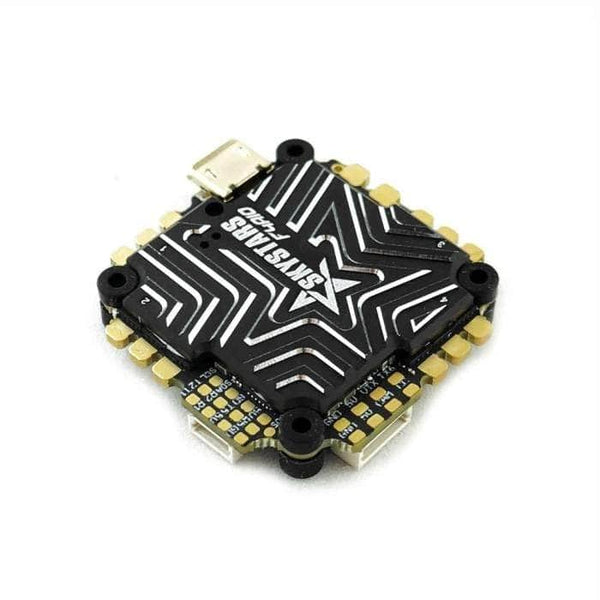

The Skystars Jupiter F405 45A AIO is a robust board that combines a flight controller and ESCs, with a 25.5 x 25.5mm mount, suitable for 3-4" and lightweight 5" drones. It features an F405 processor, MPU6000 gyro, barometer, 5V 3A BEC, 16MB blackbox memory, I2C pins, and connectors for digital video transmission and RC receivers. The board can handle up to 45A, is powered by 3-6S Lipo batteries, and includes an aluminum heat sink and external USB-C connector for easy access.

Browse the rest of our AIO Boards, and our SkyStarsRC collection!

Features

• Combines flight controller and ESCs in a single board

• I2C pins for compass connection

• Supports 3-6S Lipo batteries

• Handles current up to 45A

• Uses BlHeli_S firmware

• Integrated barometer

• Heat Management

• Compatibility

• Connectivity

Specifications

FLIGHT CONTROLLER

• Receiver: ELRS/CRSF/IBUS/TBS Crossfire Supported

• USB Connector: Micro USB and TYPE-C

• FC Firmware: SKYSTARSF405AIO

• LED Trip & Buzzer: Support

• CPU: STM32F405RGT6

• Barometer: BMP280

• BEC Output: 5V/3A

• Size: 35.5 x 36mm

• BlackBox: 16MB

• IMU: MPU6000

• Weight: 13.5g

• OSD: Support

• UART: 6ch

ESC

• Mounting Hole: 25.5 x 25.5mm, 3mm/M2

• DJI/Vista Connector: Support

• Default Protocol: Dshot300

• Continuous Current: 45A

• Current Sensor: Support

• ESC Firmware: BLHeli_S

• Power Supply: 3-6S

• Burst Current: 55A

• ESC Telemetry: No

• Current Scale: 400

Includes

• 1x Skystars Jupiter AIO F4 3-6S  Whoop/Toothpick Flight Controller (w/ 45A
• BLHeli_S 4in1 ESC) - MPU6000

• 4x M2 6.6 Anti-Vibration Grommets

• 1x 470uF 35V Ruby Capacitor

• 1x External USB-C Board

• 1x XT60 Cable

• 1x Cable Set

Wiring Diagram
