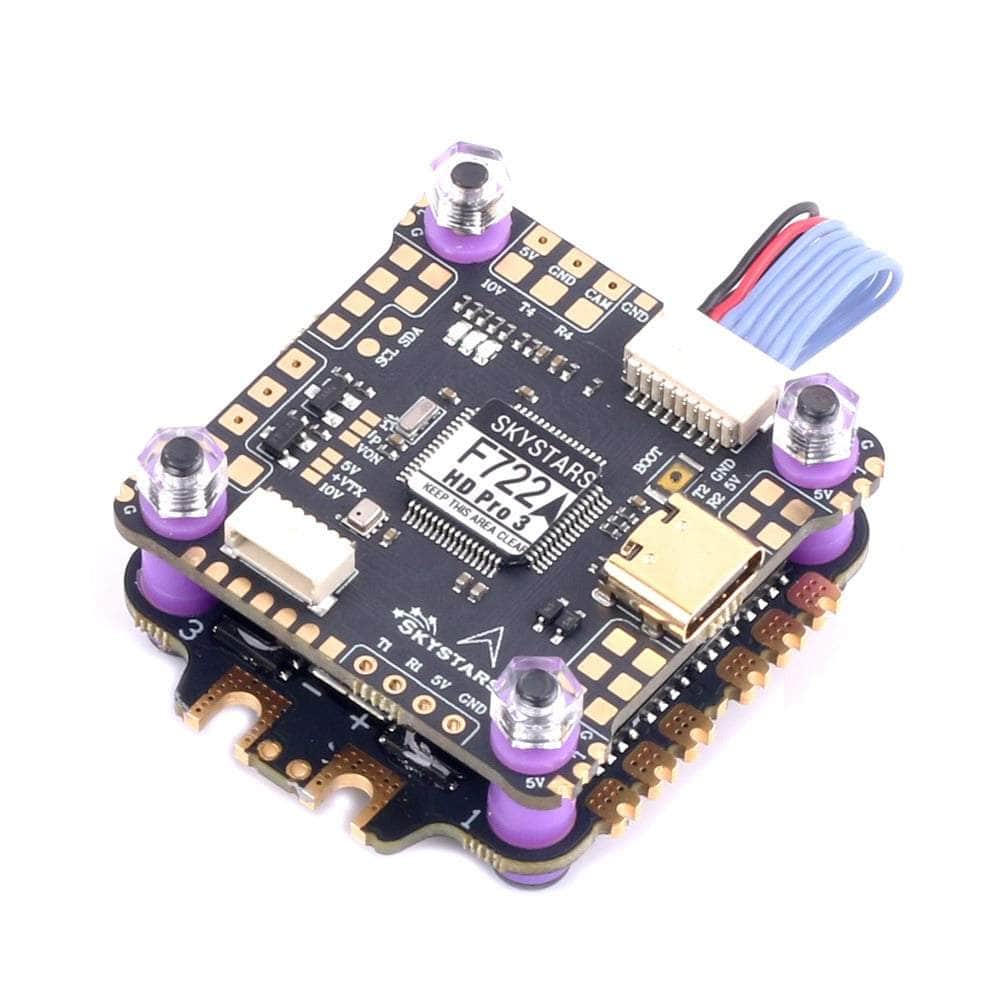

SkyStarsRC Fly Stack F7 HD Pro3 3-6S 30x30 Stack/Combo (F722 FC / KM60 32Bit 60A 4in1 ESC)

Original price $99.99 - Original price $99.99
Original price
$99.99
$99.99 - $99.99
Current price $99.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

The SkyStars Fly Stack features an F722 HD Pro 3 flight controller and a KM60 60A BLHeli_32 4-in-1 128K ESC with a 30x30 mounting pattern!

Check out our other 30x30 Stacksand our SkyStarsRC collection!

Features

  • The ESC has an onboard filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.
  • Built-in inverter, which can actually be installed in any spare UART.
  • EMI Shell provides a stronger anti-interference capability.
  • DJI FPV OSD is supported by any spare UART
  • VTX 10V/Vbat filtered power ON/OFF switch
  • Flight control onboard voltage sensor
  • F722 HD Pro 3 Flight Controller
  • 30x30 Mounting Pattern
  • KM60 60A 128K ESC
  • 3-6S LiPo Support

Specifications

SkyStarsRC F7HD Pro3 FC

  • MCU: STM32F722RGT6 216MHz
  • Gyroscope: BMI270
  • Baro: Bmp280
  • OSD: Betaflight SPI OSD DJI HD OSD(UART6)
  • Black box: 16MB
  • 6x Uarts: UART 1/2/3/4/5/6
  • 4x PWM outputs
  • 1x I2C
  • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
  • USB Type-C(USB2.0)
  • 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
  • 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
  • VTX 10V/Vbat filtered power ON/OFF switch
  • DJI FPV OSD is supported by any spare UART
  • LED: 4 LED independent pads, support WS2812 programming lamp output. Receiver: Support Sbus, CRSF, IBUS, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.

KM60 60A 4in1 ESC

  • Input voltage: 3-6S LiPo
  • Con. Current: 60A
  • Peak Current: 70A≥ 10S
  • Firmware: BLHeli_32
  • Support: Dshot 600/1200
  • Mounting pattern: 30.5mm/M3
  • BEC: No
  • Product size: 41x46x7.6mm
  • Weight: 17g about

Includes

  • 1x SkyStarsRC Fly Stack F7 HD Pro3 3-6S 30x30 Stack/Combo (F722 FC / KM60 32Bit 60A 4in1 ESC)
  • 4x Damping Rubbers (M3x3.5mm)
  • 1x XT60 connector and wires
  • 2x 8pin wiring harness (1x 70mm,1x 50mm)
  • 1x 35v 560uf Capacitor
>
