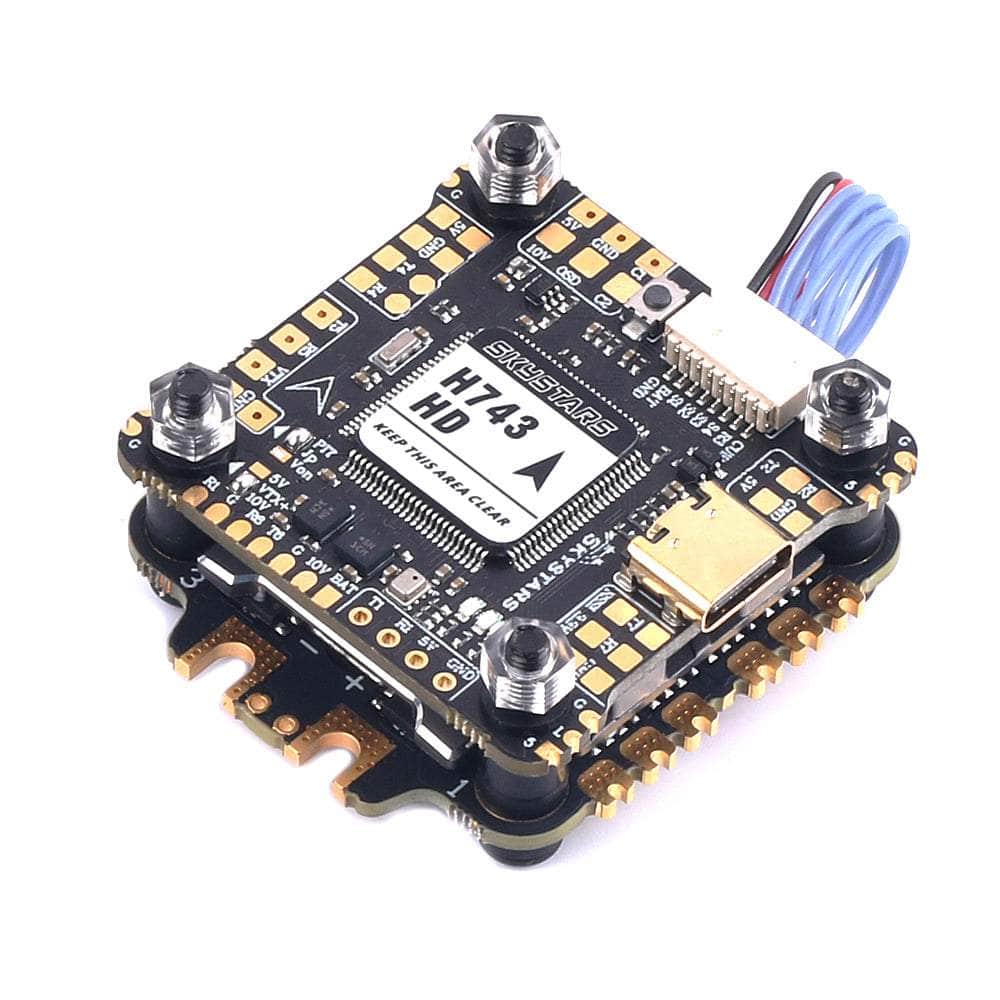

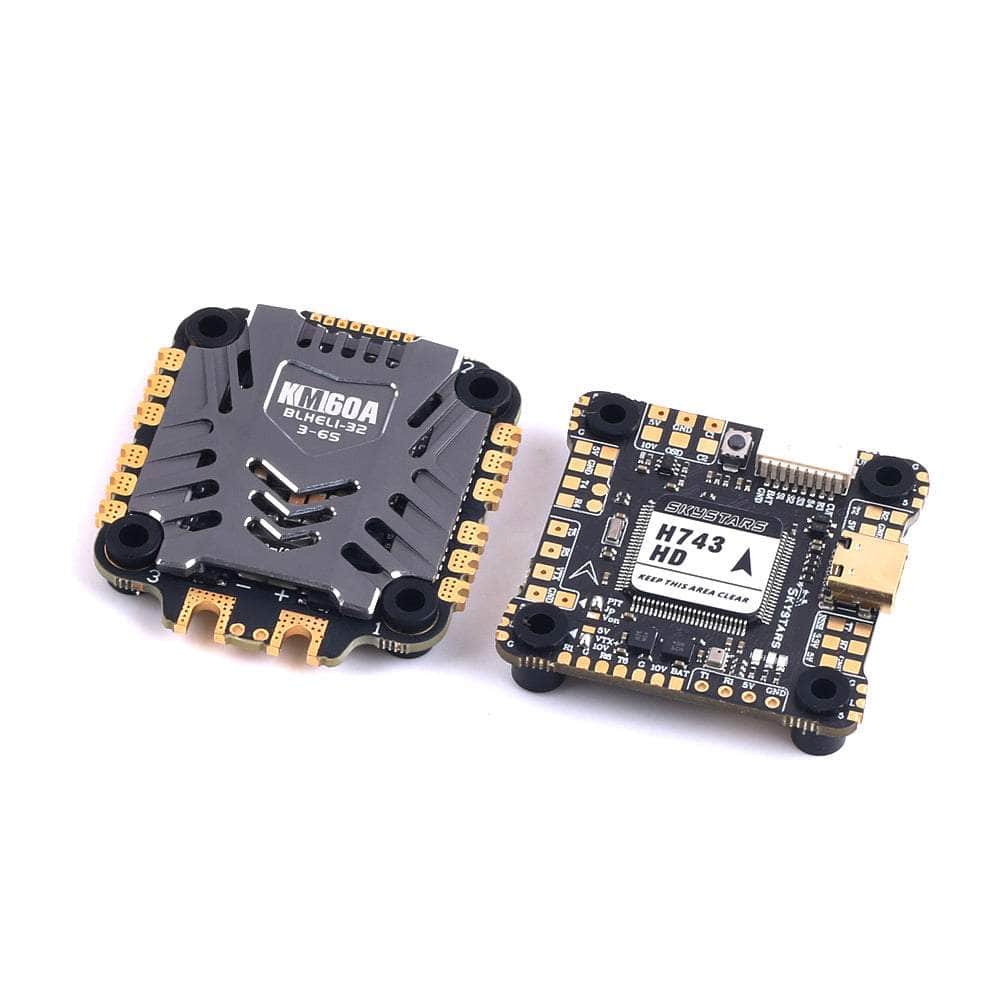

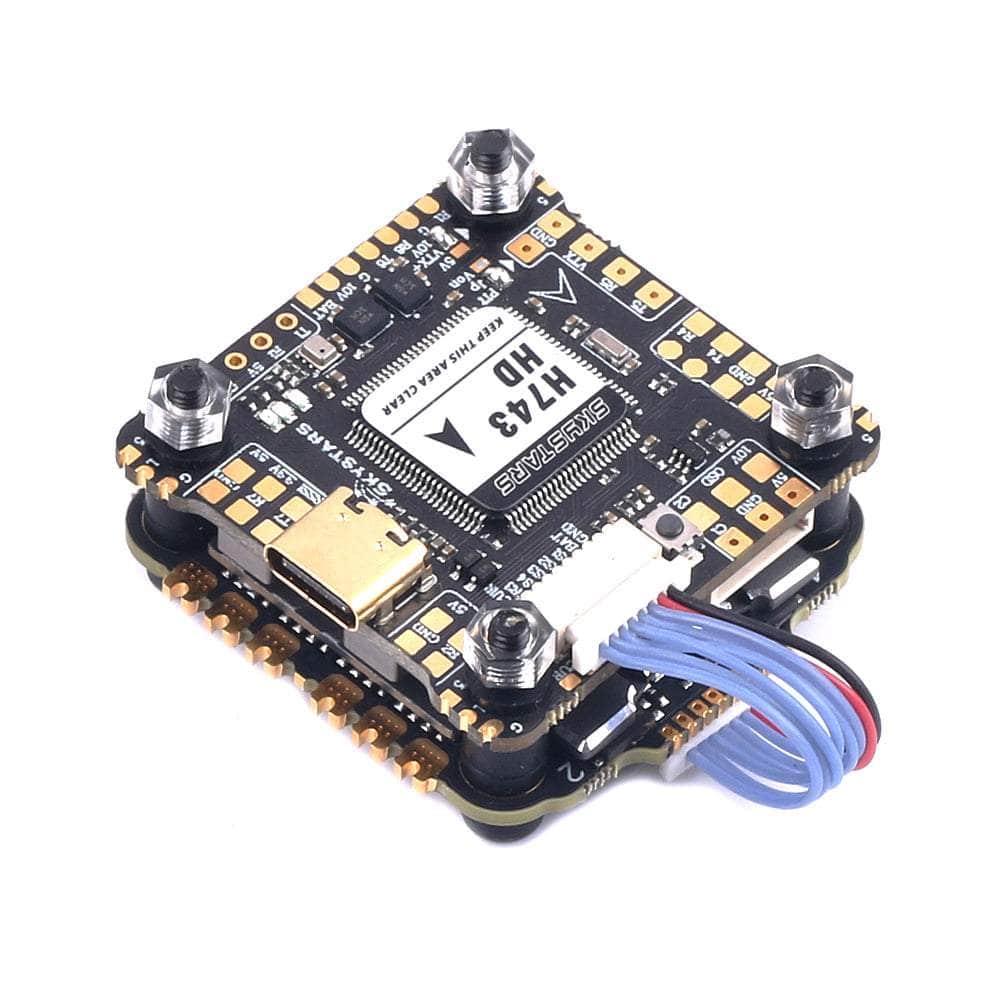

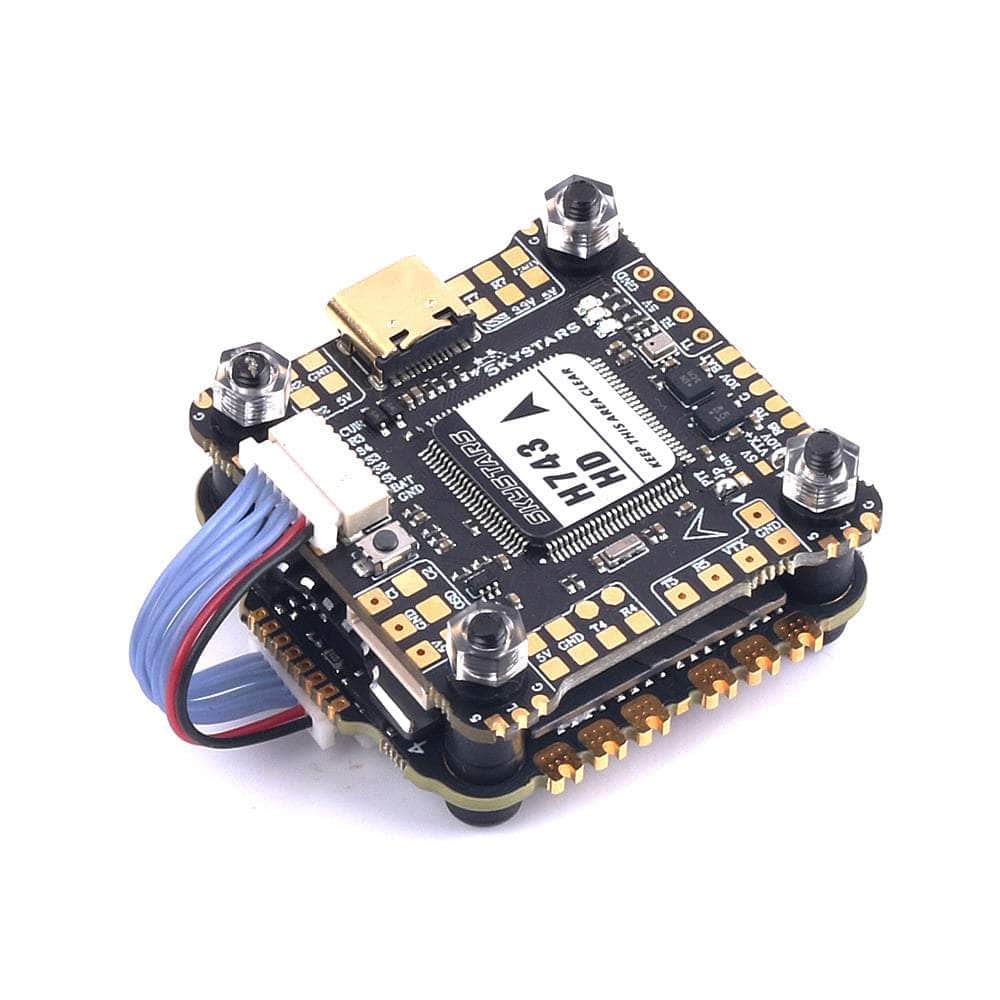

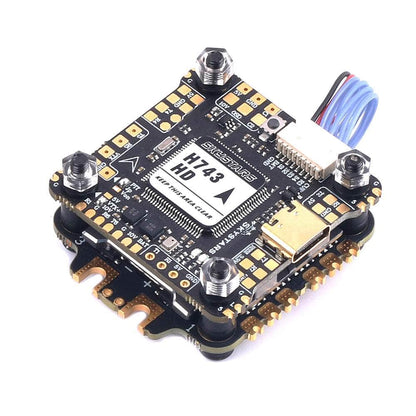

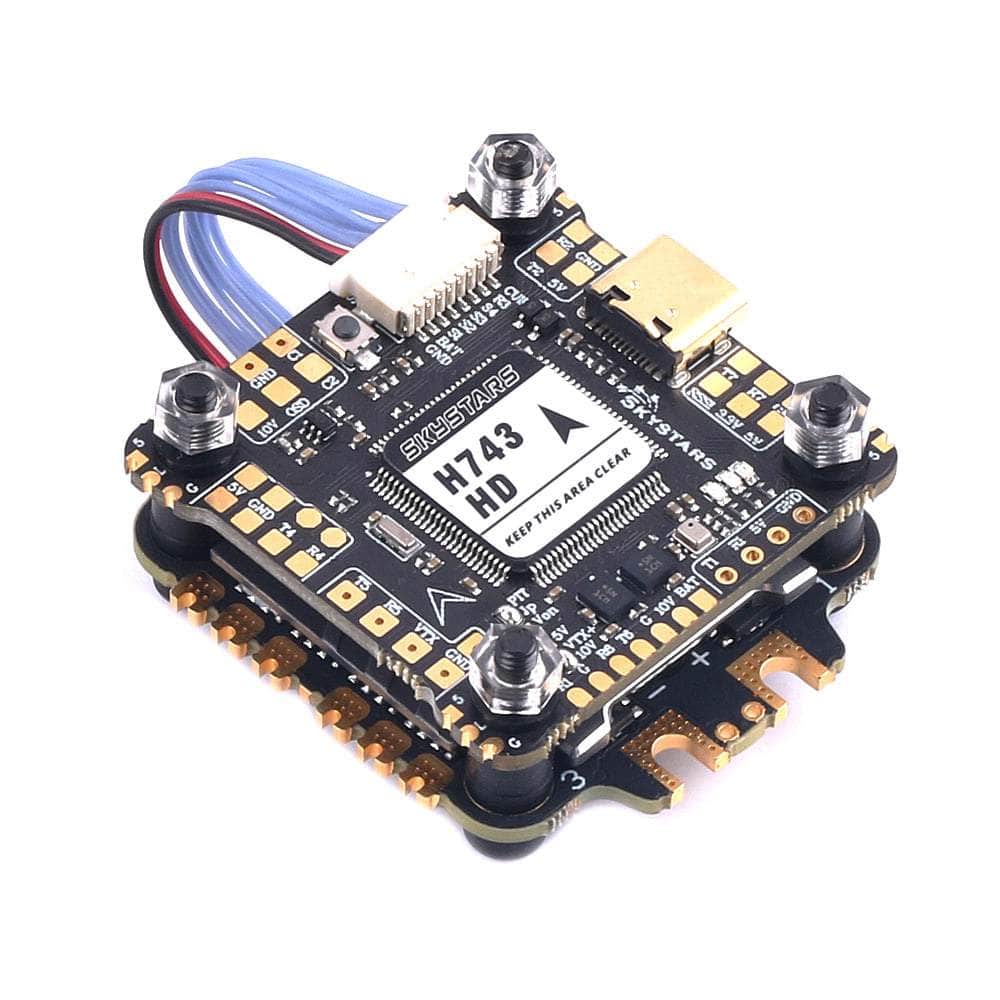

SkyStarsRC Fly Stack H7 3-6S 30x30 Stack/Combo (H7 FC / KM60 32Bit 60A 4in1 ESC) - Dual Gyro

SkyStarsRC Fly Stack H7 3-6S 30x30 Stack/Combo (H7 FC / KM60 32Bit 60A 4in1 ESC) - Dual Gyro

$140.49
$140.49
In stock
In stock
Add To Wishlist
View full details

Details

Description

The SkyStars Fly Stack features an H743 Dual Gyro HD Flight Controller and a KM 60A BLHeli_32 4-in-1 ESC with a 30x30 mounting pattern.

Check out our other 30x30 Stacks, and our SkystarsRC collection!

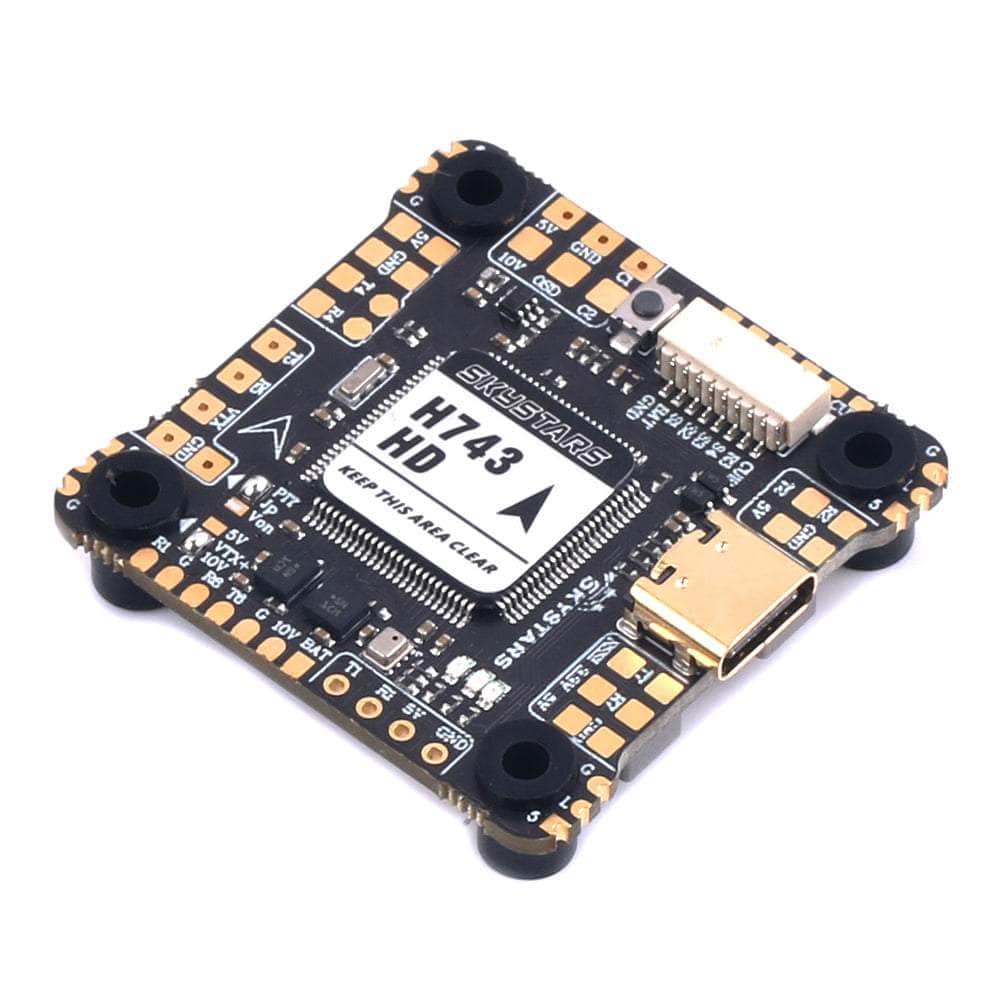

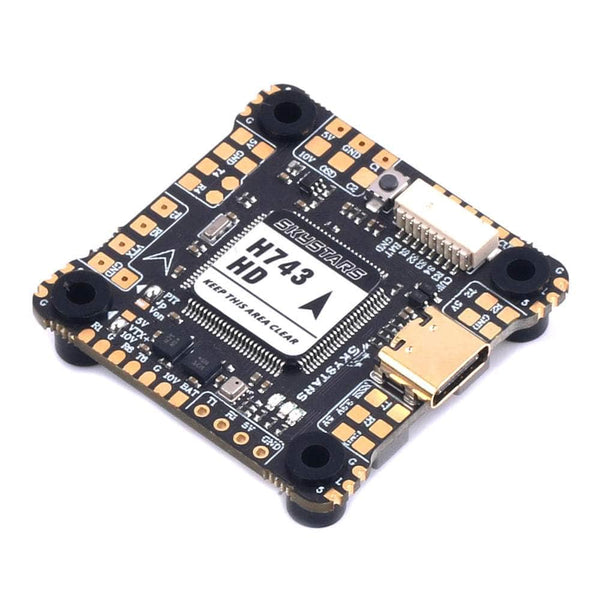

    SkyStars H743 HD Flight Controller

    • Input Voltage: 3-6S LiPo
    • MCU: STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash
    • Gyro: BMI270 Dual
    • Baro: BMP280
    • OSD:  Betaflight OSD
    • UARTs: 8 Sets
    • 8x PWM outputs
    • 1x I2C
    • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
    • USB Type-C(USB2.0)
    • 2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
    • 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
    • Dual Camera Inputs switch
    • VTX 10V/Vbat filtered power ON/OFF switch
    • DJI FPV OSD is supported by any spare UART
    • Vbat Input: 7~25V (2~6S LiPo)
    • BEC: 5V 2A Continuous (Max 3A)
    • LDO 3.3V: Max 250mA
    • Firmware: Betaflight - SKYSTARSH7HD
    • Ardupilot : SKYSTARSH7HD
    • Mounting: 30.5 x 30.5mm
    • Dimensions: 39.5 x 39.5 x 7.8 mm
    • Weight: 10.1g

    SkyStars KM60 60A BLHeli_32 4-in-1 ESC - 30x30

    • Continuous Current: 60A x4
    • Burst Current: 80A x4
    • Supports 3-6S battery
    • Supports Dshot1200, Dshot600, Dshot300, PWM control signal
    • ESC telemetry Supported
    • No output BEC
    • BLHeli_32 firmware
    • Dimensions: 41x46
    • Weight: 18g
    • Mounting holes: 30.5x30.5 M3

    Includes

    • 1x SkyStarsRC 30x30 Fly Stack H7 Single Gyro FC / KM60 BLHeli-32 45A 3-6S

    More Info

    • SKU: 19724
    • Barcode: 691023534036


    Overall rating: 4.5 / 5 from 6 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: [].

    Review highlights

    Reviews

    Great stack.

    "Great stack."

    — Tony G. (5/5)

    Good stack.

    "Soldering and setup seemed easy. Seems to be stuck sending PIT mode to vtx and I am still trying to figure that out. There are 2 additional settings that need to be enabled to get video through FC and one of them seems to be PIT mode and the other is VTX power. Turning Pit setting off, causes no video out even though camera is on. Very little documentation for the FC so it is challenging to sort it out."

    — Thomas B. (4/5)

    very good quality, can do

    "very good quality, can do a lot via USB."

    — Alex K. (5/5)

    Full featured

    "The good; It has a nice layout with many extra features. With Dual gyros, more UARTs, more memory, and a faster MCU why choose anything else? I like the LED pads at each corner. Less one less star because there is no 5v power with USB bench config. Attach a battery and the GPS/RX will fire up. Only then can it be configured. At this time Betaflight and Inav doesn't have a working firmware template for the H7HD. Still evaluating, but it has good promise."

    — jeff p. (4/5)

    Gonna give this super stack a shot

    "H7, dual gyros, barometer, plenty of uarts, labels on each pad, x8 capabilities, blheli32, 60 amp 4 in one, 116 dollars. I haven't flown this yet but I'll report back when I do. If this stack works well, all the other companies will need to reduce their prices to compete with skystars. Only time will tell."

    — Levi R. (5/5)

    Good Stack

    "Good stack i have this in a 5.5" and it flies great. The only problem i had was with betaflight 4.3.2 it would not arm due to RPM filtering. I contacted RDQ, who in turn contacted Skystars, who in turn sent me an email and said for some reason the FC was having issues with BF 4.3.2. They suggested going back to 4.3.1 and after that no issues at all."

    — James (4/5)
