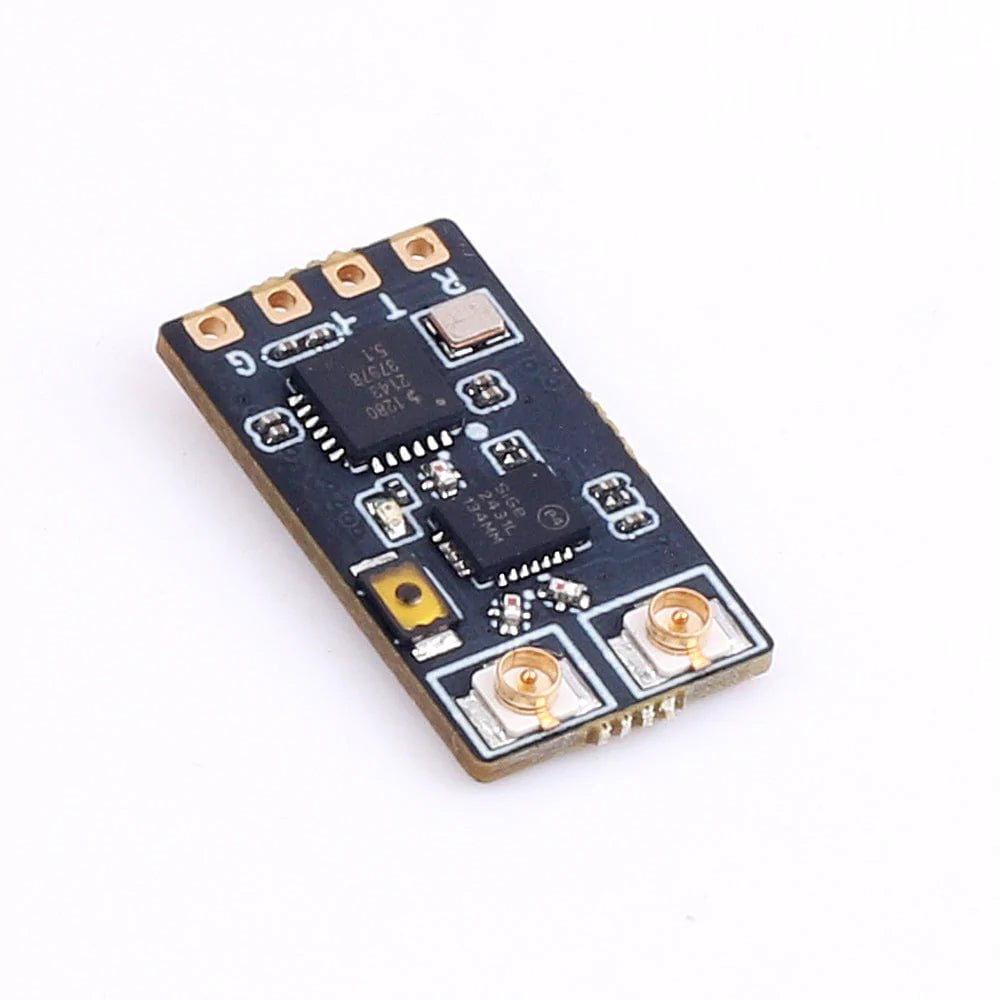

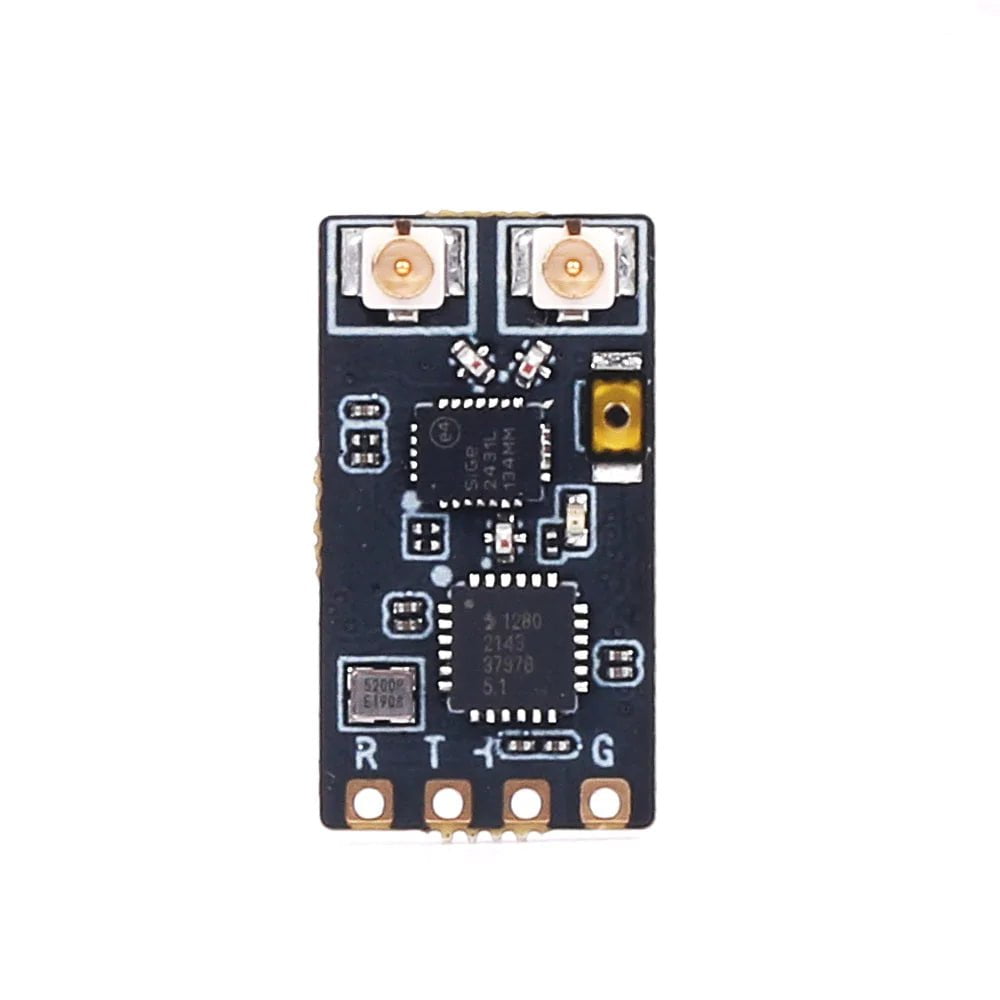

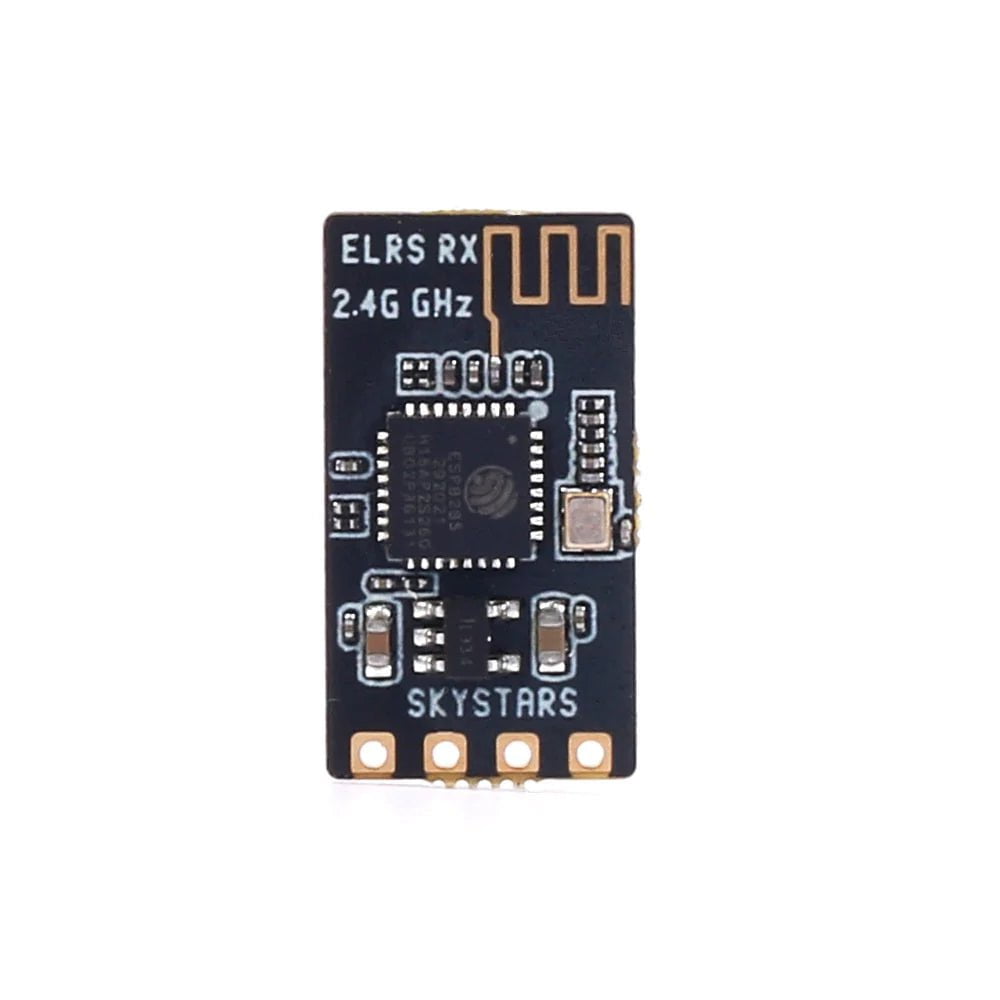

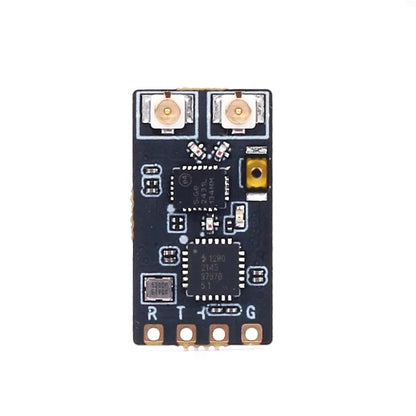

SkyStarsRC Supreme ELRS 2.4GHz Diversity Receiver - T-Antenna

SkyStarsRC Supreme ELRS 2.4GHz Diversity Receiver - T-Antenna

$17.99

$17.99

Add To Wishlist

View full details

Details

Description

Coming in at 0.8g, the SkyStarsRC Supreme 2.4GHz with Dual Antenna Diversity Receiver for ExpressLRS. 100% ELRS Devs Approved Low Latency High Refresh Rate for Freestyle Racing Longrange FPV Drones.

Check out all our ExpressLRS-compatible gear! and our SkystarsRC collection!

Specifications

Type: ISM
MCU: ESP8285
RF Module: SX1280IMLTRT
Antenna Connector: U.FL
Frequency Range: 2400 MHz to 2500 MHz
Maximum Receiver Refresh Rate: 500Hz
Minimum Receiver Refresh Rate: 25Hz
Receiver Protocol: CRSF
Telemetry power: 250Mw
Input voltage: 4.5~5V DC @ 5V pad Power dissipation: 40~45mA (Before Bind), 70~75m A (Binding), 90~95m A (WIFI Mode) PCB size: 20mm x 11mm
Dimension: 18.2x11.75x3mm
Weight: 0.8g without antennas

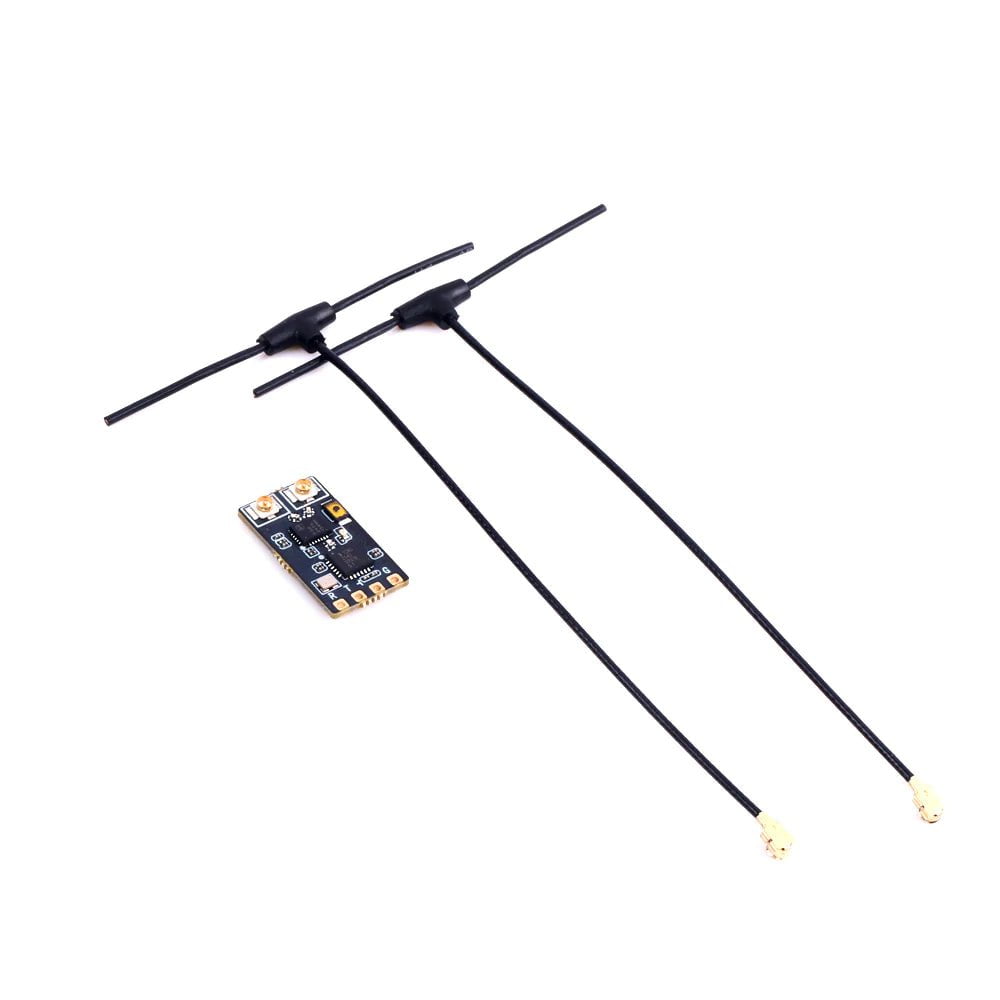

Includes

1x SkyStarsRc Supreme ELRS 2.4GHz Diversity receiver
1x Antenna

More Info

SKU: 19729
Barcode: 691023522015

Overall rating: 4.75 / 5 from 8 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["connector","receiver"].

Review highlights

Reviews

ELRS receiver

"Works great! Nice solid connection."

— Jackie M. (5/5)

Great flying!

"Wonderful, easy to use! Got the job done! Thank you"

— Stephen F. (5/5)

No complaints. But have the beta flight recovery dongle just incase.

"Works."

— JOHN M. (5/5)

Best elrs receivers

"Top notch and quality that won't break the bank! As well as diversity ! 😘"

— keith s. (5/5)

SkyStarsRC Supreme ELRS 2.4GHz Diversity Receiver

"I like these because they mount to the fc and not trying to figure out how to mount it to a fpv build."

— Benjamin M. (5/5)

Worked good. easy to flash

"Worked good. easy to flash and bind. i like the antenna size too."

— Sam M. (5/5)

Simply amazing

"Great receiver. Easy to solder up and flash."

— Jonathan K. (5/5)

What

"This is a diversity rx but only comes with ONE ANTENNA?? Kind of like selling a left shoe without the right...."

— Steven (3/5)
