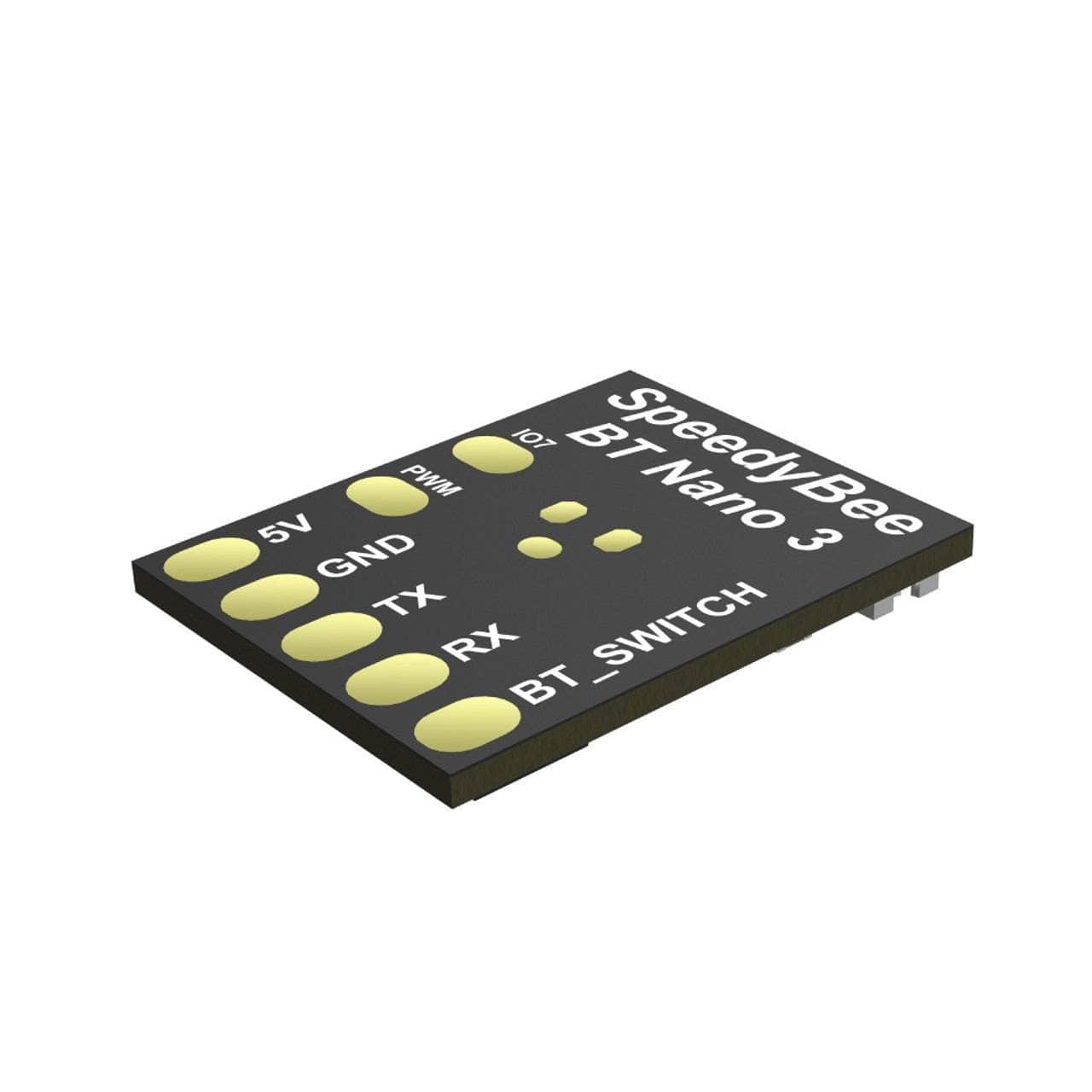

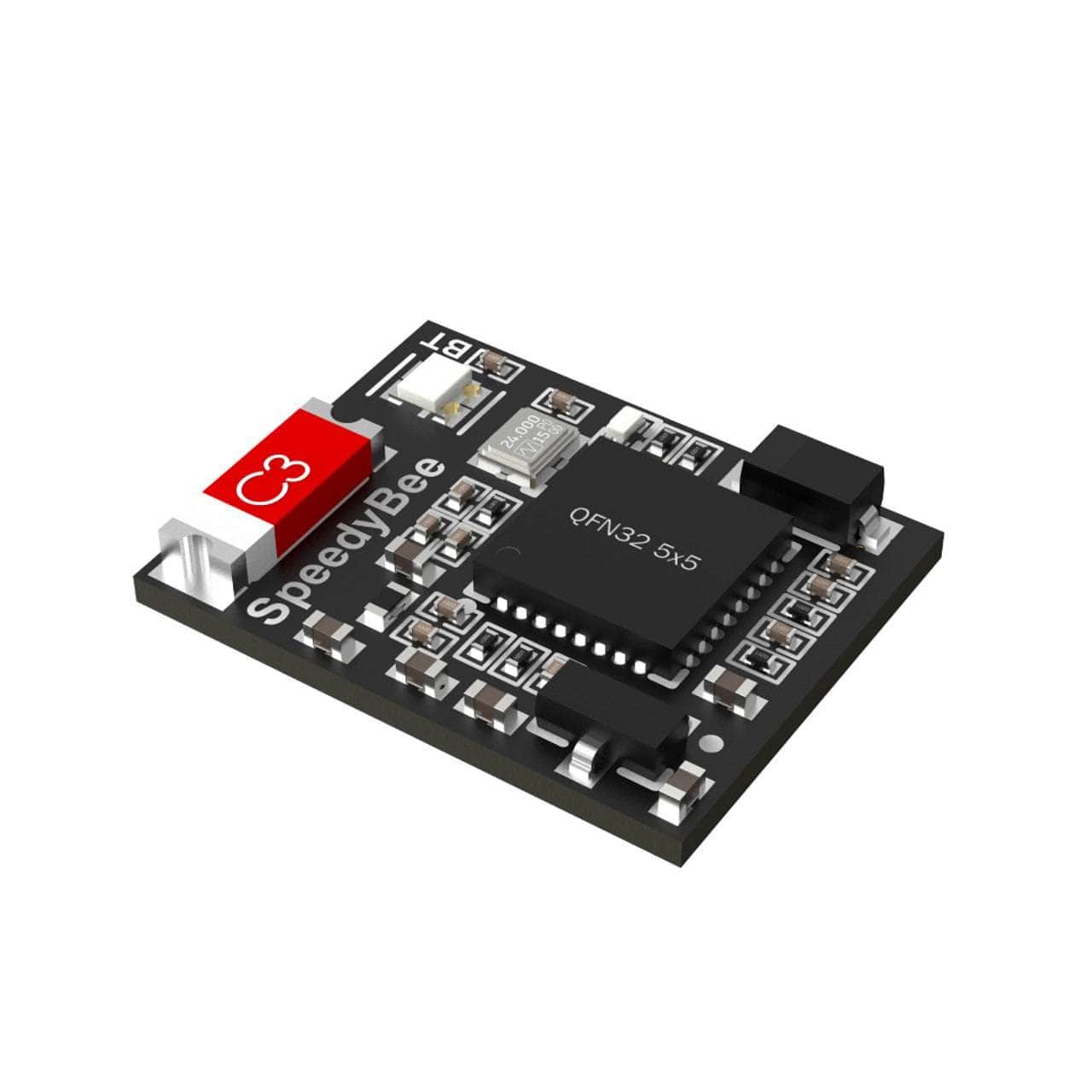

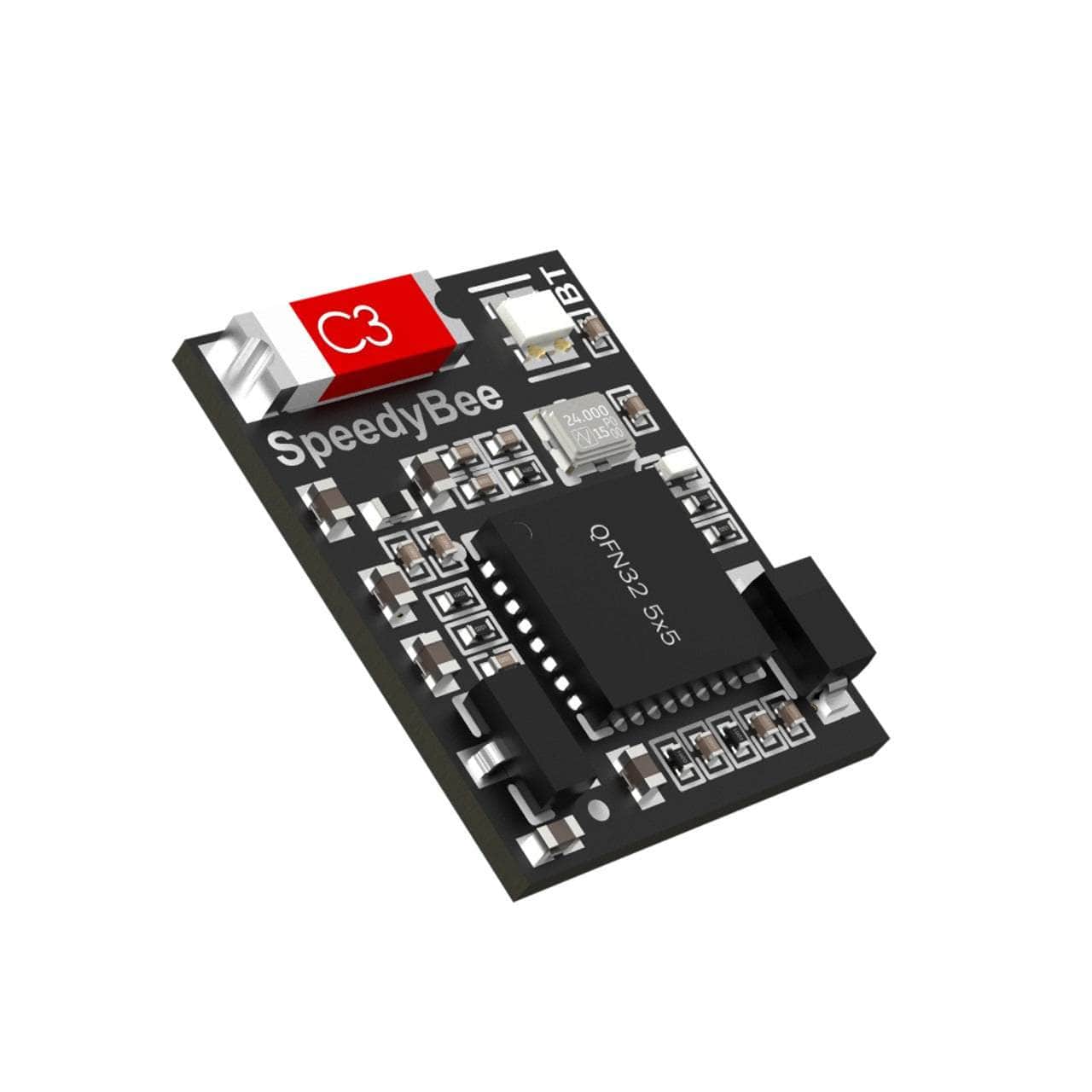

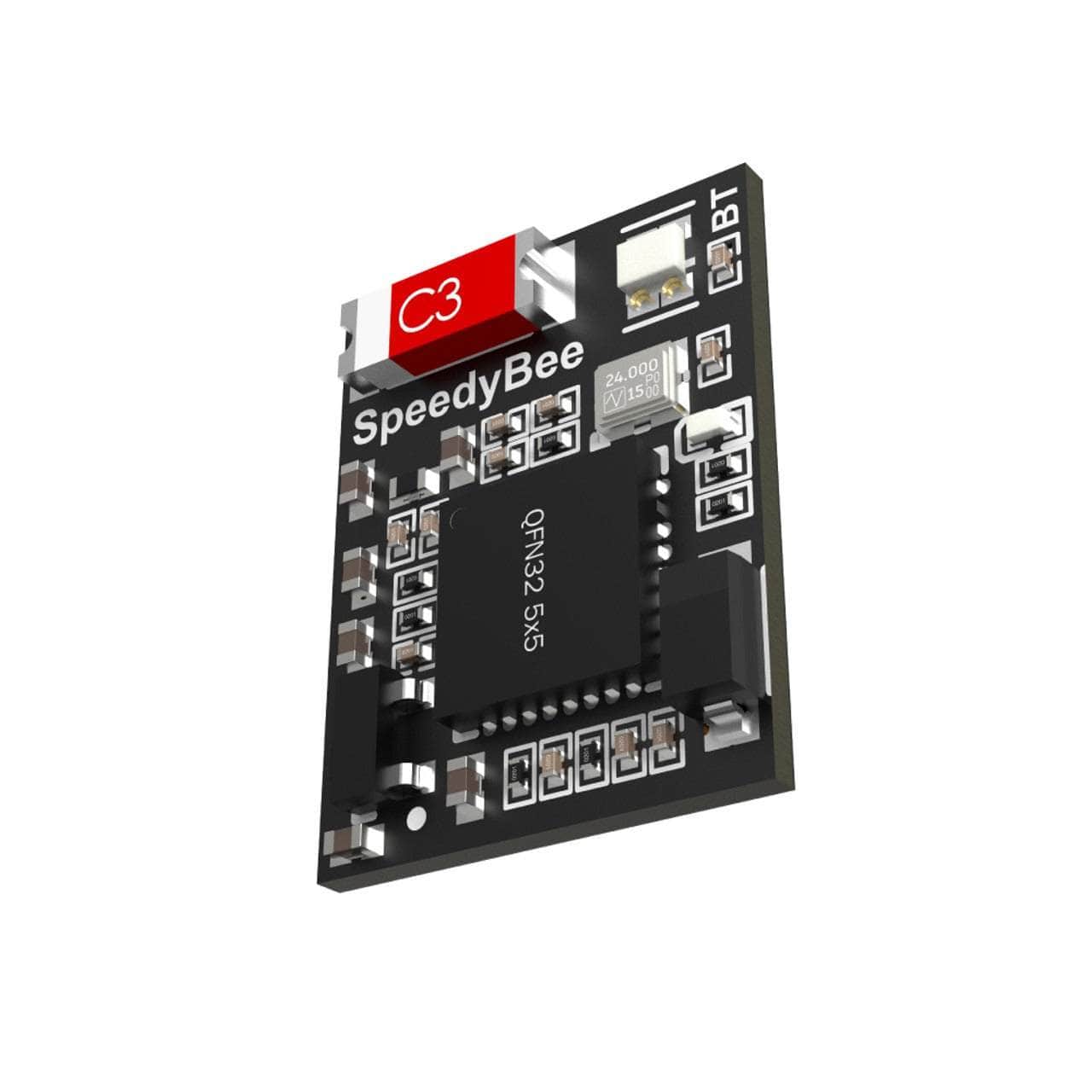

SpeedyBee BT Nano 3 Bluetooth Wireless FC + ESC Configuration 2 Pack

Check out this 2 pack of the Speedybee BT Nano 3, giving you the ability to be able to wireless configure your flight controllers and stacks. The nano-size SpeedyBee BT Nano 3 Configuration features password protection. Where its Bluetooth automatically turns off when not in use to avoid interference. This component supports the SpeedyBee App for wireless FC & ESC for configuration. Eliminate wire constraints and complicated driver installations with the SpeedyBee BT Nano 3 Wireless FC + ESC Configuration.

Check out the rest of our Speedy Bee products and the rest of our tools & building supplies

Features

• Wireless FC + ESC Configuration
• Bluetooth automatically turns off
• SpeedyBee App connectivity
• Password protection
• Nano-size

Specifications

• Operating Voltage: 5V
• Working Current: 10mAh
• Baudrate: 115200
• Weight: 5g
• Input connector XH2.54-7P

• Output connector JST1.25-2P/2P soldering pad

• Dimensions: 14mmx11mmx0.8mm


Notes

• Bluetooth Automatically Turns Off:  Enabled by default, the module will automatically detect the armed/ disarmed status of the FC. During the flight of the drone, the Bluetooth function will be disabled to prevent other wireless devices from being interfered by the Bluetooth signal.
• BT Switch Pad: The Bluetooth function will be disabled when it receives a Low signal.In the BT Switch section of the manual, you can learn about the detailed instructions.
• Solid Red: Indicates that the module is powered.

• Power Indicator: Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct.
• Working Status Indicator: Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct.
  Solid White: Indicates that the communication with FC is normal, you can use the App for wireless parameter adjustment
  Flashing green: Indicates that the wireless signal is being connected
  Solid Green: Indicates that the connection with the App has been successful

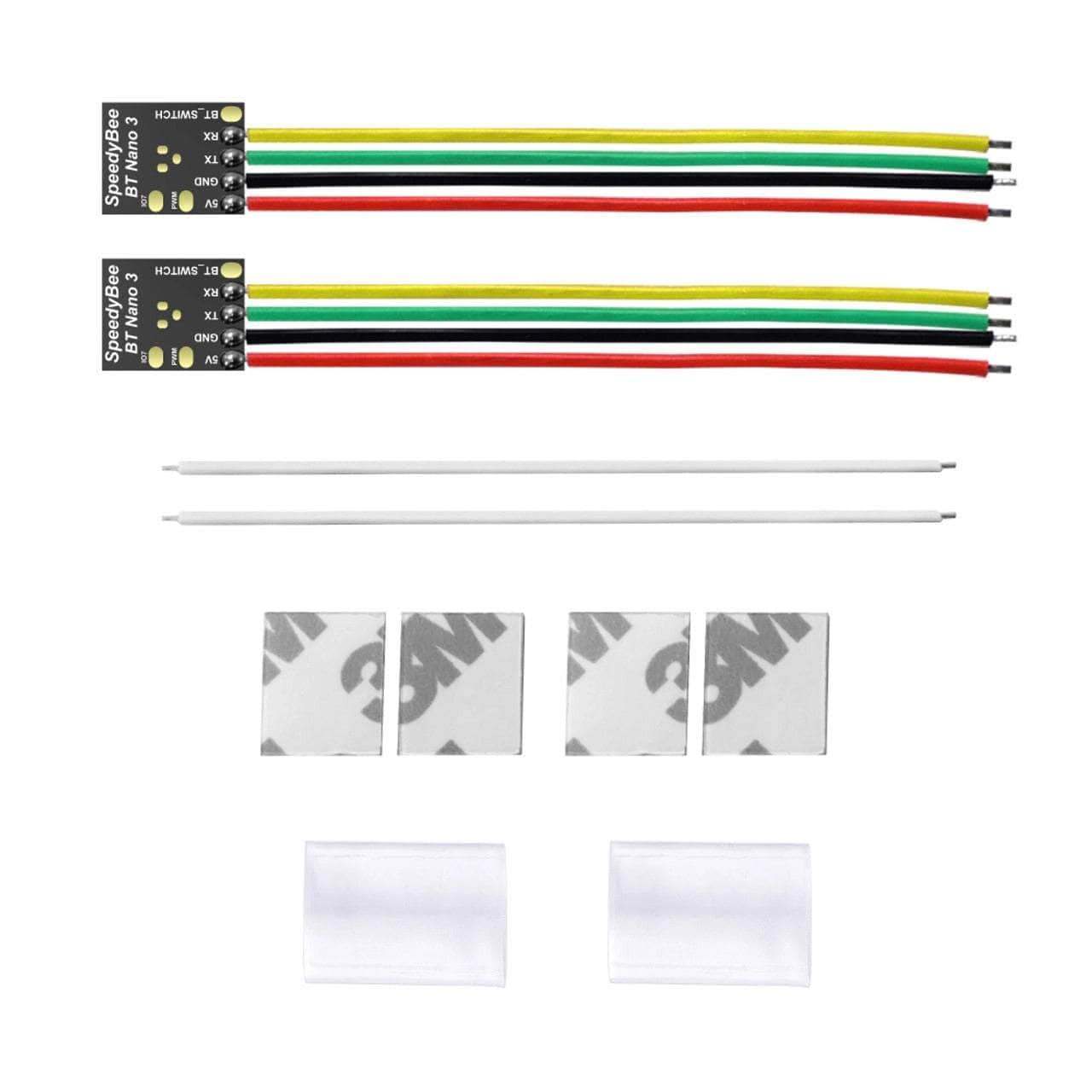

Includes

• 2x SpeedyBee BT Nano 3 Wireless FC + ESC Configuration
• 2x 29 AWG 19cable 75mm for BT Switch pad soldering
• 4x 3M double-sided tape 14mmx30mm
• 2x Heatshrink tube 18mm diameter
