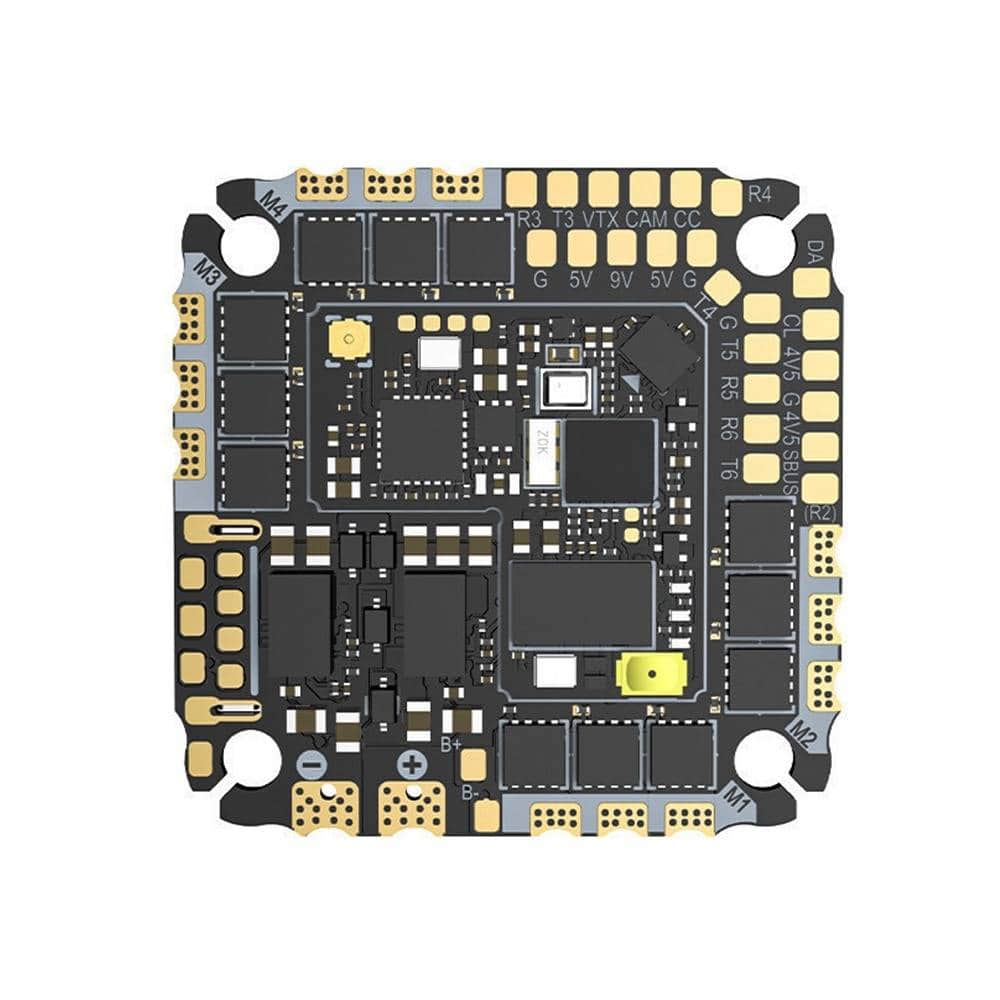

The SpeedyBee F405 V2 AIO is a feature-packed all-in-one flight controller designed for cinewhoops, long-range builds, and lightweight freestyle drones. Combining an F405 flight controller with a powerful Bluejay-powered 4-in-1 ESC, it delivers reliable performance in a compact layout that reduces weight and simplifies installation. Integrated Bluetooth connectivity enables convenient wireless configuration and firmware updates through the SpeedyBee app.
Check out our other AIO flight controllers and all our Speedy Bee products!
Features
- Plug and Play Design for Simple VTX Installation
- Optimized Solder Pad Layout
- Dual BEC for Flexible Power Mapping

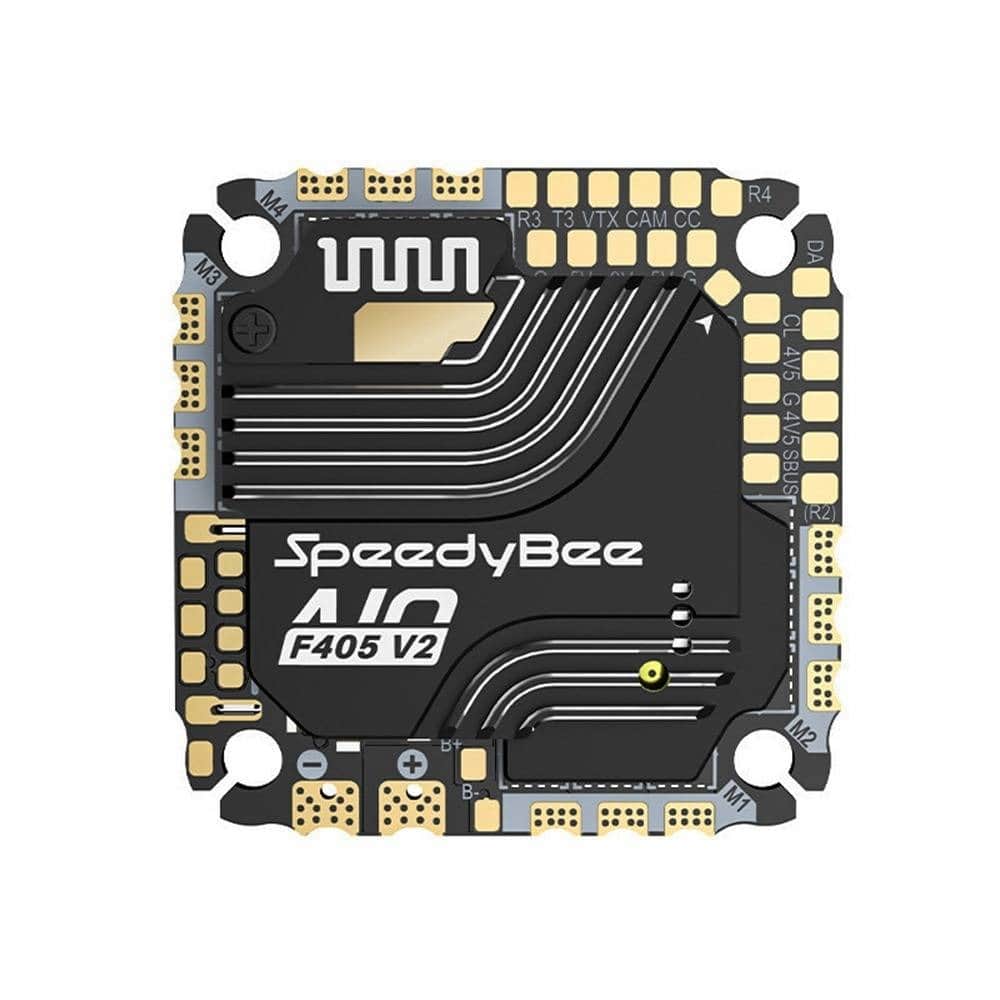

- CNC Case and Triple-Coated Board Provide Lasting Environmental Protection
- Supports Wireless Tuning and Customization
Specifications
FLIGHT CONTROLLER

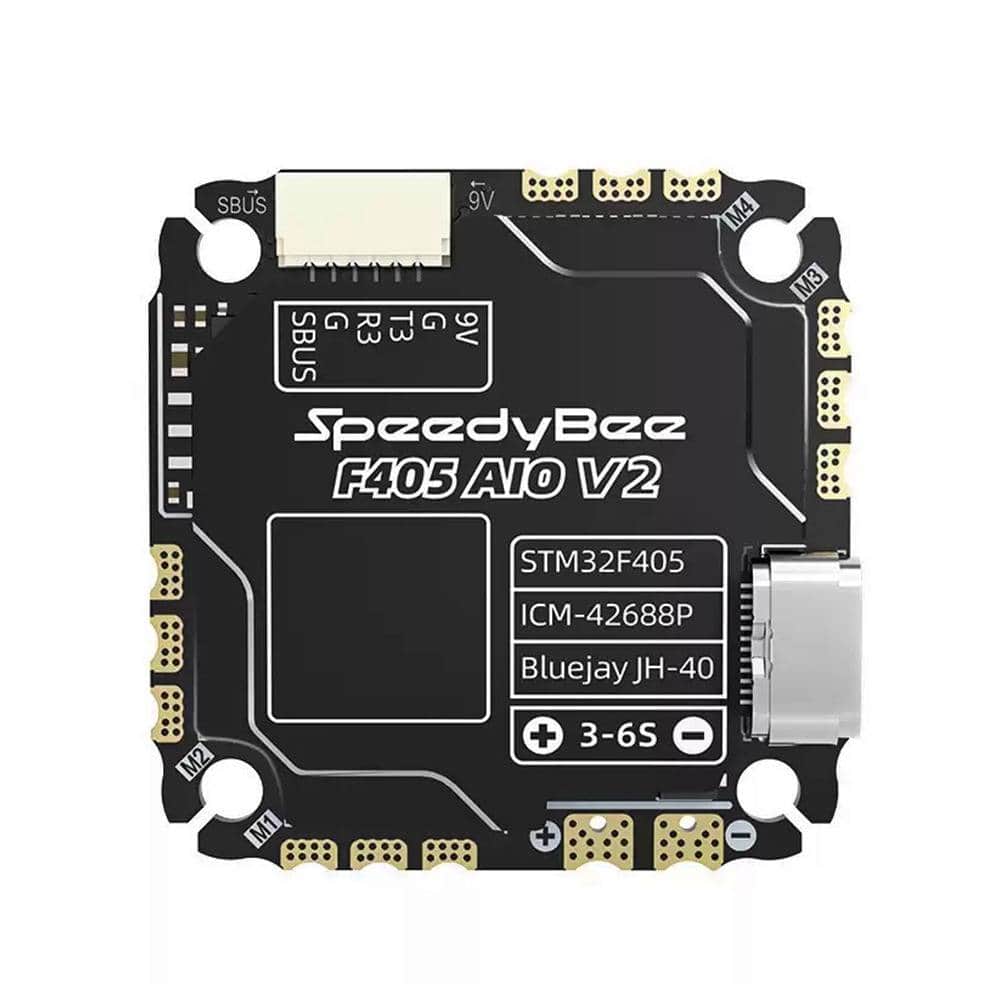

- Main Controller: STM32F405
- Gyroscope: ICM-42688P
- USB Port Type: Type-C
- Barometer: SPA06-003
- OSD: Supported
- Bluetooth BLE: Supported
- Wireless Firmware Update: Supported
- DJI Air Unit Connection: 6-pin socket direct plug & soldering pad
- Blackbox Storage: 8MB
- Input Voltage: 3S–6S LiPo battery
- 4V5 Output: 1A
- 5V BEC Output: 1.5A
- 9V BEC Output: 1.5A
- MOTOR: M1–M4
- UART Ports: 4 sets of full-function UARTs (UART3, UART4, UART5, UART6+SBUS[R2])
- Firmware: Betaflight
- Target Name: SPEEDYBEEF405AIOV2
- Mounting Pattern: 25.5 mm x 25.5mm, 2mm diameter
- Dimensions: 33mm x 33mm x 8mm
- Weight: 12.8g
ESC
- Input Voltage: 3-6S
- Rated Current: 40A continuous, 160A burst
- Peak Current: 45A continuous, 180A burst
- ESC Protocol: DSHOT600/300 only
- ESC Firmware - Factory: Bluejay JH-40 48KHz
- Output Voltage: VBAT battery voltage (for powering flight controller)
Links

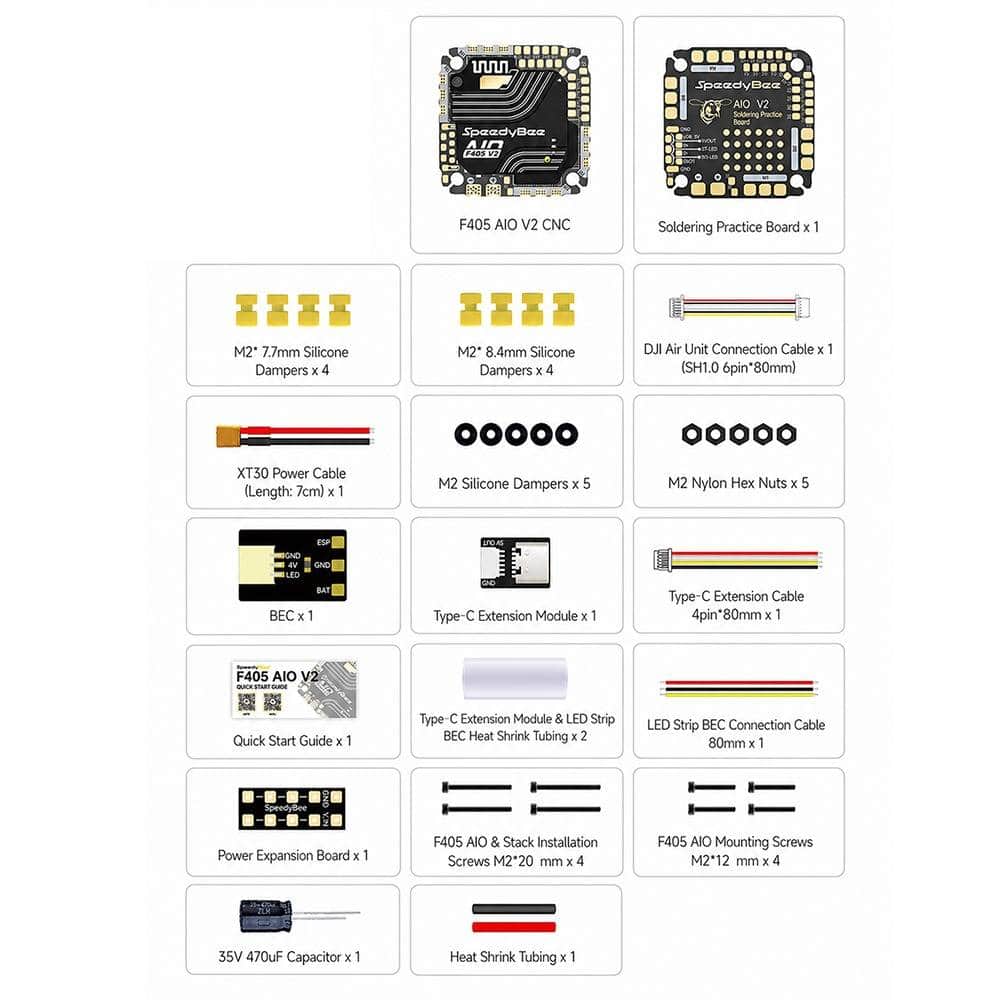

Includes
- 1x SpeedyBee F405 V2 AIO
- 4x M2 x 7.7mm Silicone Dampers
- 4x M2 x 8.4mm Silicone Dampers
- 1x DJI Air Unit Connection Cable - SH1.0 6Pin*80mm
- 1x XT30 Power Cable - 70mm
- 5x M2 Silicone Dampers
- 5x M2 Nylon Hex Nuts
- 1x BEC
- 1x Type-C Extension Cable - 4Pin*80mm
- 2x Heat Shrink Tubing
- 1x LED Strip BEC Connection Cable - 80mm
- 1x Power Expansion Board
- 4x M2 x 20mm Screws
- 4x M2 x 12mm Screws
- 1x 35V 470uF Capacitor
- 1x Soldering Practice Board
- 1x Quick Start Guide
More Info
- SKU: G24773CN1Z
- Barcode: 723326380754
