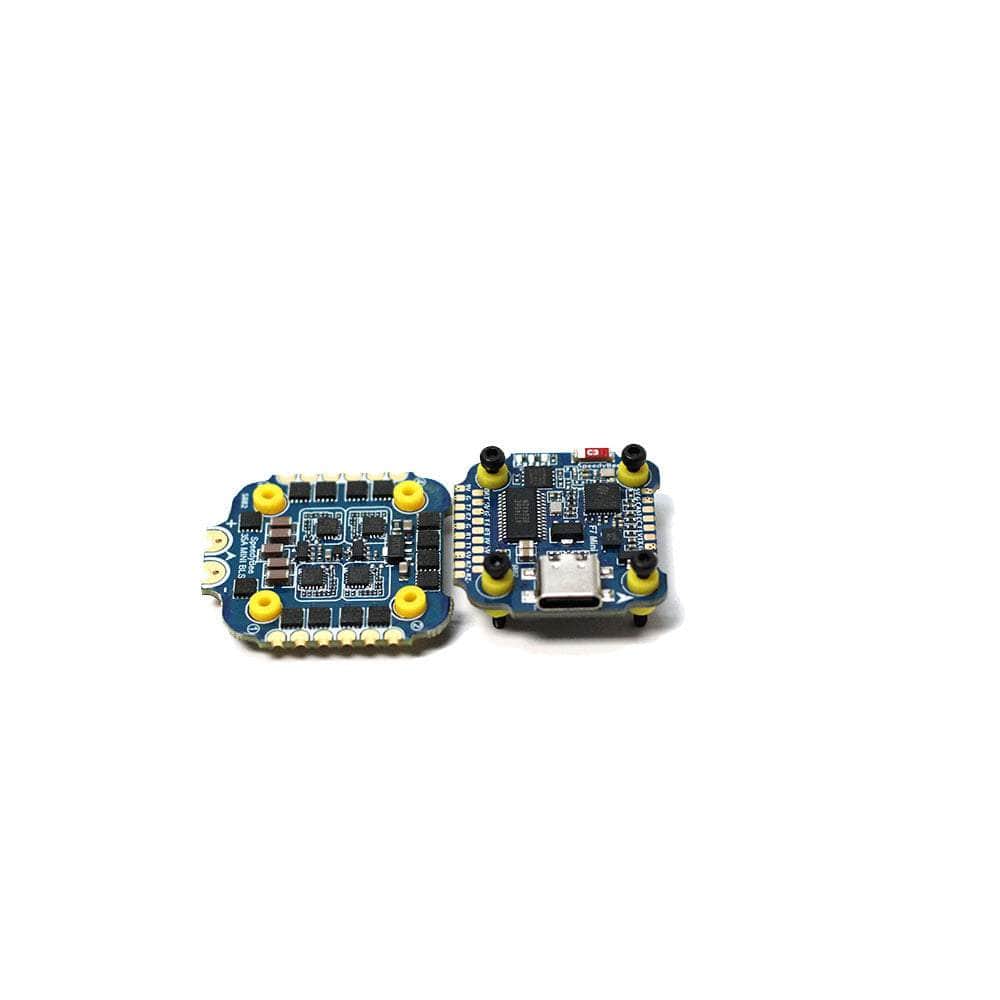

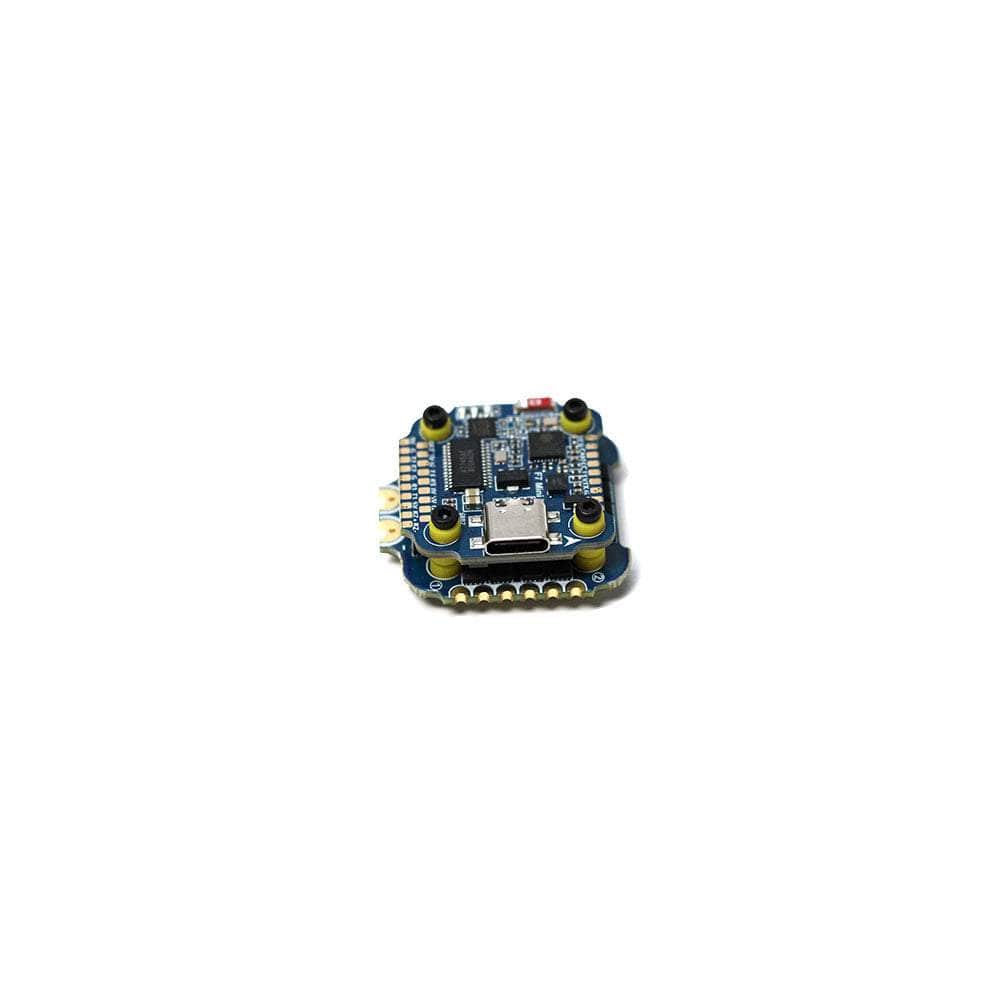

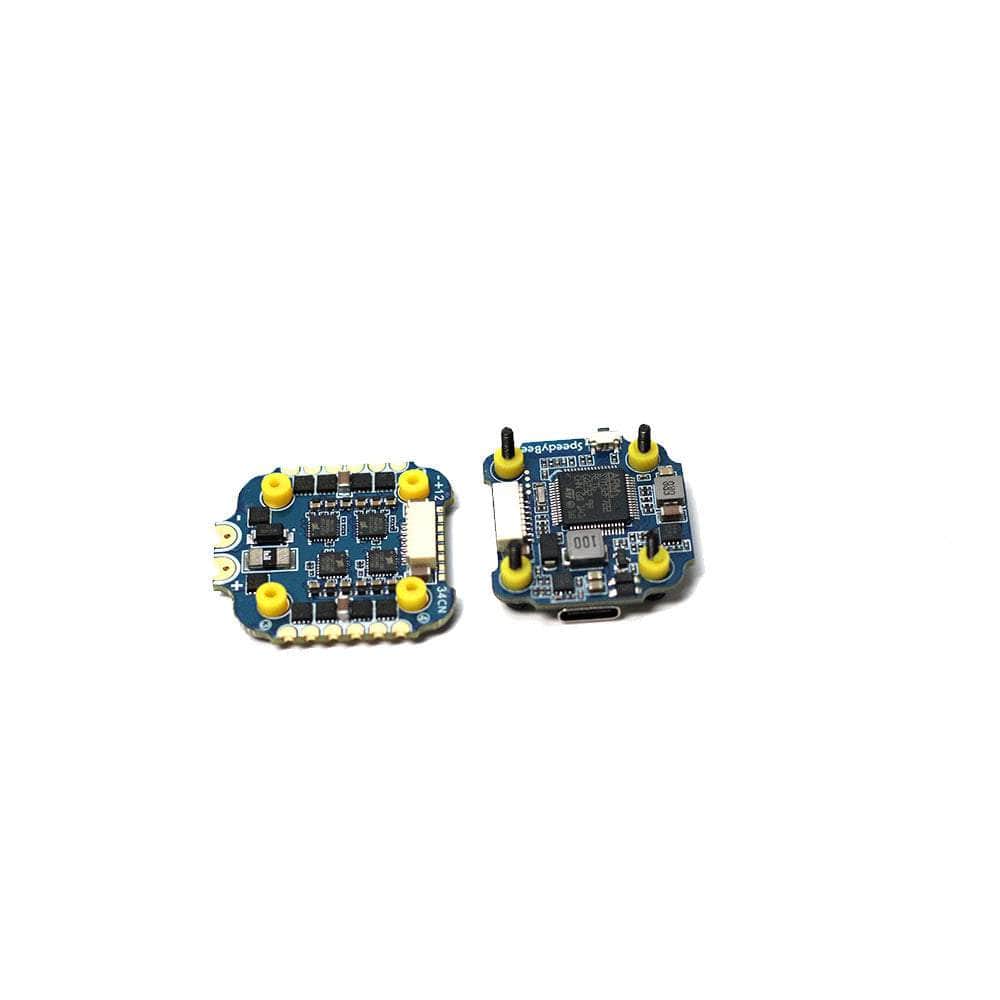

SpeedyBee F7 Mini 35A 3-6S 20x20 Stack/Combo (F7 FC / 35A 8bit 4in1 ESC)

SpeedyBee F7 Mini 35A 3-6S 20x20 Stack/Combo (F7 FC / 35A 8bit 4in1 ESC)

$95.99
$95.99
Add To Wishlist
View full details

Details

Description

The ultimate 20x20 stack for on the go tuning! With integrated bluetooth, this stack allows you to access Betaflight and even BLHeli through the Speedy Bee app.

Check our other Stacks and our SpeedyBee products!

Specifications

SpeedyBee F7 Mini

  • Input Voltage: 3-6S
  • MCU: STM32F722
  • Gyro: BMI270
  • Barometer: No
  • OSD Chip: AT7456E
  • Bluetooth: Yes
  • DJI Air Unit Soldering Pads: Supported
  • BlackBox: 8MB Flash
  • Current Sensor: Yes
  • BEC: Yes
  • ESC Signal Pads: 4
  • UARTs: 3(UART1, UART2, UART3)
  • ESC Telemetry: R4(UART4)
  • LED Pad: Used for WS2812 LED
  • Buzzer: Yes
  • Firmware: BetaFlight(Default), EMUFlight, INAV
  • Firmware Target: SPEEDYBEEF7MINI
  • Mounting Dimensions: 20 x 20mm, 3.5mm hole diameter
  • Weight 5.7g

SpeedyBee 35A BLHeli_S ESC

  • Power Input: 3-6S
  • Firmware: BLHeli_S JH40
  • Max Continuous Current: 35A
  • Max Burst Current: 45A
  • ESC Protocol: DSHOT300/600
  • Current Sensor: Yes
  • Mounting Dimensions: 20 x 20mm, 3.6mm hole diameter
  • Weight: 7g

Includes

  • 1x SpeedyBee F7 Mini 35A 3-6S 20x20 Stack/Combo

More Info

  • SKU: 17750
  • Barcode: 691023532153


Overall rating: 3.7368422 / 5 from 19 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["control","works","stack","esc","app"].

Review highlights

Reviews

Speedybee for the win!!!

"I’ve never had a speedybee fc or stack or any other product that I didn’t love. So it comes as no surprise that I absolutely love this stack. Easy installation and setup, and performers flawlessly. Speedybee in hands down best choice for a flight controller stack on the market today in my opinion. 100% recommend. Have this and the f405 version one 4 of my quads and they are the best of the bunch."

— shane h. (5/5)

Very nice stack, pads are

"Very nice stack, pads are large enough to solder to easily. I'm removing one star for lack of SDA/SCL pads. Also removing another star because the "motor direction" chooser in the SpeedyBee app does NOT work with this board. I had to use the Blheli configurator instead. Pros: built-in bluetooth high-quality board good placement of components and logical pad layout solder pads not too small has SD card slot has onboard black-box storage Cons: no SDA/SCL SpeedyBee app buggy with this board no iNav compatibility"

— Eric W. (3/5)

Buyer Beware

"Stay away! Worked on two of these and the ESC board is dodgy!!!"

— Charlie M. (1/5)

Terrible two esc died first flight.

"Terrible two esc died first flight. Do not purchase."

— Ricardo (1/5)

Speedybee

"Bester FC den es zur Zeit gibt."

— Thomas B. (5/5)

Amazing!

"Speedebee keps impresing me with the products they offer, this F7 mini is top of the line without the pricetag, is amazing."

— Andres A. (5/5)

"Great layout, all accessories you need are included."

— Dominic (5/5)

Awesome stack works on speedybee

"Awesome stack works on speedybee app as well👌🏼 and rdq has great service always shopping fast"

— Derek K. (5/5)

Great FC needs updated esc

"Great FC needs updated esc"

— Simon J. (4/5)

My go to stack for 3 inch builds

"Thia stack is perfect for smaller/tighter builds. I have it in both of my 3 inch kwads with zero issues. Very feature rich and love being able to configure through the Speedy Bee app. Flash it with Bluejay and you're good to go. Definitely recommend. If budget is tight, Speedy Bee just released their F405 Mini which is about $40 cheaper."

— DJ D. (5/5)
