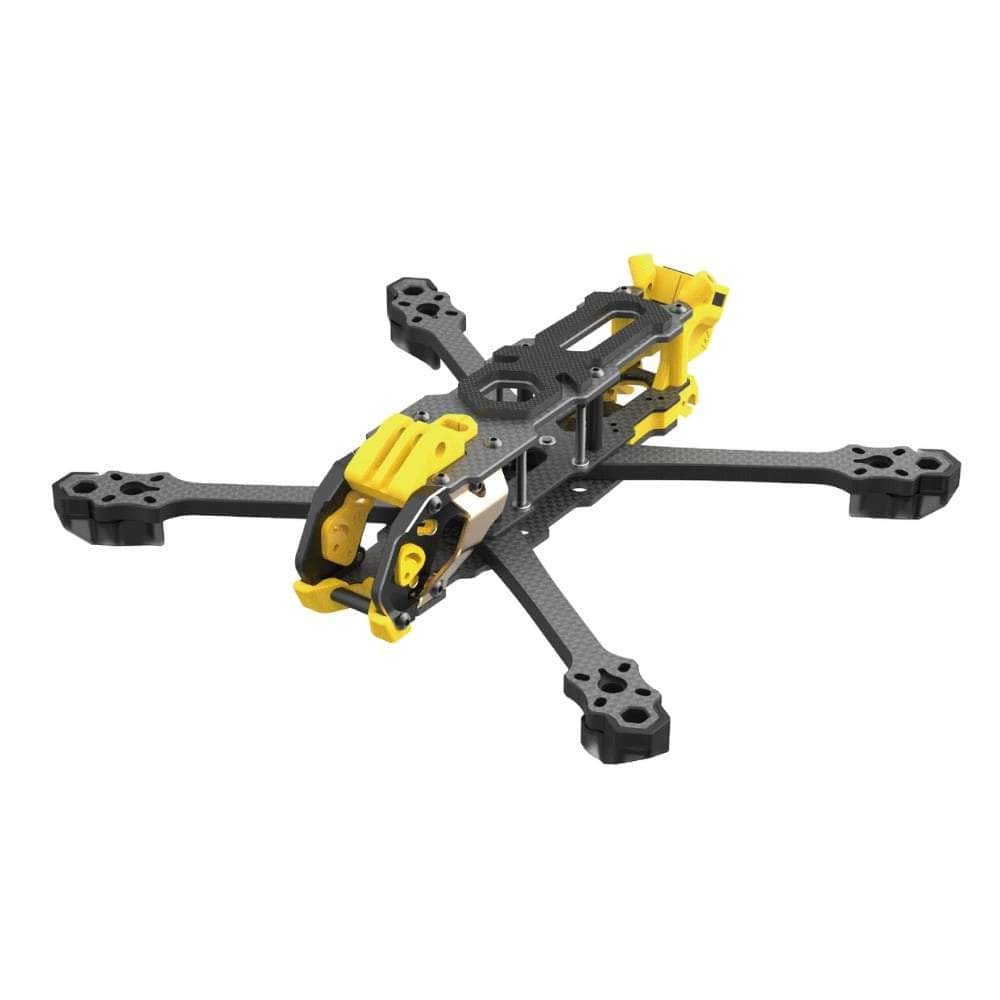

Experience agile freestyle and smooth cinematic flight with the SpeedyBee Mario 5 XH O4 Advanced Frame Kit. Built for DJI O4, this 5-inch XH frame offers strong carbon fiber construction, clean cable routing, and pro-level compatibility—perfect for pilots who push limits.

Check out all our DJI O4 Compatible Frames, Electronics & Accessories, our 5" Frames, and all our SpeedyBee products!

Features

• Supports DJI O4 System
• Pro-Level Compatibility
• Durable Carbon Fiber
• Smart Cable Routing
• XH Frame Structure
• 5-Inch Size

Specifications

• Motor Mount: Hole Position: Φ8mm, Mounting Distance: 16–19mm
• Standoff Material: 7075 Aluminum (D5×23mm / D46×22mm)
• Weight: XH: 126 ±5g (no 3D prints), 167 ±5g (with prints)
• Camera Size Supported: 19mm / 20mm
• Head Material: Aviation Aluminum Alloy
• Internal Mounting Height: 23–31mm
• Battery Pad: 3mm Silicone Anti-Slip
• GPS Mounting Size: 18 x 18 x 7mm
• Propeller Compatibility: Up to 5.1"
• Wheelbase: Mario 5 XH: 226mm
• FC Mounting: 30.5 x 30.5mm (M3)
• VTX Mounting: 20 x 20mm (M2)
• Receiver Bay: 25 x 13 x 6mm
• Capacitor Slot: Φ10 x 20mm
• Bottom Plate: 2.5mm (T300 3K)
• Middle Plate: 2.0mm (T300 3K)
• Top Plate: 2.5mm (T300 3K)
• 3D Printed Parts: Yellow TPU
• Camera Mount Screw: 7mm
• Arms: 6mm (T300 3K)

Includes

• 1x SpeedyBee Mario 5 Frame Kit - XH O4 Advanced
• 1x Hardware Set
