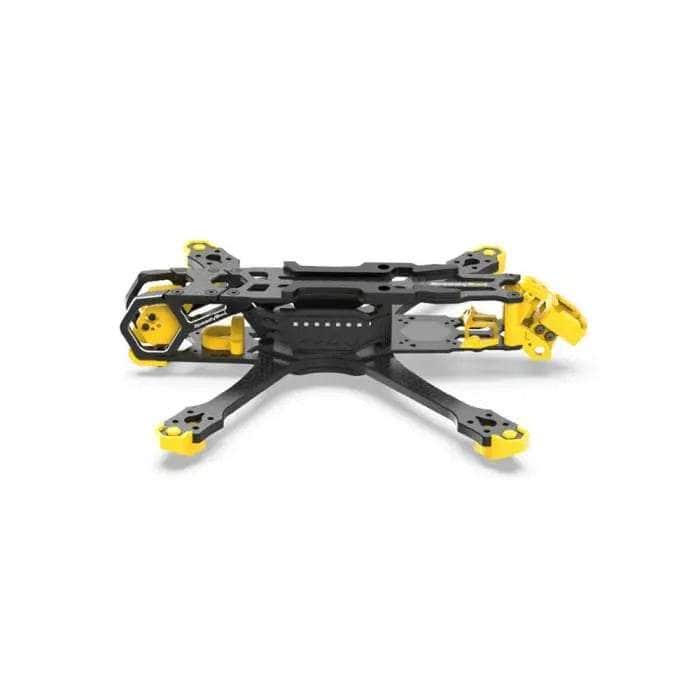

SpeedyBee Master 5 V2 Frame Kit

SpeedyBee Master 5 V2 Frame Kit

$87.99
$87.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

Introducing SpeedyBee's Master 5 V2 series, designed specifically for freestyle.

Designed to handle cinematic and freestyle flying, the SpeedyBee Master 5 V2 Frame Kit with Deadcat geometry, places the flight controller closer to the center of gravity than other DC frames. The innovative anti-vibration stack structure dampens the effect of motor noise on the gyro, offering a stabilized running environment. Quick-release design makes assembly and disassembly easy. The incorporated DJI O3 Air Unit configuration also supports ND filters and changeable side plate mounting. The TPU side plate inside the CNC part helps dampen the vibration on the camera, and pilots can modify it on their own to make it compatible with more mounting holes and get rid of vignetting for clear images.

Check out all our DJI O3 Compatible Frames, Electronics & Accessories, our 5" Frames, and all our SpeedyBee products!

Features

  • Detachable Switchable Camera Side Plates
  • Aluminum Alloy 7075-T Front Side Plates
  • Anti-Shock Fixed Stack Structure
  • Designed for the DJI O3 Air Unit
  • Rubber Carbon Plate Protection
  • Versatile GPS Mounting Design
  • Arm Guards/Landing Gear
  • DeadCat Geometry
  • No Props in View
  • 226 Wheelbase
  • VTX Heatsink
  • 130° H-FOV
SpeedyBee Master 5 V2 Frame Kit
SpeedyBee Master 5 V2 Frame Kit

Specifications

  • Standard antenna installation support: SMA (single), O3 4mm, RunCam Link
  • FC (Flight Controller) mounting hole: 30.5×30.5mm (M3) & 20×20mm (M3)
  • Anti-vibration stack structure hardness: Yellow HB80, Translucent HB50
  • Rear Support Mounting Holes: 2020mm - 25.525.5mm - 30.5*30.5mm
  • Aluminum standoffs: 7075 M323mm(6mm/4.7mm), M323mm(4.6mm)
  • Detachable stack protective plate with RGB LED: included
  • Weight: About 140g (including non-3D printed parts)
  • Bottom plate thickness: 2.5mm (T300 3K)
  • Camera side plate thickness: 2mm TUPC
  • Drone head: 7075 CNC aluminum alloy
  • Middle plate thickness: 2mm (T300 3K)
  • Top plate thickness: 2.5mm (T300 3K)
  • Internal installation height: 23-30mm
  • Standard GPS base size: 18188mm
  • Compatible propellers: 5-5.1 inch
  • Arm thickness: 5mm (T300 3K)
  • Motor circlip spacing: φ8mm
  • Wheelbase: 226mm
  • Buzzer: TMB12A05

Manual

Includes

  • 1x SpeedyBee Master 5 V2 Frame Kit

More Info

  • SKU: 20862
  • Barcode: 6936572271477


Overall rating: 4.8235292 / 5 from 17 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["quality","frame","build","looks","documentation","hold","kit","motors"].

Review highlights

Reviews

Awesome frame, I just wish you could get the yellow parts in another color.

"This is a very nice frame and it can take a beating."

— Peter H. (5/5)

Love the frame easy to

"Love the frame easy to put together"

— Jonathan C. (5/5)

Awesome Kit

"I can't believe how much fun this kit was to build and even more fun to fly. Will buy more of Speedybee products again soon!!!!"

— Randy Q. (5/5)

First build made easy.

"This frame kit is 100% beginner friendly. Every bag of screws is labeled and there is a manual that is pretty simple to follow along with. Crashed a few times and still seems to be holding up."

— Sean M. (5/5)

Awesome Frame. Maybe the Best!

"This is an amazing frame. I can't say enough about it. They went the extra distance to provide everything needed to make a complete build. I'm very impressed. You will be able to mount a 6s battery and maintain a good center of gravity. The water resistant esc cover and the LED side covers protect the electronics from the mishaps of landing in wet ground or grass. Such a clean build. Don't think twice about getting this."

— Ralph L. (5/5)

Great frame!

"Packaging was nice and fitment was excellent. The heatsink is a great addition and allows my O3 to idle waiting for a gps lock without overheating. The frame feels balanced during flight and turned out to be one of my fastest quads I’ve built to date."

— David B. (5/5)

It's a good frame, however

"It's a good frame, however the long lense on the Walksnail Avatar Pro camera sticks out just barely past the metal guards. If you crash squarely in the front you'll damage that camera. I got around that by making a couple of new holes further back on the mount. The mount is made in such a way that you can do this. It's even advertised as a feature. Another issue with the TPU camera mount and the Avatar Pro camera is that this camera doesn't like being soft mounted. I get jello in the picture. I'm currently holding the camera in a more solid manner with a few zip ties. Files for 3D printing the mount parts are available on the Speedybee website, so I'll likely end up printing these with a harder material and modifying it so that the holes are further back. Then it should work well with this camera."

— Aaron F. (5/5)

Quality Build

"In my v1 review, I bashed the improper O3 air unit mounting, but it looks like SpeedyBee listens to feedback because it's fixed in this version, so I should give credit. This is probably one of the higher quality, cleanest general-purpose builds I have. Good attention to detail and quality machining on the carbon fiber with well-chamfered edges and countersinking that many designers cheap out on and hope people won't notice. A bit heavy so you'll want some beefier motors but it's very stable in the air."

— Daniel (5/5)

Very Sturdy!

"I’ve already had a few tumbles but this frame has held up!! Very good frame for the money."

— Ben B. (5/5)

High quality tpu

"I think it's a good value seems to be a good frame and you get all the 3d parts needed and they're good quality that's worth it to me."

— Steve H. (5/5)
