SpeedyBee Master 5 HD 5" Freestyle Frame Kit

SpeedyBee Master 5 HD 5" Freestyle Frame Kit

$83.99
$83.99
Add To Wishlist
View full details

Details

Description

Introducing SpeedyBee's Master 5 series, designed specifically for freestyle.

The innovative anti-shock fixed stack structure mitigates the effect of the motor for Gyro of FC, further stabilizing the running environment. And the arm's quick-release structure brings convenience for installation, with the number of screws averaging 1.5 per arm. Honeycomb-shaped aluminum alloy CNC drone head ensures a better look and strength. Designed with H-FOV 130 section, it provides a larger field of view. Furthermore, the detachable camera fixing plate is open for modification, supporting more mounting holes for the camera and helping get rid of vignetting. Honeycomb-shaped aluminum alloy cooling module (optional) is also designed for mounting under the VTX, improving the operation stability of DJI FPV and high-power analog VTX.

Available in 2 versions.  The regular Master 5 frame has a 222mm wheelbase and is compatible with analog, DJI O3 Air Unit, and the Vista/Link Air Unit.  The Master 5 HD Frame has a wider 225mm wheelbase and is compatible with analog, DJI O3 Air Unit, Vista/Link Air Unit, and the original DJI Air Unit.

This is the regular Master 5 frame which is suitable for both analog and digital VTXs but props may be visible in certain configurations with this version

Check out all our DJI O3 Compatible Frames, Electronics & Accessories, our 5" Frames, and all our SpeedyBee products!




Features

  • Compact Model Design with Low Center of Gravity

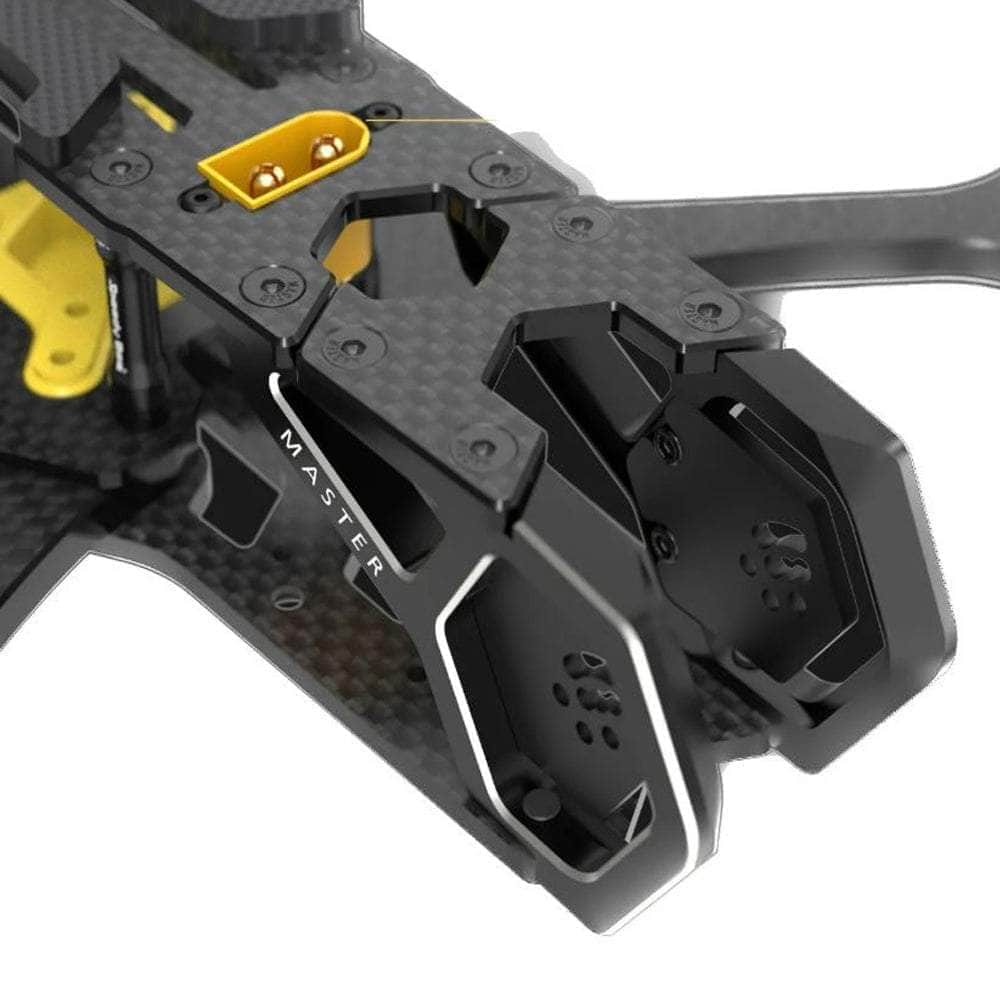

  • Honeycomb-shaped CNC Aluminum alloy Camera plates
  • FOV130°
  • Innovative Independent Anti-Shock Stack Fixed Structure for stabilization
  • High-power VTX cooling Module
  • Front XT60 Plug
  • Arm Quick-Release

Specifications

  • Model: Speedy Bee Master 5 Frame
  • Weight: 130g
  • Top & Bottom Plate thickness: 2mm
  • Arm thickness: 5mm
  • Camera width: supports 19-20mm width
  • 3D printed TPU Parts: Yellow
  • Suitable prop size: 5", 5.1"
  • FC mounting holes: 30.5 x 30.5mm and 20x20mm (M3)
  • VTX mounting holes: 20x20mm (M2)

Manual

SpeedyBee Master 5 HD Installation Guidelines

More Info

  • SKU: 20315
  • Barcode: 6936572271521


Overall rating: 4.25 / 5 from 16 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["frame","screws"].

Review highlights

Reviews

My favorite frame

"I have these frames built in multiple configs. Super clean."

— shawn t. (5/5)

Hopefully you get a good one.

"The frame is really nice overall However I did have an issue with the DJI air unit heat sink not sitting in the pocket of the frame because when they machined the pocket the width and depth were both shallow. The heat sink sits higher than expected causing the screws to be too short to hold the air unit in place above the heat sink. So I took it to a machine shop and made the modifications myself. Normally I would have returned the frame but I was able to make it work. Now I just need longer screws because they are only holding by 1.5 turns."

— Robert S. (1/5)

"Super fast shipping. Item as described at an amazing price. Thank you!!!"

— Roberto (5/5)

Easy to put together and

"Easy to put together and is a really neat frame"

— Keylin M. (5/5)

Very good frame

"Great frame - very well packaged, labeled - full color instructions, 12.9 hardware, chamfered edges... The silicone stack mount works - perfect blackbox. The vtx heatsink also works. Great value, as well."

— Mike L. (5/5)

Best frame ever

"This selection or style of frame is perfect for freestyle I've had this and the speedybee original and very sturdy easy assembly instructions and perfect for any type of flying but is by far my go to frame for freestyle speedybee HD master best frame ever."

— Laura S. (5/5)

Great drone kit. Instructions were

"Great drone kit. Instructions were easy to follow. Minor issue was the set up of 03 air unit. The holes were too far to secure camera lens, had to drill new ones."

— Stefan H. (5/5)

I chose this frame because

"I chose this frame because I like inovation but some design issues with the SB Master HD that have been identified by other pros this has pursuaded me to use another platform."

— Gage C. (2/5)

Solid, Sexy Frame

"My only disappointment is that the frame didn't come with yellow TPU prints, like the analog version of this frame. It'd be great if TPU color options were included. But I live this frame!"

— Spenser F. (4/5)

Great frame for DJI 03!

"Love the frame, just purchased this one as back up parts"

— Avery M. (5/5)
