"Bought 2 of these because the first one only half the lights worked and then the second one was the same way. Was installed and programmed correctly so not real sure what's going on with these RGB light. I nvr had any luck with them."
Details
Description

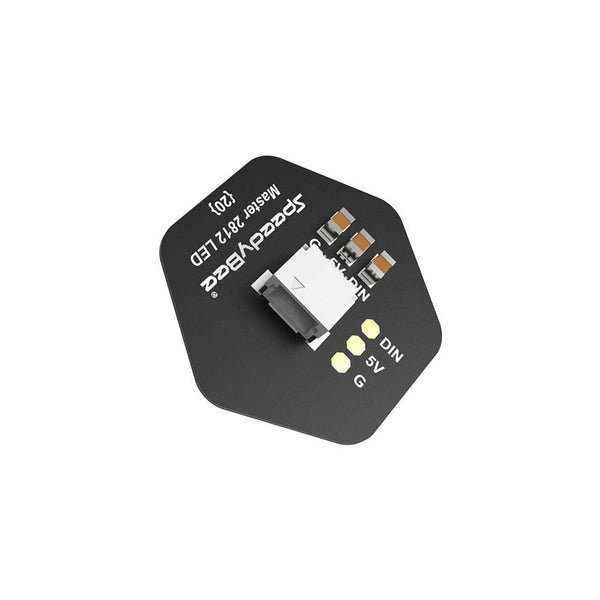

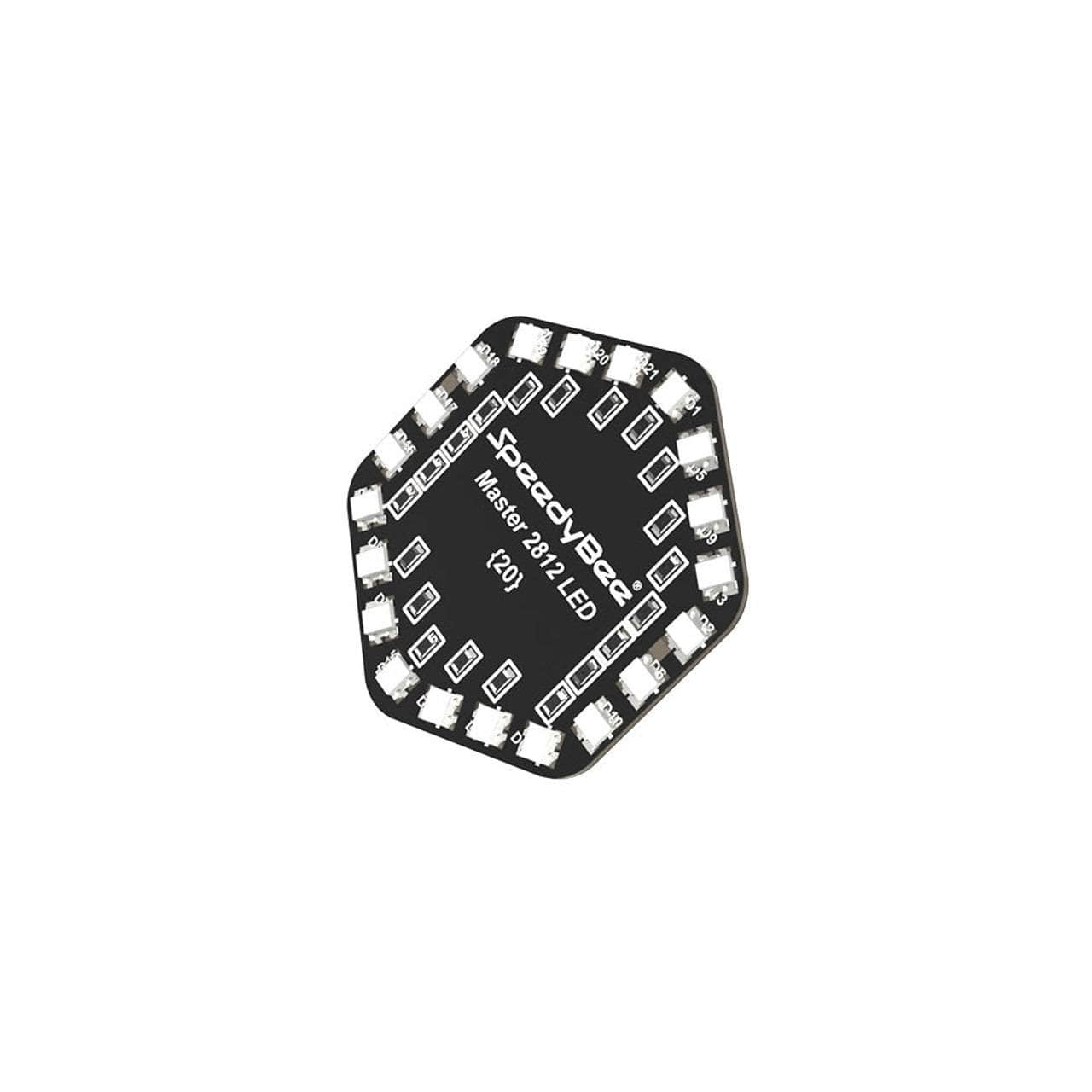

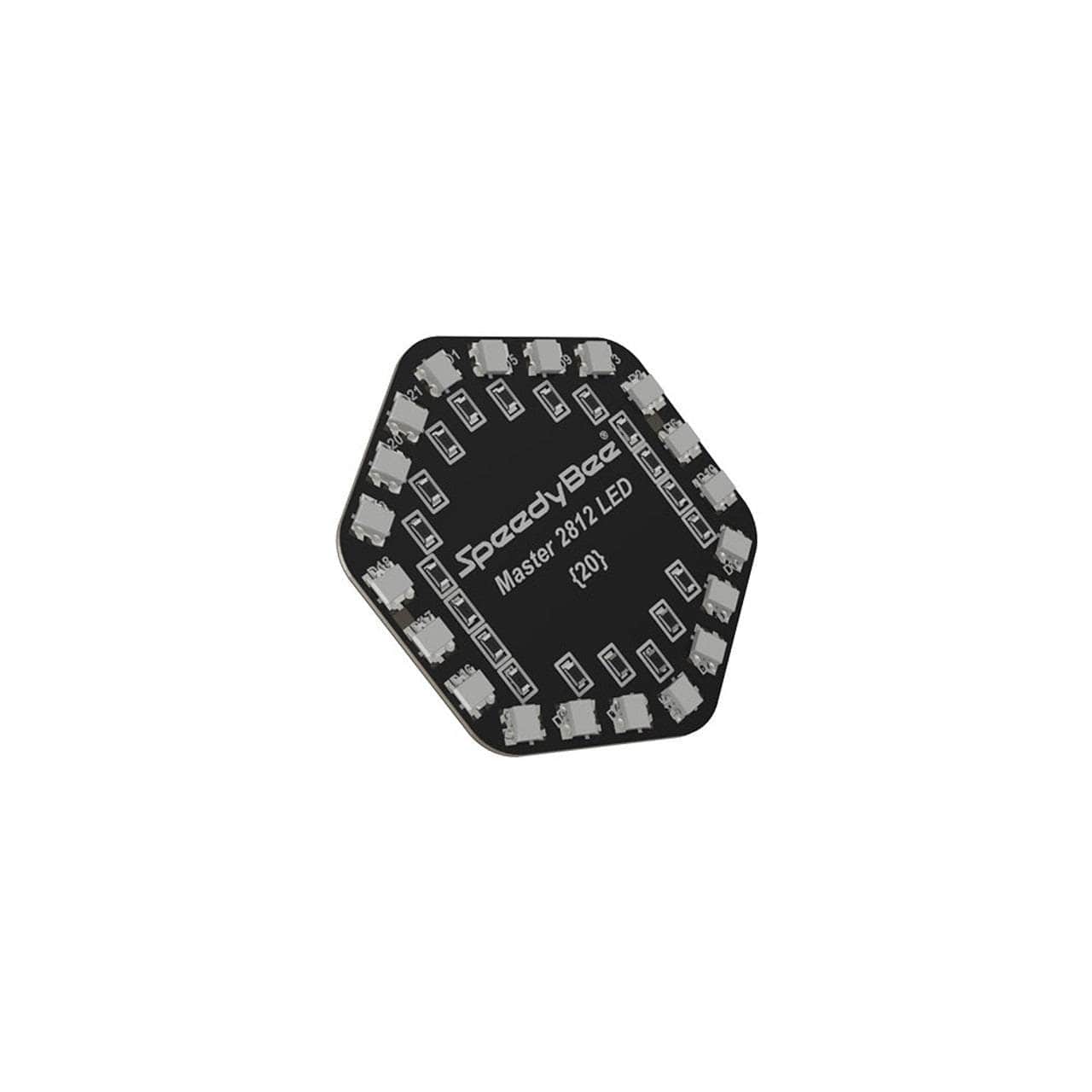

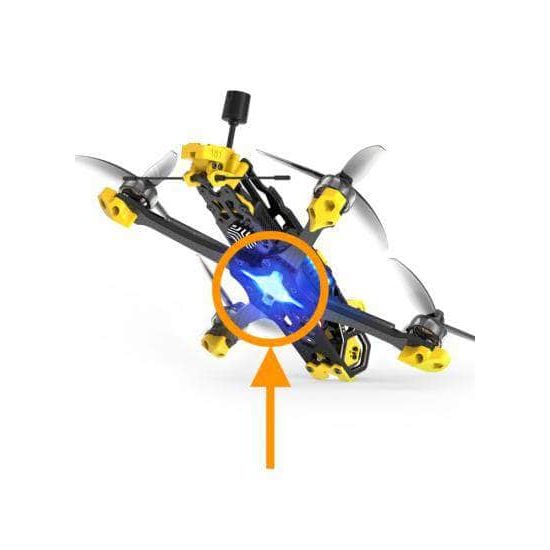

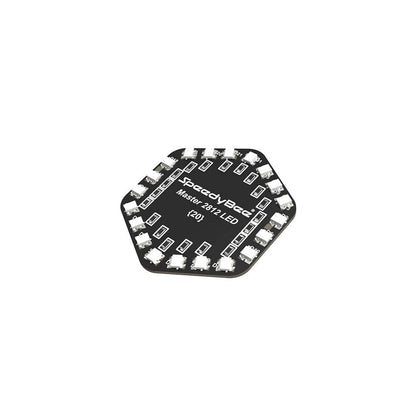

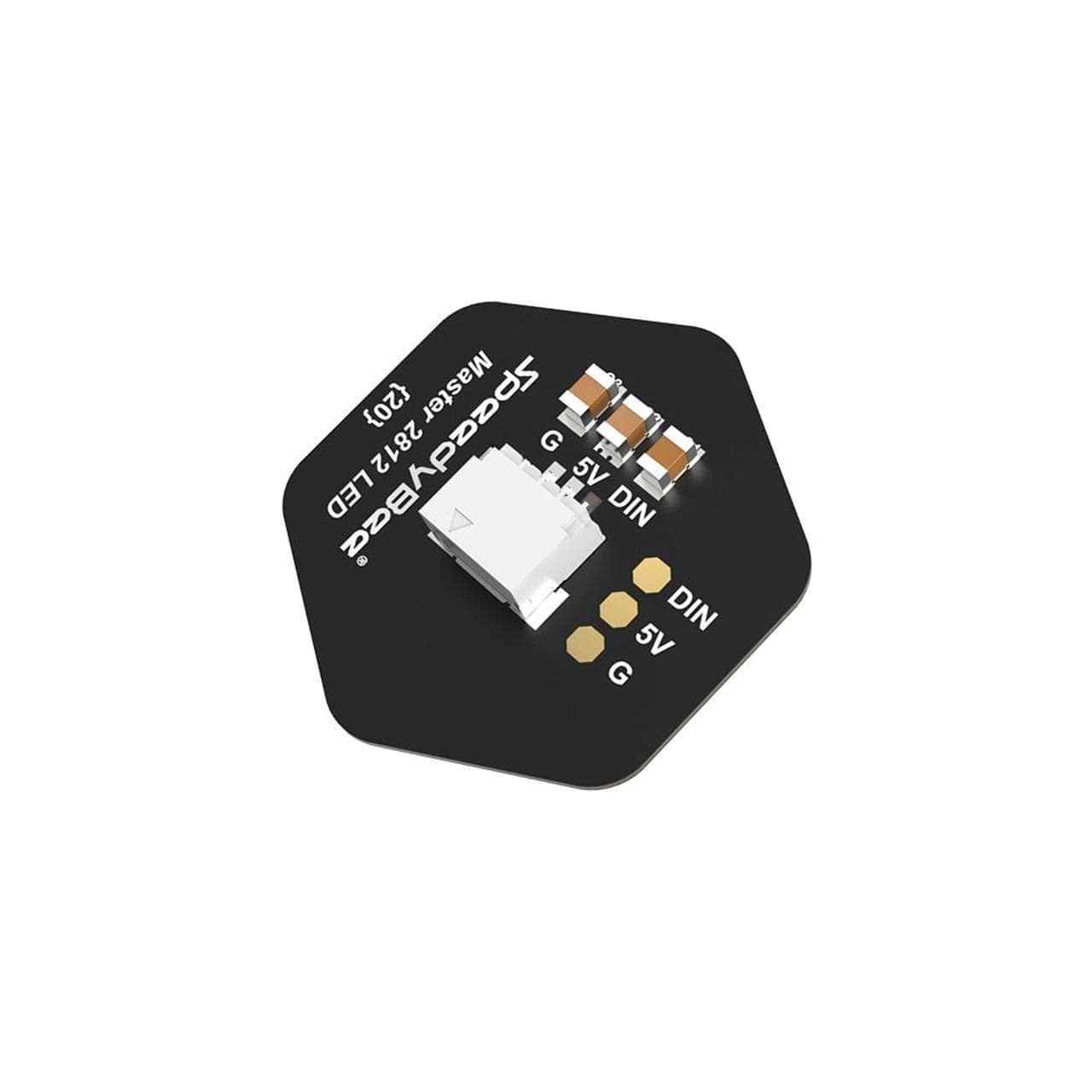

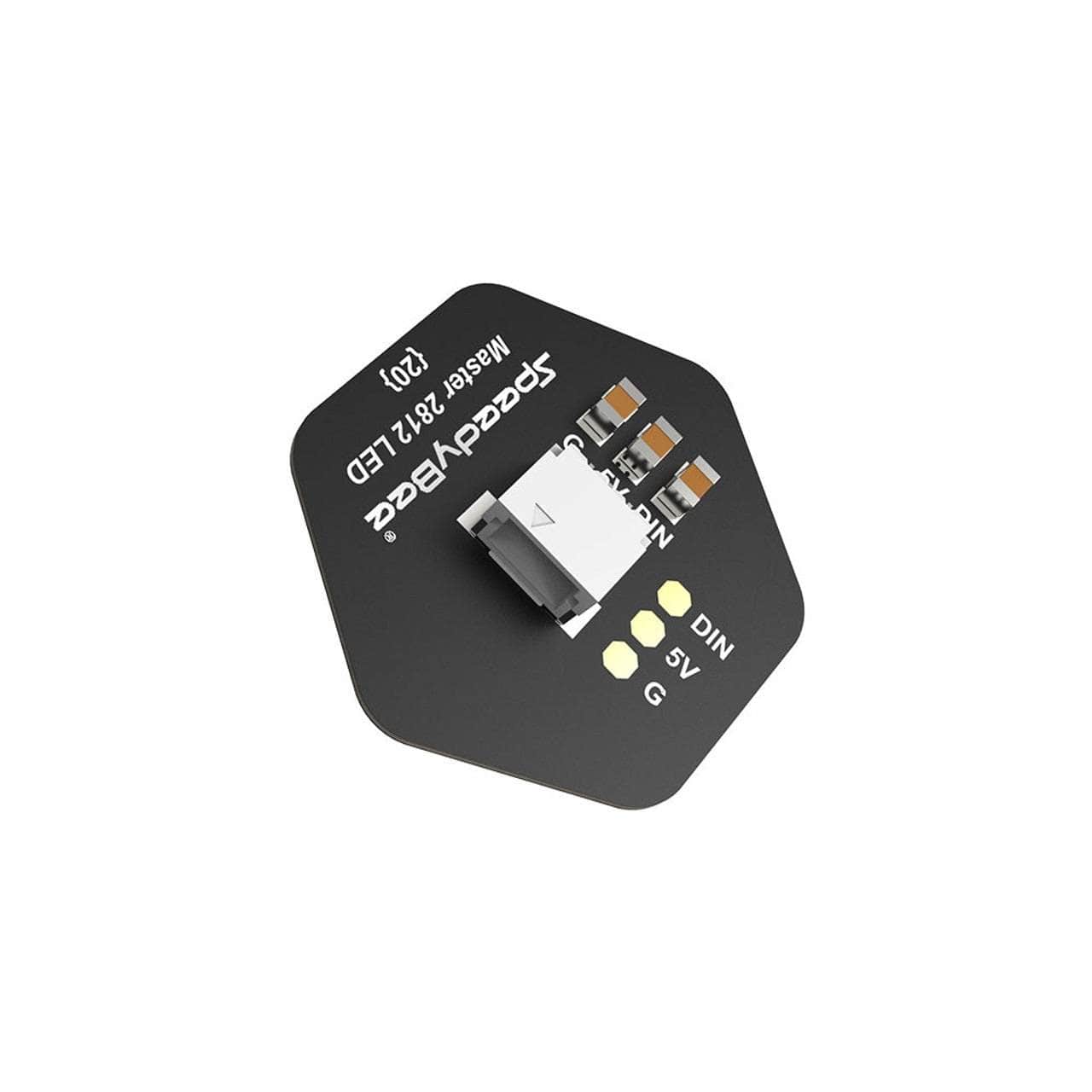

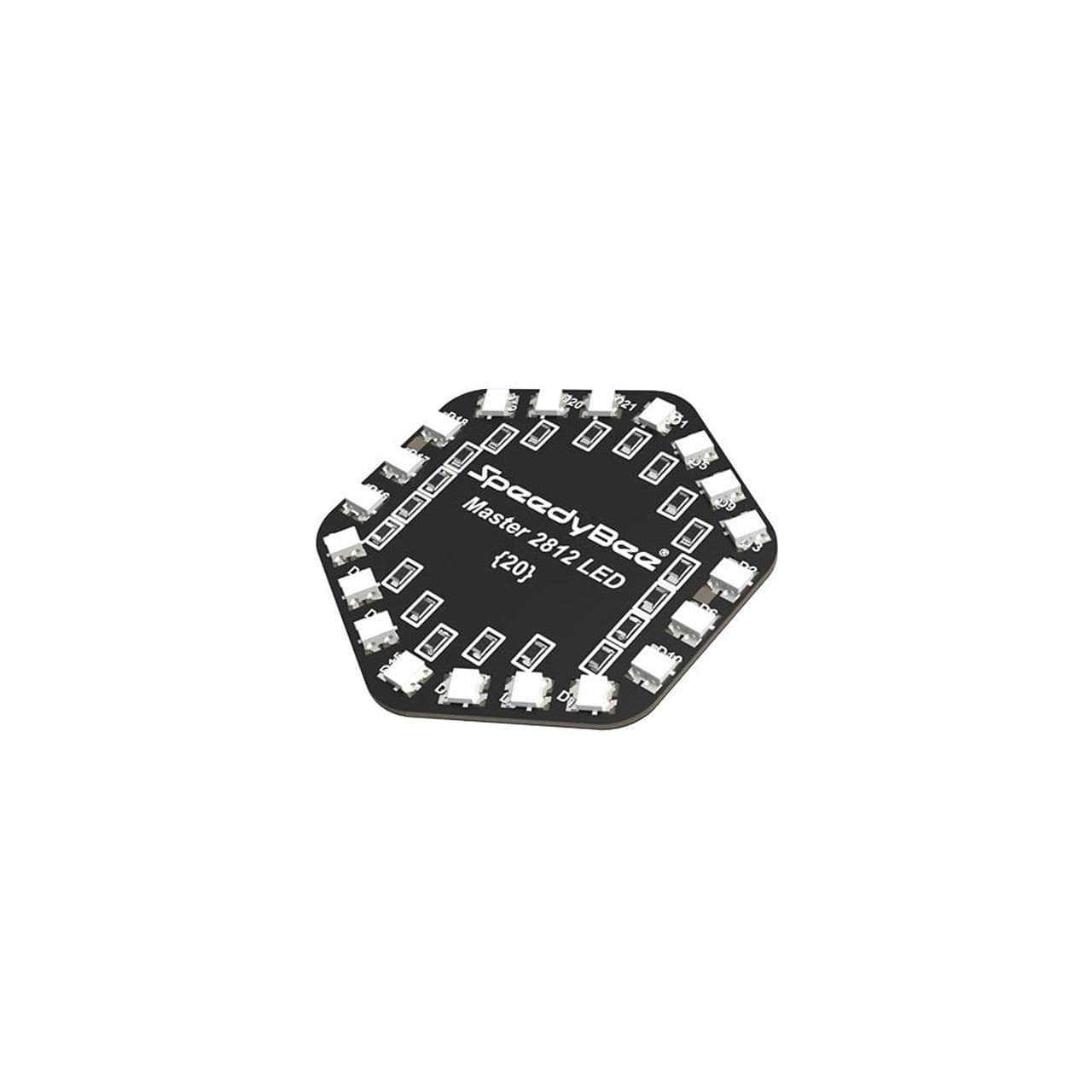

This part is perfect for your SpeedyBee Master 5 v1 & v2 Frame. This hexagonal board contains 20x 2812 LEDs that offer customizable, programmable lighting. It's easy to use - simply plug it into the SpeedyBee F7 V3 FC using the provided cable, or solder it in place. While it's designed for use with the Master 5 frame and SpeedyBee F7 V3 FC, feel free to use it on any other drone build!
Check out all our LEDs, and our SpeedyBee products!
Specification
- Logic power voltage(VDD): 3.0~7.5V
- R/G/B outport withstand voltage(Vds): 9V
- Logic input voltage(VI1): 0.5~5.5V
- R/G/B output voltage(Iout): 12mA
- Working temperature(Topr): -40~+85℃
- Storage temperature(Tstg): -50~+150℃
- ESD withstand voltage(Vesd): 5V
- Demension (LxWxH): 19x21x4.7mm
- Weight: 1g
Includes
- 1x SpeedyBee Programmable RGB 2812 Cellular LED for the Master 5 V1 & V2
More Info
- SKU: SPEE-SB-M5-LEDB
- Barcode: 691023532699
