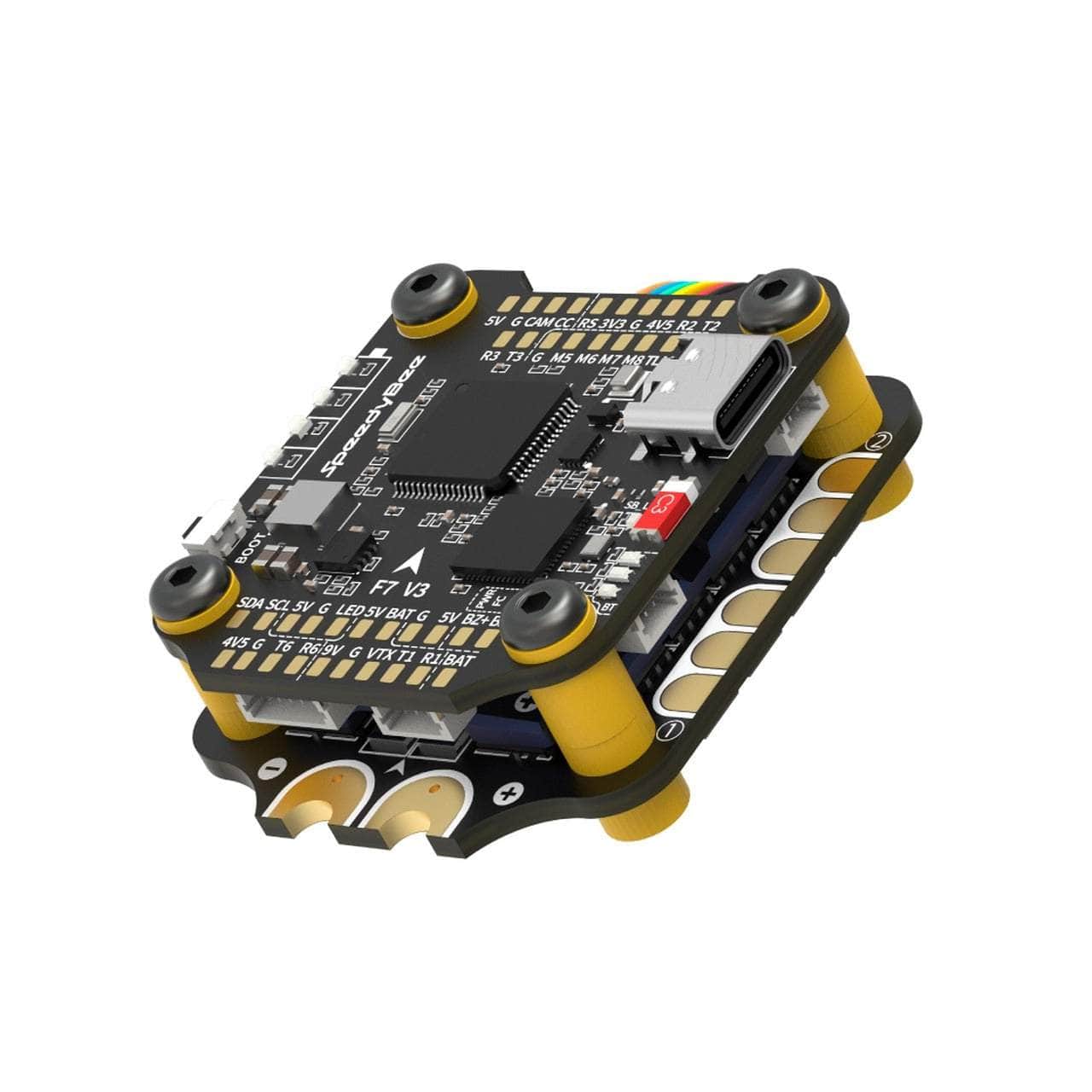

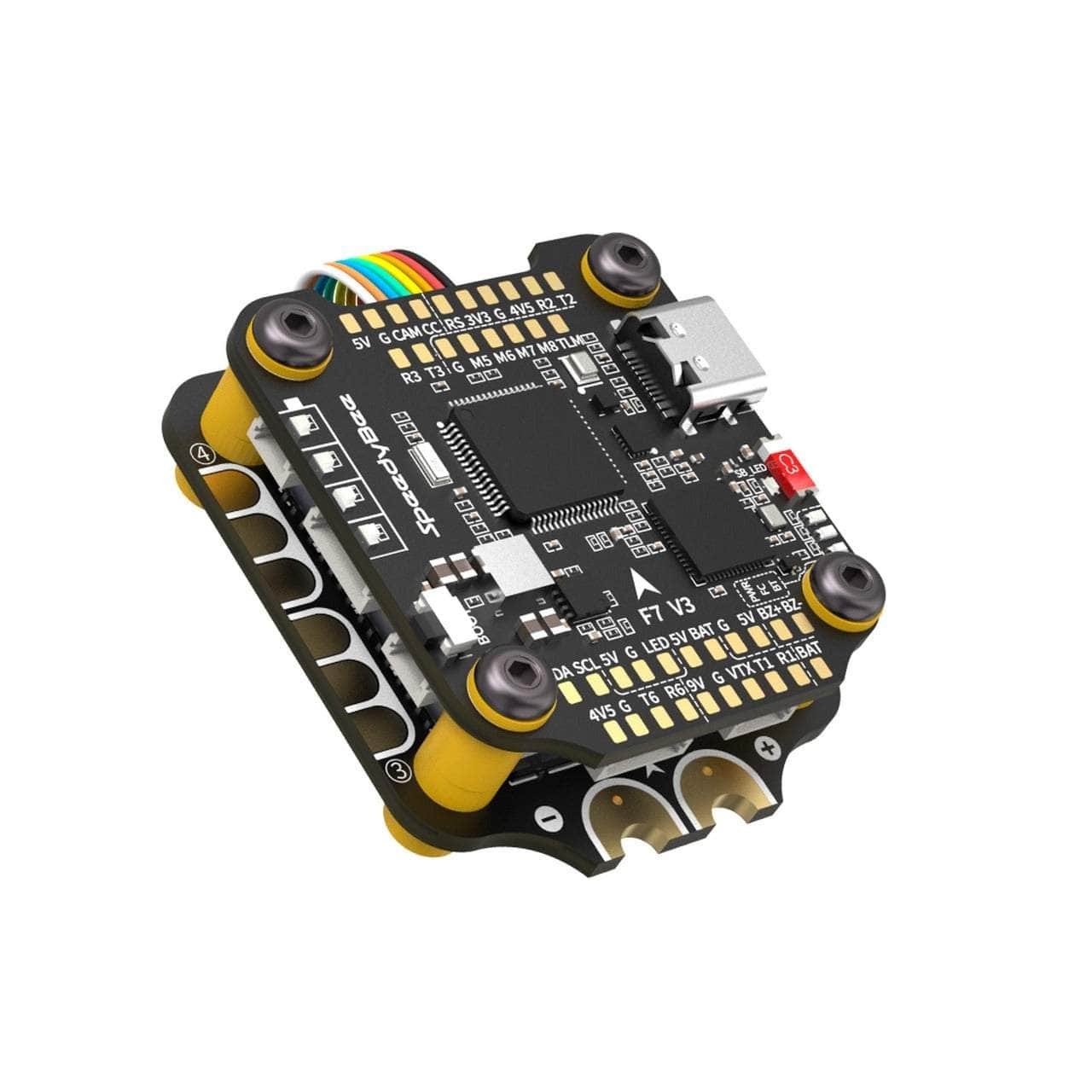

SpeedyBee V3 F722 3-6S 30x30 Stack/Combo (F722 FC / 50A 32bit 4in1 ESC)
The SpeedyBee V3 F722 3-6S 30x30 Stack/Combo (F722 FC / 50A 32bit 4in1 ESC) is a marvel to behold. The latest iteration of the SpeedyBee Stack, the V3 is packed with powerful new upgrades. Faster Wi-Fi upgrades, black box retrieval within a minute, supports up to 8 motors, and features soldering pads on one end, and pin connectors on the other in case soldering isn't your thing. The 50A 4in1 ESC is fitted with a high-quality CNC heat sink shield to significantly reduce the heat from your MOSFETs ensuring stable current flow at a high-throttle position. This ESC should have no issues with overheating. A great benefit in a stylish blue finish.
Check out all our 30x30 ESCs and all our Speedy Bee products!

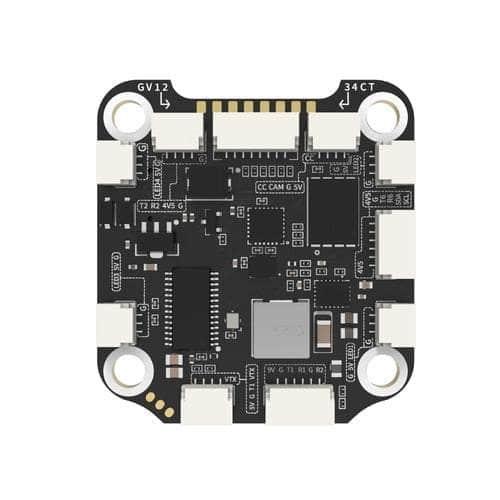

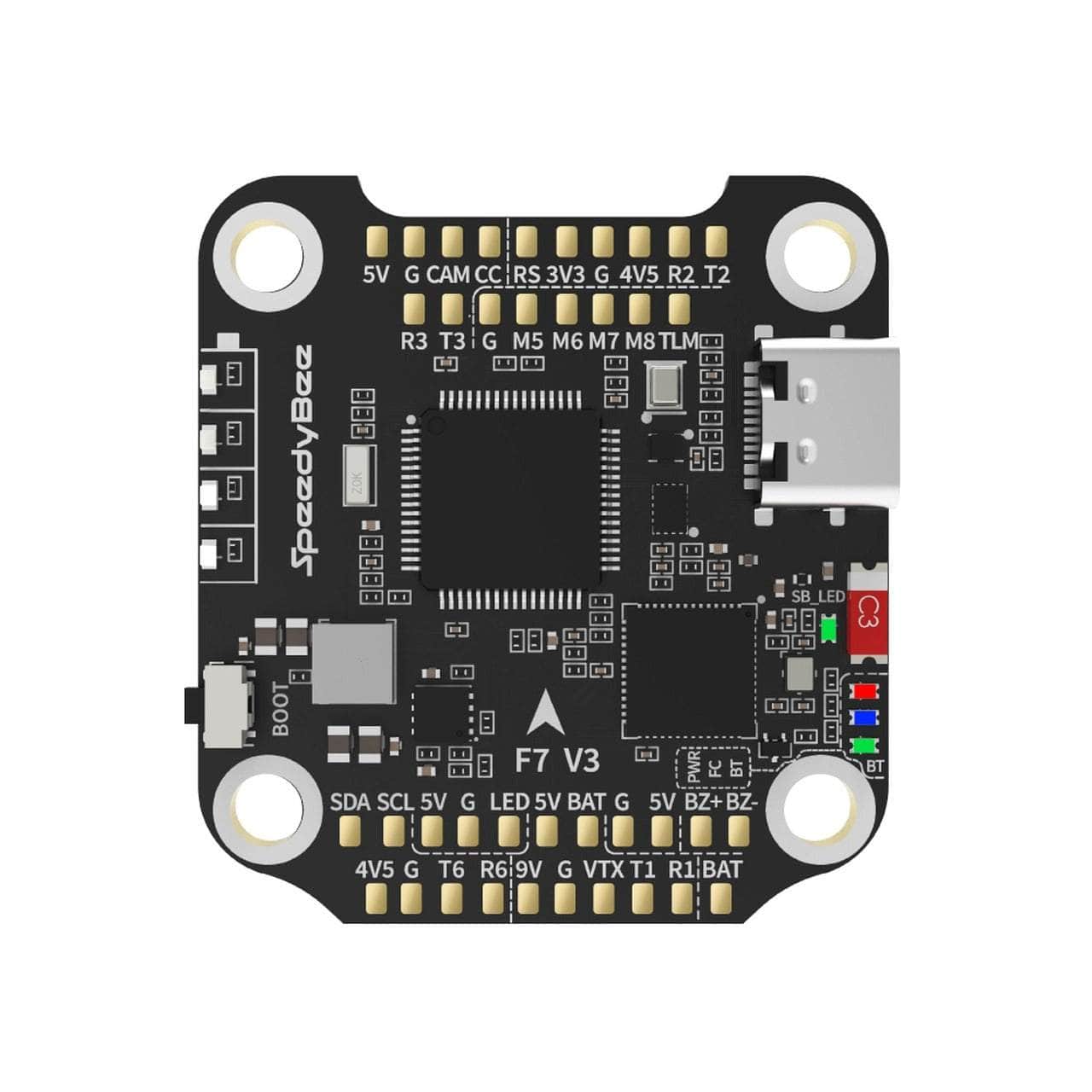

F722 2-6S Flight Controller
- MCU: STM32F722
- IMU: BMI270
- USB: Type-C
- Baro: BMP280 (I2C)
- OSD: BetaFlight OSD w/ AT7456E chip
- BLE Support, used for Flight Controller configuration
- WiFi Support, used for data transfer, e.g firmware flashing, and Blackbox analysis.
- DJI Air Unit plug: A full DJI Air Unit JST slot onboard
- BlackBox: 500MB onboard data flash
- BetaFlight Camera Control Pad: Yes
- Power input: 3S - 6S Lipo
- 10 groups of 5V output, three +5V pads and 1 BZ+ pad (used for Buzzer) on front side, and 6 +5V output included in the connectors on bottom side. The total current load is 2A.
- 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 4A.
- Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
- Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
- ESC signal M1 - M4 on bottom side and M5-M8 on front side.
- UART: 5 sets (UART1, UART2, UART3, UART4, UART6)
- ESC Telemetry: UART UART4 RX
- I2C: Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
- LED: Used for WS2812 LED controlled by Betaflight firmware.
- Buzzer: BZ+ and BZ- pad used for 5V Buzzer
- Boot button: Yes
- RSSI input: Yes
- SmartPort: Supported
- Support Flight Controller Firmware: BetaFlight(Default), EMUFlight, INAV
- Target: SPEEDYBEEF7V3
- Mounting: 30.5x30.5mm, 4mm hole size
- Dimension 41(L) x 38(W) x 8.1(H)mm
- Weight 9g

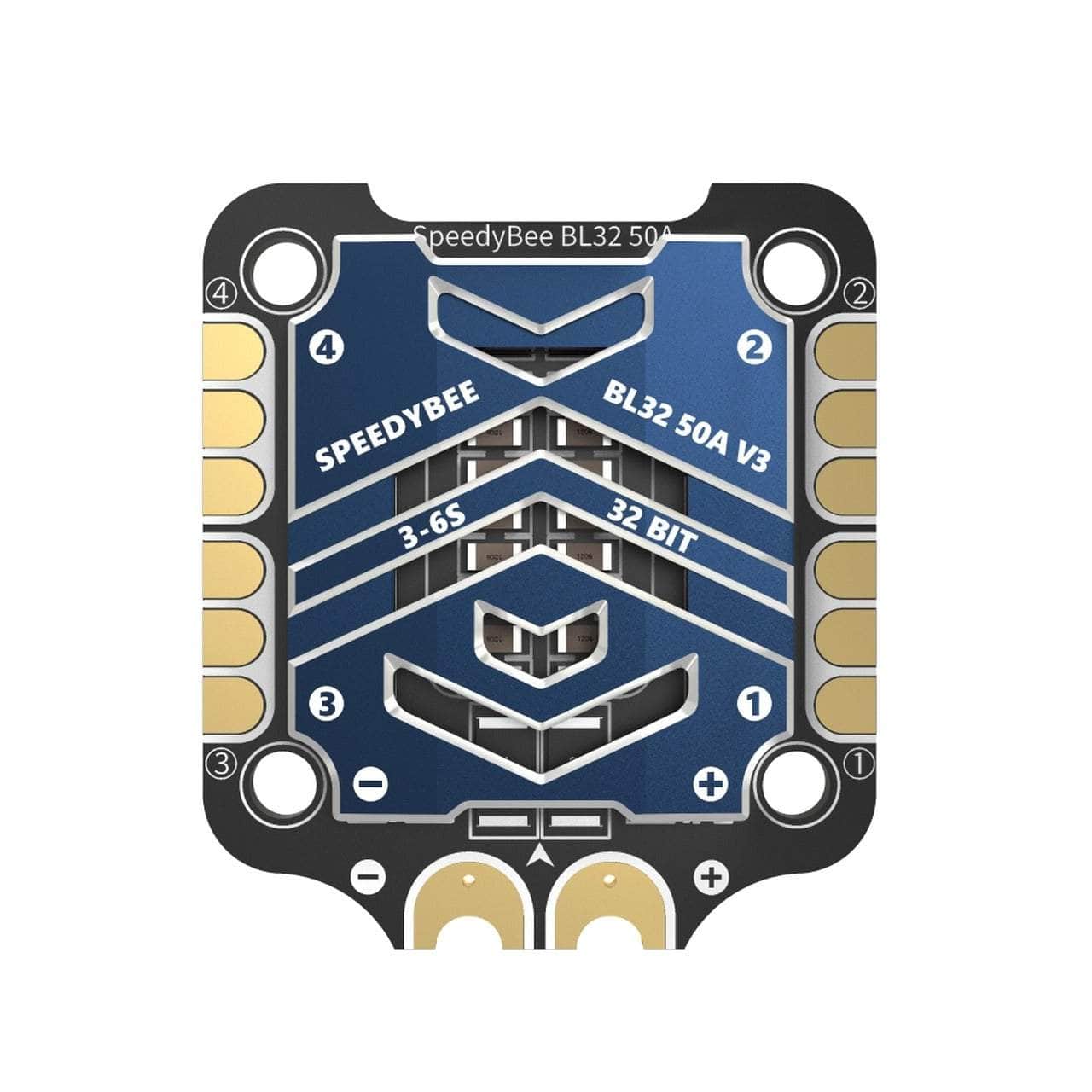

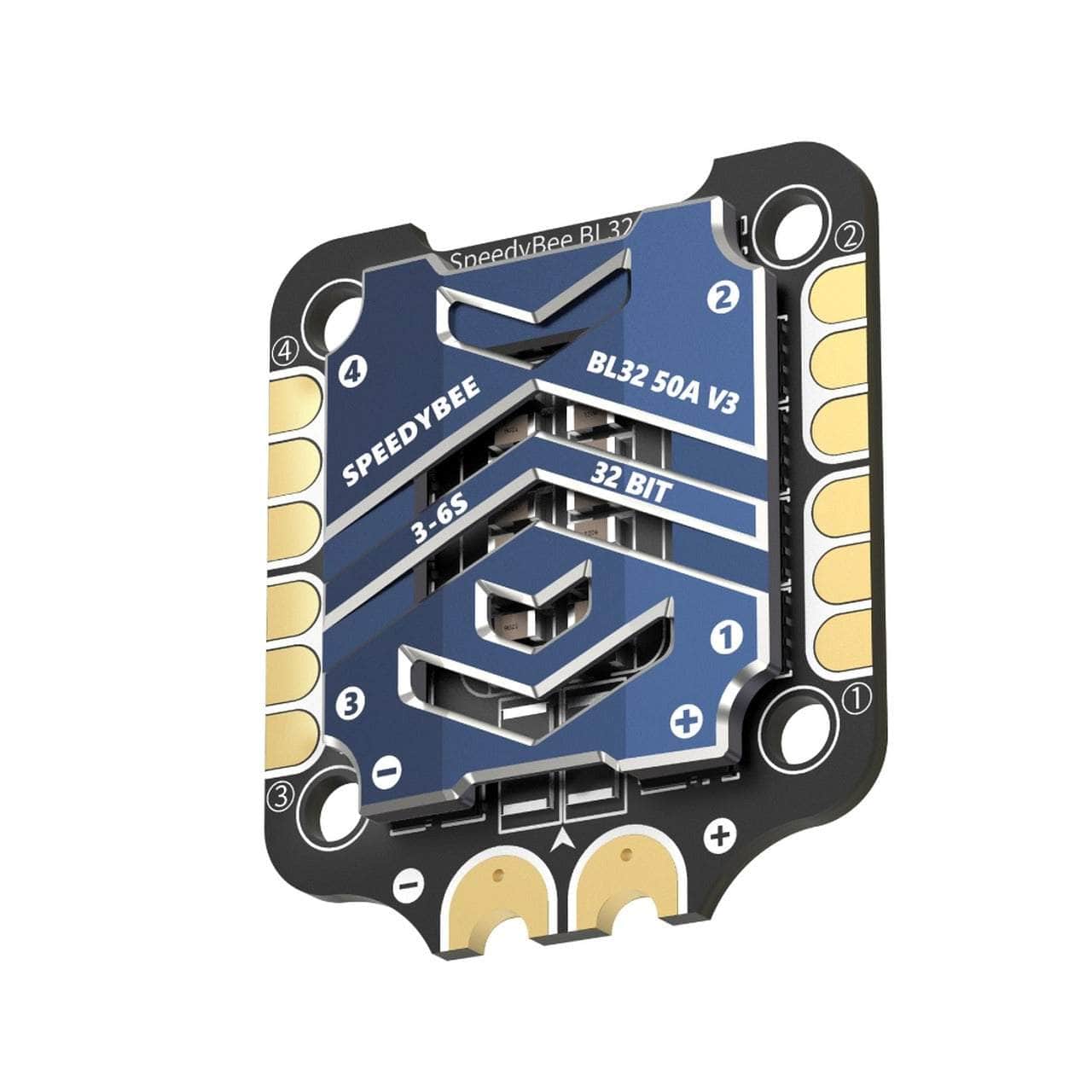

32Bit 50A 3-6S 4in1 ESC
- Firmware: SpeedyBee BL32 50A
- Continuous Current: 50Ax4
- Burst Current: 55A(5S)
- Power input: 3S - 6S LiPo
- Power output: VBAT
- Current Sensor: Supported (Scale=490 Offset=0)
- Mounting: 30.5x0.5mm, 4mm hole size
- Dimension: 45.6(L)x40(W)x8.8mm(H)
- Weight: 19.2g with heat sink
- 1x SpeedyBee BL32 32bit 50A 3-6S 30x30 4in1 ESC
