Description

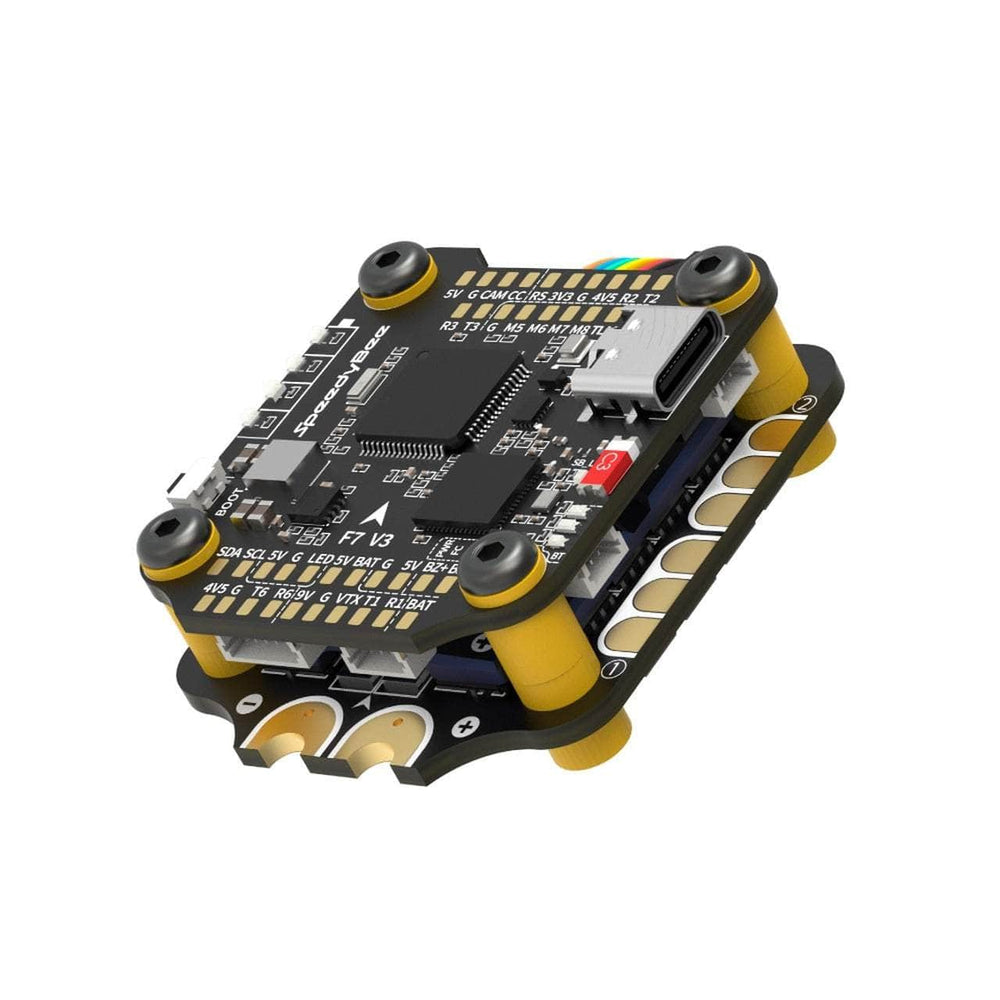

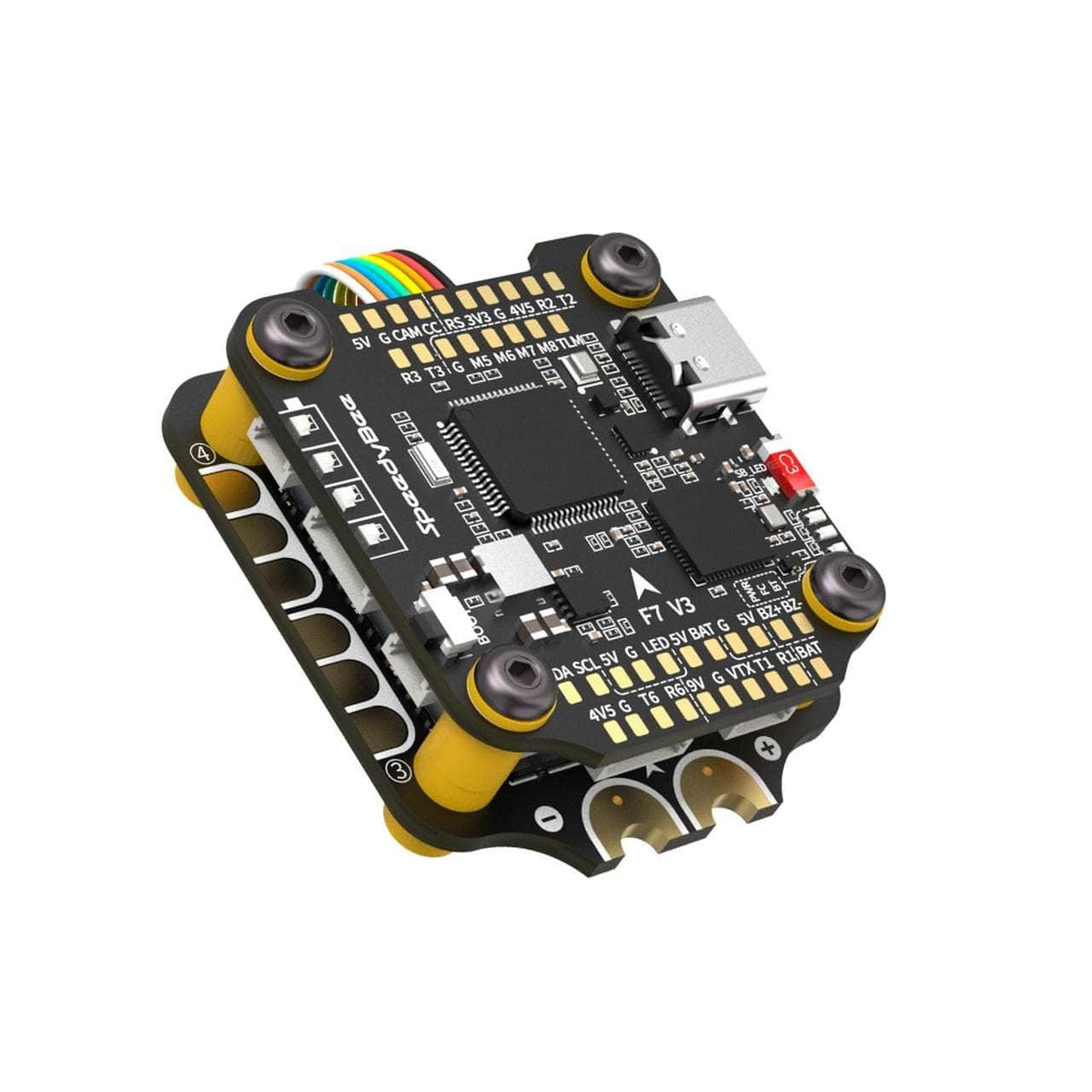

The SpeedyBee V3 F722 3-6S 30x30 Stack/Combo (F722 FC / 50A 32bit 4in1 ESC) is a marvel to behold. The latest iteration of the SpeedyBee Stack, the V3 is packed with powerful new upgrades. Faster Wi-Fi upgrades, black box retrieval within a minute, supports up to 8 motors, and features soldering pads on one end, and pin connectors on the other in case soldering isn't your thing. The 50A 4in1 ESC is fitted with a high-quality CNC heat sink shield to significantly reduce the heat from your MOSFETs ensuring stable current flow at a high-throttle position. This ESC should have no issues with overheating. A great benefit in a stylish blue finish.

Check out our other 30x30 Stacks and all our Speedy Bee products!

Specifications

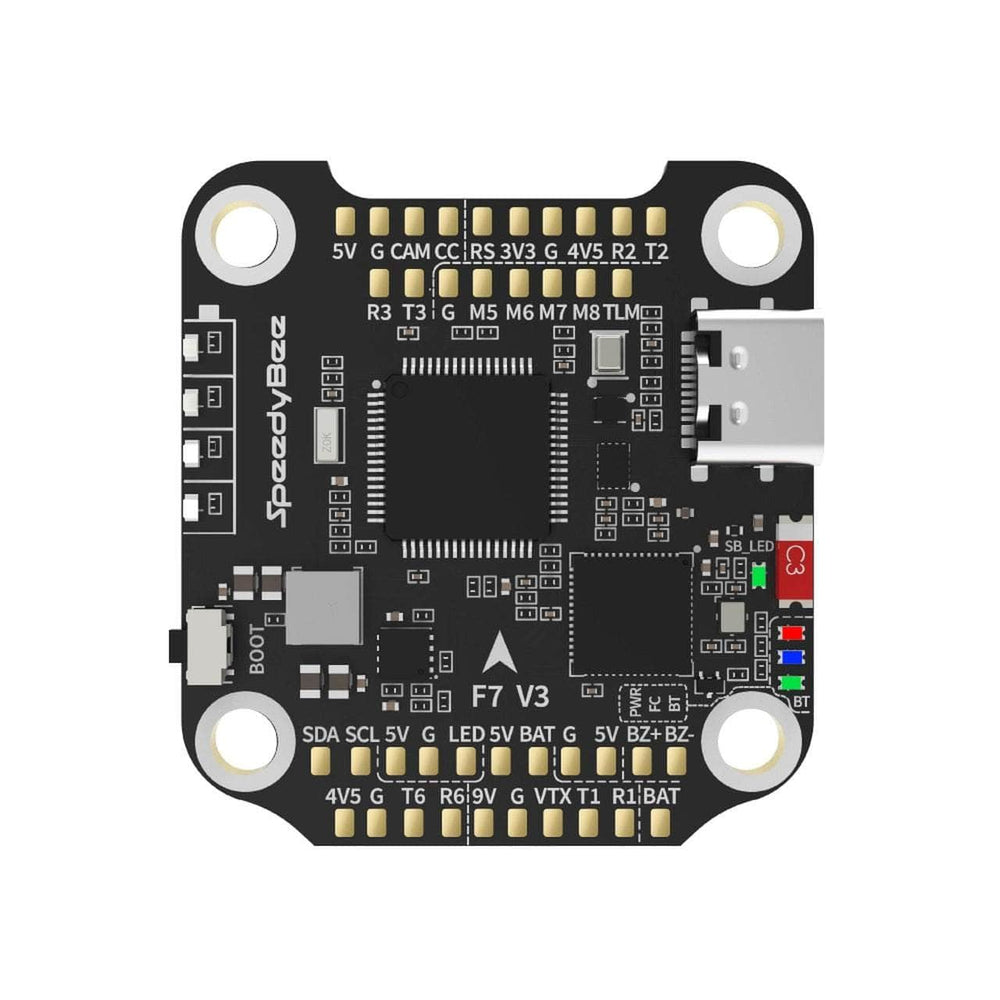

F722 2-6S Flight Controller

• MCU: STM32F722

• IMU: BMI270

• USB: Type-C

• Baro: BMP280 (I2C)

• OSD: BetaFlight OSD w/ AT7456E chip

• BLE Support, used for Flight Controller configuration

• WiFi Support, used for data transfer, e.g firmware flashing, and Blackbox analysis.
• DJI Air Unit plug: A full DJI Air Unit JST slot onboard

• BlackBox: 500MB onboard data flash
• BetaFlight Camera Control Pad: Yes

• Power input: 3S - 6S Lipo

• 10 groups of 5V output, three +5V pads and 1 BZ+ pad (used for Buzzer) on front side, and 6 +5V output included in the connectors on bottom side. The total current load is 2A.
• 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 4A.
• Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
• Supported. Designed for 3.3V-input receivers. Up to 500mA current load.

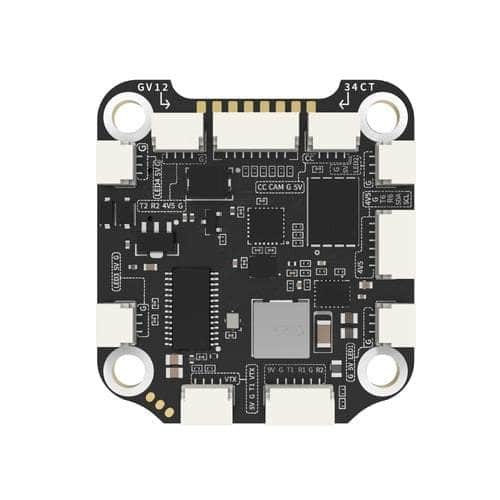

• ESC signal M1 - M4 on bottom side and M5-M8 on front side.

• UART: 5 sets (UART1, UART2, UART3, UART4, UART6)

• ESC Telemetry: UART UART4 RX

• I2C: Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.

• LED: Used for WS2812 LED controlled by Betaflight firmware.

• Buzzer: BZ+ and BZ- pad used for 5V Buzzer

• Boot button: Yes

• RSSI input: Yes

• SmartPort: Supported

• Support Flight Controller Firmware: BetaFlight(Default), EMUFlight, INAV

• Target: SPEEDYBEEF7V3

• Mounting: 30.5x30.5mm, 4mm hole size

• Dimension 41(L) x 38(W) x 8.1(H)mm

• Weight 9g

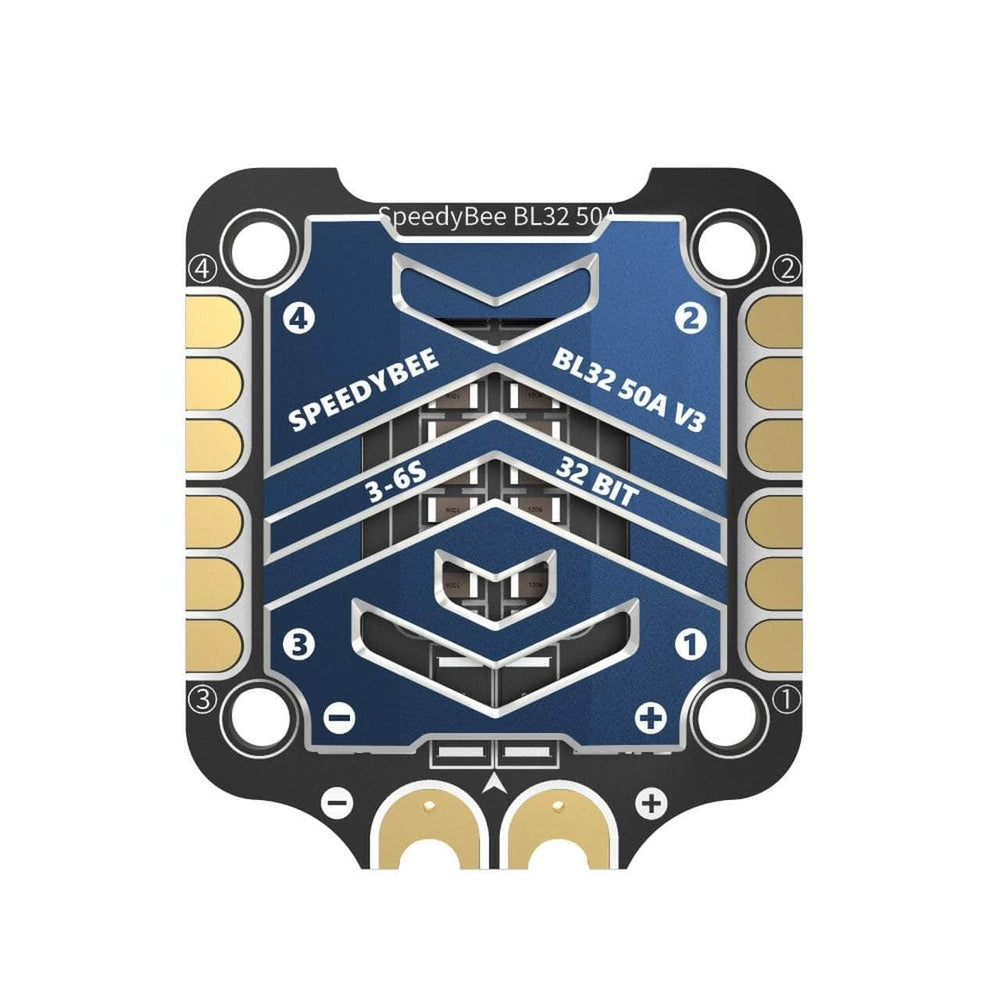

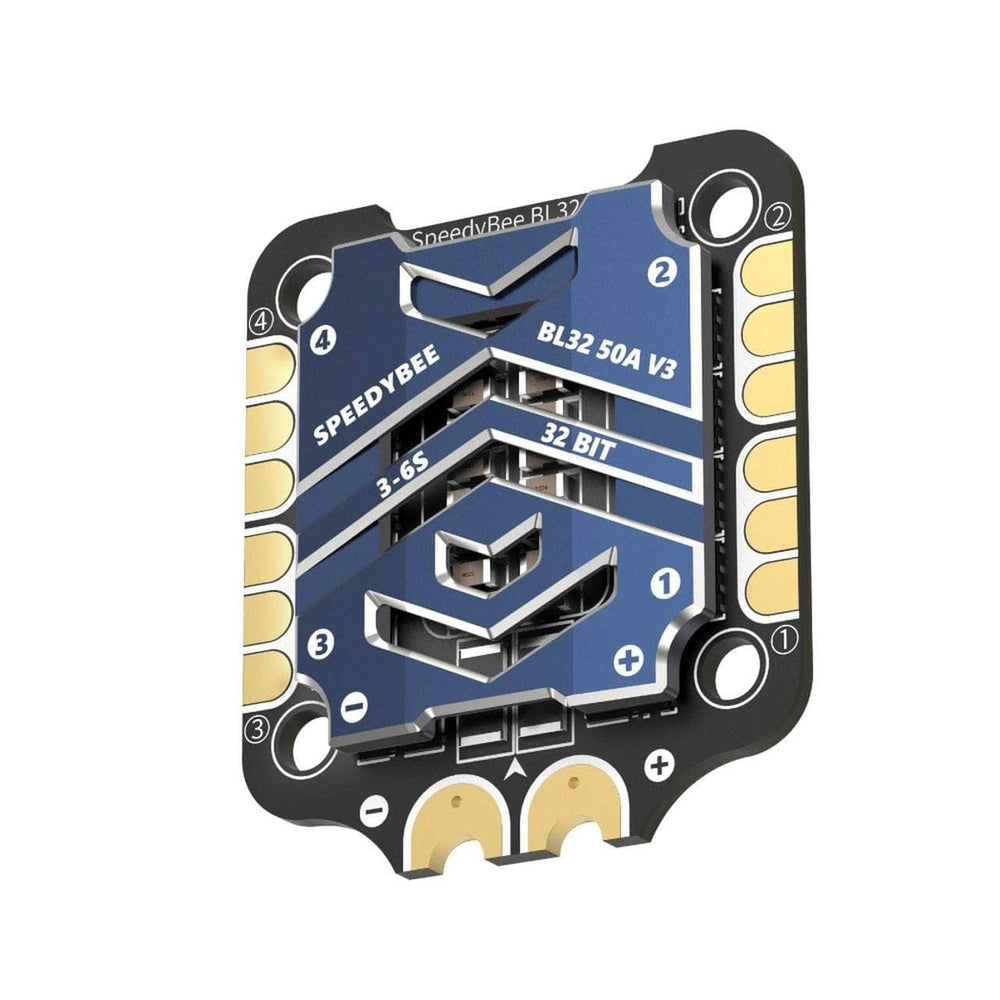

32Bit 50A 3-6S 4in1 ESC

• Firmware: SpeedyBee BL32 50A
• Continuous Current: 50Ax4

• Burst Current: 55A(5S)
• Power input: 3S - 6S LiPo

• Power output: VBAT

• Current Sensor: Supported (Scale=490 Offset=0)
• Mounting: 30.5x0.5mm, 4mm hole size

• Dimension: 45.6(L)x40(W)x8.8mm(H)

• Weight: 19.2g with heat sink

Includes

• 1x SpeedyBee BL32 32bit 50A 3-6S 30x30 4in1 ESC

Wiring Diagram
