Sub250 BNF Nanofly16 1S 40mm Quad - ELRS

$149.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more
Add to Wishlist

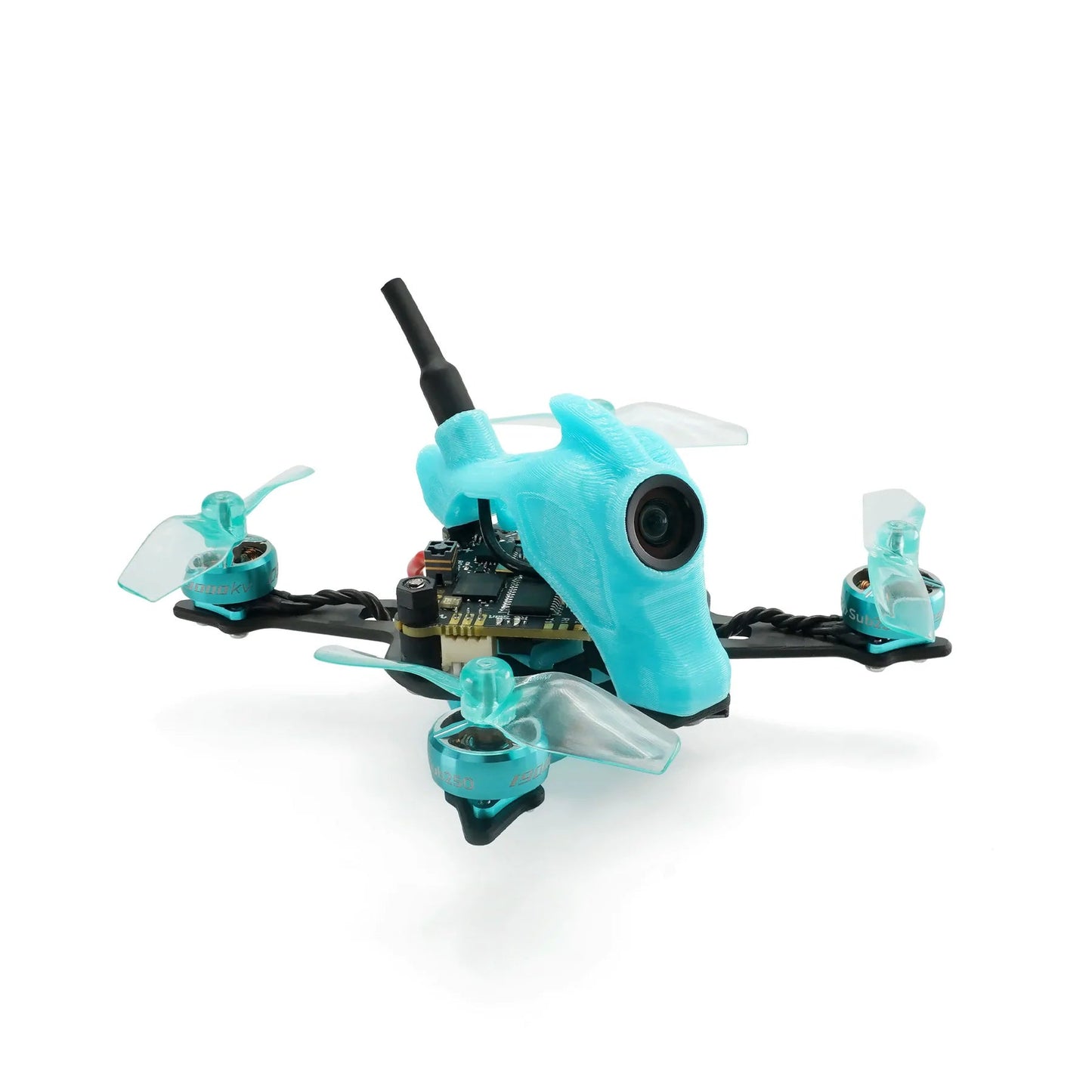

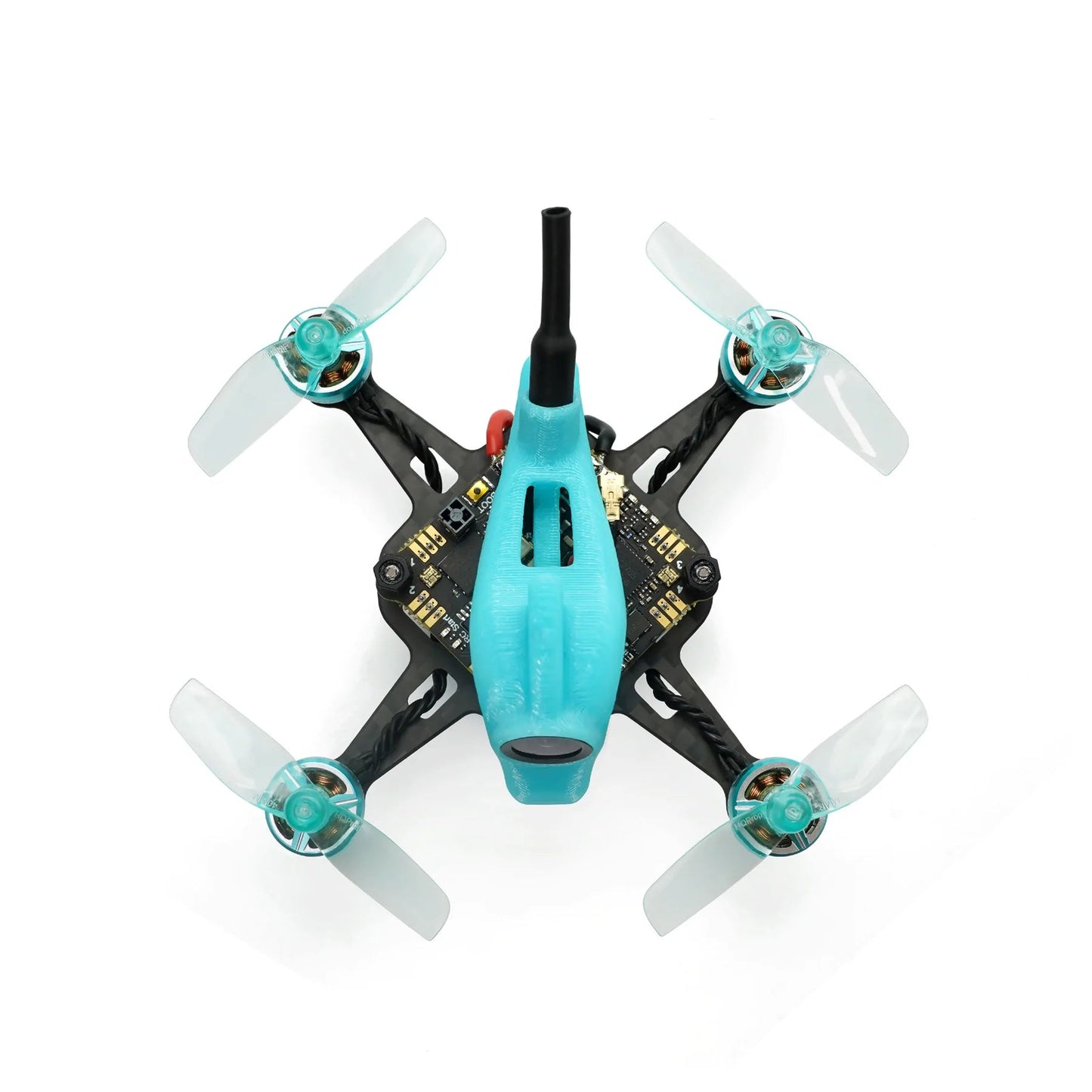

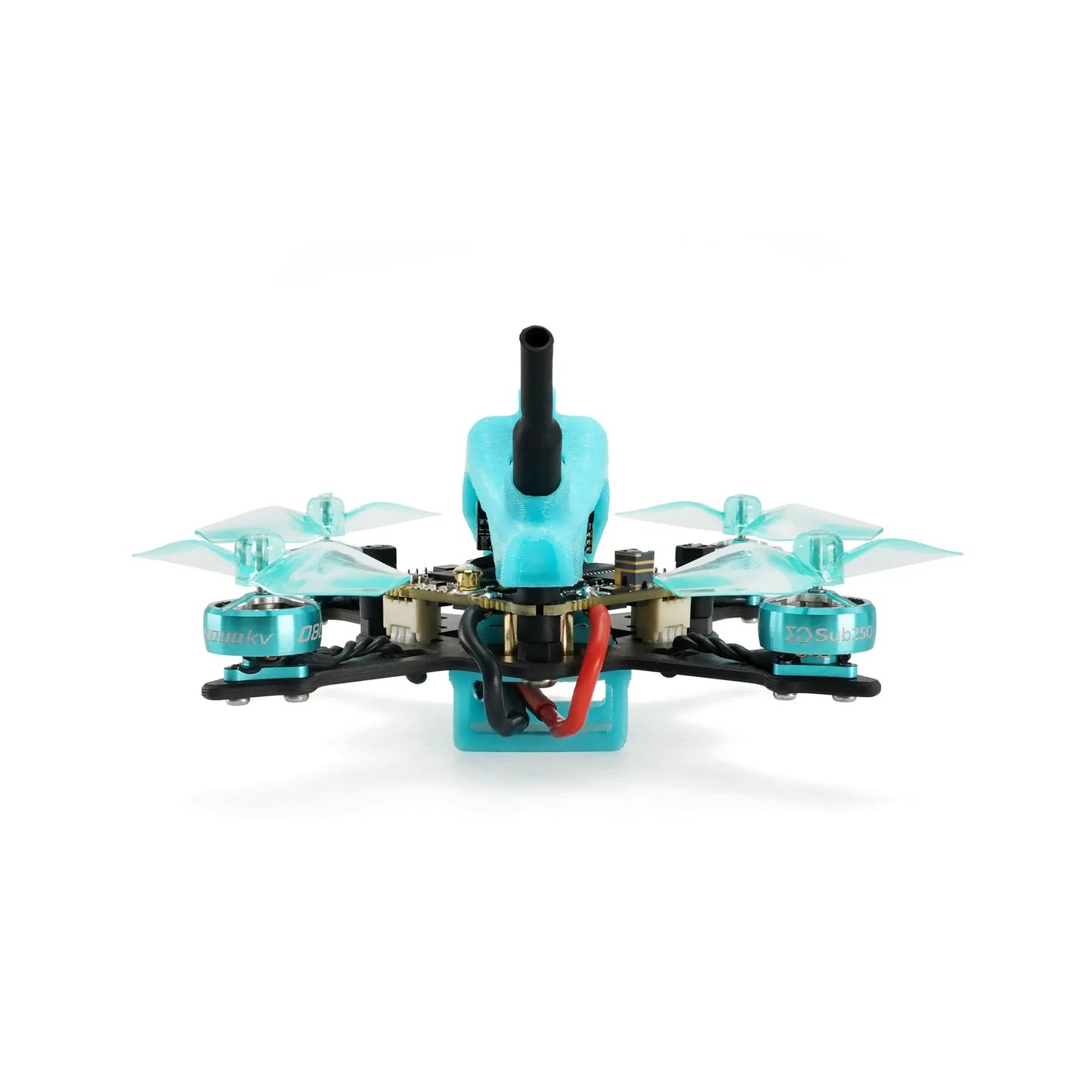

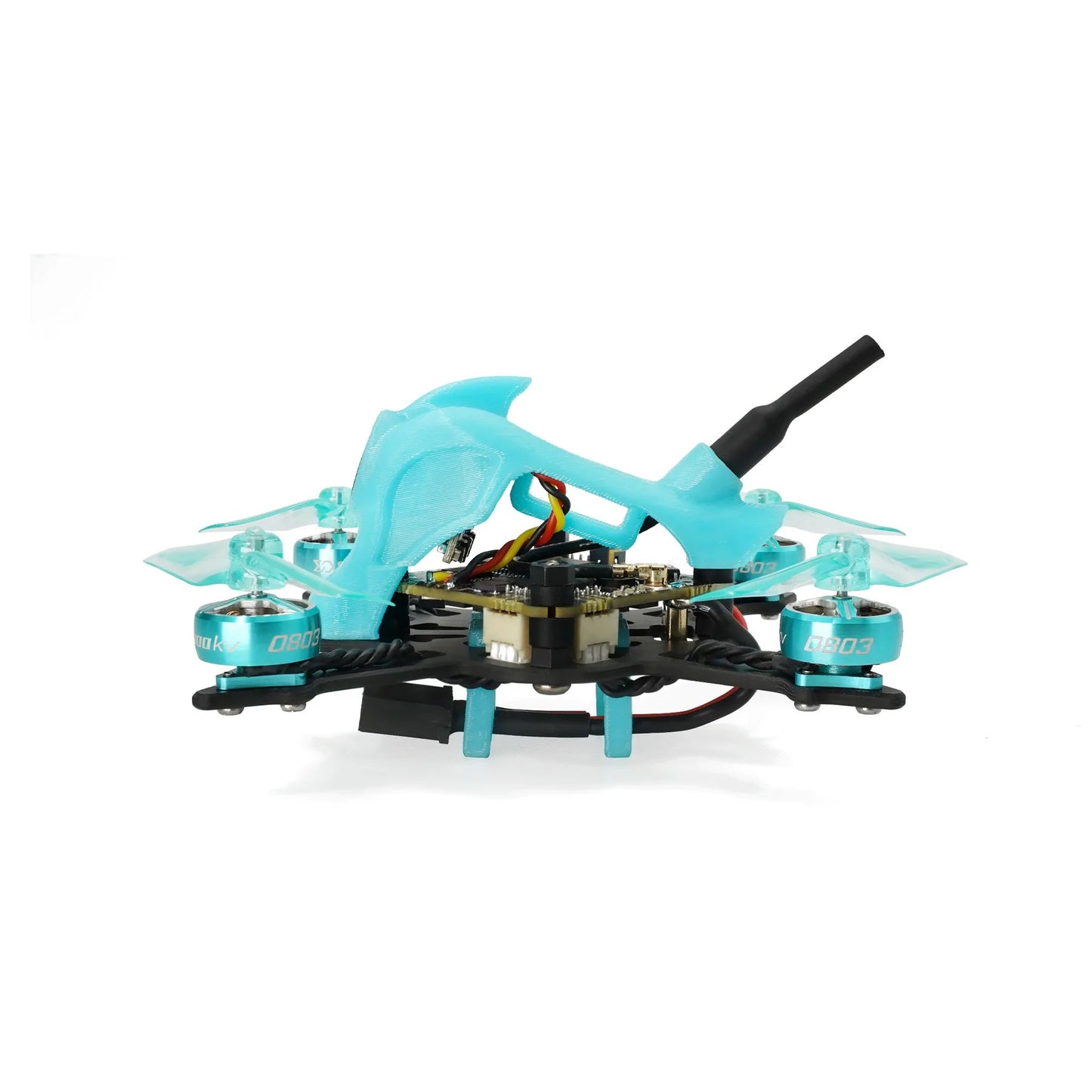

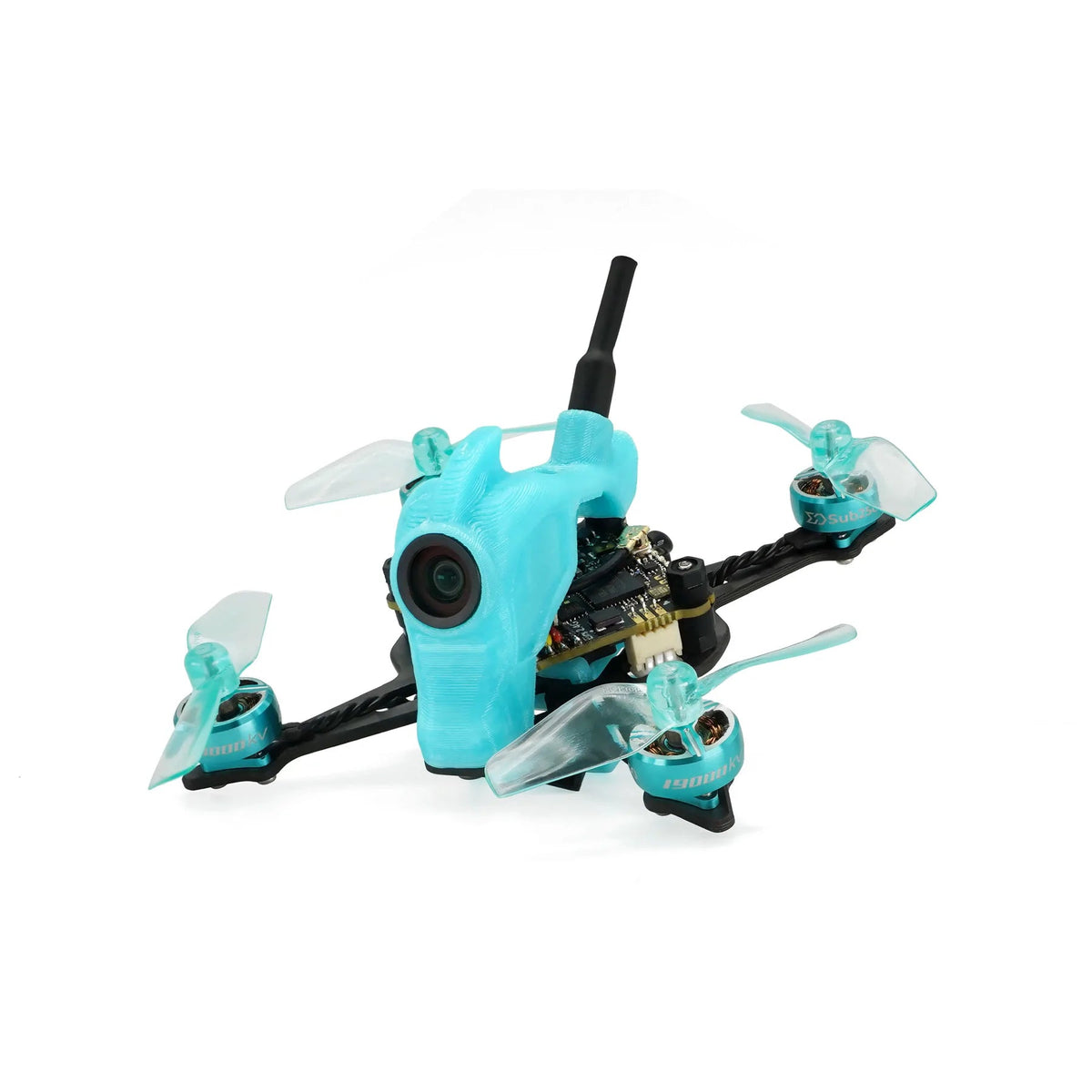

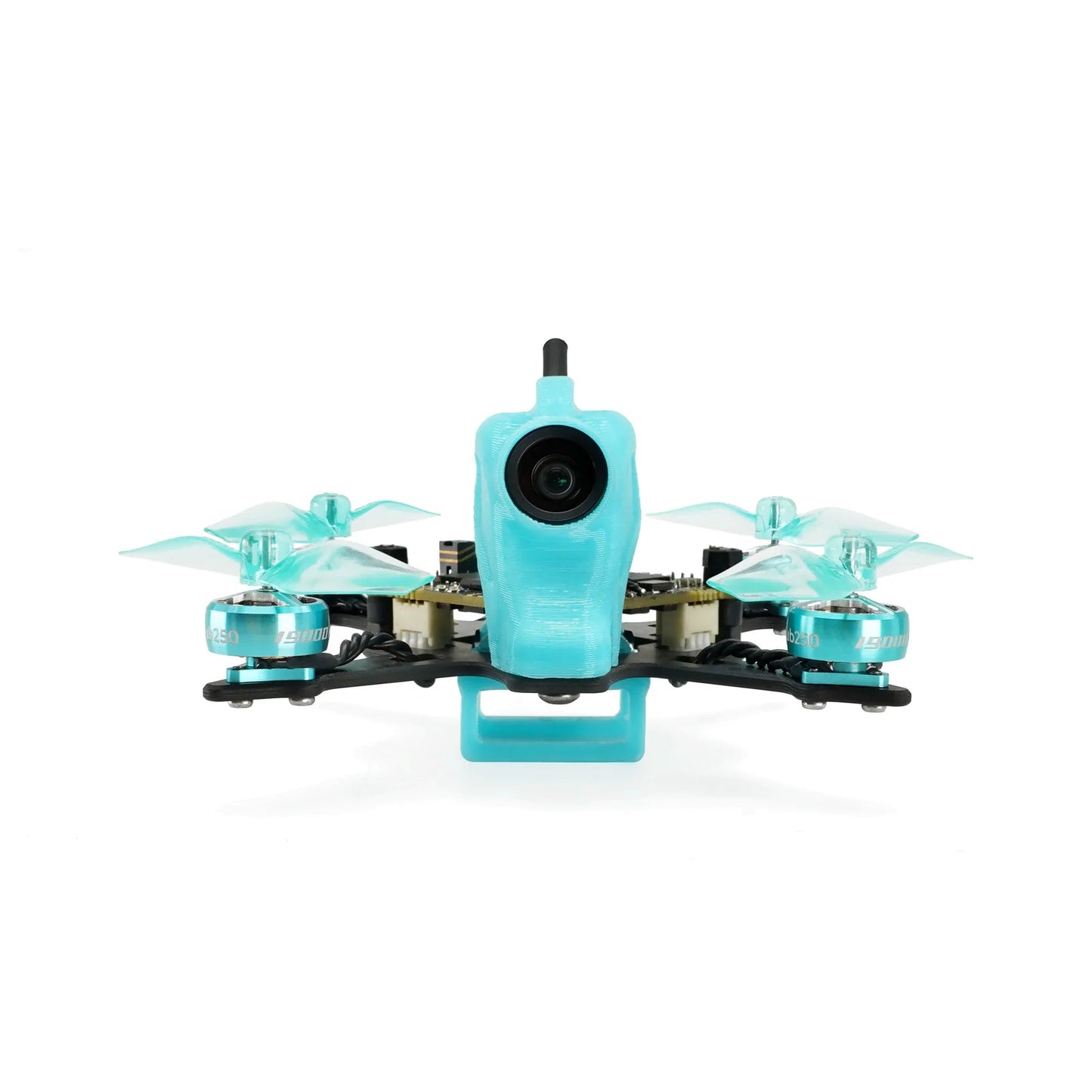

Sub250 is happy to introduce their first Ultra-light Freestyle FPV Drone. The Sub250 1s Nanofly16, It is very quiet, and suitable for both indoors and outdoors.

The design concept of Nanofly16 quad is lightweight, small in size, has good hand feels, and is suitable for a variety of flight scenarios FPV traversing aircraft. Obviously, it exceeded the design specifications. We designed a 1.5mm carbon fiber body with a 3D-printed upper shell for the Nanofly16. The fuselage has high strength and is very crash-resistant. We did a lot of tests and selected the Ant lens with better effect, which has a better imaging effect and less wide-angle distortion. We developed a 0803-19000KV strong magnetic motor with 40mm propellers, it has strong power and smooth throttle, which is very suitable for flying freestyle.

Nanofly16 has an ultra-light body weight with the latest 1S 380mAh high-voltage battery. The take-off weight of a drone is only 38.0g, and the flight time is 4.5 minutes. Equipped with a 3D printed battery holder, it is convenient and quick to replace the battery.

The most important thing is that Nanofly16 is very quiet to fly, like a dragonfly, you can both fly it at home and freestyle in the yard and even set up a few gantries for racing practice. Trust me, you'll love this small, portable, and quiet mini FPV drone after you fly it.

Check out the rest of our pre-built quads, as well as the rest of our Sub250 selection!

Specifications

  • Weight: 28g
  • Props: 40mm HQ Prop
  • Battery Connector: GNB 27

F411-1S AIO/250mW/ELRS

  • Input Voltage: 1S LiPo
  • MCU: STM32F411
  • Gyro: ICM20689(SPI)
  • OSD: yes
  • UARTs: 2 Sets
  • ESC Max Continuous Current: 5A
  • Stack Size: 25x25mm
  • Weight: 8g

Sub250 M1 0803 19000KV Motor

  • Kv: 19000Kv
  • Input Voltage: 1S LiPo
  • Stator Dimensions: Φ8mm x 3mm
  • Shaft Diameter: Φ 1mm
  • Weight (w/ wires): 2.2g

    Caddx Ant Nano

    • Image Sensor: 1/3" CMOS Sensor
    • Horizontal Resolution: 1200 TVL
    • TV System: NTSC and PAL(switchable)
    • MENU: Support
    • IMAGE: 4:3 or 16:9
    • Synchronization: Internal
    • Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
    • S/N Ratio: >52dB (AGC OFF)
    • Video Output: CVBS
    • Lens: 1.8mm/F2.5
    • Minimum illumination: 0.001Lux
    • Auto Gain Control: YES
    • BLC: YES
    • WDR: Global WDR
    • DNR: 3D DNR
    • Dimensions: 14x14mm
    • Wide Power Input: DC 3.7-18V
    • Work Temperature: -20°C~+60C
    • Work Humidity: 20%~80%
    • Weight: 1.7g

      Includes

      • 1 x Nanofly16
      • 4 x HQ 40mm-2 propellers
      • 1 x 3D printed battery holder
      • 1 x Phillips-head screwdriver
      • 1 x 1.5 mm screwdriver
      • 3 x M2x2 Nylon Nuts
      • 4 x  M1.4x3 Phillips screws

      Nanofly16 Manual
