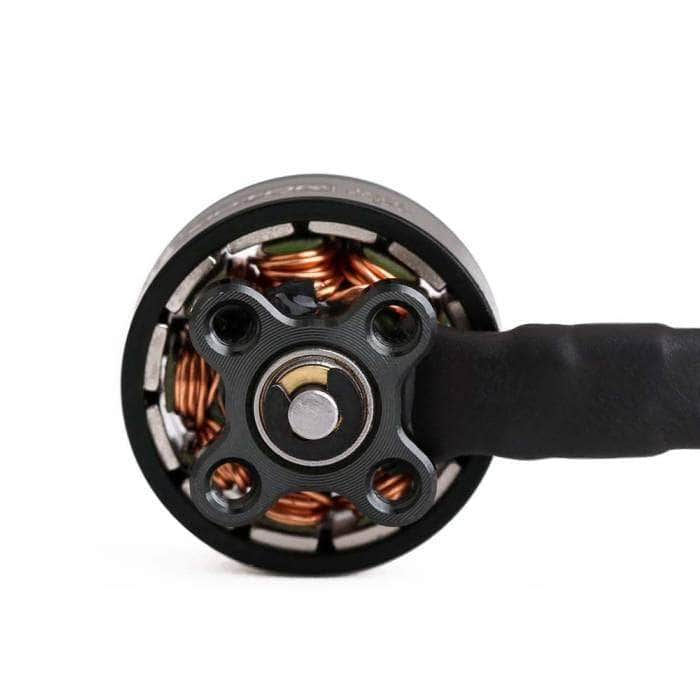

T-Motor F1204 5000Kv Motor

T-Motor F1204 5000Kv Motor

$19.99
$19.99
Add To Wishlist
View full details

Details

Description

The F1204 motors from T-Motor are ultralight motors that are specially made for toothpicks and whoops! The F1204 motor comes with a 1.5mm shaft to fit more props and features high efficiency, better cooling, and fast response. Suitable for 2.5-3" builds!

Two Kv's to choose from 5000Kv, and 6500Kv

Check out our other motors, and all our T-Motor products!

Specifications

Kv: 5000Kv

  • Motor Dimensions: Φ15.5x15.6mm
  • Lead: 24AWG 100mm
  • Shaft Diameter: 1.5mm
  • Idle Current: 0.7A
  • Max. Power (the 60s): 72W
  • Weight (Excl. Cable): 6.1g
  • Internal Resistance: 240mΩ
  • Configuration: 9N12P
  • Rated Voltage (Lipo): 2-3S
  • Peak Current (60s): 6A


    Includes

    • 1 x T-Motor F1204 5000Kv Motor
    • 1 x Set screws

    More Info

    • SKU: 15886
    • Barcode: 6971360357315


    Overall rating: 4.6 / 5 from 5 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: ["motors"].

    Review highlights

    Reviews

    Nice Motor, 1 out of 4 failed

    "These appear to be well made motors, matching the advertised specifications. However, 1 motor out of an order of 4 did not work at all. Powering the motor resulted in spasm vs. rotation, ending with ESC error tones. Possibly lack of quality control?"

    — Dylan B. (3/5)

    Works well on 3s

    "Put these motors on a 2.5 inch build but I’m thinking they might be more suited/ efficient on a light 3 inch? I get like 3 min of flight time with a 380mah 3s battery on my 2.5 inch build (like 80g AUW) which I feel like could be better but idk maybe I’m just big and greedy. These motors are smooth and have good power"

    — Wesley H. (5/5)

    Great Motor

    "Wasn’t expecting a whole lot out of this but man! Wow! what a great motor for a light 3” build. Will absolutely use these again for small builds."

    — Will J. (5/5)

    Great motor

    "Absolutely great motors for my toothpick. And they're T-Motors, so I really don't need to say much more. All T-Motors products are amazing."

    — Steven W. (5/5)

    Great motors.

    "These are awesome motors. Used on a tooth pick build. Plenty of power. Quiet and smooth"

    — Paul B. (5/5)
