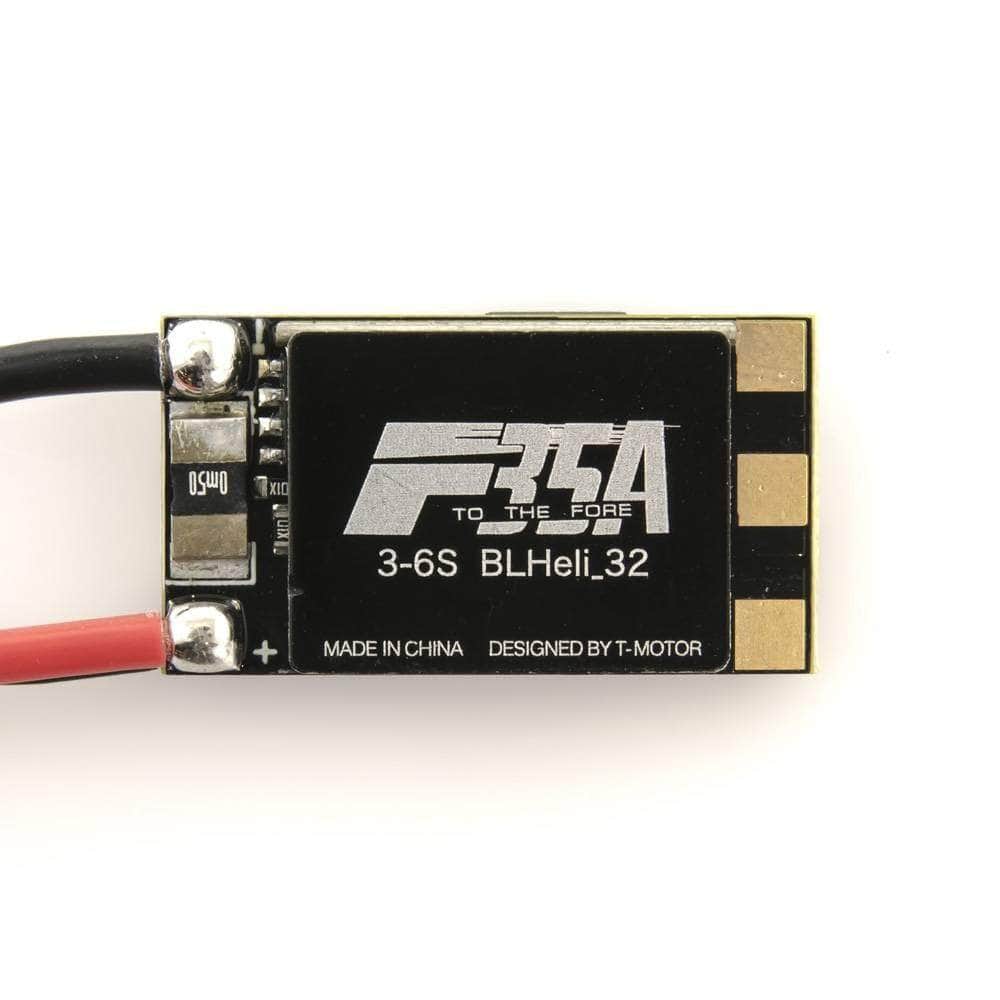

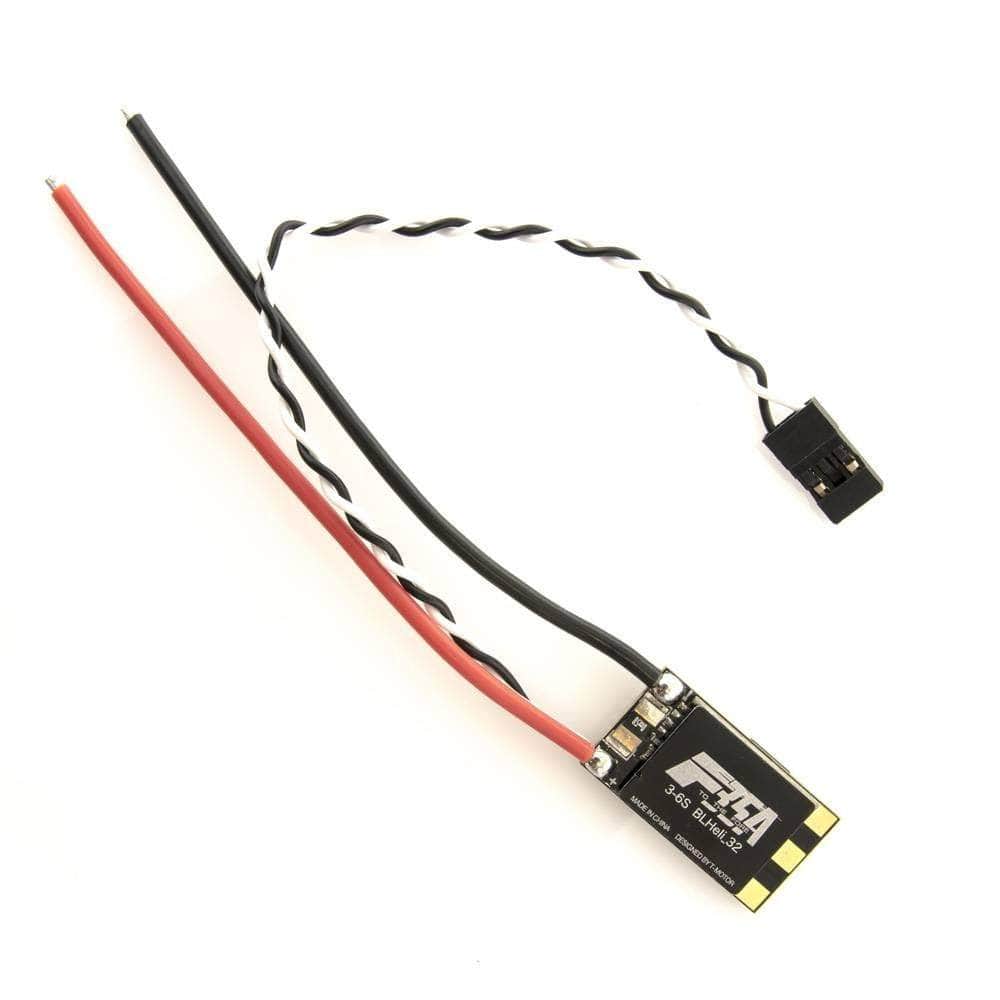

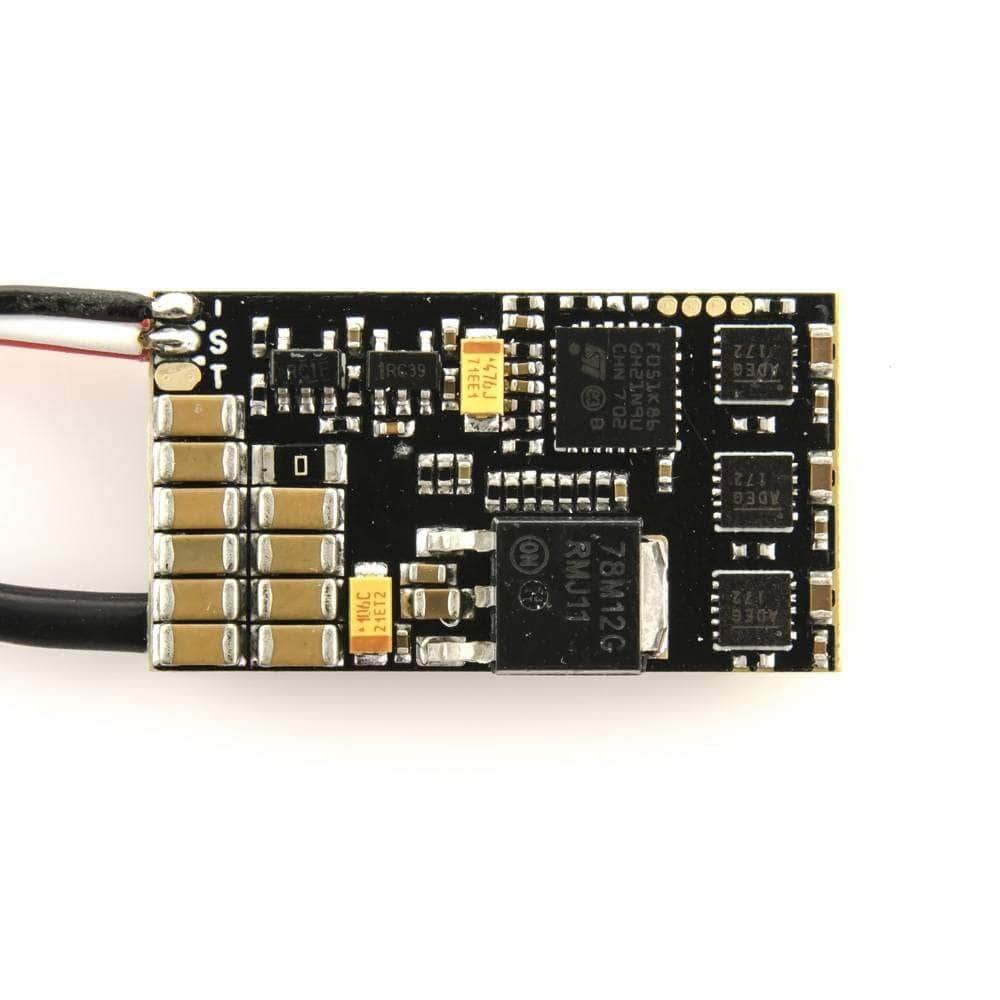

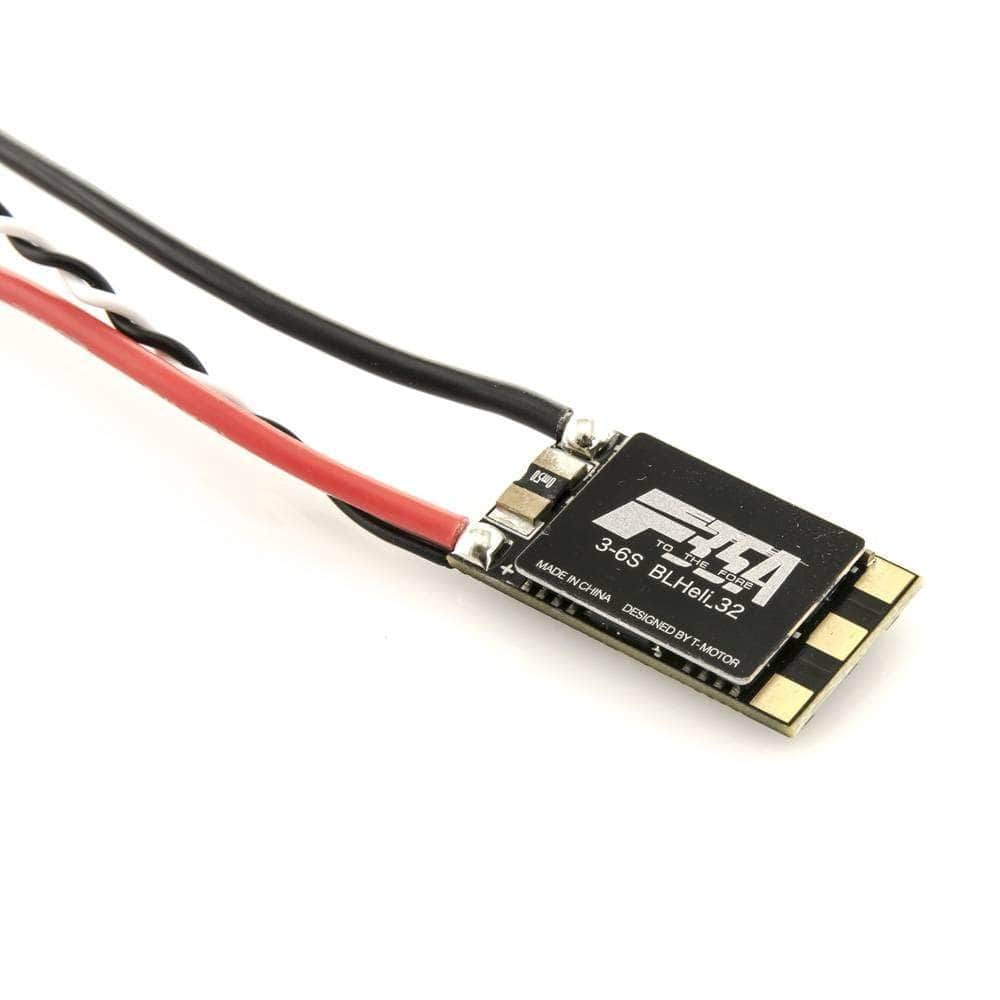

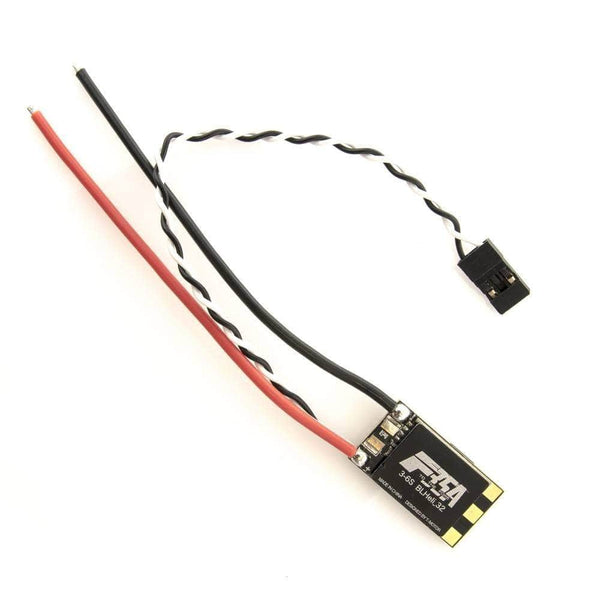

T-Motor F35A 3-6S 35A 32bit ESC

T-Motor F35A 3-6S 35A 32bit ESC

$36.99
$36.99
Add To Wishlist
View full details

Details

Description

The T-Motor F35A 3-6S 32bit ESC is an excellent choice coming from a company with a pedigree of success.

Browse our collection of ESCs and all our T-Motor products!

Features

  • Arm 32-bit Cortex core MCIJ, operating frequency up to 48MHz
  • BLHeli-32 firmware, fast response speed, superb performance
  • Auto-detection on throttle signal, support pulse width PWM (1 -2ms), Oneshot 125 (125-250us)
  • Dshot signal (up to Dshot 1200) compatible
  • Auto-braking for high efficiency. When the throttle is pulled down, the motor will react fast on such change to slow down;
  • For racing drones with a motor of high Kv and power
  • Twisted pair(TP) throttle signal wires reduce the crosstalk during signal transmission which guarantees stable flight
  • Aluminum alloy radiator for cooling performance.

Specifications

  • Model No: F35A 32bit
  • Con. Current: 35A
  • Peak Current (10S): 45A
  • Lipo: 3-6S
  • BEC: No
  • Weight: 4.3g
  • Size: 29x17x5mm

Includes

  • 1 x T-Motor F35A 3-6S ESC

More Info

  • SKU: 7848
  • Barcode: 6971360351597


Overall rating: 5.0 / 5 from 10 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Great ESC

"Running in a Hexsoon EDU-450 model with stock motors. Runs great."

— Carlton H. (5/5)

Perfect esc for my 4s freestyle quad

"Elección perfecta entre potencia y consumo para aprovechar bien tus baterías, lo tengo en mi quad para freestyle y estoy 100% satisfecho"

— David Z. (5/5)

Plays well with others

"I used one to replace a failed DYS Aria BLHeli_32bit 35A ESC. All work fine together and are correctly identified within BLHeli Configurator. Ships with a piece of shrink tube for post-install insulation, which is handy."

— S.R. (5/5)

Tmotor F35A

"this esc is a tank. it performs great from 4s to 6s and they van take a beating"

— Nick D. (5/5)

T-motor F35

"High quality ESC. Will most definitely buy again."

— Bay W. (5/5)

Great ESCs

"No problems whatsoever! Using these on all my Quads and haven’t had any issues yet. Been using them for about a year and a half."

— Ian B. (5/5)

Like a ROCK

"My teammate flew these on his first quad months running & never replaced one. When I realized my Bullet30A were not cutting it under 2306x2400kv, I swappwd for these. One flight so far. Responsive. Acro seems cleaner/tighter running Dshot1200. But don't buy these if you don't have a windows computer, unless you want to do a lot of work to have a running configurator."

— Sean C. (5/5)

Good but need protection

"I have been using these on 4 quads that I race with and these have been great! Only drawback is they NEED protection of some sort. I was running them under props and got lazy on 2 of the 4 builds so I ran them bare with tape only and had 1 smoke and 2 catch on fire after hitting some gates. On the builds that I have esc protectors or under clipped props have no issues taking some hits."

— Gabriel C. (5/5)

Great ESC

"These are great ESC's! I have been running these for about 5 months now without issues. My only gripe is with the placement of the TELM pad."

— Gary .. (5/5)

Wow, very nice

"I bought this for the Hummingbird Mini Thurmal Hunter, nice, small, and light, and it does the job beautifully."

— Gregory T. (5/5)

Q&A

What is the dimension of the core ESC?
L 1.125in 28.6mm W .63in 16mm T .25in 6.4mm
Do I need 4 of these if I am building one from the frame up
Yes
