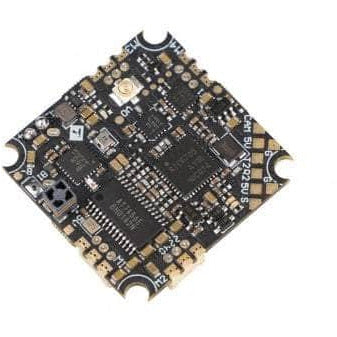

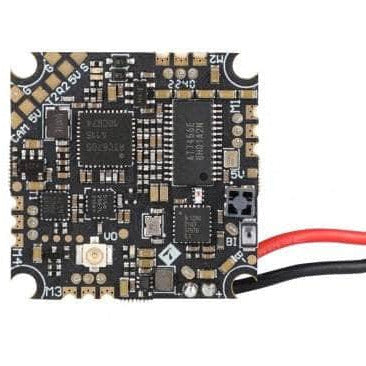

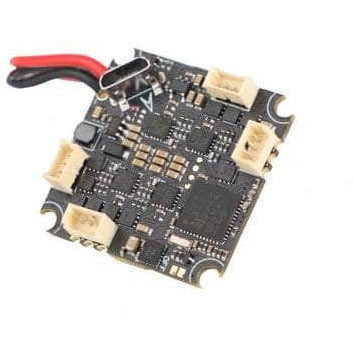

T-Motor F411 1S Toothpick/Whoop AIO w/ BlueJay 6A ESC & ELRS RX

T-Motor F411 1S Toothpick/Whoop AIO w/ BlueJay 6A ESC & ELRS RX

Regular price $93.99
Sale price $93.99 Regular price
Add To Wishlist
View full details

Details

Description

An awesome little AIO from T-Motor, Coming with 6A ESCs, ELRS 2.4G onboard reciever, and a 50mw VTX with OSD! This whoop AIO board truly does it all!

Browse our whoop flight controllers,  and all our T-Motor products!

Features

  • Support 1S battery
  • F411 chip is used with high-performance computing speed, making it smoother during flight.
  • ELRS on board
  • 50Mw VTX Smart Audio 1.0

Specifications

Whoop AIO F4 V1.1 AIO

  • MCU: STM32F411
  • IMU: BMI270
  • Firmware target: STM32F411
  • OSD: Betaflight OSD w/ AT7456Ev
  • UART Ports:  R2 T2
  • USB: Micro USB
  • BEC output: 5V@1A
  • Continuous current: 6A
  • Input: 1S
  • Supports: Blue Jay
  • Size: 29.5x29.5mm Board
  • Installing Hole: 25.5x25.5mm, M2
  • Weight: 6.7g

    Includes

    • T-Motor F411 1S Toothpick/Whoop AIO w/ BlueJay 6A ESC & ELRS RX

    More Info

    • SKU: TMOT-F411-06A-AIO-ELRS-VTX
    • Barcode: 6971360356417


    Overall rating: 4.5 / 5 from 2 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: [].

    Review highlights

    Reviews

    Time will tell…

    "I would give this a full five stars but I found it difficult to find any manufacture firmware to roll back to earlier versions of BF. Usually you need those with these integrated SPI ELRS receivers. I found that it fit well in the Metor65 frame. I’m running it on BF 4.4 and followed Ciotti’s suggestion on setting up the virtual amp reading. So on BF 4.4 really easy to setup the ELRS and connect my radio. I’m still trying to get it tuned but so far my whoop not staying up in the air before the battery is depleted as well as a Happy Model FC. Hopefully I’ll get it figured out because I like the idea of a better made FC."

    Todd B. (4/5)

    Beast

    "Running on a 75mm with 0802 25k kv motors. Perfect whoop aio"

    jason w. (5/5)

    Q&A

    I read it says switchable to external vtx. Does this mean All i have to do is switch the UART in config for an external vtx?
    Yes. That is correct.
