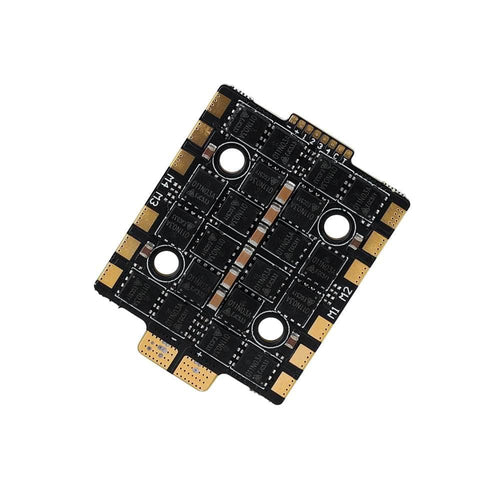

T-Motor F60A Mini 4-8S 20x20 4in1 ESC

T-Motor F60A Mini 4-8S 20x20 4in1 ESC

Regular price $112.99
Sale price $112.99 Regular price
Add To Wishlist
View full details

Details

Description

T-Motor enters the world of ESCs yet again with another that is sure to impress! 8S capable with monster mosfets! This ESC is ready to spin props and spin them fast!!

Check out all our 20x20 FCs and all our T-Motor products!

Specifications

  • Input Voltage: 3-8S LiPo
  • Max. Continuous Current: 60A
  • Max Burst Current: 70
  • Telemetry: Yes
  • Firmware: BLHeli_32
  • Input Signal: DShot 150/300/600/1200/MultiShot/OneShot
  • Mounting Pattern: 20x20mm M3
  • Dimensions: 36x47mm
  • Weight: 14g

Includes

  • 1x T-Motor F60A Mini 4-8S 20x20 ESC

More Info

  • SKU: 19625
  • Barcode: 6971360356608


Overall rating: 3.5714285 / 5 from 7 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["quality","material","issues"].

Review highlights

Reviews

8S build baby!

"I bought this esc to put on a 6 inch Volador frame as an 8S build! So far so good! For the most part I followed Bardwell's video but I went 6 inch and used t motor f-80 motors! This thing flies amazing with no pid tune at all. I've run several 6S packs at 100% motor output and only one 8S pack so far at 80%motor output (I'm using 1900kv). I've run it at PWM low: 24 & high: byrpm, and also low 24 and high 48. It flies great either way! I connected vbat out of esc straight to voltage regulator, and then from there to the t motor H7 fc. I'm using 2 50v capacitors. Can't wait to unleash on the 8S, add my one pack I put through it so far I was taking it easy for testing. It flies amazing with 6S though so there's that! I just finished build like 3 days ago so we will see about longevity but so far I love it! Which is great, cuzz I had previously opted not to use t motor because of a few bad experiences at the start of my fpv journey. I'm thinking now that may have been more user error than anything. Buy it! Have fun!"

Christopher D. (5/5)

Great little ESC, reliable

"Great little ESC, reliable"

Davit M. (5/5)

DOA Still trying to get a refund

"Motor 4 ESC not working properly. Still trying to get a refund or replacement. ESC was never flown."

Tom A. (1/5)

Good for smaller 8S build, not recommended for 6

"I've bought 2 of these and run 8S on both. One is still doing great but the other exploded mid flight. It's probably my fault though. I put it on a six inch and was hauling a 2600 mah 8S lipo on it. So that was too much. It seems to be working well for the 8S five inch though. I wouldn't recommend this one for more than 5 inch, or bigger batteries. I'm talking about 8S. I'm sure it's fine for some larger 6S lipos, it didn't have any issues with my 2800 mah 6S. Also, just have to say, I've had like 5 t motor ESC's burn up over the years. Not had that issue with any other brand. Just saying."

OTRFLYER (3/5)

Little Beast!

"This was key to my latest 8S build. Handels 8S like a champ! Super solid construction and big beefy mosfets."

Brian L. (5/5)

desync issues

"desync issues"

Jacob J. (1/5)

T-Motor Quality...

"High quality materials throughout, is evident. Solder flow is wetted perfectly on all the components. Factory conformal coating is done on one side already. Nice touch."

Wolf D. (5/5)
