Description

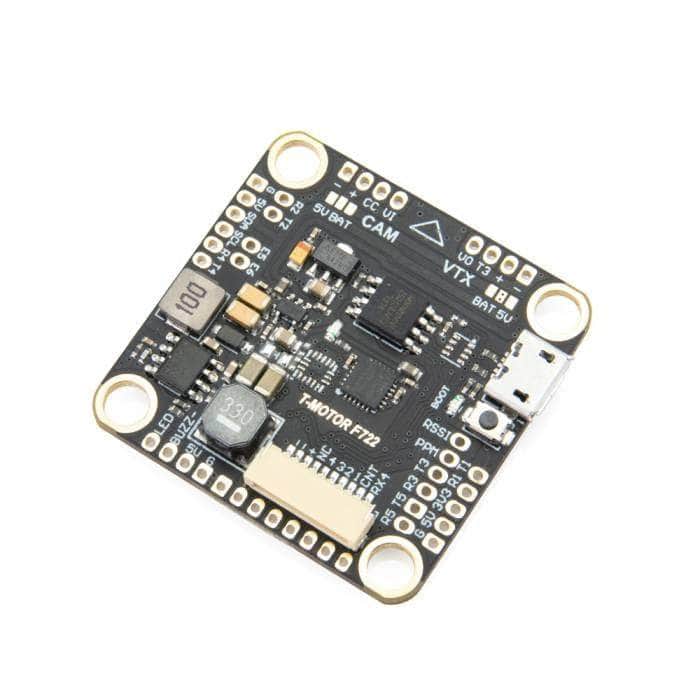

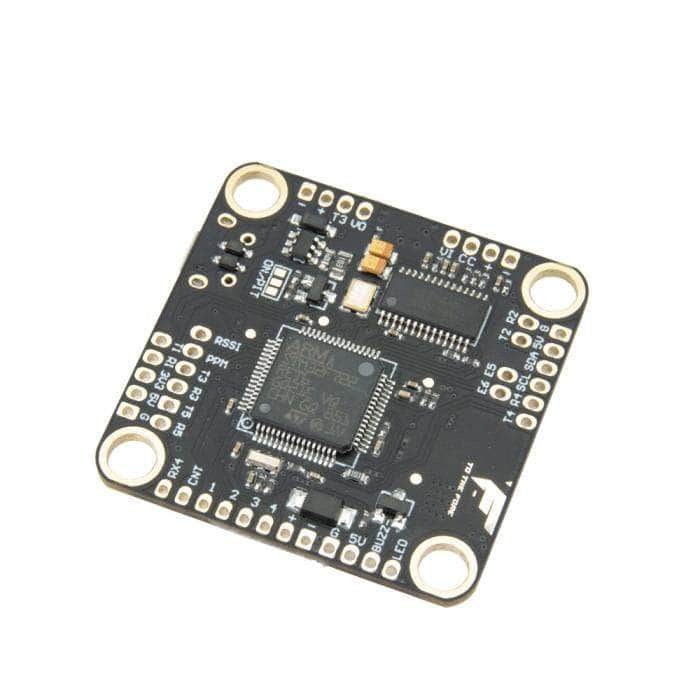

T-Motor's F7 Flight Controller has arrived at RDQ! Logical layout, and is designed to work seamlessly with the T-Motor F45 and F55 ESC.

Browse our 30x30 Flight Controllers and all our T-Motor products!

Specifications

• MCU: STMF722RET6
• Gyro: BMI270
• Memory: 16M
• Input Voltage: 12v-25-2v (3-6S)
• BEC: 5V/2A
• Dimensions: 37mm x 37mm
• Mounting Holes: 30.5mm x 30.5mm
• Weight: 7.4g
• Firmware Target: TMOTORF7 (Betaflight)

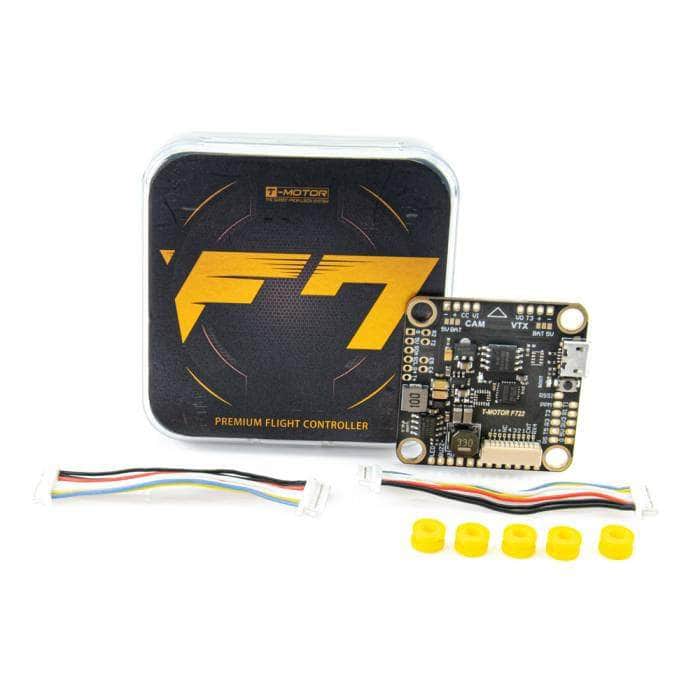

Includes

• 1 x T-Motor F7 Flight Controller
• 2 x FC to ESC Cable
• 4 x Vibration Dampeners

Wiring Diagram
