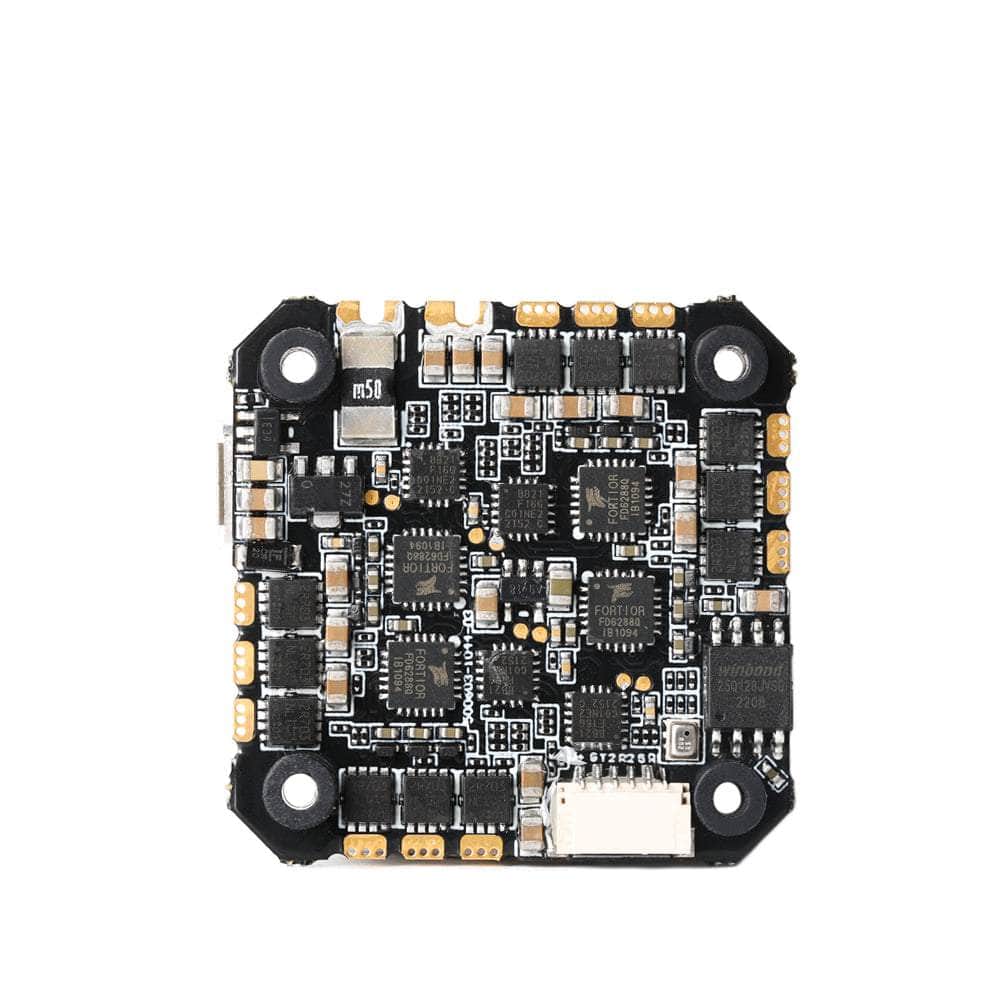

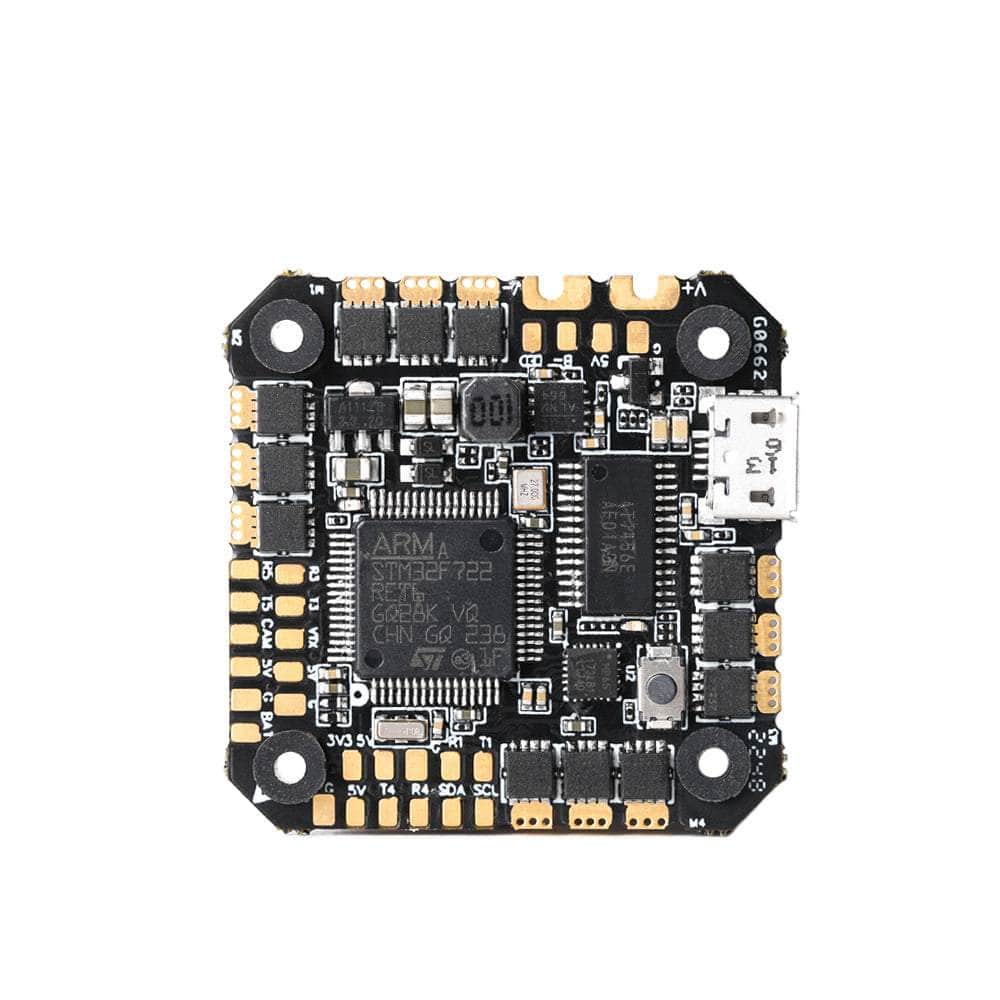

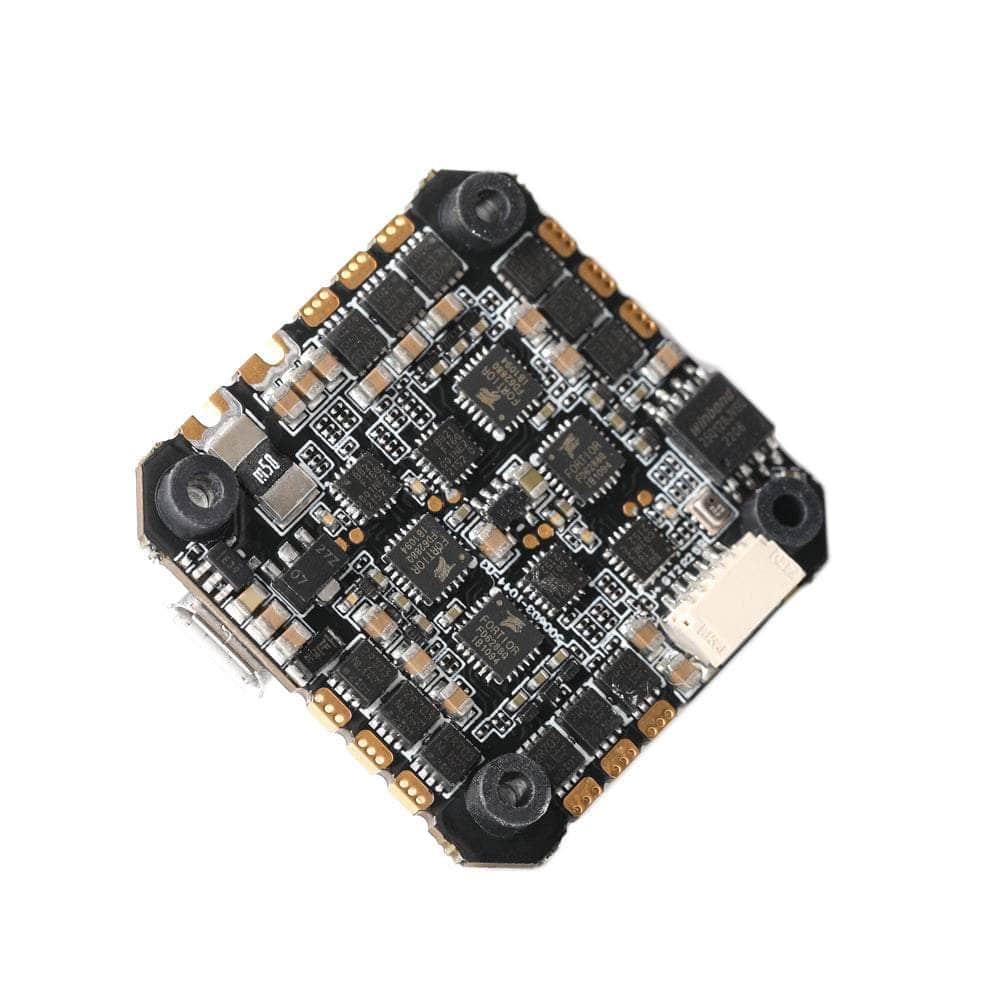

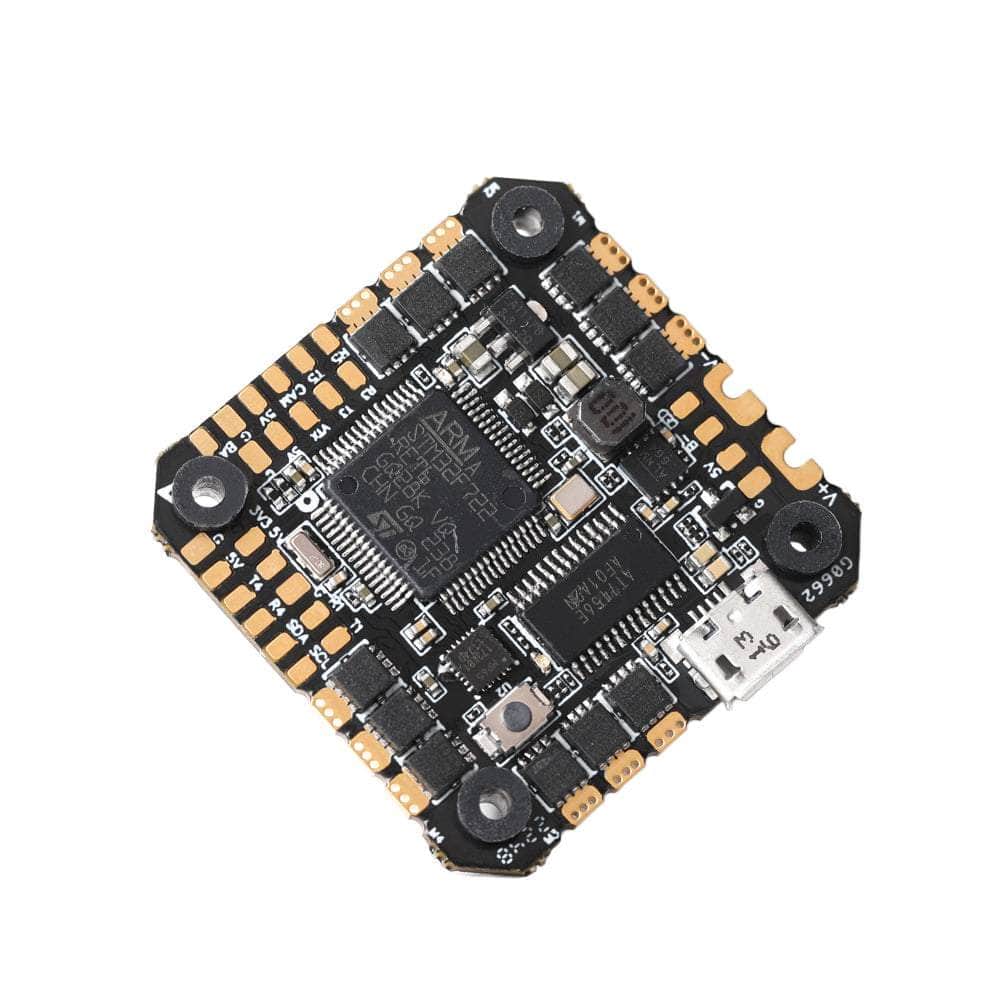

T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC

T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC

$124.99
$124.99
Add To Wishlist
View full details

Details

Description

This reliable flight controller with built-in 35A 8Bit 4in1 ESC designed by T-Motor offers efficient power for your Whoop/Toothpick. The F7 provides a 3-6S power supply and maintains fast and precise data processing for smoother transitions in flight. Enjoy improved accuracy and enhanced safety with this quality made AIO setup.

Check out all our Whoop/AIO Flight Controllers and all our T-Motor products!

Features

  • Integrated Barometer
  • HD VTX Socket
  • The onboard ESC works with Bluejay & BLHeli_S ESC firmware
  • 16MB of Black Box space
  • A quality MPU series gyroscope for better noise reduction & robustness

Specifications

  • MCU: STM32F722
  • Gyro: MPU6500
  • Barometer: BMP280
  • OSD: AT7456&HD
  • Black box: 16MB
  • BEC: 5V/1.5A
  • Input voltage: 3-6S
  • Continuous current: 35A
  • Peak current: 40A
  • ESC firmware: BLS\Bluejay
  • Size: 39x39mm
  • Mounting hole: 25.5x25.5/φ3mm
  • Supports HD and Analog
  • Recommendation: P1804/F2004/F2203.5

Includes

  • 1x T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 35A 8Bit 4in1 ESC

Wiring Diagram

More Info

  • SKU: 20739
  • Barcode: 6971360357520


Overall rating: 4.142857 / 5 from 7 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["aio"].

Review highlights

Reviews

Rips

"Rips"

— casey h. (5/5)

MPU6500 is not my friend

"not sure if i just got a bad one, or this gyro is extremely finicky? Ordered something different to replace.. if it turns out it wasn't the FC i'll update this review.. if GetFPV lets you do that..."

— Sean (3/5)

A wiring diagram wound be great.

"Flies pretty good for a custom build on a 3” frame spinning 1408 motors. I just really wish T-Motor would be consistent in at least a simple wiring diagram that can be easily found for this FC."

— JamesH (4/5)

Great AIO

"All in all great AIO. The only thing I would point out is that there aren’t any pads for a buzzer. Other than that it’s loaded."

— Razzaqa L. (5/5)

Great for a 3.5” ripper

"It’s a great weight saver for those sub 250g 3.5” quads."

— Christopher L. (5/5)

Not happy with this one

"I usually love Tmotor stuff but this AIO is junk, Tmotor failed on this one, This aio is trash and wont fit in anything but a big open frame 😡 The layout is trash."

— jeff d. (2/5)

Best aio board out there.

"Another great product by t motor. Standard aio layout makes installation fast and easy. With sub 250 quads being more popular now this is only choice for serious fpv enthusiasts."

— Sean P. (5/5)
