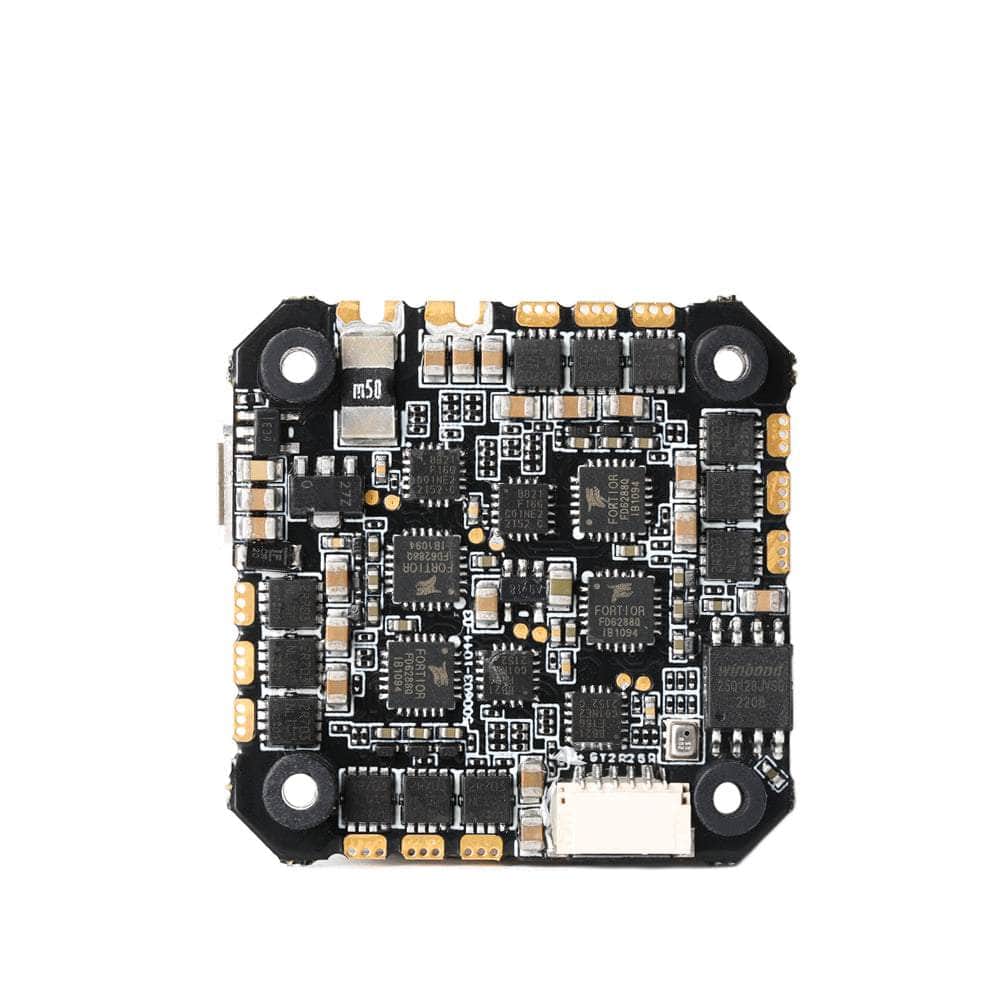

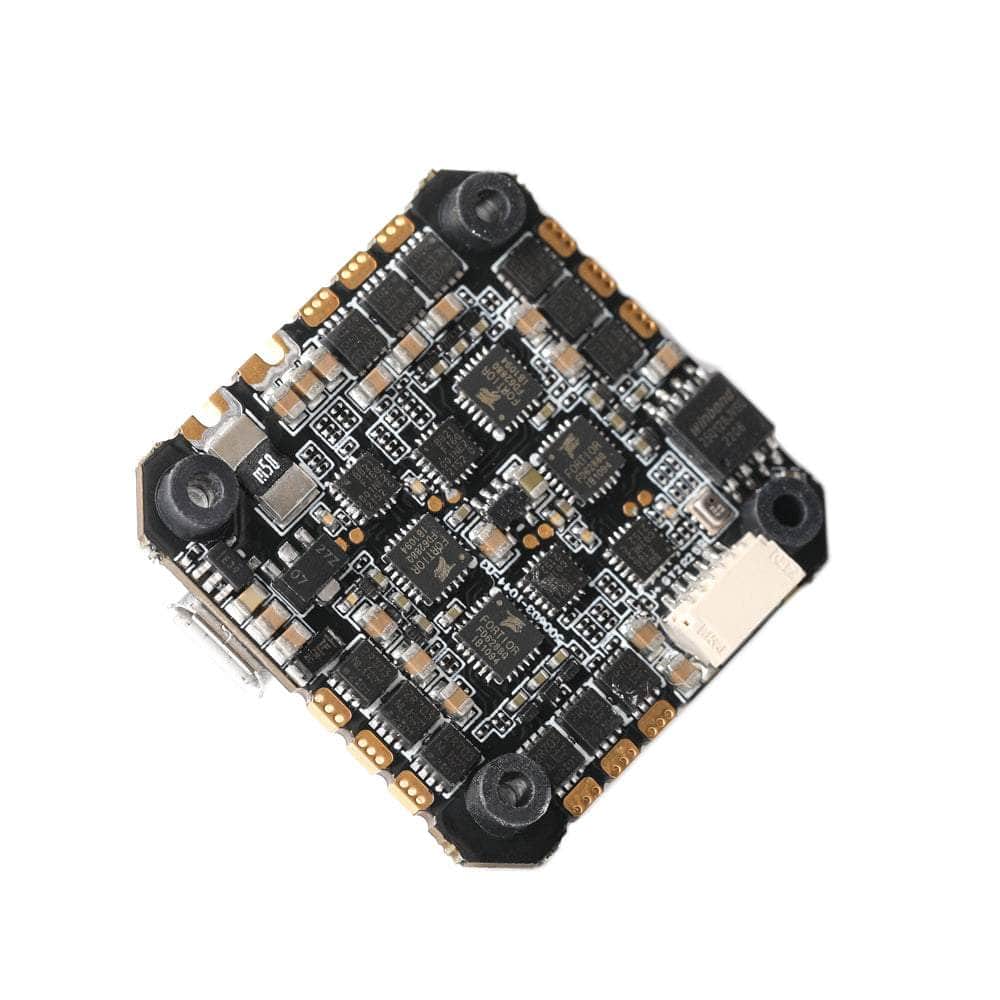

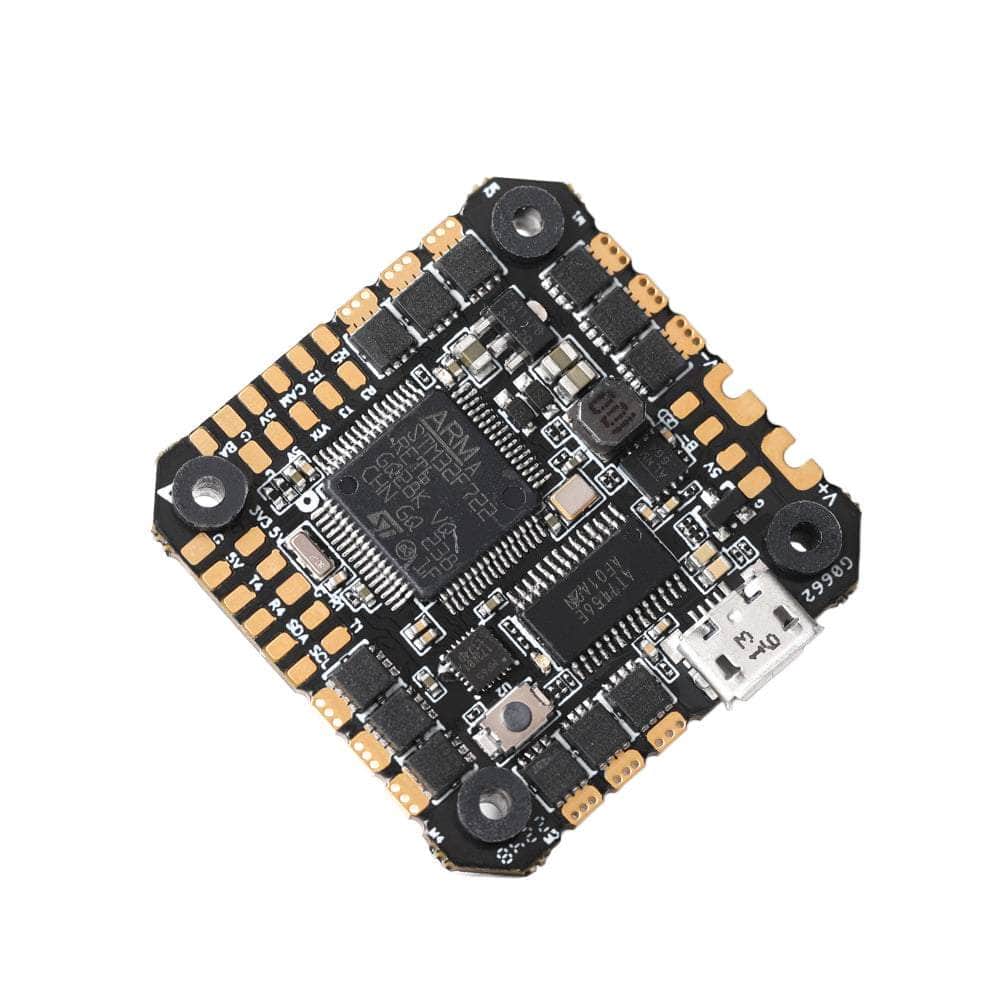

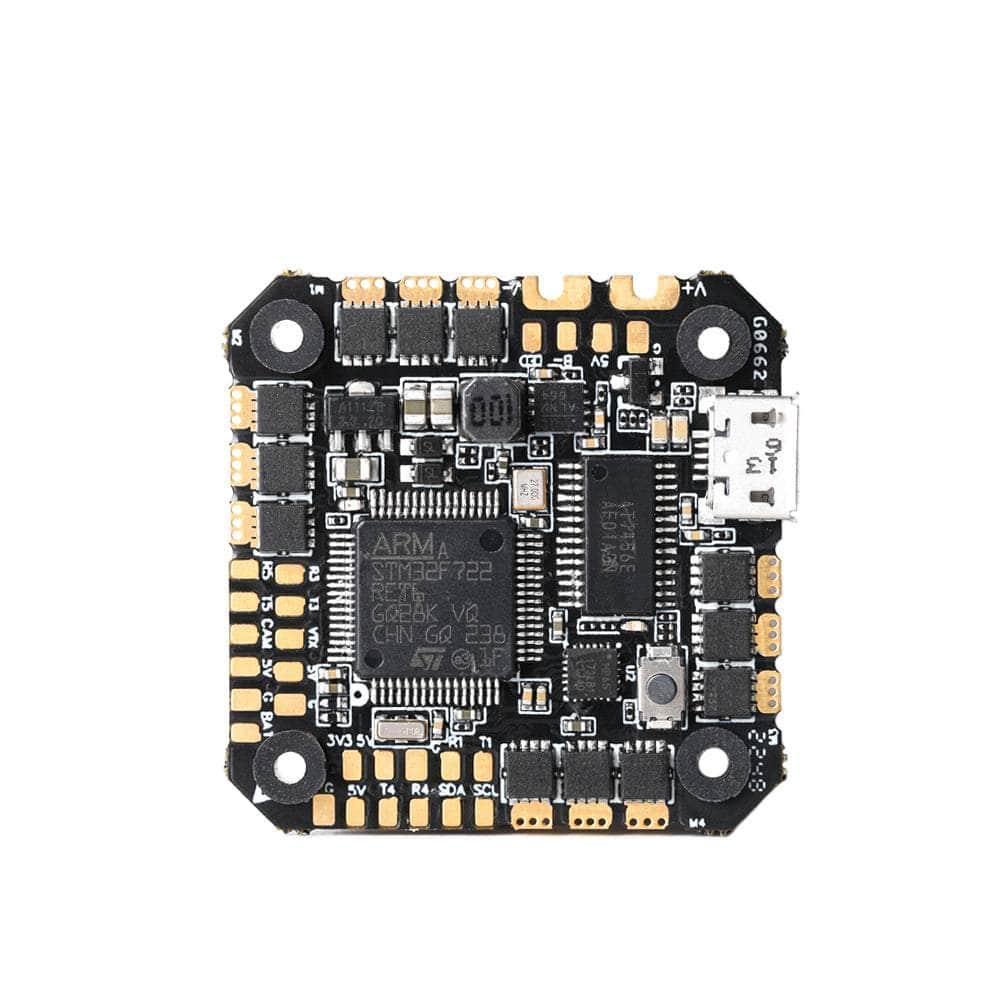

T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 45A 8Bit 4in1 ESC

T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 45A 8Bit 4in1 ESC

Regular price $148.99
Sale price $148.99 Regular price
Add To Wishlist
View full details

Details

Description

The T-Motor F7 AIO Flight Controller is designed for serious drone pilots, offering a 3-6S compatible 45A 8Bit 4in1 ESC for optimal power and performance. Perfect for 3" cinewhoop, 4-5" toothpick, and long range drones, this flight controller brings unwavering stability and agility to your flight.

Check out all our Whoop/AIO Flight Controllers and all our T-Motor products!

Features

  • Integrated Barometer
  • HD VTX Socket
  • The onboard ESC works with Bluejay & BLHeli_S ESC firmware
  • 16MB of Black Box space
  • A quality MPU series gyroscope for better noise reduction & robustness

Specifications

  • MCU: STM32F722
  • Gyro: MPU6500
  • Barometer: BMP280
  • OSD: AT7456&HD
  • Black box: 16MB
  • BEC: 5V/1.5A
  • Input voltage: 3-6S
  • Continuous current: 45A
  • Peak current: 50A
  • ESC firmware: BLS\Bluejay
  • Size: 39x39mm
  • Mounting hole: 25.5x25.5/φ3mm
  • Supports HD and Analog
  • Recommendation: P1804/F2004/F2203.5

Includes

  • 1x T-Motor F7 3-6S AIO Whoop/Toothpick Flight Controller w/ 45A 8Bit 4in1 ESC

Wiring Diagram

More Info

  • SKU: 20740
  • Barcode: 6971360357490
