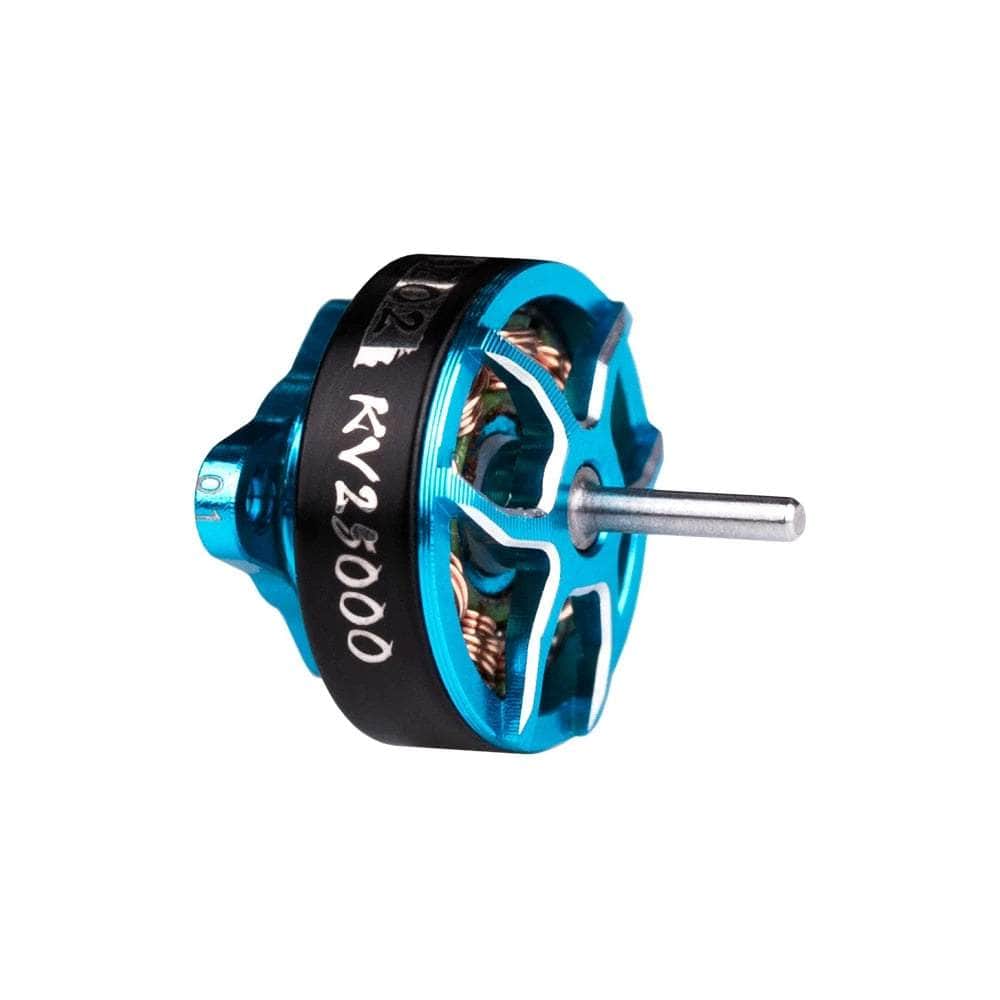

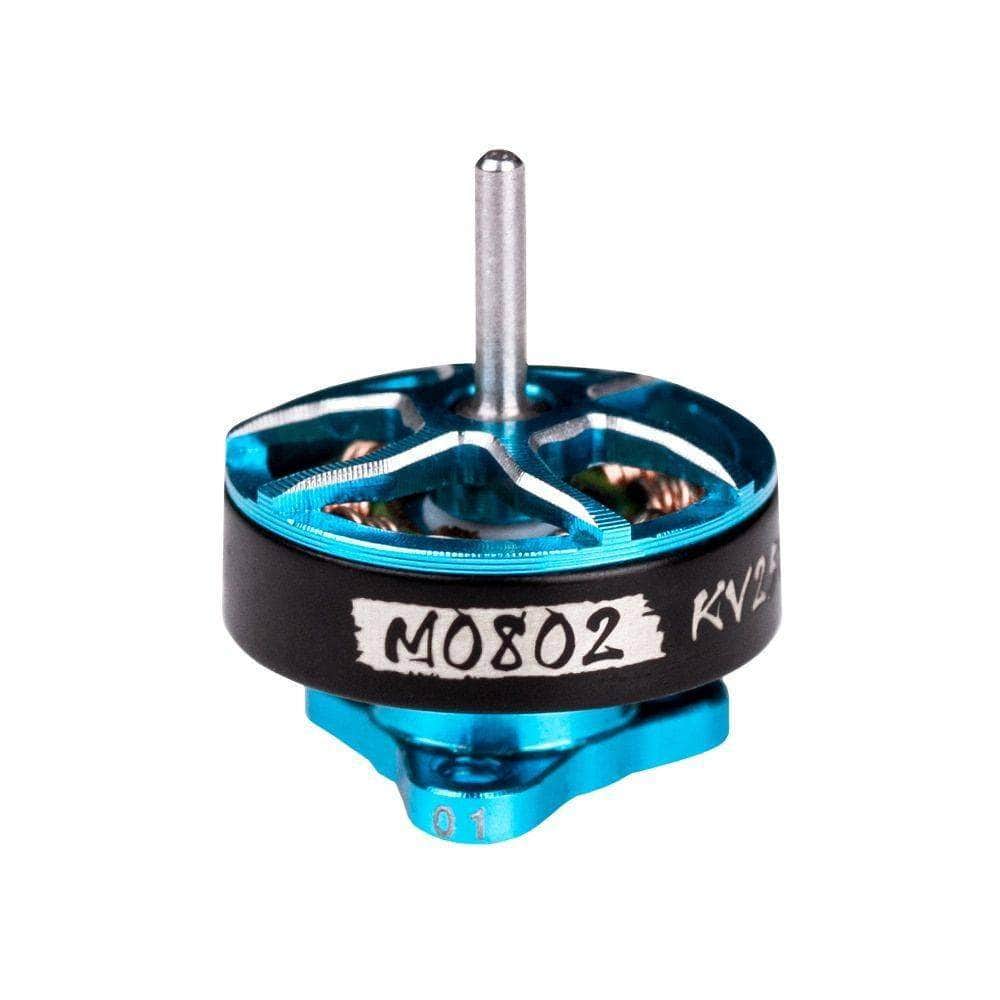

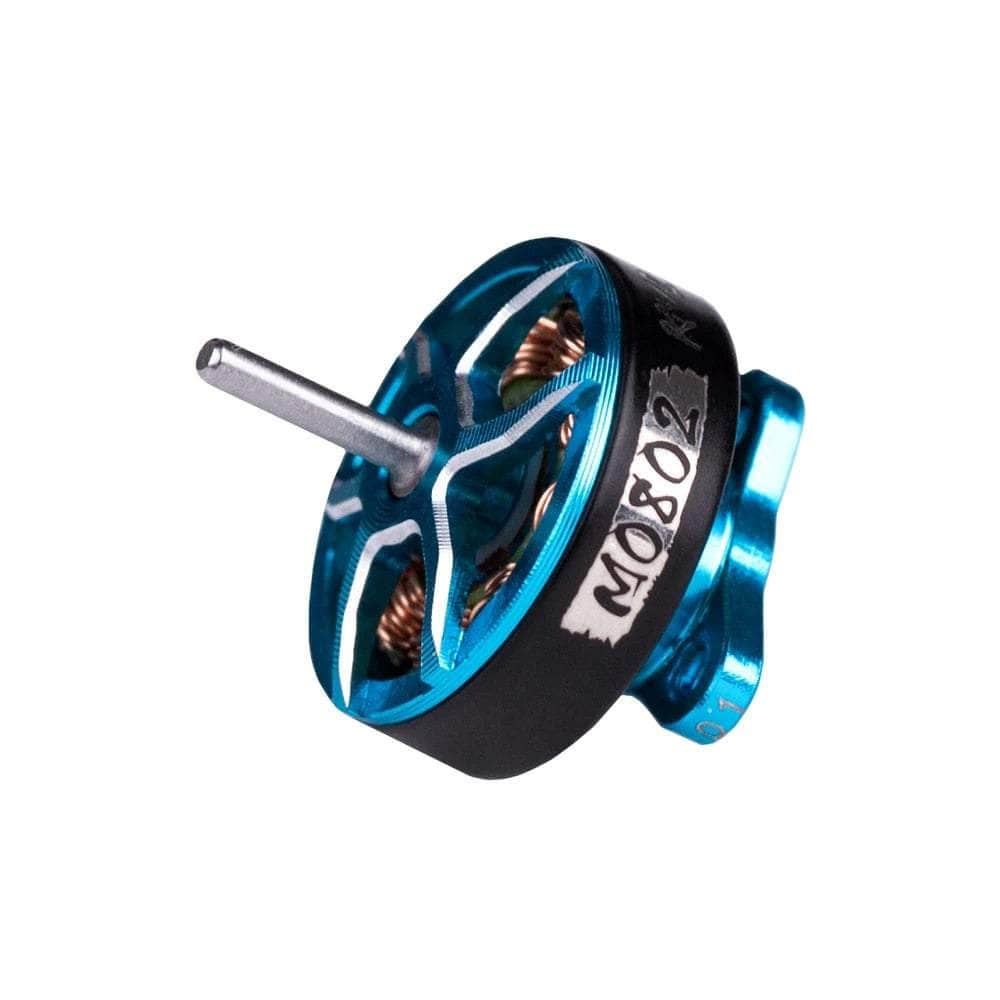

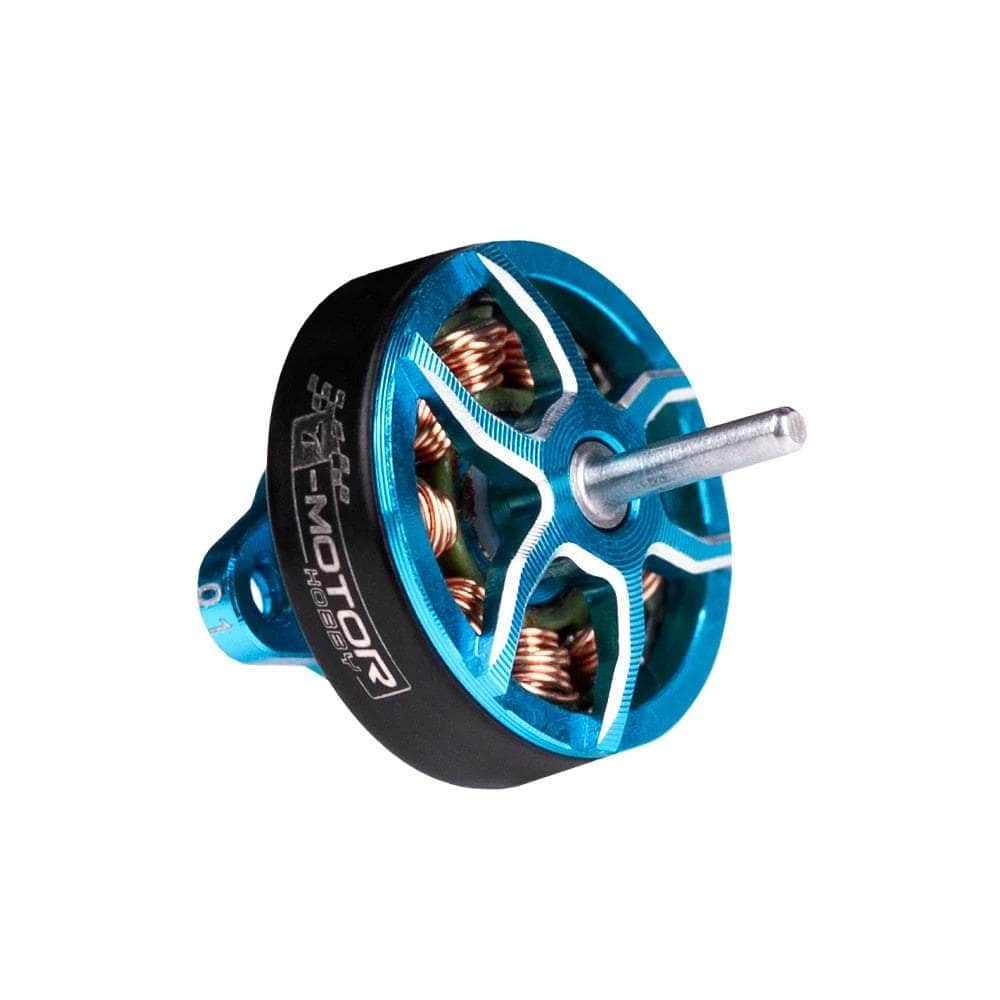

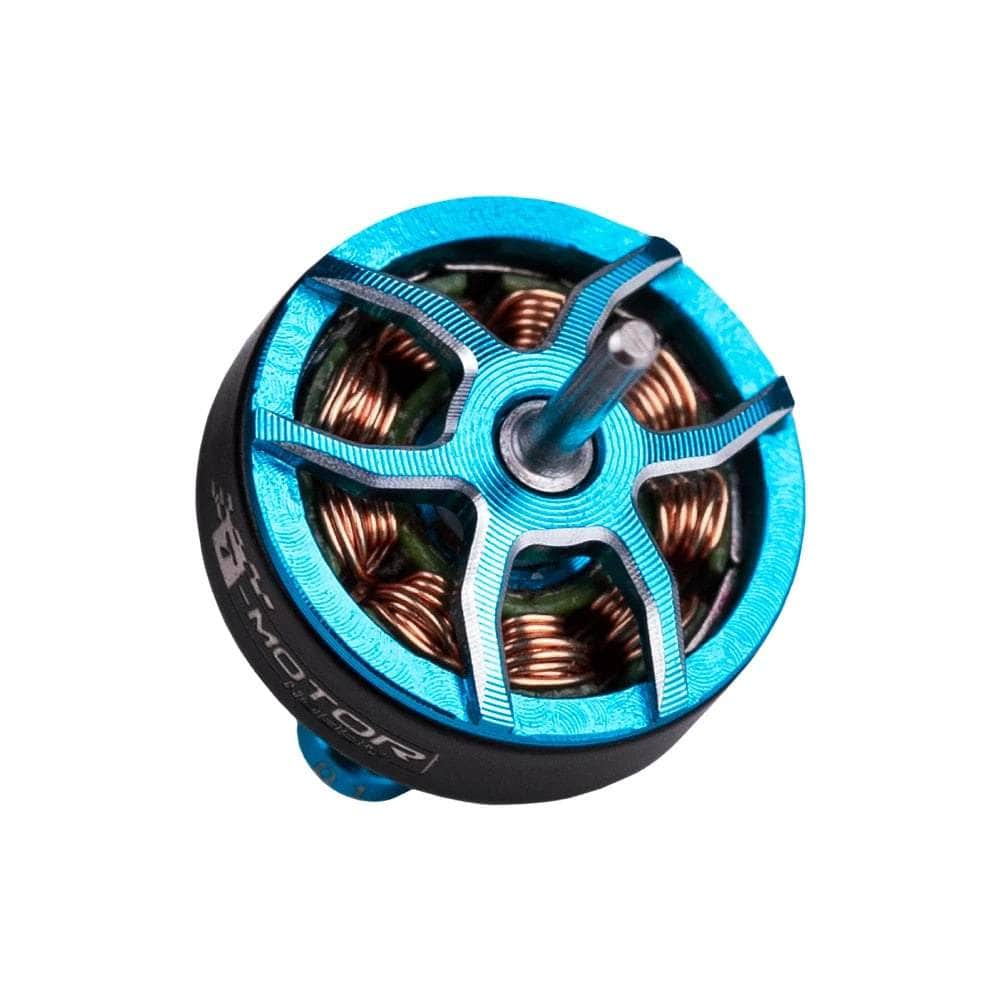

T-Motor M0802 0802 25000Kv Micro Motor - Black&Blue Bell

T-Motor M0802 0802 25000Kv Micro Motor - Black&Blue Bell

$2.80
$2.80 $13.99
Add To Wishlist
View full details

Details

Description

The tiniest T-motors! All the quality and style you expect from a T-Motor, Super clean black and blue bell design for your 1S whoop drones! These motors are equipped with JST-1.25 plugs on 33mm of motor wire. Grab yourself a set of these super fast and nimble 0802 motors!!

Check out all our motors and all our T-Motor products!

Specifications

  • Kv:  25000Kv
  • Input Voltage: 1S
  • Configuration:  9N12P
  • Max Continuous Current: 4.82A
    Internal Resistance: 180mΩ
  • Motor Dimensions: Φ10.6x14.7mm
  • Stator Dimensions: Φ8x2mm
  • Shaft Diameter: 1mm
  • Mounting Pattern: Φ6mm, 3x M1.4
  • Wire Dimensions:  JST-1.25, 33.5mm
  • Weight:  1.93g (w/ wire)

Includes

  • 1x T-Motor M0802 25000Kv Micro Motor

More Info

  • SKU: 19336
  • Barcode: 6971360357865


Overall rating: 4.0 / 5 from 4 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["motors"].

Review highlights

Reviews

Great for small builds

"Powerful and so far reliable"

— Rick C. (5/5)

75mm whoop

"Got these motors during the spring sale. Easy to work with, plenty of wire length even after removing the motor plugs. 25,000kv is enough for a 1s 75mm whoop but I prefer a little more thrust from my motors so 1002 or 1003 in the 22,000kv area is perfect for freestyle whooping. Still for what they are I really like these motors."

— Jason L. (4/5)

QC issues

"These motors perform very well... But they had some serious issues when it comes to the bell housing. it only took 3 weeks for two motor housing to become completely loose from the shaft."

— Jason P. (2/5)

Solid AF

"Run on 75mm frame with gemfan 1210 bi-blade 31mm for a punchy freestyle whoop. Yep, freestyle with plenty of power"

— jason w. (5/5)
