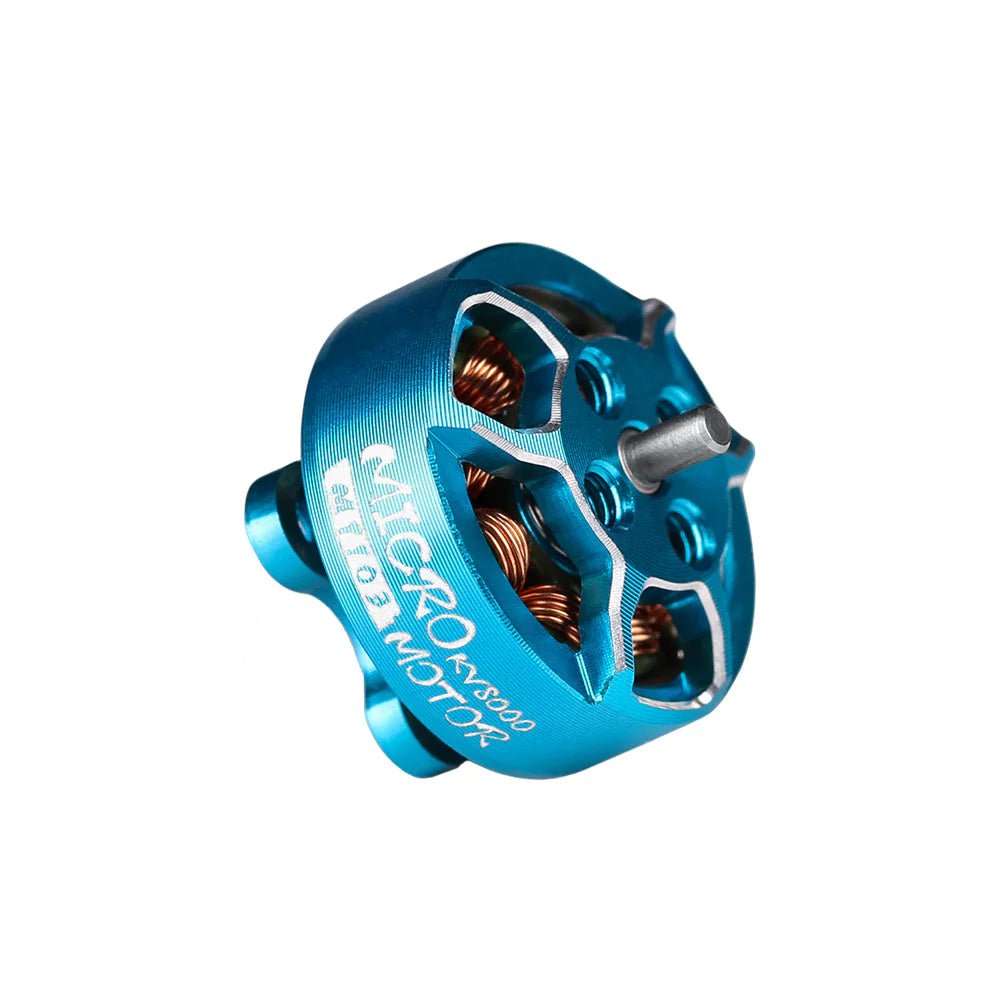

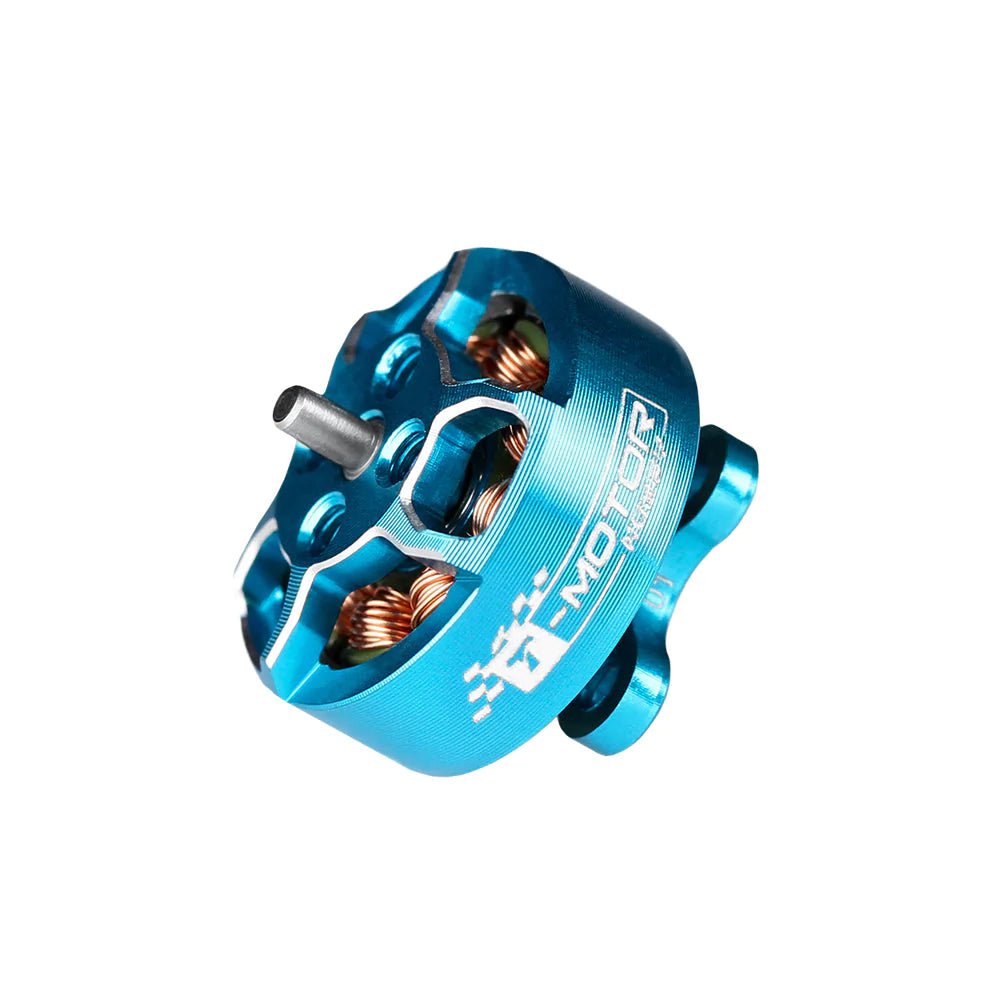

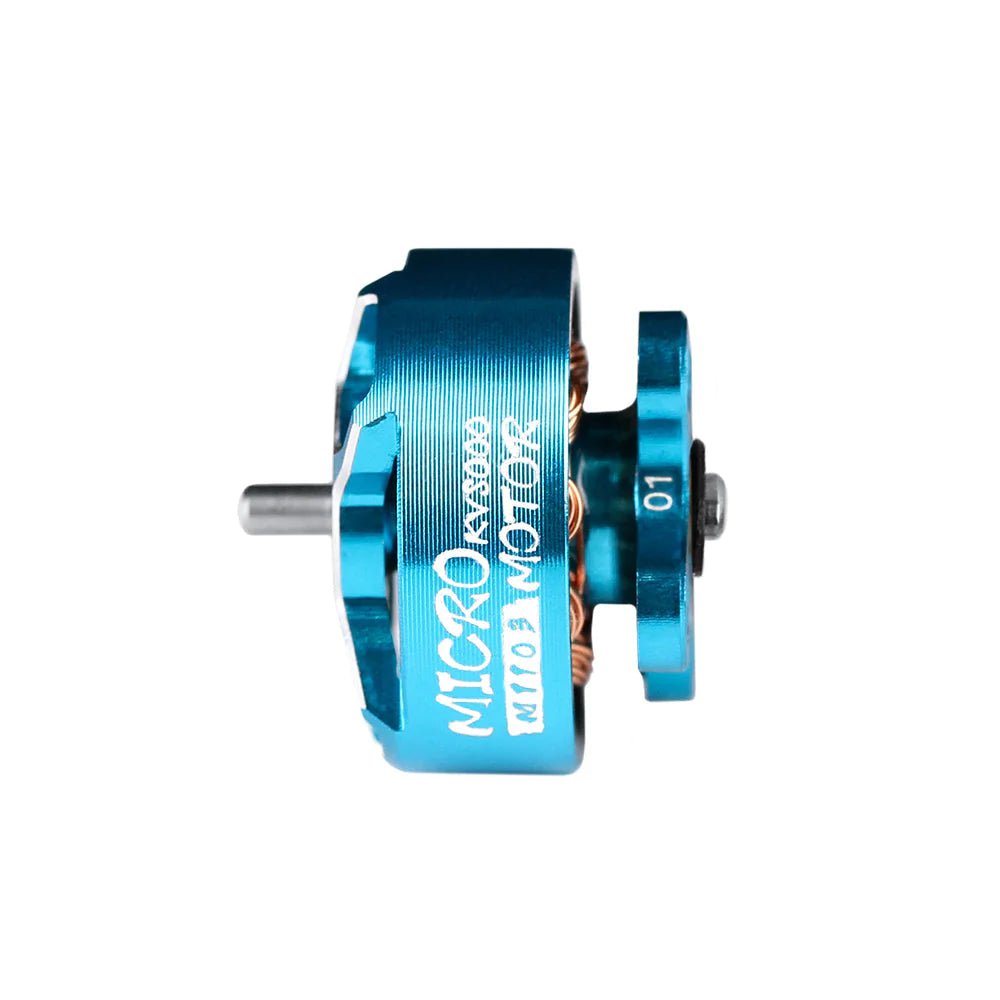

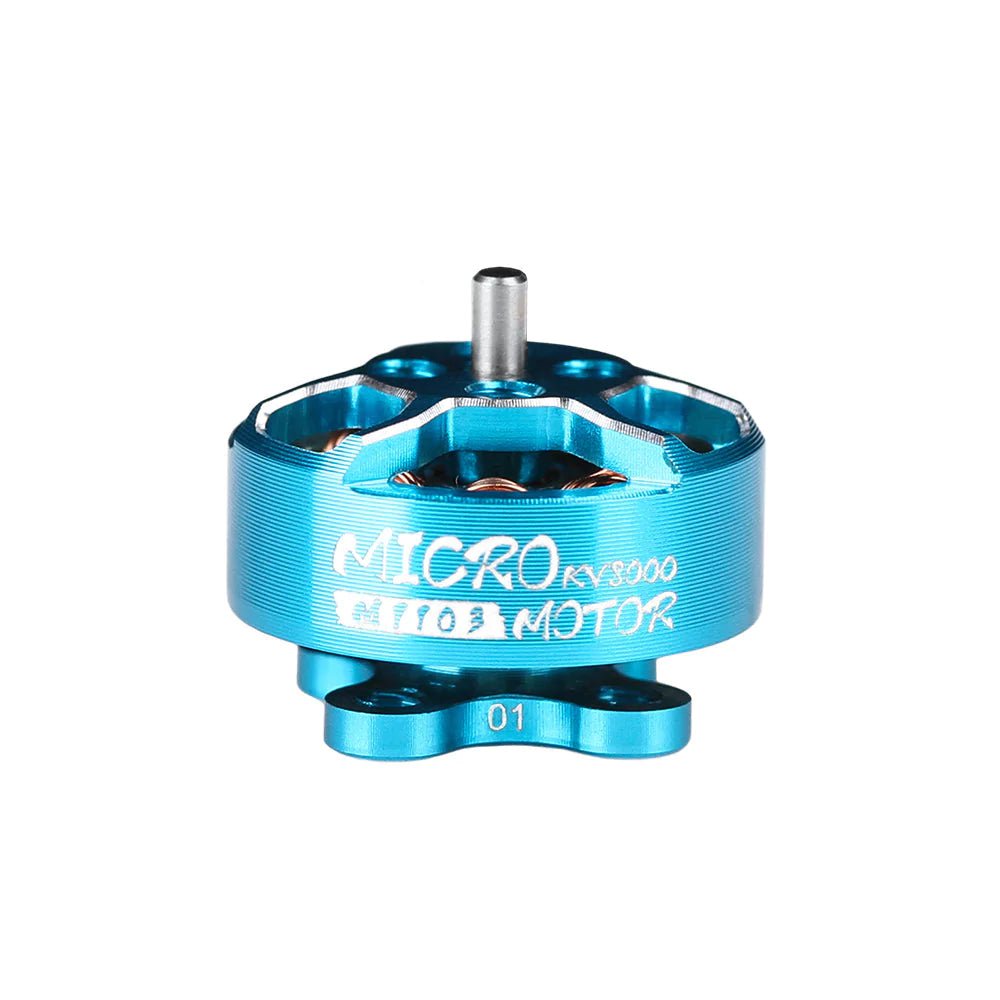

T-Motor M1103 11000Kv Micro Motor

T-Motor M1103 11000Kv Micro Motor

$14.49
$14.49
Add To Wishlist
View full details

Details

Description

T Motor designed these specifically for use in 2-3S toothpick builds where smooth and steady operation is key. Perfect for 65mm (t-mount or 1.5mm)props!

Check out all our micro motors and all our T-Motor products!

Features

  • Specially designed for 2-3S Toothpicks
  • Smooth across the entire RPM range
  • NBM502Z Bearing for steady operation
  • Stepped shaft design keeps the shaft from disengaging

Specifications

  • Kv: 11000
  • Input Voltage: 2-4S
  • Configuration: 9N12P
  • Max Continuous Current: 11.5A
  • Internal Resistance: 163mΩ
  • ldle Current@3V: 0.58A
  • Motor Dimensions: Φ14.4x14mm
  • Stator Dimensions: Φ11x3mm
  • Shaft Diameter: 1.5mm
  • Output Shaft Dimensions: Φ1.5x4mm
  • Wire Dimensions: 24AWG x 75mm
  • Mounting Pattern: Φ9mm, 4x M2
  • Weight (w/ wires): 4.6g

    Includes

    • 1x T-Motor F 1103 11000Kv Micro Motor


    More Info

    • SKU: TMOT-M1103-11K-BLU
    • Barcode: 6971360357025


    Overall rating: 5.0 / 5 from 7 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: ["motors"].

    Review highlights

    Reviews

    "Excellent motor for my 4 inch. This thing rips!"

    — Jonathan (5/5)

    2 inch build

    "I picked the motors up for my 2 inch build. Had some trouble with one of the motors had to re-hit the solder joints then it was fine. I added walk snail what a ripper Kriss fly."

    — Kriss f. (5/5)

    Great motors

    "I thoroughly enjoy these motors, very powerful and smooth. Especially on a 2.5” toothpick. Highly recommended"

    — Chase K. (5/5)

    Works Great

    "Used it as a replacement for my Mobula8. Same mounting holes and KV."

    — Stephen Y. (5/5)

    4 hole mounting

    "Didn’t realize this had a four post mount, so didn’t end up using them on my build but they look well built and will use them on a future 2”."

    — Kevin S. (5/5)

    Excellent single motor replacement

    "Running as a back-up motor on a toothpick quad. Easy to install and set up in Betaflight."

    — Blane H. (5/5)

    Awsome motors

    "They are awsome way better then the mid tier cheap motors. These on 2 cell is awsome"

    — Brandon B. (5/5)
