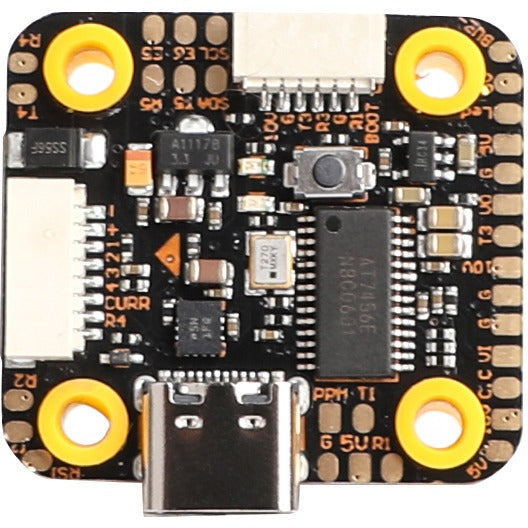

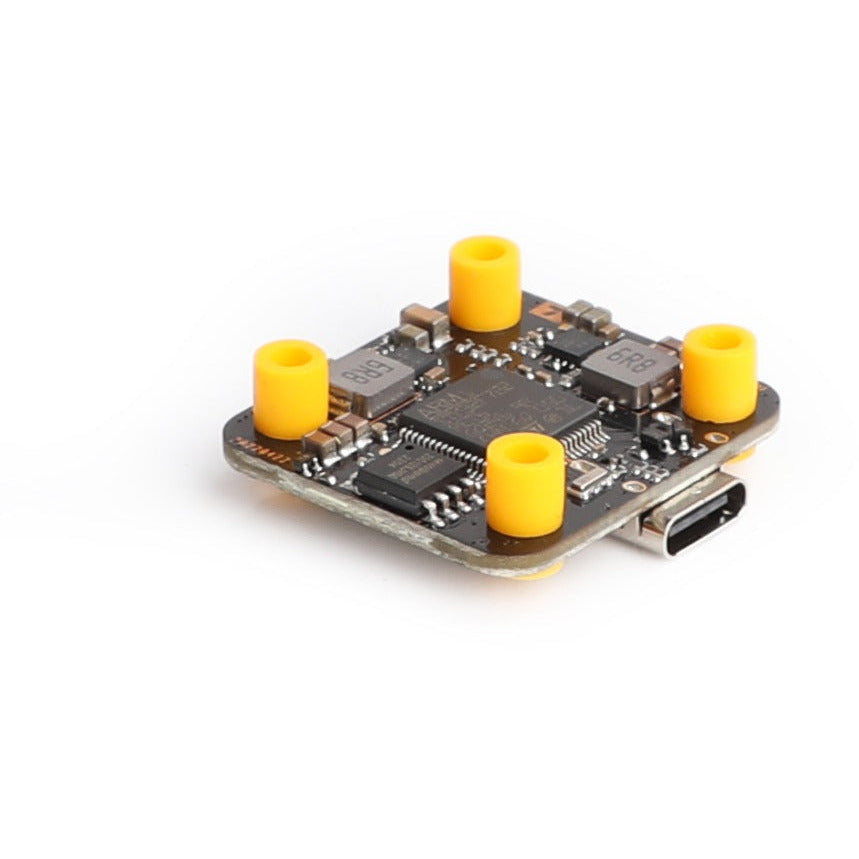

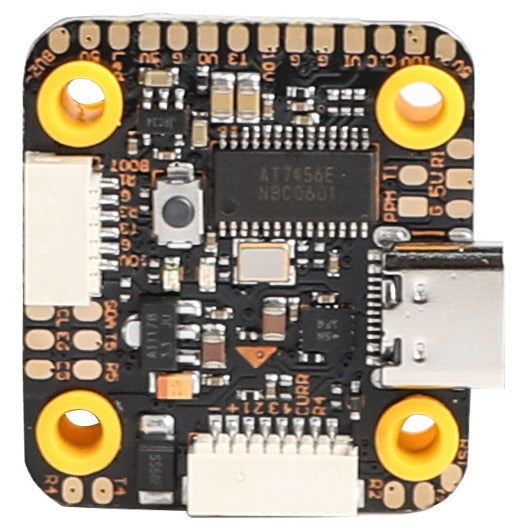

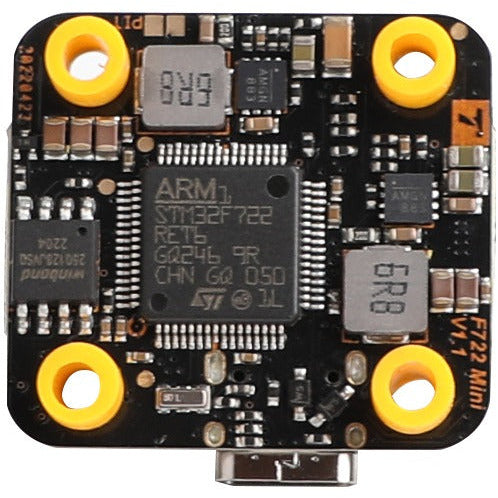

T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch - BMI270

T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch - BMI270

$94.99
$94.99
Add To Wishlist
View full details

Details

Description

T-Motor's Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the DJI Digital HD FPV System. Compare to standard versions of this FC, the mini FC is lighter and stronger. Featuring F722 high-speed, noise reduction, BMI270 gyroscope, Oneshot125/Oneshot42, Multishot, common PWM signals, PIT switch function, and many other cool features that make this FC unique!

Paid this with the T-Motor Mini F45A 6S ESC for the ultimate power stack!

Check out all our 20x20 FCs and all our T-Motor products!

Specification

  • Brand: T-Motor
  • Item Name: F722 MINI Flight Controller
  • Input Voltage: 3-6s
  • BEC: 5v/2A, 10V/2A (For DJI HD VTX)
  • Main Control: STM32F722
  • Gyroscope: BMI270
  • RAM: Onboard 16M
  • OSD: Support
  • Barometer: No
  • Mounting pitch: 20x20mm
  • Weight: 5.1g
  • Firmware: TMOTORF7 (STM32F7X2)

Includes

  • 1x T-Motor Mini F7 HD 20x20 Flight Controller w/ VTX Switch

More Info

  • SKU: TMOT-AFV01000001
  • Barcode: 6971360354468


Overall rating: 4.8 / 5 from 5 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["control"].

Review highlights

Reviews

Great 20x20 fc

"This paired with a tmotor 20x20 40a esc has been a good problem free setup for my smaller quads."

— Jeremy S. (5/5)

Great mini Fc

"I use this on my 3”, good quality. The HD video port allows me to plug the O3 right in"

— Thomas D. (5/5)

Working properly

"Flight controller is working properly. Not the best pad placement as some UARTs do not have 5v pads near them. Do like the built in pit mode."

— Tom A. (4/5)

Love the USB C. Flawless

"Love the USB C. Flawless link up with my Walksnail VTX and Tmotor ESC"

— Jacob F. (5/5)

Nice little 20x20 FC

"this is a nicely constructed little F7 flight controller. It has plenty of uarts, pit switch and T-MOTOR quality. This is my second one, and would definitely buy again"

— Brian L. (5/5)
