Description

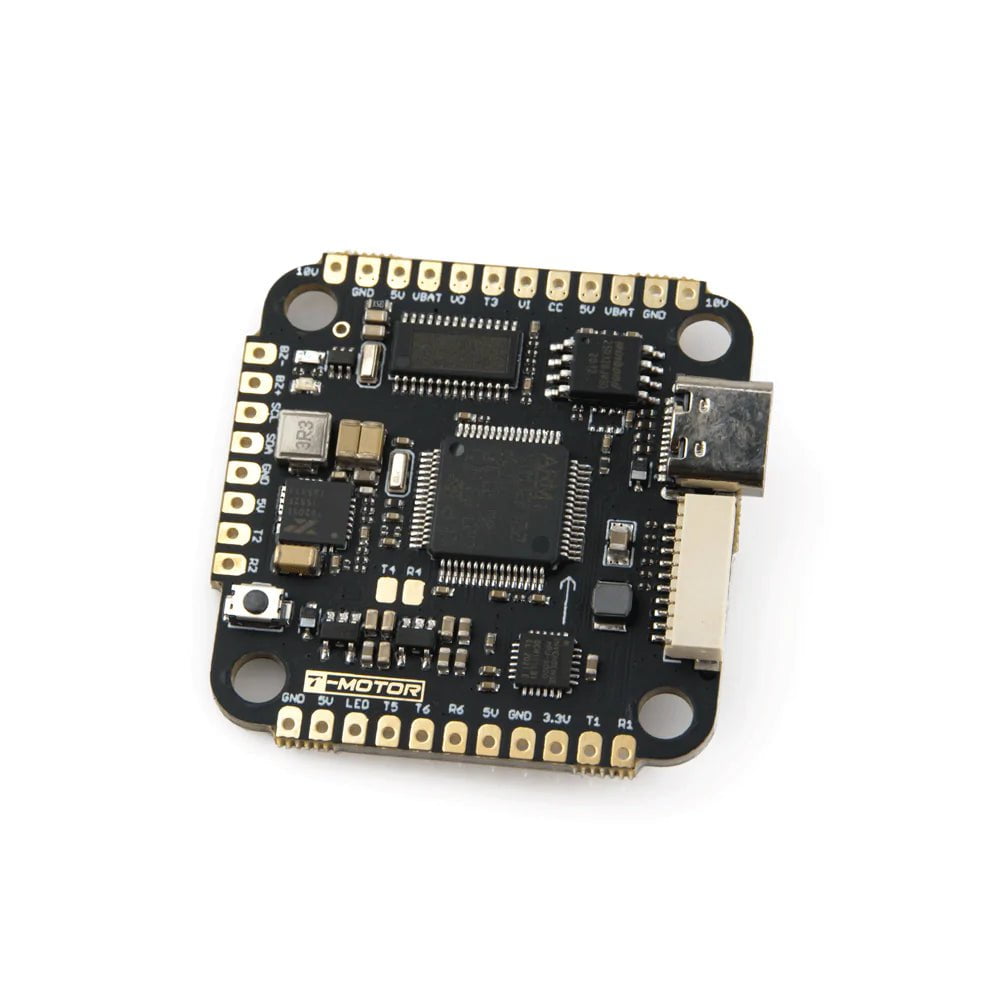

T-Motor's Pacer F7 USB-C Flight Controller is designed to work seamlessly with the F45A 2.0, F55A Pro II, V45A, P50A, P60A 4-in-1 ESC. Come with an onboard 5V 3A BEC, 6 UARTS, built-in OSD, and built-in LC filter, among other cool features!
Check out all our 30x30 Flight Controllers, and all our T-Motor products!
Features:
- Enlarged solder pads on edge, easy connection
- Build-in OSD chip supports BF OSD function
- 6x Hardware UARTs
- 3-6S lipo direct input
- Onboard 5V 3A BEC
- Support camera control function
- Build-in 128Mbit/16MByte flash for black-box function
- Built-in LC filter, filter power noise, and supply clear picture
- Direct plug with F45A 2.0, F55A Pro II, V45A, P50A/P60A 4in1 ESC (T-Motor 4in1 ESC)
- 5x 10V Power pad (2x Top and 3x Bottom), to power Video devices(only available when T-Motor 4-in-1 ESC w/ 10V BEC is connected)
Specifications
- Input Voltage: 3-6S
- MCU: STM32F7
- Gyro: BMI270
- Memory: 8M
- BEC: 5V/2A
- Mounting Holes: 30x30mm M3
- Weight: 5.3g
Includes
- 1x T-Motor Pacer F7 Single Sided 30x30 Flight Controller
More Info
- SKU: 14652
- Barcode: 6971360358602
