Description

High torque metal gear digital servos, ideal for flying wings in the weight class of 1kg to 3kg AUW. 25cm servo lead.

SPECIFICATIONS

• Weight 28g±1g
• Size 35*15*30mm
• Control System (+)Pulse Width Control 1500usec Neutral
• Operating Voltage 4.8.0~6.0Volts
• Operating Temperature Range (-)10 to +50 degree C
• Operating Speed (6.0V) 0.12sec/60° at no load
• Operating Speed (7.4V) 0.10sec/60° at no load
• Stall Torque (6.0V) 2.2kg.cm
• Stall Torque (7.4V) 2.5kg.cm
• Operating Angle 45deg.one side pulse traveling 500 usec
• Direction Anticlockwise/Pulse Traveling 1000~2000usec
• Current Drain (6.0V) 20mA/idle and 120mA no load operating
• Current Drain (7.4V) 20mA/idle and 150mA no load operating
• Stall Current 0.8A/0.9A
• Dead Band Width 2usec
• Motor Type Coreless motor
• Bearing Type ball bearing
• Horn gear spline 25T
• Gear Type Metal
• Connector Wire Length 250mm

INCLUDES

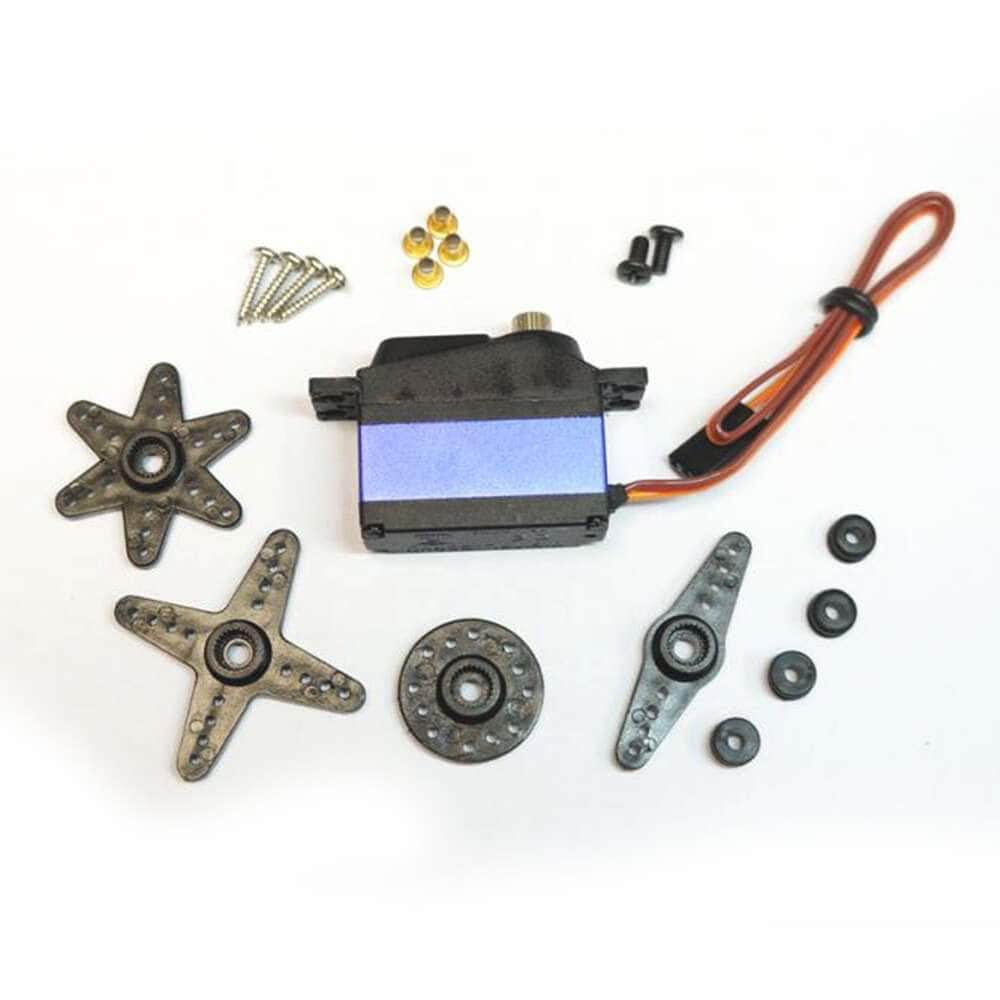

1 x TBS Caipirinha 2 - Servo Kit
