TBS Crossfire Diversity Nano Receiver
ATTENTION: UPDATE YOUR CROSSFIRE TRANSMITTER TO V2.88 OR ABOVE BEFORE BINDING!
Presenting the smallest full-fledged diversity receiver of any frequency, even boasting a power-redundancy circuit (battery not included!)
True Diversity, Full Range.
The TBS CROSSFIRE Diversity Nano Receiver is a compact R/C receiver with 8ch outputs (PPM, SBUS, and CRSF capable), with best-in-industry noise-rejection and record-breaking range capability. It is the only receiver to provide a true dual-input stage, chip-based diversity, with the usual filtering and noise rejection from onboard video systems.
Ever lost a plane and spent hours looking for it? Enter the TBS CROSSFIRE beacon mode. The diversity nano receiver comes with a LiPo battery port where you can connect an optional backup port (1s). It will keep the receiver running for a full day after all onboard electronics are gone. It will be screaming for help by giving you its GPS coordinates, and also blasting out RF beacon signals that will allow you to pinpoint its location even if no GPS was ever on your airplane. The backup battery (1s) will also be charged as soon as you apply power to the rig.
FLARM is Here!
FLARM is a traffic awareness and collision avoidance technology for General Aviation, light aircraft, and UAVs. The TBS Crossfire Diversity Nano RX's will be able to broadcast on the FLARM network for free, receiving drone and general aviation traffic information on your OSD requires additional licenses. Paired with the CORE PRO or FPVision and TBS GPS, you can get a virtual radar showing other FLARM devices around you (~3km range).
This allows safe navigation in crowded airspace or nailbiting proximity formation flights with your buddies! Fullscale aviation will be alerted if your drone is on a collision course with them, and vice versa.
- Weight: 1.8g (receiver only)
- Size: 24mm x 18mm
- Requires: Firmware V2.87

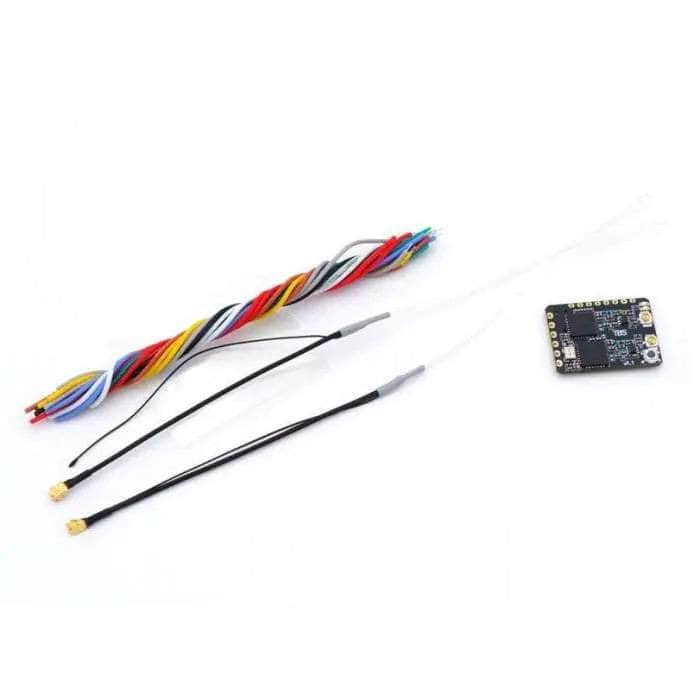

- 1x TBS Crossfire Diversity Nano Receiver
- 2x TBS Crossfire Micro Receiver Antenna
- 1x Spare shrink tube
- 14x 30awg silicon connection wires
