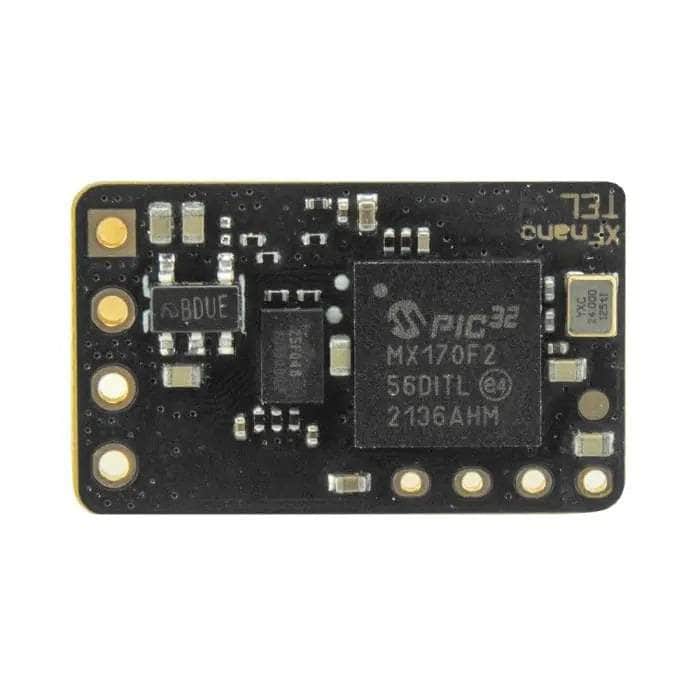

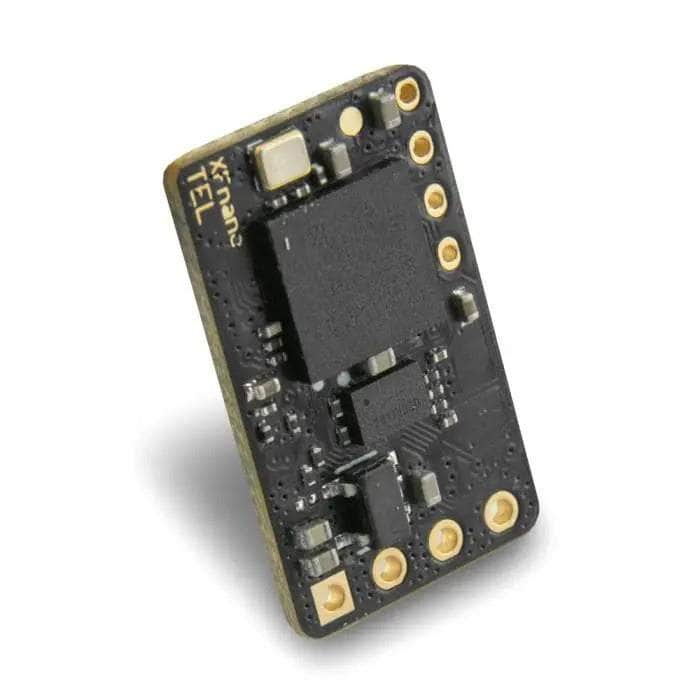

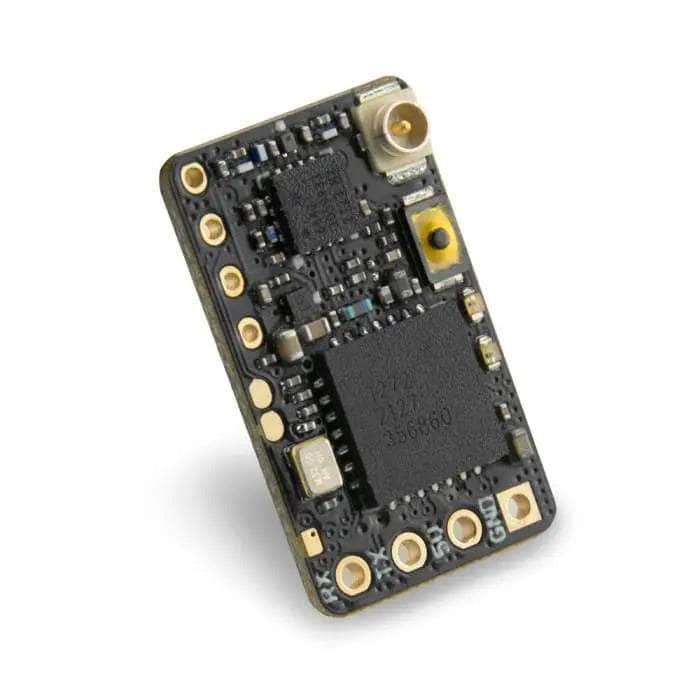

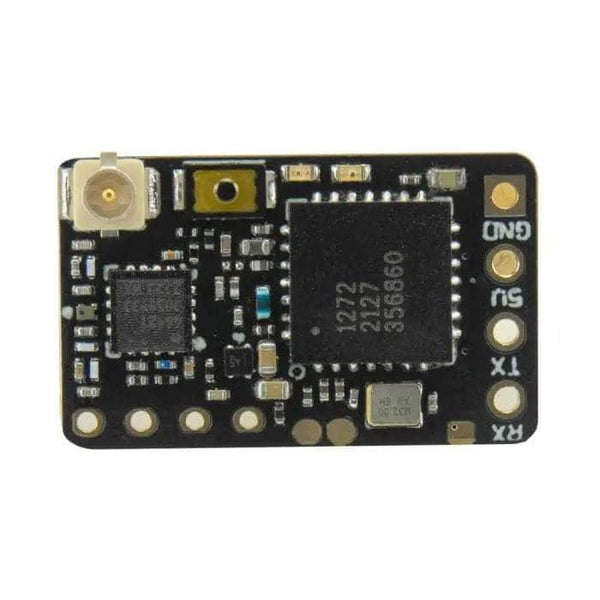

TBS Crossfire Nano Rx Pro - CSFR Receiver

TBS Crossfire Nano Rx Pro - CSFR Receiver

Regular price $41.99
Sale price $41.99 Regular price
In stock
In stock
Add To Wishlist
View full details

Details

Description

The TBS Crossfire Nano RX Pro is a higher telemetry output power option of the de-facto FPV standard receiver. It packs up to 500mW of output power and will ensure that your 50km flights occur without ever losing telemetry.

Check out the rest of out TBS Products and our RC Transmitters!

Features

  • 500mW Output Power (downlink)
  • 20x Power of standard Nano Rx
  • Higher Telemetry Output
  • Full Range Receiver

Specifications

  • Output Power: Up to 500mW
  • Weight: 0.5g (receiver only)
  • Input Power: +3.3V to 8.4V
  • Requires: Firmware V6.14
  • Size: 11mm x 18mm

Includes

  • 1x TBS Crossfire Nano Receiver Pro
  • 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
  • 1x TBS Crossfire Immortal T Antenna
  • 1x Spare Shrink Tube
  • 1x Pin header (1x4)

More Info

  • SKU: 17822
  • Barcode: 703674146912


Overall rating: 4.901961 / 5 from 51 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["design","setup","issues","packs","works","tbs","vtx","connector","attention","range","receiver"].

Review highlights

Reviews

Been using crossfire for years

"Been using crossfire for years and these have always been rock solid for my 5 inch and long range builds."

Sam T. (5/5)

GAME CHANGER

"TBS 🔥"

Nikini A. (5/5)

"My go-to for receivers. I know a lot of people have moved to ELRS but I've stayed with TBS because it just works and is easy to use. No binding issues none of that. Just simple and user-friendly."

Michael (5/5)

Works!

"This was easy to set up, and it just works. I haven't had any problems with it."

David W. (5/5)

Worked really well for both RC and MAVLink!

"was able to connect to my speedybee F405V3 board via both RC and MAVLink, and fly it with Ardupilot. For mavlink, the catch was to use the CH OUT 3 & 4 (as TX/RX)."

Matheus S. (5/5)

Crossfires amazing, I have expressed

"Crossfires amazing, I have expressed in my boxer and I still have yet to use it because imperfectly fine with cross fire. It works amazing connectivity is solid i feel Confident when flying i'm never worried about d syncs or anything"

Justin A. (5/5)

Tbs nano pro

"Excellent receiver works great simple to update and also simple to bind no headaches!!"

Domingo j. (5/5)

🍻🤙🤟🇺🇸

"Super super super knowledgeable staff and very friendly and not but not least quick responses in both emails and calls thanks will do more business in the future 🇺🇸🍻😊☺️"

Eric V. (5/5)

Hidden gem

"Do you know this tiny puppy has 500mW of output power when needed? That's reason enough to have it"

Alex B. (5/5)

everythin

"I recently purchased the TBS and my initial impressions have been nothing short of stellar. From the moment the package arrived, it was evident that the company took great care in ensuring a top-notch unboxing experience. The packaging itself was not only sturdy but also exuded a sense of elegance. The attention to detail was evident, from the neatly arranged branding to the secure tape that held the box together. It's clear that the company values presentation, and it immediately instilled confidence in the product. Upon opening the box, I was pleased to find the product nestled snugly within layers of protective cushioning. This meticulous packaging ensured that my purchase arrived in pristine condition. It's always a relief to receive a product without any dings or scratches, and this company certainly excelled in delivering a flawless item. The product itself is a work of art. The design is sleek and modern, matching the aesthetics promised in the marketing materials. The attention to detail extends to every aspect of the product, from its construction to the precision of its components. Holding it in my hands, I could sense the quality craftsmanship that went into its creation. Now, I'm eagerly looking forward to trying out the product and experiencing its functionality firsthand. The excitement that accompanied the unboxing has only heightened my anticipation for the actual use of the product. From the initial presentation to the product's condition, this purchase has been a testament to the company's commitment to excellence. In conclusion, I am thoroughly impressed with my purchase of TBS. The outstanding packaging and impeccable condition in which it arrived have set the stage for what promises to be a delightful product experience. I would not hesitate to recommend this product, not only for its functionality but also for the overall satisfaction derived from the thoughtful and meticulous attention to detail exhibited by the company."

Nassr A. (5/5)

Q&A

How many volts can you use with this? The pads & manual say 5v input but the description says 3.3V - 8.4V.
It has a minimum voltage requirement of 3.3V to work but it can handle as much as 8.4V. I always connect mine to one of the 3V or 5V pads on the FC board so it will work on USB power to configure the FC settings without having to connect a battery.
