Description

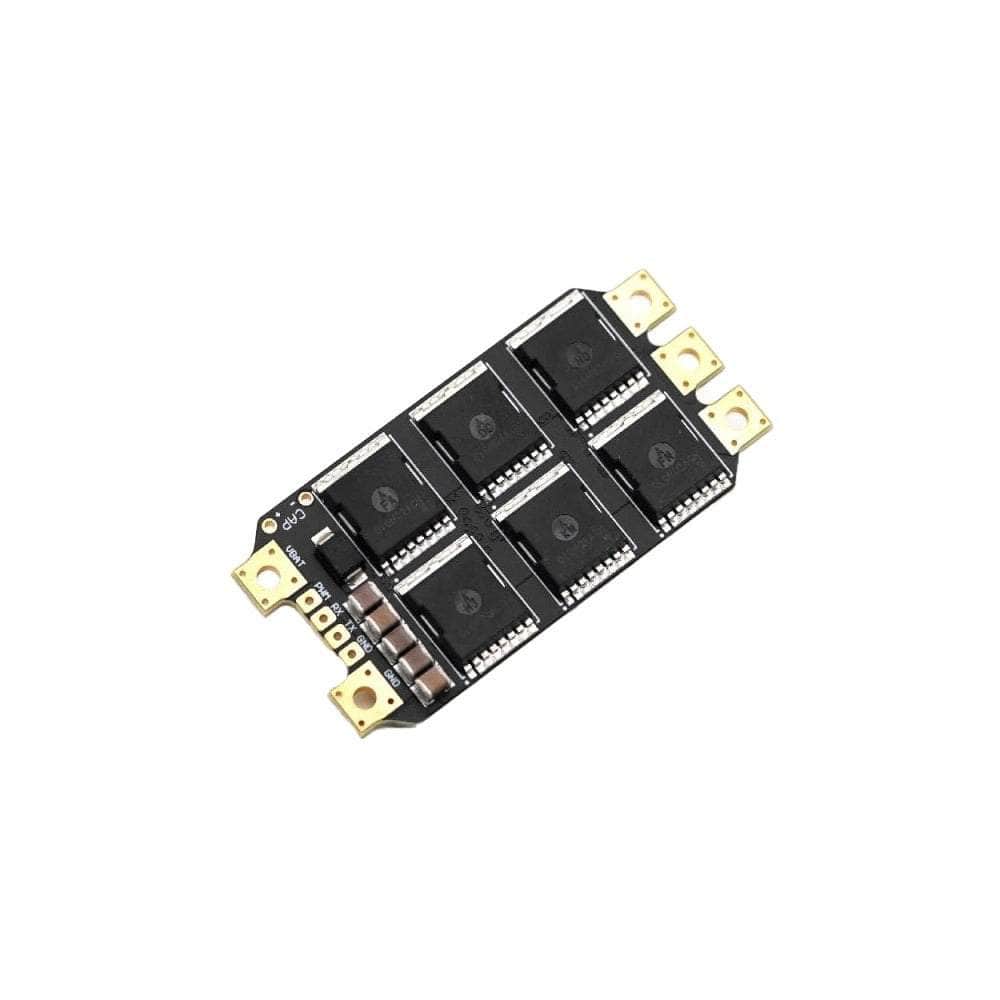

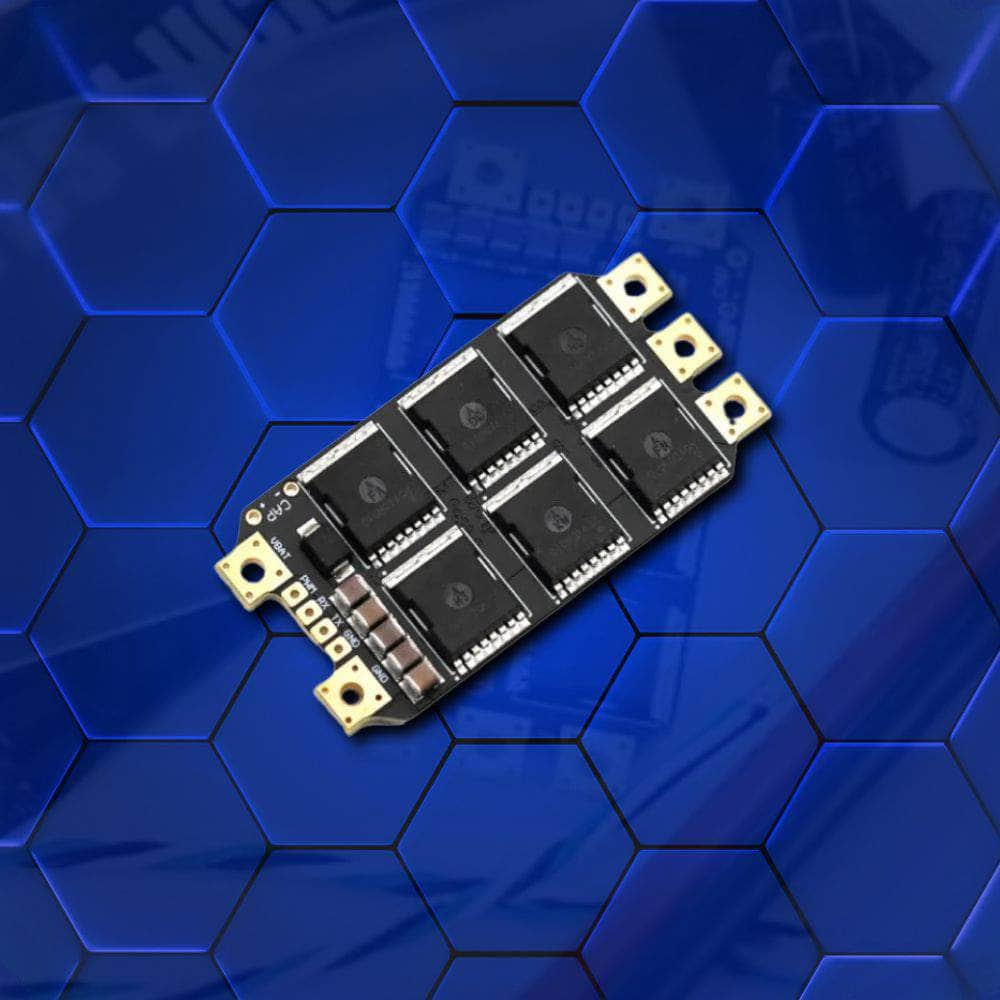

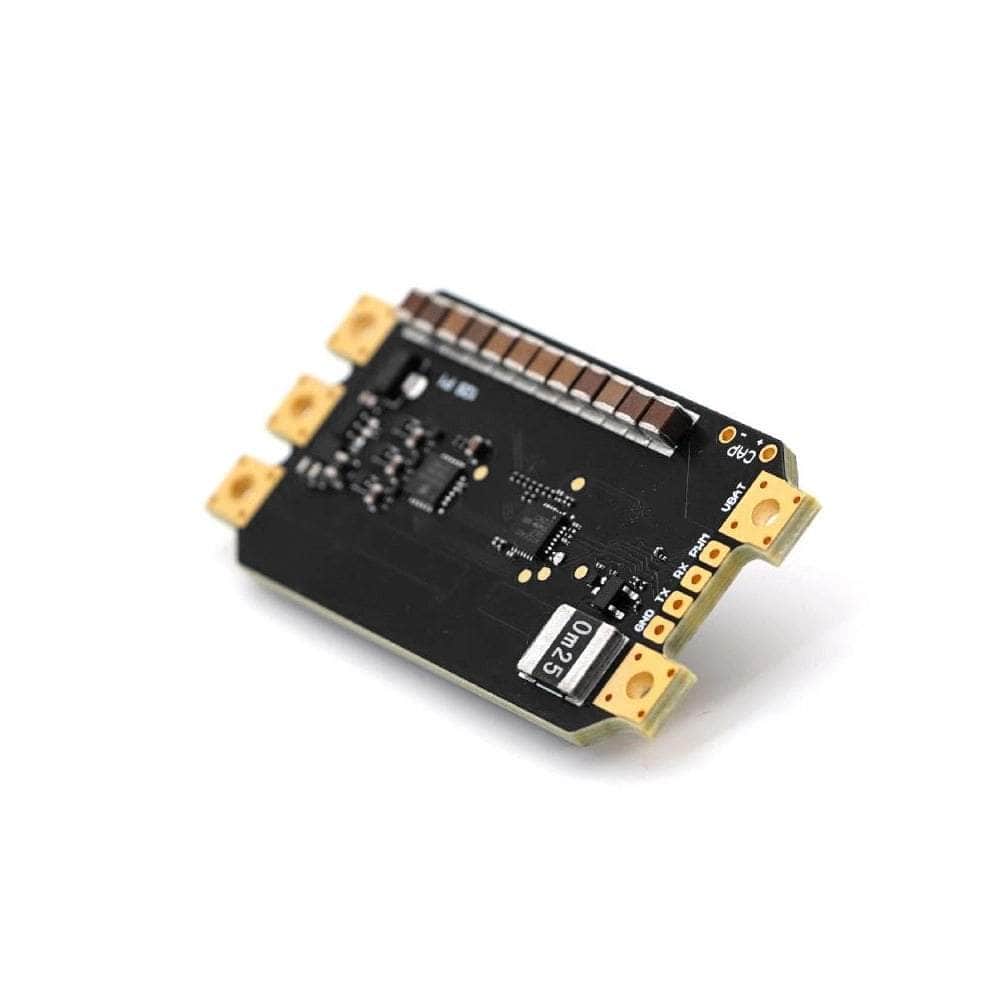

The TBS Lucid 90A 3-12S AM32 ESC is ready to deliver the power you need! With exceptional reliability and durability, its 8-layer high-current board provides heat resistance and voltage spike protection, without heavy heatsinks. As a single ESC it can support a variety of UAVs. The Lucid 3-12S delivers peak performance at an affordable price.

Check out our Individual ESC selection as well as our TBS Products!

Features

• 8-Layer High-Current Density Board
• High-Voltage, High-Power Design
• Optimized Thermal Dissipation
• Integrated TVS Protection
• AM32 Firmware

Specifications

• Protocol: Bi-directional Dshot (300/600), KISS ESC Telemetry
• Propellers: Up to 15" (over 7" requires good airflow)
• Rated Current: 70A (60 seconds), 90A (40 seconds)
• Weight: 19g (excluding cable and capacitors)
• ESC Software: AlkaMotors32 (AM32)
• ESC Target: AM32_TBS_12S_F421
• Peak Current: 120A (30 seconds)
• Mounting: See DXF drawing
• Size: 57.75mm x 29mm
• ESC Current Port: Yes
• Input: 3-12S LiPo
• BEC: No

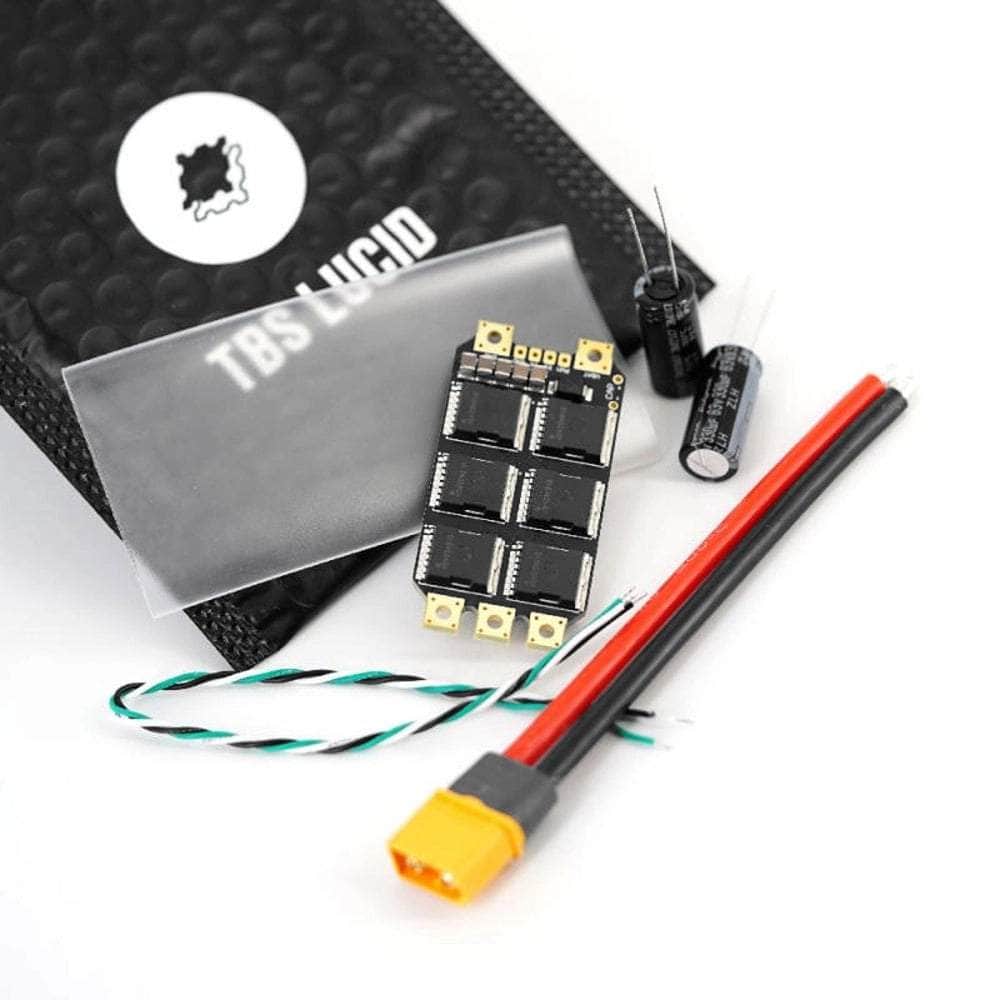

Includes

• 1x 3-color wire for PWM or Serial (D-Shot, CRSF)
• 1x TBS Lucid 90A 3-12S AM32 ESC
• 2x 330uF 12S low-ESR Capacitor
• 1x shrink tube (transparent)
• 1x XT60 12 AWG wire
