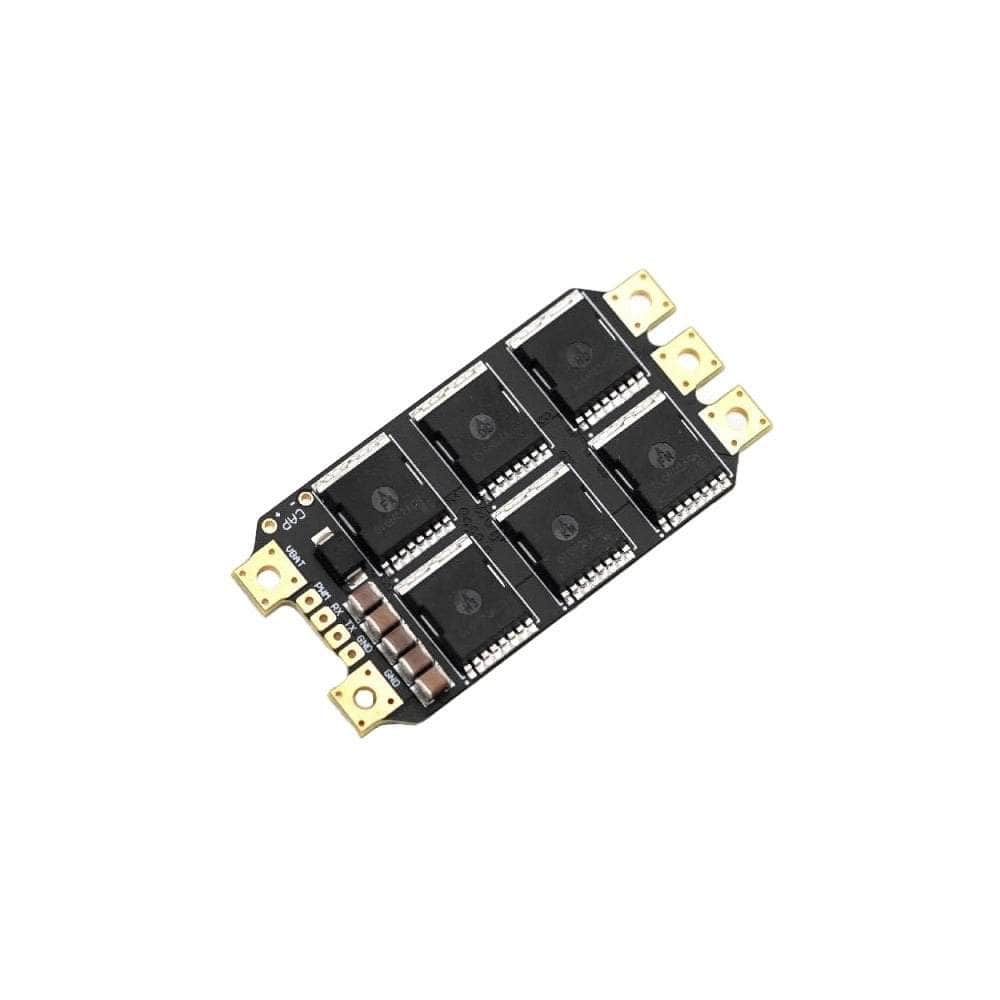

TBS Lucid 90A 3-12S AM32 ESC - NDAA

Description

The NDAA Version of the TBS Lucid 12S ESC is built for high-voltage, high-power applications where reliability is non-negotiable. Featuring an 8-layer high current density board with exceptional heat resistance, this ESC can handle the rigors of intense flying while supporting heavy payloads. Integrated TVS protection safeguards against voltage spikes, giving you peace of mind in every flight. With a design focused on thermal dissipation—without the added weight of bulky heat sinks—the Lucid 12S strikes the perfect balance between power and efficiency. Developed in close collaboration with AM32, it pushes performance to the limit without breaking the bank. NDAA-Compliant for added security and compatibility.

Make sure to check out our other ESCs and everything NDAA Compliant!

Features

• Advanced Thermal Dissipation
• AM32 Firmware Collaboration
• Built for Harsh Conditions
• High Voltage Powerhouse
• Lightweight & Powerful
• Robust 8-Layer PCB
• NDAA Compliant
• TVS Protection

Specifications

• Protocol: Bi-directional Dshot (300/600), KISS ESC Telemetry
• Propellers: Up to 15"; over 7" requires good airflow
• Rated Current: 70A (60 seconds), 90A (40 seconds)
• Weight: 19g (excluding cable and capacitors)
• ESC Software: AlkaMotors32 (AM32)
• ESC Target: AM32_TBS_12S_F421
• Peak Current: 120A (30 seconds)
• Size: 57.75mm x 29mm
• NDAA-Compliant: Yes
• ESC Current Port: Yes
• Input: 3-12S LiPo
• BEC: No

Links

• AM32 Online Configurator
• AM32 Firmware

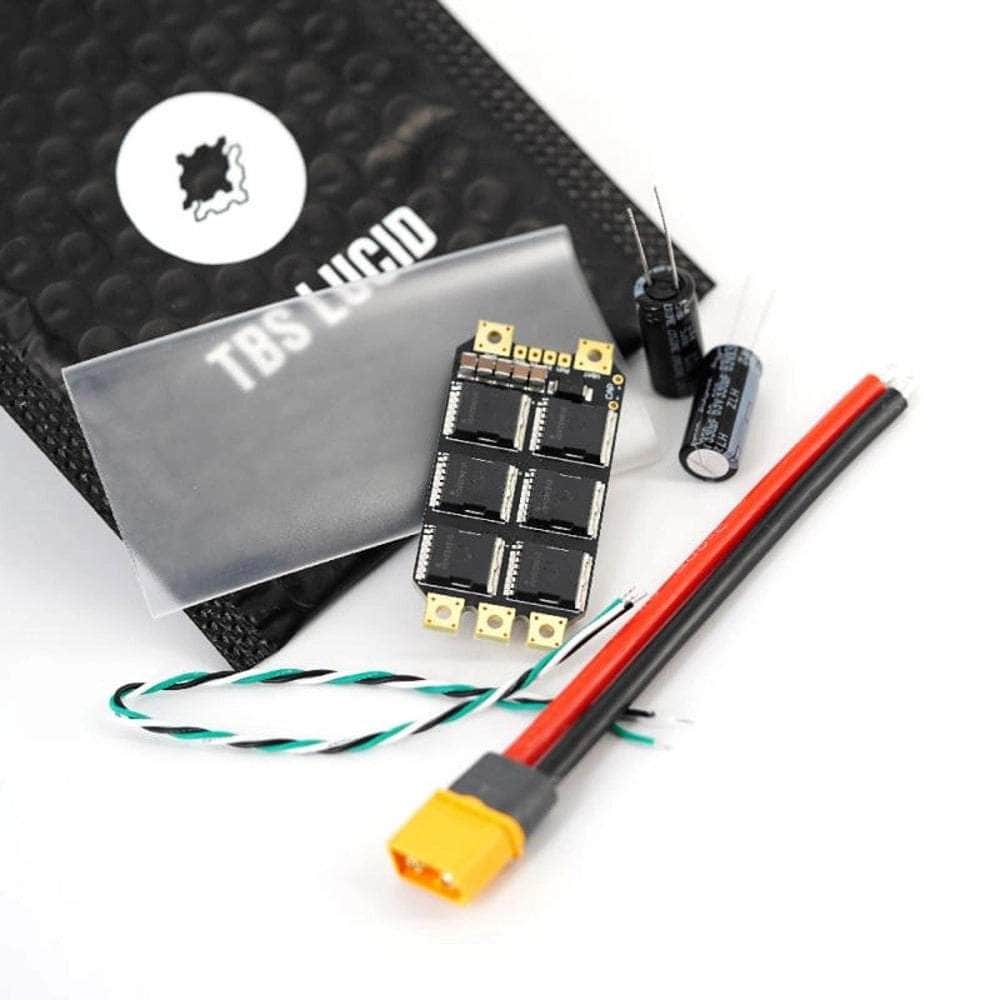

Includes

• 1x 3-color wire for PWM or Serial (D-Shot, CRSF)
• 1x TBS Lucid 90A 3-12S AM32 ESC - NDAA
• 2x 330uF 12S low-ESR Capacitor
• 1x shrink tube (transparent)
• 1x XT60 12 AWG wire
