Description

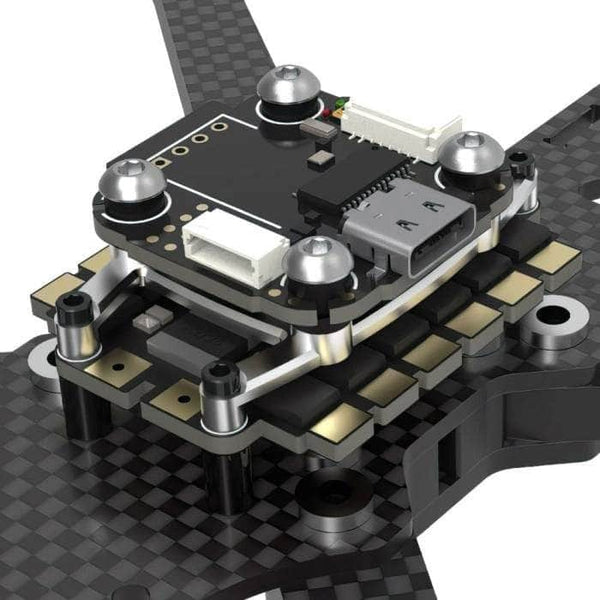

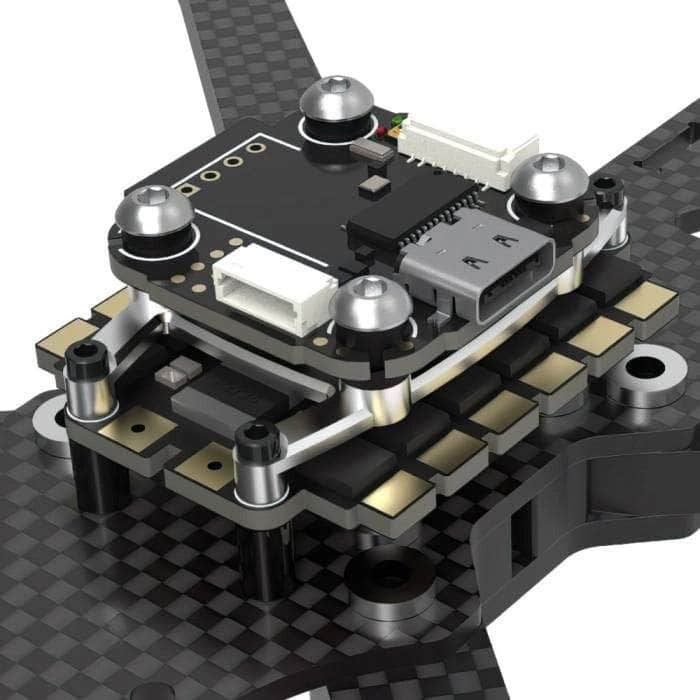

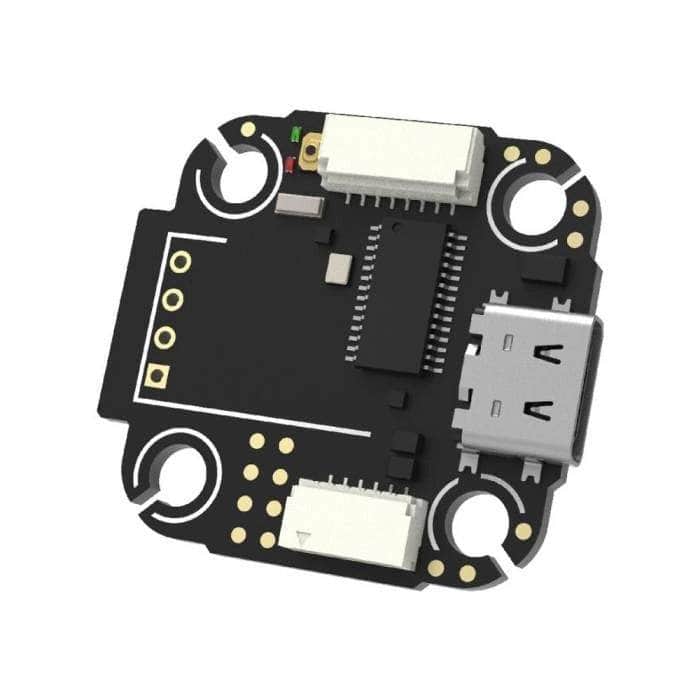

The TBS Lucid Pro F4 Mini Flight Controller is the latest in product engineering at TBS. There are plug-and-play connectors for the DJI O3 digital system and 4-in-1 ESCs. The solder pads are laid out for convenient connection to most electronics and will fit with your favorite frame.

Check out all our 20x20 FCs and the rest of out TBS Products!

Features

• Built for racing and freestyle

• Plug-and-Play Connectivity

• User-Friendly Design

• Supports 4-in-1 ESCs

• Versatile Application

• High Compatibility

Specifications

• UARTs: 6 (UART1/UART3/UART4/UART5/UART7/UART8)

• Motors: 4 motors, with telemetry and current sensor

• MCU: AT32F435RMT7, 288MHz

• Mounting: 20mm x 20mm

• BEC: 9V, 2.5A; 5V, 2A

• Size: 31mmx29mm

• Gyro: MPU-6000

• OSD: AT7456E

• Weight: 4.51g

• Blackbox: 8M

• Input: 3S-6S

Includes

• 1x TBS Lucid Pro F4 Mini 20x20 Flight Controller
• 1x FC-to-ESC cable (plug & play)

• 1x DJI O3 cable (plug & play)

• 1x Hardware Set
