Description

Carefully crafted & designed by Team BlackSheep, the TBS Mad Lifter CM4530 IPE V1 5384 Motor - 380KV is perfect for your Cinelifter. The CM Series is the highest dust level motor and the best heat dissipation among FPV motors, specially designed for film shooting work.

Check out the rest of out TBS Products and our entire selection of motors!

Features

• Two ultra-thin stainless steel dust filters inside the stator
• The split exhaust blade is added inside the rotor
• Team BlackSheep heritage - High quality materials for durability and performance
• Ultimate heat dissipation

Specifications

• Number of pole pairs: 7
• Stator: Anticorrosive
• Varnished wire Degree: 220°C
• Motor Size: D:53 x 84.7 mm
• Motor Balance: 180°C
• Propeller Mounting Holes: M6 Nut
• Cable Length: 750 mm 14# Awg silicone
• Shaft Diameter: IN: 6 mm
• Motor Mounting Holes: D:30 M4 x 4
• Bearing: 606 ZZ x 3
• Disruptive test: 500V

Includes

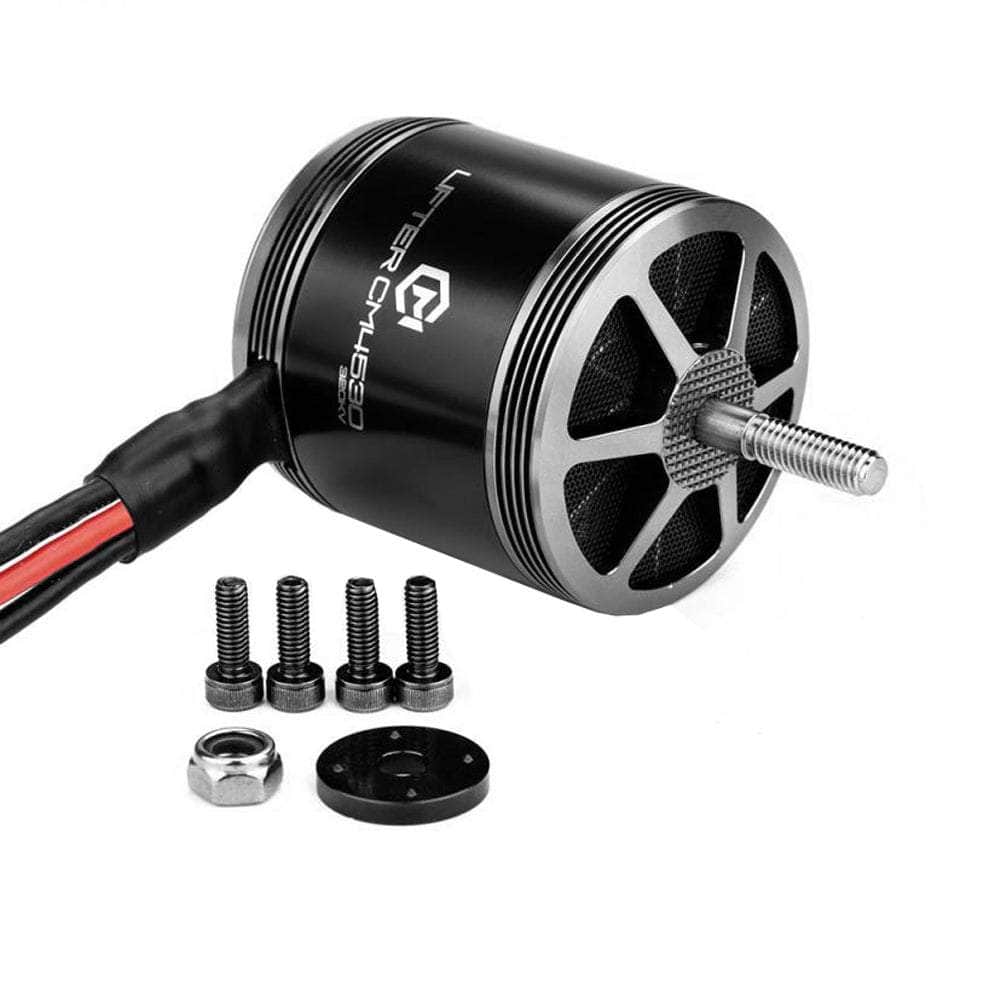

• 1x TBS Mad Lifter CM4530 IPE V1 5384 Motor - 380KV
• 4x M4 Socket Head Hex Screws
• 1x M6 Nylon Insert locking Prop Nut
