TBS Multi Protocol Module (MPM)

TBS Multi Protocol Module (MPM)

$71.99
$71.99
Add To Wishlist
View full details

Details

Description

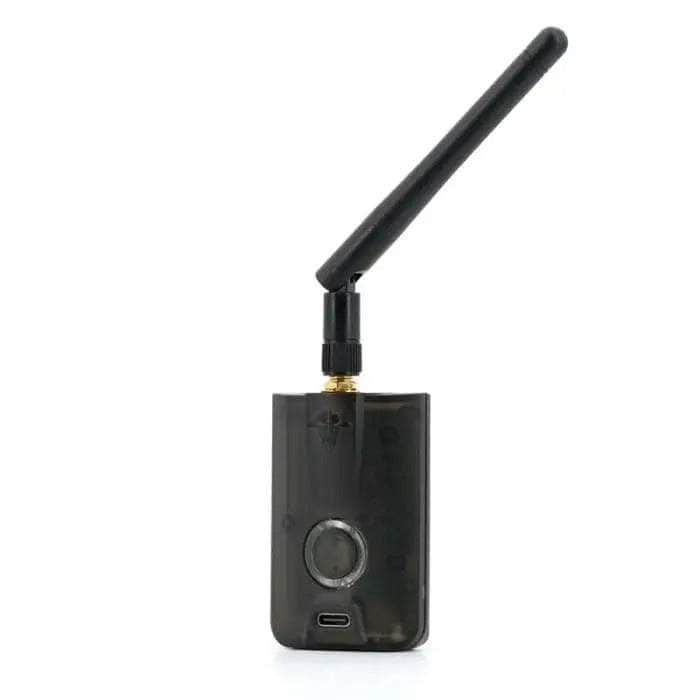

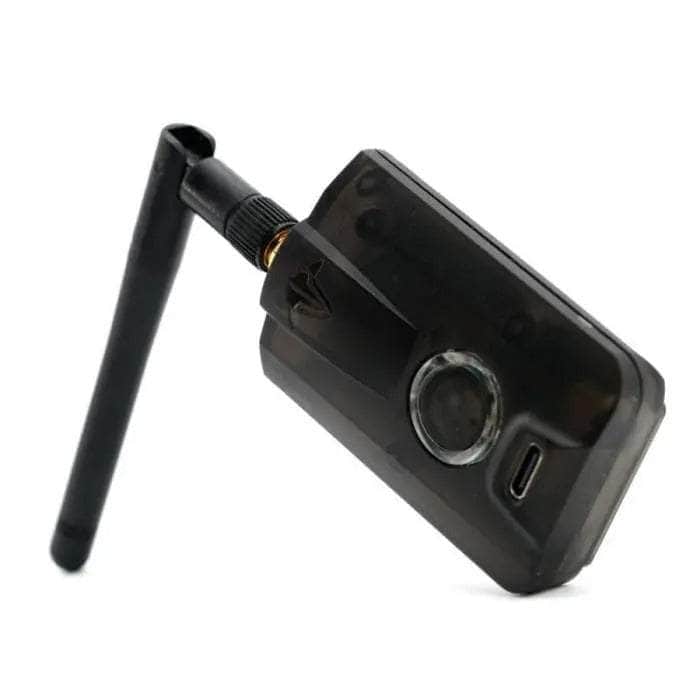

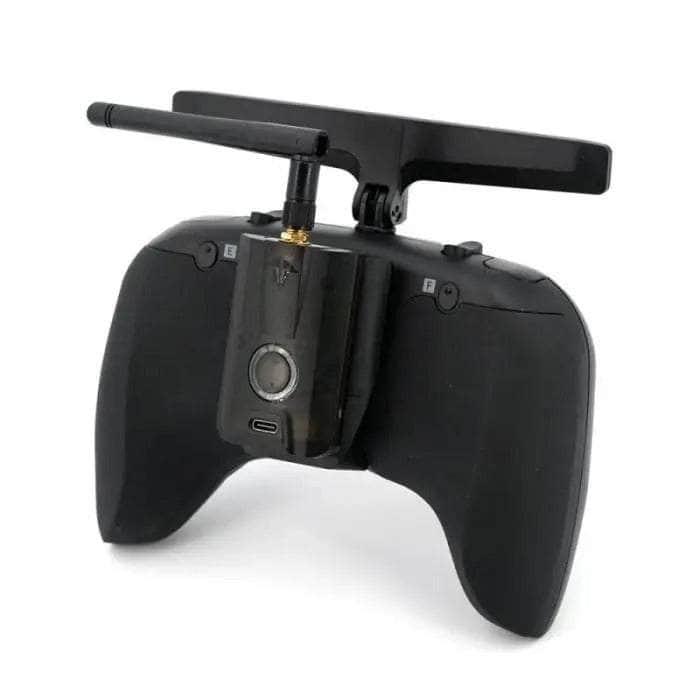

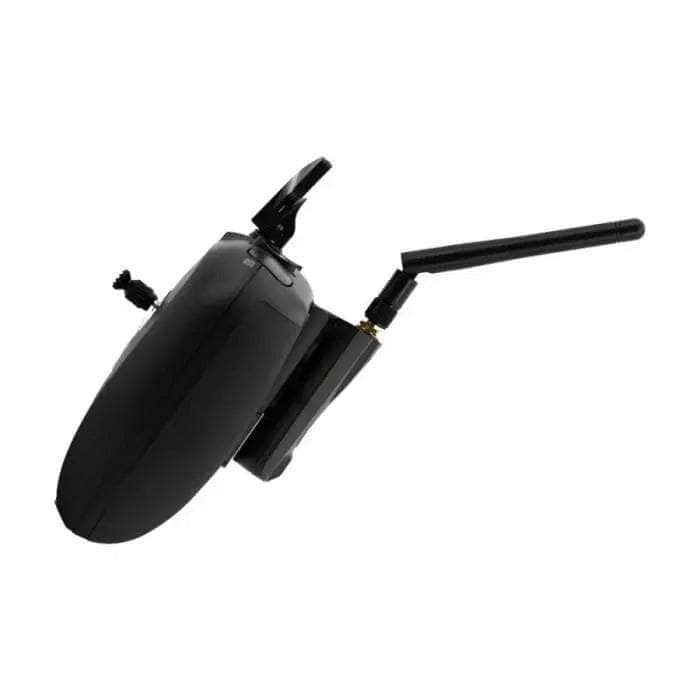

The TBS Multi-Protocol Module (MPM) Transmitter Module, compatible with OpenTX / FreedomTX for TBS Tango 2, and X-Lite. Fly four of the most popular RF chipsets all with one module!

Check out the rest of out TBS Products and our RC Transmitters!

Features

The TBS MPM, designed in collaboration with RadioMaster, features the four main RF chipsets (CC2500, NRF24L01, A7105, and CYRF6936) all integrated into a single product. Thanks to OpenSource developers, compatibility with the most common R/C protocols is provided through a single module, powered by OpenTX / FreedomTX. With an integrated RF amplifier, the module provides a competitive range.

Specifications

  • Input voltage: 6-9v
  • Current: ~100mA
  • Operating frequency: 2.4GHz ISM band
  • RF power: +20DBM (100mW)
  • Main Chipset: STM32
  • Opensource Repo: Github
  • Model compatibility: Alphabetical List (external)
  • Firmware updatable via USB-C port

Includes

  • 1x TBS Multi Protocol Module (MPM)

More Info

  • SKU: 14840
  • Barcode: 766234652162


Overall rating: 4.894737 / 5 from 19 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Great module. Get a better antenna.

"Excellent product. Drastic improvement when using a high gain antenna though."

— Niklas M. (5/5)

Great module

"Very easy to use and range is great."

— Jason H. (5/5)

Tbs mpm

"This module works with both d8 and dsmx for sure its and easy install and looks great. Would recommend, it offers every protocol you can think of."

— Reid P. (5/5)

Multi module TBS

"Using with tango2. Easy install, nice looking. Binding with frsky without problem. Useful module to fly your tinywoop with tango. Price is a little higher than it can be, but I didn't find any alternative."

— Andrii P. (4/5)

High Quality MPM

"High quality multi protocol module, which updates and binds to models easily. It does what it says. Negative point is the USB-C which does not grab the cabble to well, but it is not needed. Downside for me, it would not fit my Taranis X9 lite right out of the box. I had to swap the back plate to make it fit my radio. (Leaves me at the moment with a not usable Crossfire module) Make sure it will fit your radio before purchase"

— Maik W. (4/5)

Easy install. Module looks great

"Easy install. Module looks great with the Tango 2 and module adapter. Delivery service time is acceptable considering shipping to half way across the world (about 18 days) on Economy."

— Azreen A. (5/5)

Excellent little module. Easy to

"Excellent little module. Easy to install and get working. An absolute must to have if you still have other quads without crossfire."

— Alan H. (5/5)

The only place to shop..

"Works great easy install"

— Dan E. (5/5)

Easy to bind!

"Bound to several of my older modules, plus a new mini that I got as a gift, really easy to setup and use!"

— Justin R. (5/5)

Works perfectly and as expected.

"Works perfectly and as expected. The guys at Getfpv are no slackers! They get stuff out quick!!! Thanks again!"

— Nicholas S. (5/5)

Q&A

Can I use this on my Radiomaster ts16 edge tx
I dont think so, i think it will be too small. This is a micro module for smaller radios like tango 2
Do i need any other parts but the module to attach it to attach it to a tbs tango 2? Also, will crossfire work when the module is attached or do i have to remove it first?
You need the module bay adapter to install the module. The module will shut off when you select a model with crossfire and turn on if you select a none crossfire model. Once you bind everything and create your separate models and works flawlessly( at least in my experience.
Will this work in an FrSky x-lite s? I have tried the XJT lite module to use with the Radiomaster R84 receivers with no luck. I just would like to actually use my new transmitter for something other than a paperweight.
I use it with the X-Lite Pro so very likely.
Is there a way to adapt the TBS MPM to the bay on the TBS Mambo Tx?
No. This is a mini sized MPM. You need one that fits a standard sized JR Bay.
Will this work with dsmx?
I have a Betaflight Twig 3XL with an DSMX RX, and It works just fine! No issues!
What are are the protocols this works with?
FrSky and FlySky I believe.
