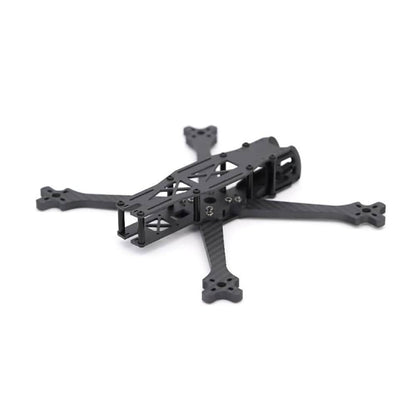

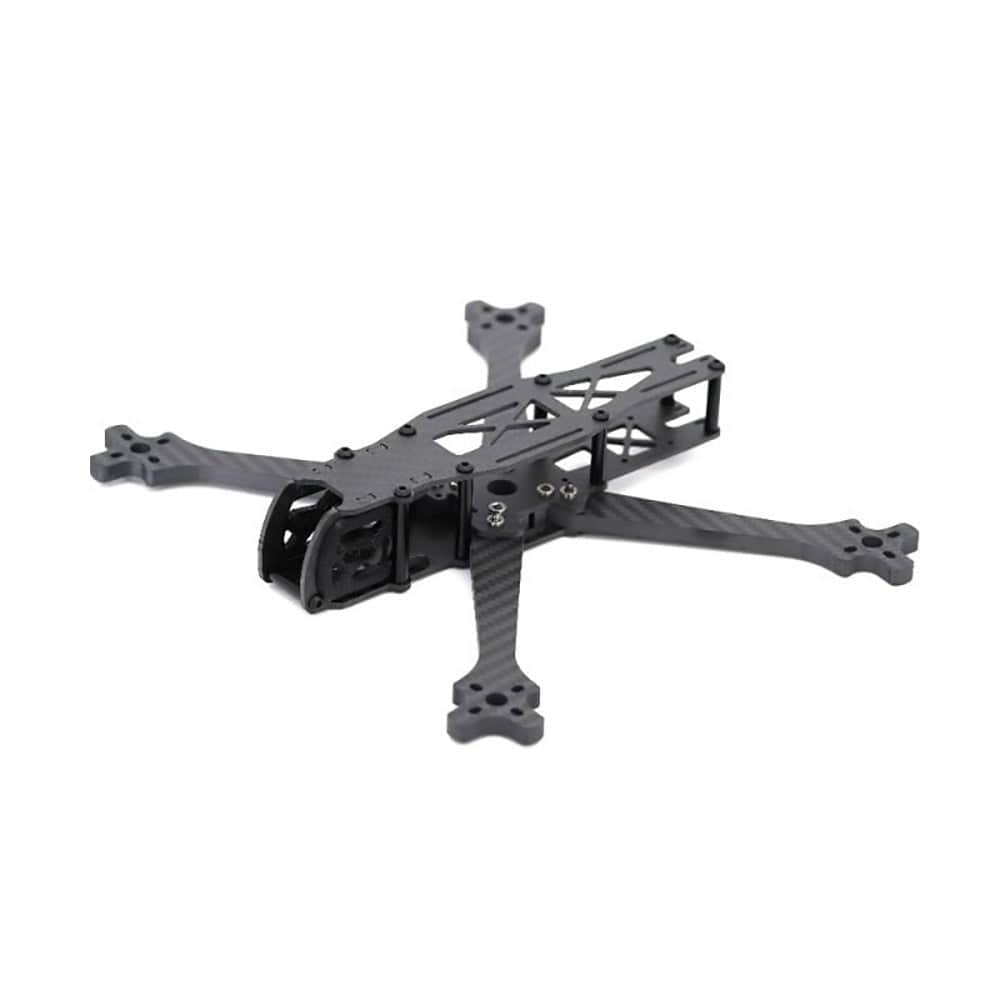

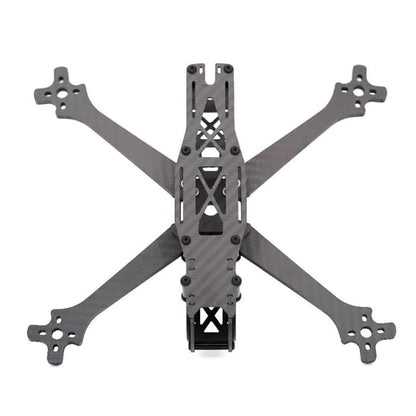

The TBS Source One V6 5" Frame Kit is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for lightweight flight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.

Check out all our TBS Products or the rest of our 5" Frames.

SOURCE ONE PROJECT

The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them to compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

Features

• Open Source - Ultimate Compatibility
• Reinforced 6mm Arms
• Wide-X configuration
• Fits most standard camera & vtx options

Specifications

• Wheelbase 5": 240mm
• Top Plate: 2mm
• Middle Plate: 2mm
• Bottom Plate: 2.5mm
• Arms Spacer: 6mm
• Camera plate: 2mm
• Standoff height: 30 and 22mm
• Arm thickness 5": 6mm
• Stack Mounting: 30.5 × 30.5mm & 20 x 20mm
• Weight 5": 136.5g

Links

Includes

• 1x TBS Source One V6 5" Frame Kit

  • 1x Top plate
  • 1x Middle plate
  • 1x Bottom plate
  • 2x Brace
  • 2x Camera plate
  • 4x Arms
  • 1x Arms spacer
• 1x Hardware set

  • 20x M3x10 allen screw
  • 4x M3x12 allen screw
  • 4x M3x14 allen screw
  • 4x OD 5mm M3 30mm standoff
  • 4x OD 5mm M3 22mm standoff
  • 1x OD 5mm M3 20mm standoff
  • 8x M3 press insert nut

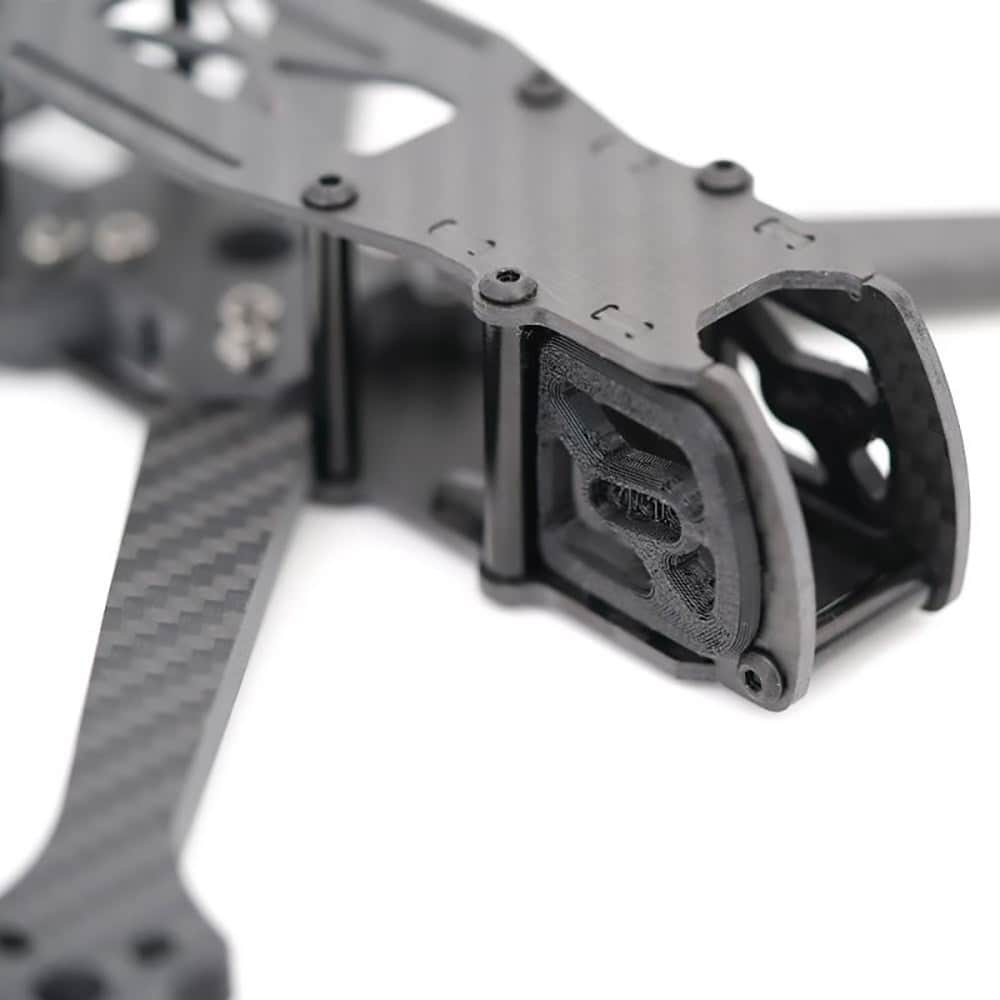

  • TPU 3D Printed Camera Mount
