Description

The next generation of crossfire with 2.4GHz technology. Smaller and faster than ever with diversity antennas.

Check out the rest of out TBS Products and our RC Transmitters!

Features

• 250Hz: Fastest available radio and telemetry link!

• Next-generation 2.4GHz technology meets robust Crossfire radio engine

• 3ms end to end latency

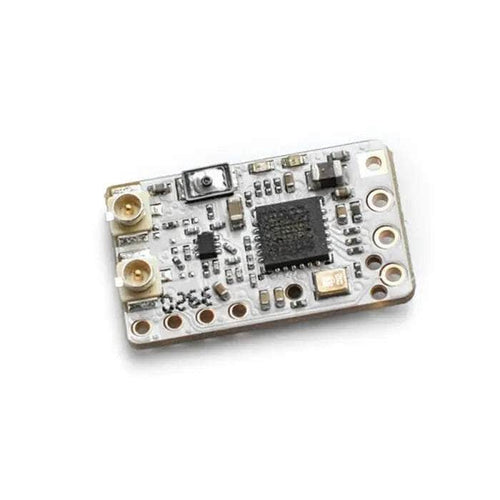

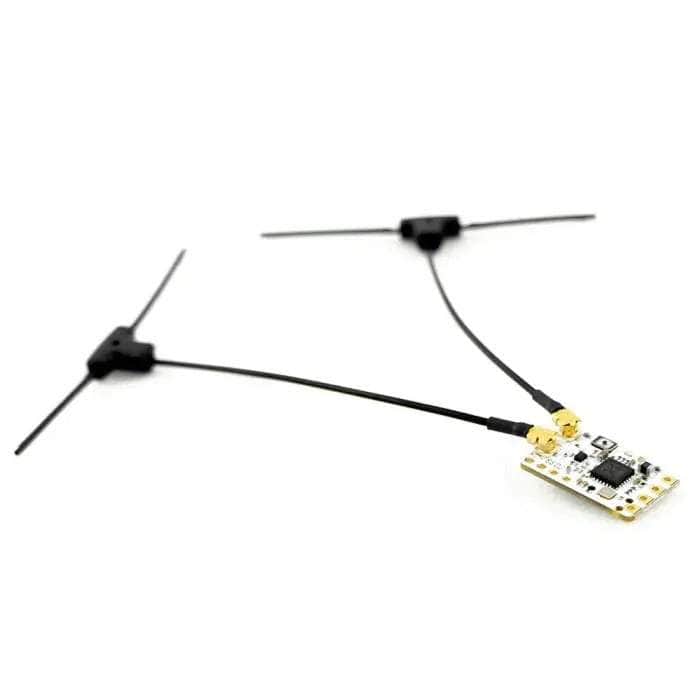

• Nano-sized receiver with antenna diversity

• 15mi+/25km+ range

• For drones, planes, helicopters, cars, and boats

Specifications

• Antenna ports: 2x u.FL / IPEX (diversity)

• Package contents: 1x TBS Tracer Nano RX, 2x Immortal-T, silicone cables

• Protocols: 2x CRSF, SBUS, PPM, 6x PWM, SmartAudio 2.0 / 2.1 (VTx Control)

• Weight: 0.5g (receiver only)

• Size: 11mm x 18mm

TBS Tracer User Manual

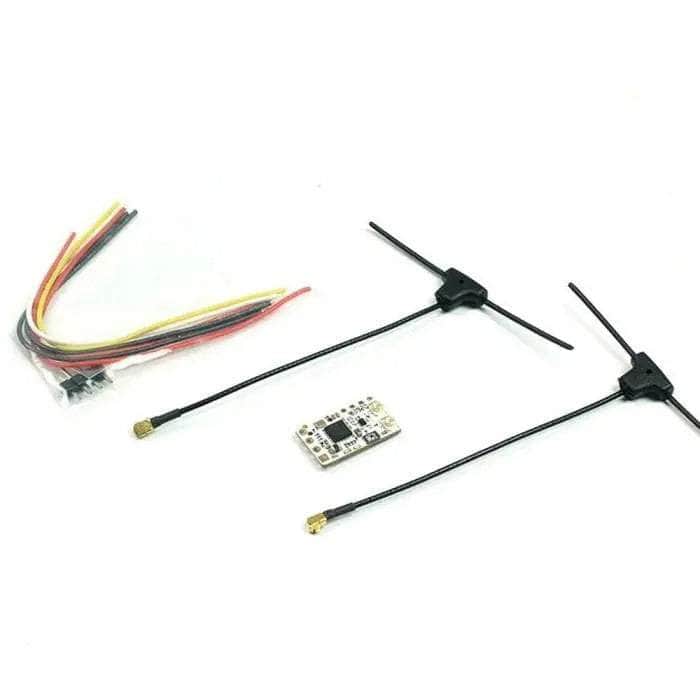

Includes

• 1x TBS Tracer Nano RX

• 2x Immortal-T

• 1x silicone cable set

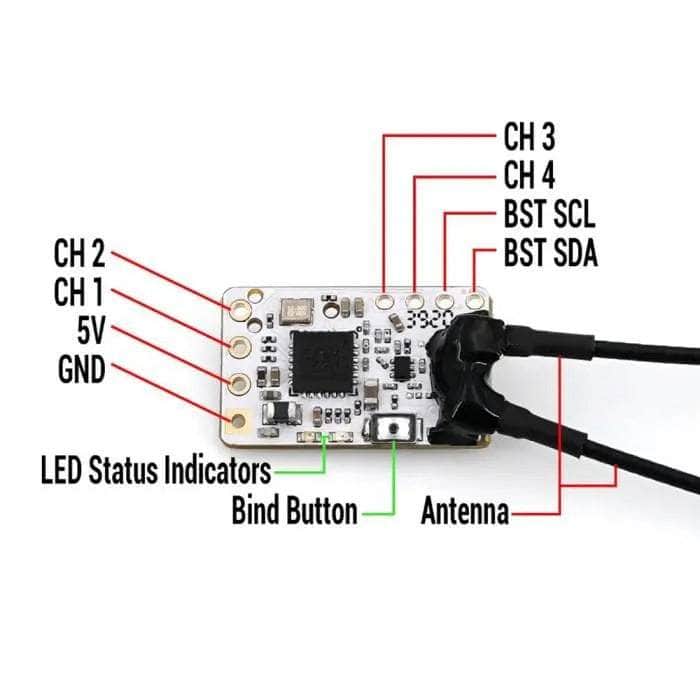

Wiring Diagram
