Description

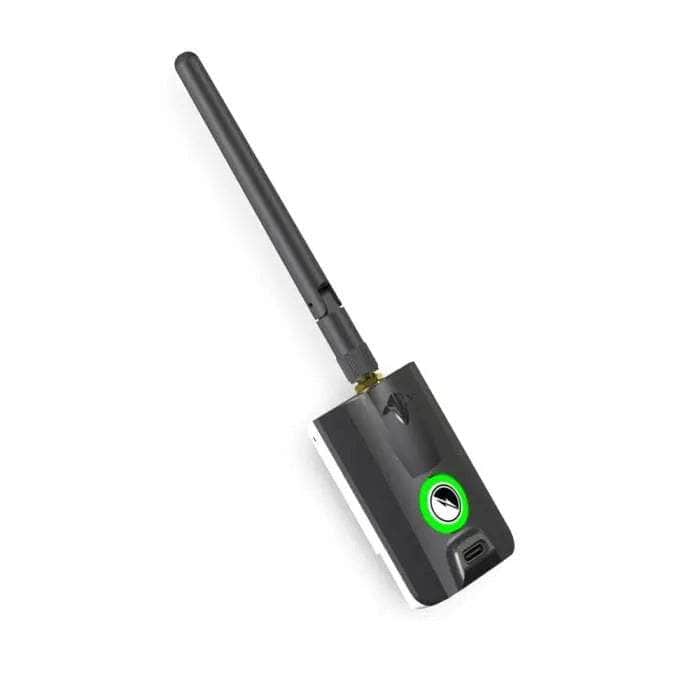

The Tracer Nano TX by TBS is the next generation of Crossfire technology!

Tracer technology utilizes a 250Hz radio link sent through 2.4GHz technology which provides 3ms end to end latency - giving you the fastest radio link out there. Get range for days, faster connection, and best results with TBS Tracer.

Check out the rest of out TBS Products and our RC Transmitters!

Features

• 250Hz: Fastest available radio and telemetry link

• Brand new 2.4GHz technology not found in any other radio link

• 3ms end to end latency

• Crossfire engine for ultimate compatibility and functionality

• "JR" and "LITE" form factor transmitters

• Nano-sized receiver with antenna diversity

• 15mi+/25km+ range

• For drones, planes, helicopters, cars, and boats

Specifications

• Latency & Refresh Rate: 3ms, 250Hz

• Output power: 25mW / 100mW

• Frequency Bands: 2.4GHz ISM

• Input Voltage: 5V - 9V

• Connector: USB-C

• Power consumption: 1.1W (@10mW) - 2W (@100mW)

• Dimensions: 65 x 48 x 22 mm (JR module size)

• Radio Compatibility: Lite module bay (e.g. TBS Tango 2, Taranis X-Lite, X9 Lite),
• OpenTX V2.1+. The TBS Tracer Nano TX is suggested for use in Futaba and Spektrum remotes that do not have a JR-module bay
  * output power modes may not be available due to local regulation limitations

Includes

• 1x TBS Tracer Nano TX
