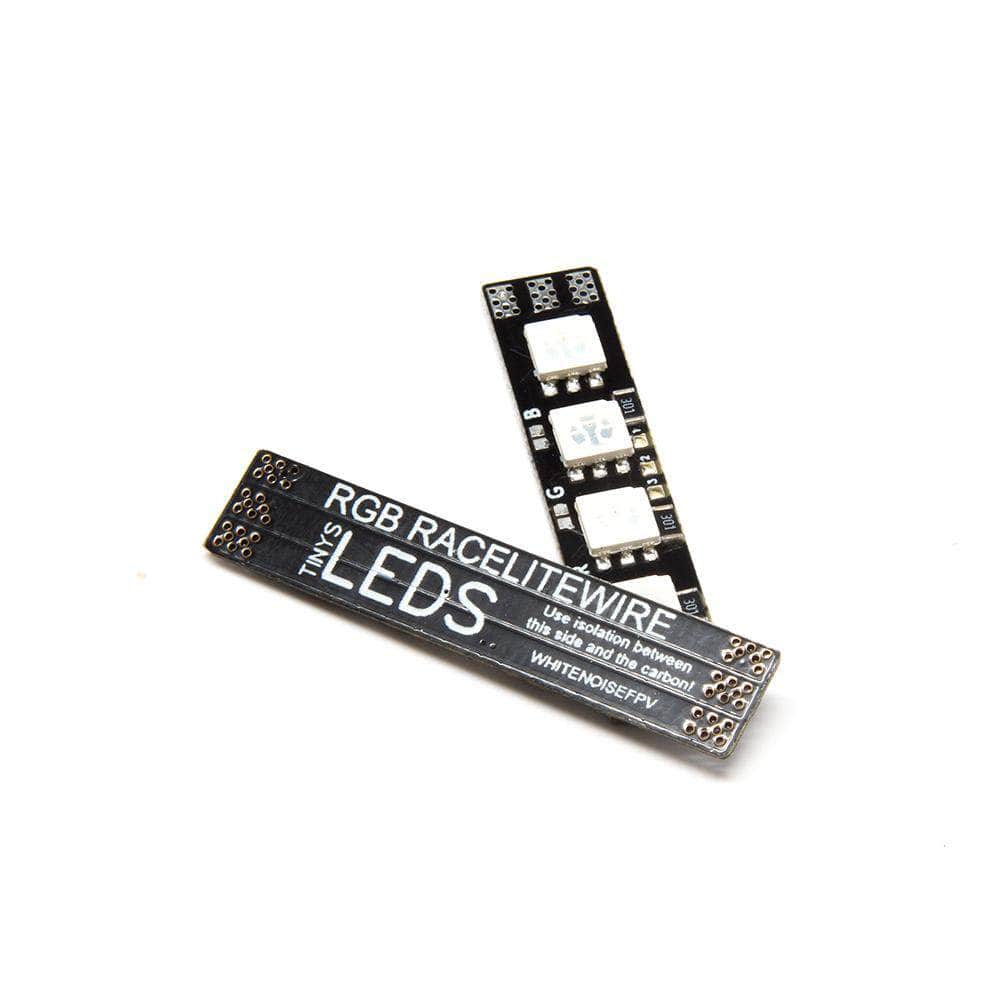

TinysLEDs RGB RaceLiteWire LEDs (1PC)
Tiny's RaceLiteWires are racewires with the addition of configurable 5050 size RGB LEDs that get brighter the harder you send it!
Also available in Mini size!

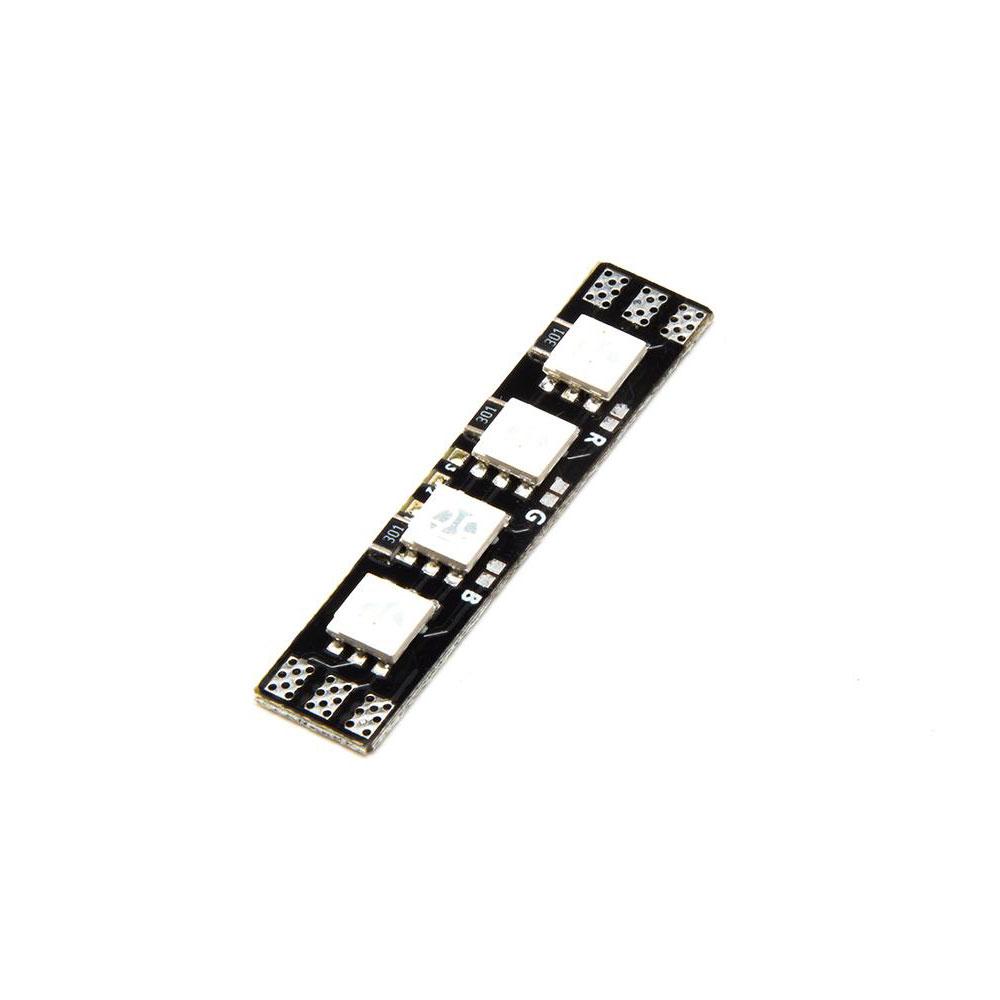

- 4x 5050 RGB LEDs integrated into Racewire.
- Racelites brightness changes with throttle input. These are not constant on full brightness. They illuminate only when motors are spinning.
- These are integrated Racewire and Racelites.
- These can be installed in any direction.
- There are pads to Allow you to wire up additional Racelites to the bottom of your Arms. Use the pads labeled "1,2,3" and wire them to the same pads on the second Racelite. You must insulate the bottom of the boards.
- Dimensions:8 x 40 mm
- Voltage: 3-6s
- 1x TinysLEDs RGB RaceLiteWire LED
- Not Soldered = -
- Soldered = |
Blue / Red / Green
- Yellow - | |
- White | | |
- Cyan. | - |
- Green - - |
- Blue | - -
- Red - | -
- Pink/Purple | | -
Check out how to use them HERE
